Parts for T32421 - 14" Bandsaw Blade Guide Ceramic Upgrade Kit

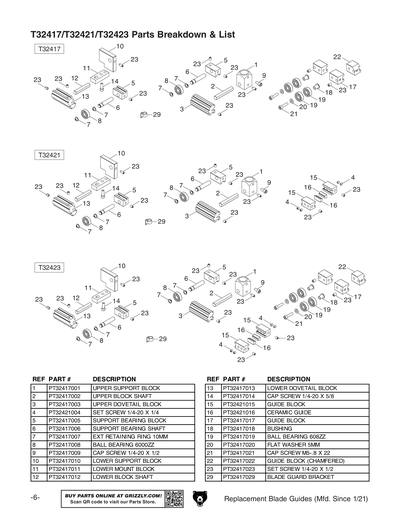

Part Diagram for T32421
Part Diagram for T32421
Part Diagram for T32421
Part Diagram for T32421

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
UPPER SUPPORT BLOCK
Price
N/A
2
UPPER BLOCK SHAFT
Price
N/A
3
UPPER DOVETAIL BLOCK
Price
N/A
4
SET SCREW 1/4-20 X 1/4
Price
N/A
5
SUPPORT BEARING BLOCK
Price
N/A
6
SUPPORT BEARING SHAFT
Price
N/A
7
EXT RETAINING RING 10MM
Price
N/A
8
BALL BEARING 6000ZZ
Price
N/A
9
CAP SCREW 1/4-20 X 1/2
Price
N/A
10
LOWER SUPPORT BLOCK
Price
N/A
11
LOWER MOUNT BLOCK
Price
N/A
12
LOWER BLOCK SHAFT
Price
N/A
13
LOWER DOVETAIL BLOCK
Price
N/A
14
CAP SCREW 1/4-20 X 5/8
Price
N/A
15
Price
$32.35
16
Price
$19.55
23
SET SCREW 1/4-20 X 1/2
Price
N/A
29
BLADE GUARD BRACKET
Price
N/A
MAN
MANUAL T32417-30 MFD-01.21+ V1.09.21
Price
N/A
