Parts for T32713 - Negative Pressure Gauge Kit

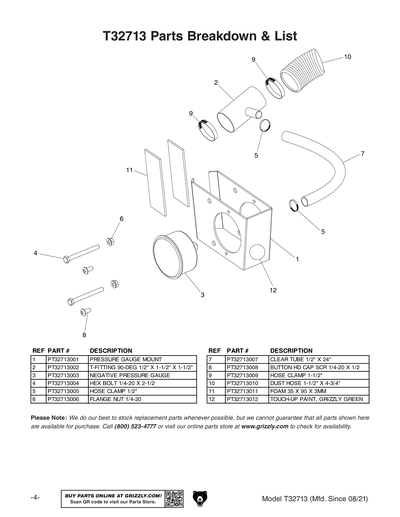

Part Diagram for T32713
Part Diagram for T32713

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$20.55
2
T-FITTING 90-DEG 1/2" X 1-1/2" X 1-1/2"
Price
$12.10
3
NEGATIVE PRESSURE GAUGE
Price
$137.40
4
HEX BOLT 1/4-20 X 2-1/2
Price
N/A
5
Price
$3.40
6
FLANGE NUT 1/4-20
Price
N/A
7
Price
$5.50
8
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
9
HOSE CLAMP 1-1/2"
Price
N/A
10
DUST HOSE 1-1/2" X 4-3/4"
Price
$3.65
11
Price
$1.85
12
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32713 MFD-08.21+ V1.08.21
Price
$2.75
