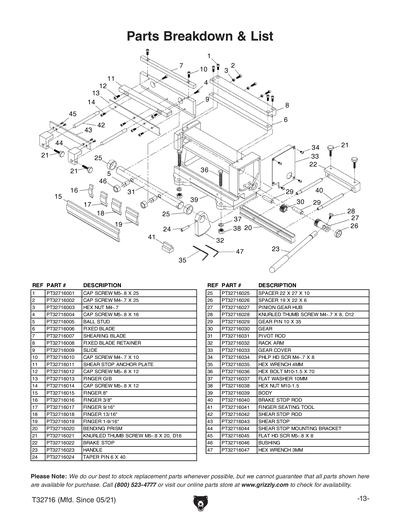

Parts for T32716 8" Benchtop Metal Shear/Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M5-.8 X 25
Price
N/A
2
CAP SCREW M4-.7 X 25
Price
N/A
3
Now: PN04M
HEX NUT M4-.7
Price
N/A
4
CAP SCREW M5-.8 X 16
Price
N/A
5
BALL STUD
6
FIXED BLADE
7
SHEARING BLADE
8
FIXED BLADE RETAINER
9
SLIDE
10
CAP SCREW M4-.7 X 10
Price
N/A
11
SHEAR STOP ANCHOR PLATE
12
CAP SCREW M5-.8 X 12
Price
N/A
13
FINGER GIB
14
CAP SCREW M5-.8 X 12
Price
N/A
15
FINGER 8"
16
FINGER 3/8"
17
FINGER 9/16"
18
FINGER 13/16"
19
FINGER 1-9/16"
20
BENDING PRISM
21
KNURLED THUMB SCREW M5-.8 X 20, D16
22
BRAKE STOP
23
HANDLE
24
TAPER PIN 6 X 40
25
SPACER 22 X 27 X 10
26
SPACER 19 X 22 X 6
27
PINION GEAR HUB
28
KNURLED THUMB SCREW M4-.7 X 8, D12
29
GEAR PIN 10 X 35
30
GEAR
31
PIVOT ROD
32
RACK ARM
33
GEAR COVER
34
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
35
HEX WRENCH 4MM
Price
N/A
36
HEX BOLT M10-1.5 X 70
Price
N/A
37
Now: PW04M
FLAT WASHER 10MM
Price
N/A
38
Now: PN02M
HEX NUT M10-1.5
Price
N/A
39
BODY
40
BRAKE STOP ROD
41
FINGER SEATING TOOL
42
SHEAR STOP ROD
43
SHEAR STOP
44
SHEAR STOP MOUNTING BRACKET
45
FLAT HD SCR M5-.8 X 8
Price
N/A
46
BUSHING
47
HEX WRENCH 3MM
Price
N/A

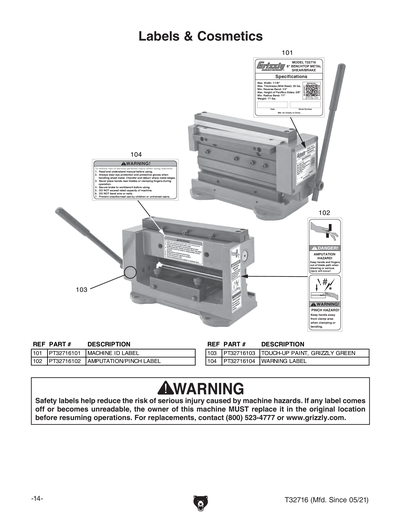

101
MACHINE ID LABEL
102
AMPUTATION/PINCH LABEL
103
N/S GRIZZLY GREEN G1023S
Price
N/A
104
WARNING LABEL
MAN
MANUAL T32716 MFD-05.21+ V1.05.21
