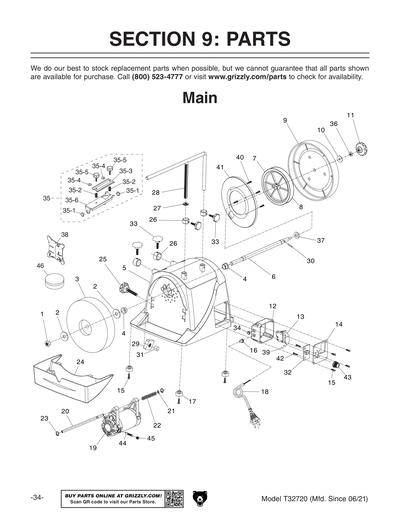

Parts for T32720 10" Variable-Speed Wet Sharpener

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

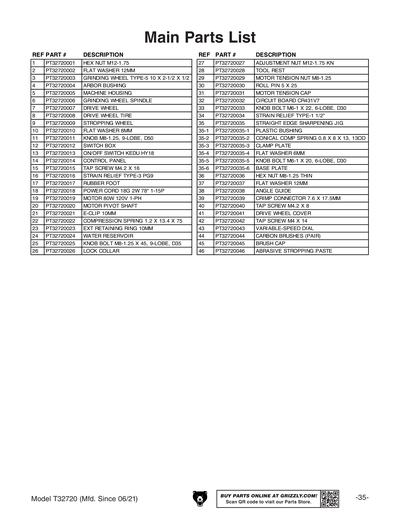

1
Now: PN16M
HEX NUT M12-1.75 LH
Price
N/A
2
FENDER WASHER 12MM
Price
N/A
3
Replacement Grinding Wheel for T32720
Price
N/A
4
ARBOR BUSHING
5
MACHINE HOUSING
6
GRINDING WHEEL SPINDLE
7
DRIVE WHEEL
8
DRIVE WHEEL TIRE
9
Replacement Stropping Wheel for T32720
Price
N/A
10
Now: PW01M
FLAT WASHER 8MM
Price
N/A
11
KNOB M8-1.25, 9-LOBE, D50
12
SWITCH BOX
13
Now: G8988
Safety Paddle Switch
Price
N/A
14
CONTROL PANEL
15
TAP SCREW M4.2 X 16
16
STRAIN RELIEF TYPE-3 PG9
17
RUBBER FOOT
18
POWER CORD 18G 2W 78" 1-15P
19
MOTOR 80W 120V 1-PH
20
MOTOR PIVOT SHAFT
21
E-CLIP 10MM
Price
N/A
22
COMPRESSION SPRING 1.2 X 13.4 X 75
23
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
24
WATER RESERVOIR
25
KNOB BOLT M8-1.25 X 45, 9-LOBE, D35
26
LOCK COLLAR
27
ADJUSTMENT NUT M12-1.75 KN
28
TOOL REST
29
MOTOR TENSION NUT M8-1.25
30
ROLL PIN 5 X 25
Price
N/A
31
MOTOR TENSION CAP
32
CIRCUIT BOARD CR431V7
33
KNOB BOLT M6-1 X 22, 6-LOBE, D30
34
STRAIN RELIEF TYPE-1 1/2"
35
Straight Edge Sharpening Jig
Price
N/A
35-1
PLASTIC BUSHING
35-2
CONICAL COMP SPRING 0.8 X 8 X 13, 13OD
35-3
CLAMP PLATE
35-4
Now: PW03M
FLAT WASHER 6MM
Price
N/A
35-5
KNOB BOLT M6-1 X 20, 6-LOBE, D30
35-6
BASE PLATE
36
Now: PN46M
HEX NUT M8-1.25 THIN
Price
N/A
37
Now: PW06M
FLAT WASHER 12MM
Price
N/A
38
ANGLE GUIDE
39
CRIMP CONNECTOR 7.6 X 17.5MM
40
TAP SCREW M4.2 X 8
41
DRIVE WHEEL COVER
42
TAP SCREW M4 X 14
Price
N/A
43
VARIABLE-SPEED DIAL
44
CARBON BRUSHES (PAIR)
45
BRUSH CAP
46
Honing Paste for Wet Sharpeners
Price
N/A

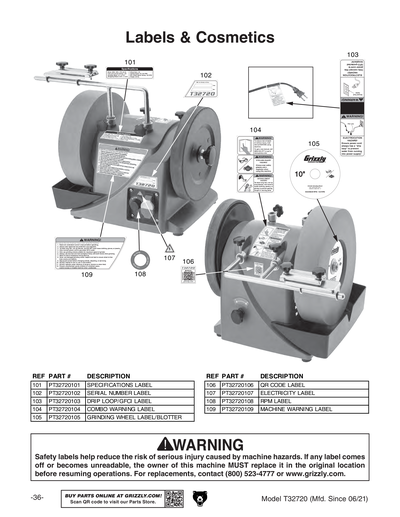

101
SPECIFICATIONS LABEL
102
SERIAL NUMBER LABEL
103
DRIP LOOP/GFCI LABEL
104
COMBO WARNING LABEL
105
GRINDING WHEEL LABEL/BLOTTER
106
QR CODE LABEL
107
ELECTRICITY 0.5W X 0.4H
Price
N/A
108
RPM LABEL
109
MACHINE WARNING LABEL
MAN
MANUAL T32720 MFD-06.21+ V1.02.23
