Parts for T32957 - 52" Sheet Metal Shear

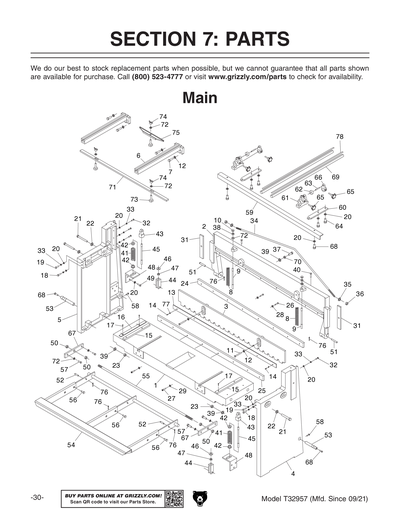

Part Diagram for T32957
Part Diagram for T32957
Part Diagram for T32957
Part Diagram for T32957
Part Diagram for T32957
Part Diagram for T32957

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

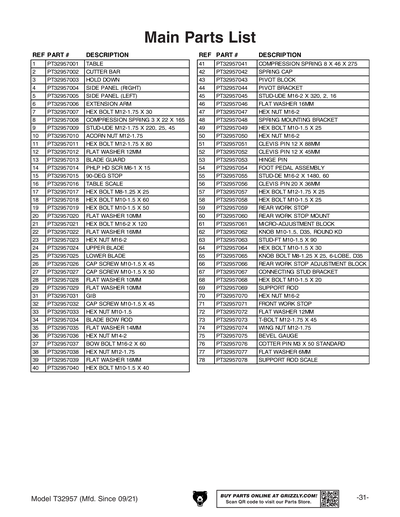

Ref #
Part #
Description
1
TABLE
Price
$1,225.50
2
CUTTER BAR
Price
$913.60
3
HOLD DOWN
Price
$249.85
4
SIDE PANEL (RIGHT)
Price
$575.00
5
SIDE PANEL (LEFT)
Price
$575.00
6
EXTENSION ARM
Price
$38.15
7
HEX BOLT M12-1.75 X 30
Price
N/A
8
COMPRESSION SPRING 3 X 22 X 165
Price
$13.70
9
STUD-UDE M12-1.75 X 220, 25, 45
Price
$3.65
10
*DISCD*HEX NUT 1/2-12 LH
Price
N/A
11
HEX BOLT M12-1.75 X 80
Price
N/A
12
FLAT WASHER 12MM
Price
N/A
13
BLADE GUARD
Price
$20.15
14
PHLP HD SCR M6-1 X 15
Price
$2.20
15
90-DEG STOP
Price
$12.95
16
TABLE SCALE
Price
$12.65
17
HEX BOLT M8-1.25 X 25
Price
N/A
18
HEX BOLT M10-1.5 X 60
Price
N/A
19
HEX BOLT M10-1.5 X 50
Price
N/A
20
FLAT WASHER 10MM
Price
N/A
21
HEX BOLT M16-2 X 120
Price
N/A
22
FLAT WASHER 16MM
Price
N/A
23
HEX NUT M16-2
Price
N/A
24
UPPER BLADE
Price
$325.65
25
LOWER BLADE
Price
$325.65
26
CAP SCREW M10-1.5 X 45
Price
N/A
27
CAP SCREW M10-1.5 X 50
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
29
FLAT WASHER 10MM
Price
N/A
31
GIB
Price
$8.35
32
CAP SCREW M10-1.5 X 45
Price
N/A
33
HEX NUT M10-1.5
Price
N/A
34
BLADE BOW ROD
Price
$16.20
35
FLAT WASHER 14MM
Price
N/A
36
HEX NUT M14-2
Price
N/A
37
BOW BOLT M16-2 X 60
Price
$3.25
38
HEX NUT M12-1.75
Price
N/A
39
FLAT WASHER 16MM
Price
N/A
40
HEX BOLT M10-1.5 X 40
Price
N/A
41
COMPRESSION SPRING 8 X 46 X 275
Price
$33.45
42
SPRING CAP
Price
$11.20
43
PIVOT BLOCK
Price
$15.85
44
PIVOT BRACKET
Price
$15.85
45
STUD-UDE M16-2 X 320, 2, 16
Price
$6.90
46
FLAT WASHER 16MM
Price
N/A
47
HEX NUT M16-2
Price
N/A
48
SPRING MOUNTING BRACKET
Price
$20.15
49
HEX BOLT M10-1.5 X 25
Price
N/A
50
HEX NUT M16-2
Price
N/A
51
CLEVIS PIN 12 X 88MM
Price
$4.70
52
CLEVIS PIN 12 X 45MM
Price
$3.65
53
HINGE PIN
Price
$11.90
54
FOOT PEDAL ASSEMBLY
Price
$294.40
55
STUD-DE M16-2 X 1480, 60
Price
$17.25
56
CLEVIS PIN 20 X 36MM
Price
$6.50
57
HEX BOLT M12-1.75 X 25
Price
N/A
58
HEX BOLT M10-1.5 X 25
Price
N/A
59
REAR WORK STOP
Price
$57.20
60
REAR WORK STOP MOUNT
Price
$14.40
61
MICRO-ADJUSTMENT BLOCK
Price
$32.40
62
KNOB M10-1.5, D35, ROUND KD
Price
$2.20
63
STUD-FT M10-1.5 X 90
Price
$10.10
64
HEX BOLT M10-1.5 X 30
Price
N/A
65
KNOB BOLT M8-1.25 X 25, 6-LOBE, D35
Price
$1.90
66
REAR WORK STOP ADJUSTMENT BLOCK
Price
$11.90
67
CONNECTING STUD BRACKET
Price
$10.10
68
HEX BOLT M10-1.5 X 20
Price
N/A
69
SUPPORT ROD
Price
$47.15
70
HEX NUT M16-2
Price
N/A
71
FRONT WORK STOP
Price
$21.95
72
FLAT WASHER 12MM
Price
N/A
73
T-BOLT M12-1.75 X 45
Price
$6.15
74
WING NUT M12-1.75
Price
$1.90
75
BEVEL GAUGE
Price
$19.45
76
COTTER PIN M3 X 50 STANDARD
Price
$1.90
77
FLAT WASHER 6MM
Price
N/A
78
SUPPORT ROD SCALE
Price
$2.60

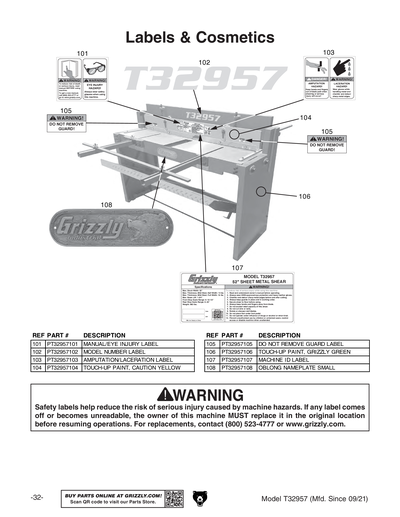

101
MANUAL/EYE INJURY LABEL
Price
$1.25
102
MODEL NUMBER LABEL
Price
$18.45
103
AMPUTATION/LACERATION LABEL
Price
$1.25
104
YELLOW REF G5772
Price
N/A
105
DO NOT REMOVE GUARD 2.1W X 1H
Price
N/A
106
N/S GRIZZLY GREEN G1023S
Price
N/A
107
MACHINE ID LABEL
Price
$18.45
108
Oblong Nameplate-Small
Price
N/A
MAN
MANUAL T32957 MFD-09.21+ V1.09.21
Price
$4.50
