Parts for T33150 - 3-Speed HEPA Hanging Air Filter

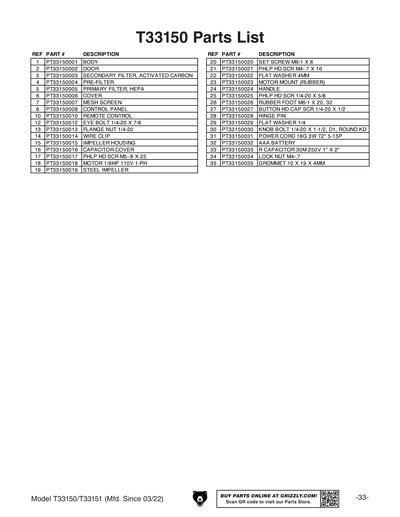

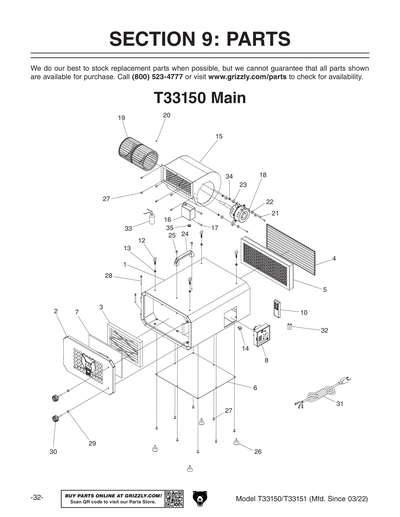

Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150
Part Diagram for T33150

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$543.40
2
Price
$122.30
3
Replacement Secondary Filter for T33150
Price
N/A
4
Replacement Pre-Filter for T33150
Price
N/A
5
Replacement HEPA Filter for T33150
Price
N/A
6
Price
$38.40
7
Price
$15.70
8
CONTROL PANEL (3-SPEED)
Price
$303.10
10
Replacement Remote Control for T33150 and T33151
Price
N/A
12
Price
$2.20
13
FLANGE NUT 1/4-20
Price
N/A
14
Price
$1.85
15
Price
$84.85
16
Price
$11.50
17
PHLP HD SCR M5-.8 X 25
Price
N/A
18
Price
$214.70
19
Price
$68.85
20
SET SCREW M6-1 X 8
Price
N/A
21
PHLP HD SCR M4-.7 X 16
Price
N/A
22
FLAT WASHER 4MM
Price
N/A
23
Price
$1.60
24
Price
$2.45
25
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
26
RUBBER FOOT M6-1 X 20, 32
Price
$2.20
27
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
28
Price
$1.85
29
FLAT WASHER 1/4
Price
N/A
30
KNOB BOLT 1/4-20 X 1-1/2, D1, ROUND KD
Price
$21.50
31
POWER CORD 18G 3W 72" 5-15P
Price
$26.60
32
Price
$11.85
33
R CAPACITOR 30M 250V 1" X 2"
Price
$11.50
34
LOCK NUT M4-.7
Price
N/A
35
Price
$1.60
101

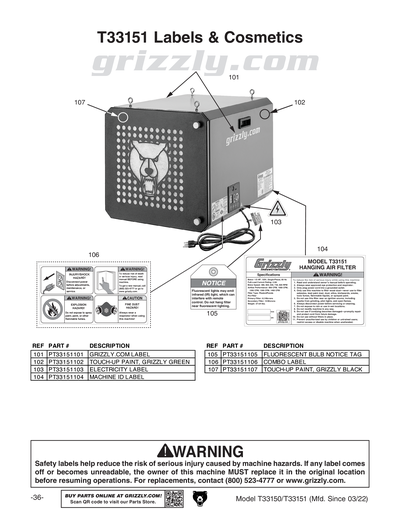

GRIZZLY.COM LABEL 13.25",BEIGE
Price
N/A
102
N/S GRIZZLY GREEN G1023S
Price
N/A
103
ELECTRICITY 0.7W X 0.6H
Price
N/A
104
FLUORESCENT BULB NOTICE TAG
Price
N/A
105
Price
$15.00
106
Price
$2.40
107
GLOSSY BLACK
Price
N/A
MAN
MANUAL T33150/T33151 MFD-01.22+ V1.01.22
Price
$3.25
