Parts for T33300 - 6-1/4" Track Saw (Tool Only)

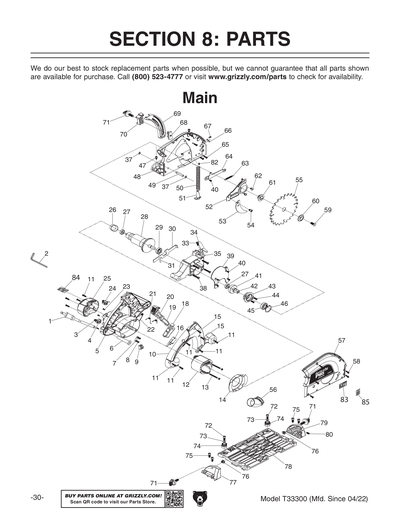

Part Diagram for T33300
Part Diagram for T33300
Part Diagram for T33300
Part Diagram for T33300
Part Diagram for T33300
Part Diagram for T33300

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

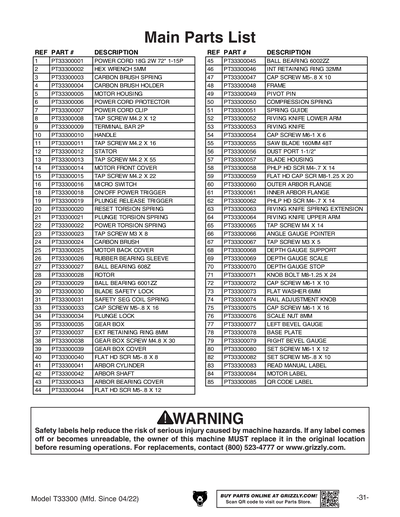

Ref #
Part #
Description
1
POWER CORD 18G 2W 72" 1-15
Price
N/A
2
HEX WRENCH 5MM
Price
N/A
3
CARBON BRUSH SPRING
Price
N/A
4
CARBON BRUSH HOLDER
Price
N/A
5
Price
$12.95
6
PWR CORD PROTECTOR
Price
N/A
7
POWER CORD CLIP
Price
N/A
8
PHLP HD TAP SCR M4.2 X 12
Price
N/A
9
TERMINAL BLOCK 2 POST
Price
N/A
10
Price
$5.10
11
PHLP HD TAP SCR M4.2 X 16
Price
N/A
12
STATOR
Price
N/A
13
PHLP HD TAP SCR M4.2 X 55
Price
N/A
14
MOTOR FRONT COVER
Price
N/A
15
PHLP HD TAP SCR M4.2 X 22
Price
N/A
16
MICRO SWITCH
Price
N/A
17
*DISCD*CAPACITOR
Price
N/A
18
POWER TRIGGER
Price
N/A
19
PLUNGE TRIGGER
Price
N/A
20
RESET TORSION SPRING
Price
N/A
21
PLUNGE TORSION SPRING
Price
N/A
22
POWER TORSION SPRING
Price
N/A
23
TAP SCREW M3 X 8
Price
N/A
24
CARBON BRUSH (SET OF 2)
Price
N/A
25
Price
$1.90
26
RUBBER BEARING SLEEVE
Price
N/A
27
BALL BEARING 608Z
Price
N/A
29
BALL BEARING 6001ZZ
Price
N/A
30
BLADE SAFETY LOCK
Price
N/A
31
SEG COIL SPRING W/BLADE SAFETY LOCK
Price
N/A
33
CAP SCREW M5-.8 X 16
Price
N/A
34
PLUNGE LOCK
Price
N/A
35
GEAR BOX
Price
N/A
37
EXT RETAINING RING 8MM
Price
N/A
38
*DISCD*GEAR BOX SCREW M4.8 X 30
Price
N/A
39
GEAR BOX COVER
Price
N/A
40
FLAT HD SCR M5-.8 X 8
Price
N/A
41
ARBOR CYLINDER
Price
N/A
42
ARBOR SHAFT
Price
N/A
43
ARBOR BEARING COVER
Price
N/A
44
FLAT HD SCR M5-.8 X 12
Price
N/A
45
BALL BEARING 6002ZZ
Price
N/A
46
INT RETAINING RING 32MM
Price
N/A
47
CAP SCREW M5-.8 X 10
Price
N/A
48
Price
$18.40
49
PIVOT PIN
Price
N/A
50
COMPRESSION SPRING
Price
N/A
51
SPRING GUIDE
Price
N/A
52
RIVING KNIFE LOWER ARM
Price
N/A
53
RIVING KNIFE
Price
N/A
54
CAP SCREW M6-1 X 6
Price
N/A
55
48T Replacement Blade for T33300
Price
N/A
56
DUST PORT 1.5"
Price
N/A
57
Price
$12.65
58
PHLP HD SCR M4-.7 X 14
Price
N/A
59
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
60
OUTER ARBOR FLANGE
Price
N/A
61
INNER ARBOR FLANGE
Price
N/A
62
PHLP HD SCR M4-.7 X 14
Price
N/A
63
RIVING KNIFE SPRING
Price
N/A
64
RIVING KNIFE UPPER ARM
Price
N/A
65
TAP SCREW M4 X 14
Price
N/A
66
ANGLE GAUGE POINTER
Price
N/A
67
TAP SCREW M3 X 5
Price
N/A
68
DEPTH GAUGE SUPPORT
Price
N/A
69
DEPTH GAUGE SCALE
Price
N/A
70
DEPTH GAUGE
Price
N/A
71
KNOB BOLT M8-1.25 X 24
Price
N/A
72
CAP SCREW M6-1 X 10
Price
N/A
73
FLAT WASHER 6MM
Price
N/A
74
RAIL ADJUSTMENT KNOB
Price
N/A
75
CAP SCREW M6-1 X 16
Price
N/A
76
SCALE NUT 8MM
Price
N/A
77
LEFT TILT GUIDE
Price
N/A
78
BASE PLATE
Price
N/A
79
RIGHT TILT GUIDE
Price
N/A
80
SET SCREW M6-1 X 12
Price
N/A
82
SET SCREW M5-.8 X 10
Price
N/A
83
Price
$1.25
84
Price
$1.25
85
Price
$1.25
MAN
MANUAL T33300 MFD-04.22+ V1.04.22
Price
$14.65
