Parts for T33305 - 6" 3-Speed 20V Random Orbit Polisher - Tool Only

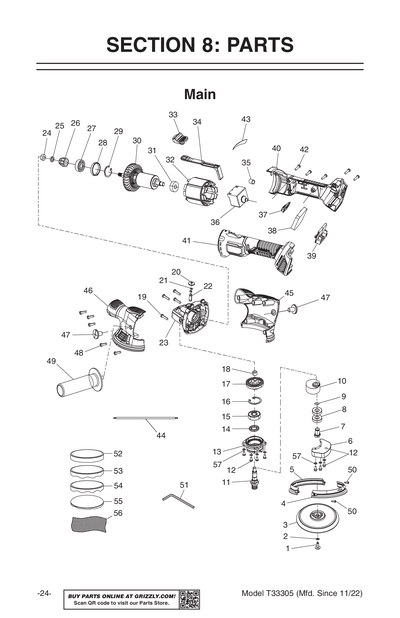

Part Diagram for T33305
Part Diagram for T33305
Part Diagram for T33305
Part Diagram for T33305
Part Diagram for T33305
Part Diagram for T33305

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

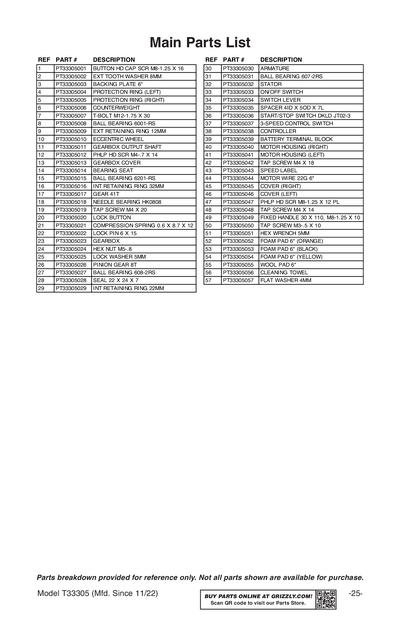

Ref #
Part #
Description
1
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
2
EXT TOOTH WASHER 8MM
Price
N/A
3
*DISCD*BACKING PLATE 6"
Item is no longer available
Price
N/A
4
*DISCD*PROTECTION RING (LEFT)
Item is no longer available
Price
N/A
5
*DISCD*PROTECTION RING (RIGHT)
Item is no longer available
Price
N/A
6
*DISCD*COUNTERWEIGHT
Item is no longer available
Price
N/A
7
*DISCD*T-BOLT M12-1.75 X 30
Item is no longer available
Price
N/A
8
BALL BEARING 6001-2RS
Price
N/A
9
EXT RETAINING RING 12MM
Price
N/A
10
*DISCD*ECCENTRIC WHEEL
Item is no longer available
Price
N/A
11
*DISCD*GEARBOX OUTPUT SHAFT
Item is no longer available
Price
N/A
12
PHLP HD SCR M4-.7 X 14
Price
N/A
13
*DISCD*GEARBOX COVER
Item is no longer available
Price
N/A
14
*DISCD*BEARING SEAT
Item is no longer available
Price
N/A
15
BALL BEARING 6201-2RS
Price
N/A
16
INT RETAINING RING 32MM
Price
N/A
17
*DISCD*GEAR 41T
Item is no longer available
Price
N/A
18
*DISCD*NEEDLE BEARING HK0808
Item is no longer available
Price
N/A
19
TAP SCREW M4 X 20
Price
N/A
20
*DISCD*LOCK BUTTON
Item is no longer available
Price
N/A
21
*DISCD*COMPRESSION SPRING 0.6 X 8.7 X 12
Item is no longer available
Price
N/A
22
*DISCD*LOCK PIN 6 X 15
Item is no longer available
Price
N/A
23
*DISCD*GEARBOX
Item is no longer available
Price
N/A
24
HEX NUT M5-.8
Price
N/A
25
LOCK WASHER 5MM
Price
N/A
26
*DISCD*PINION GEAR 8T
Item is no longer available
Price
N/A
27
BALL BEARING 608-2RS
Price
N/A
28
*DISCD*SEAL 22 X 24 X 7
Item is no longer available
Price
N/A
29
INT RETAINING RING 22MM
Price
N/A
30
*DISCD*ARMATURE
Item is no longer available
Price
N/A
31
BALL BEARING 607-2RS
Price
N/A
32
*DISCD*STATOR
Item is no longer available
Price
N/A
33
*DISCD*ON/OFF SWITCH
Item is no longer available
Price
N/A
34
*DISCD*SWITCH LEVER
Item is no longer available
Price
N/A
35
*DISCD*SPACER 4ID X 5OD X 7L
Item is no longer available
Price
N/A
36
*DISCD*START/STOP SWITCH DKLD JT02-3
Item is no longer available
Price
N/A
37
*DISCD*3-SPEED CONTROL SWITCH
Item is no longer available
Price
N/A
38
*DISCD*CONTROLLER
Item is no longer available
Price
N/A
39
*DISCD*BATTERY TERMINAL BLOCK
Item is no longer available
Price
N/A
40
*DISCD*MOTOR HOUSING (RIGHT)
Item is no longer available
Price
N/A
41
*DISCD*MOTOR HOUSING (LEFT)
Item is no longer available
Price
N/A
42
TAP SCREW M4 X 18
Price
N/A
43
*DISCD*SPEED LABEL
Item is no longer available
Price
N/A
44
*DISCD*MOTOR WIRE 22G 6"
Item is no longer available
Price
N/A
45
*DISCD*COVER (RIGHT)
Item is no longer available
Price
N/A
46
*DISCD*COVER (LEFT)
Item is no longer available
Price
N/A
47
*DISCD*PHLP HD SCR M8-1.25 X 12 PL
Item is no longer available
Price
N/A
48
TAP SCREW M4 X 14
Price
N/A
49
*DISCD*FIXD HANDL 30 X 110, M8-1.25 X 10
Item is no longer available
Price
N/A
50
TAP SCREW M3 X 10
Price
N/A
51
Price
N/A
52
*DISCD*FOAM PAD 6" (ORANGE)
Item is no longer available
Price
N/A
53
*DISCD*FOAM PAD 6" (BLACK)
Item is no longer available
Price
N/A
54
*DISCD*FOAM PAD 6" (YELLOW)
Item is no longer available
Price
N/A
55
*DISCD*WOOL PAD 6"
Item is no longer available
Price
N/A
56
*DISCD*CLEANING TOWEL
Item is no longer available
Price
N/A
57
FLAT WASHER 4MM
Price
N/A
101

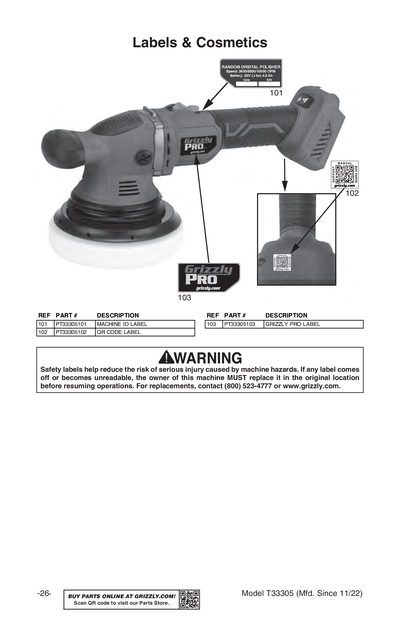

*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
102
*DISCD*QR CODE LABEL
Item is no longer available
Price
N/A
103
*DISCD*GRIZZLY PRO LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T33305 MFD-11.22+ V1.11.22
Price
$1.50
