Parts for T33306 - 7" 3-Speed 20V Rotary Sander/Polisher - Tool Only

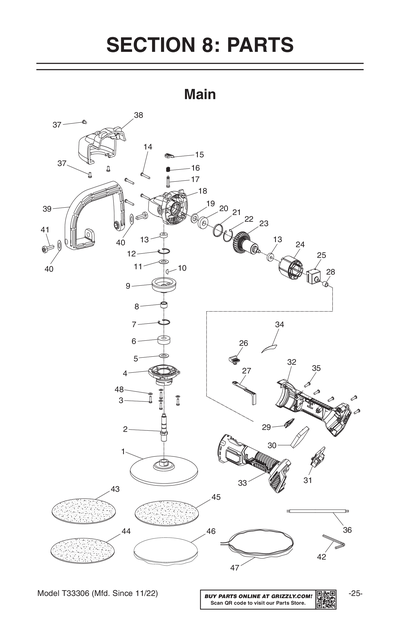

Part Diagram for T33306
Part Diagram for T33306
Part Diagram for T33306
Part Diagram for T33306
Part Diagram for T33306
Part Diagram for T33306

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

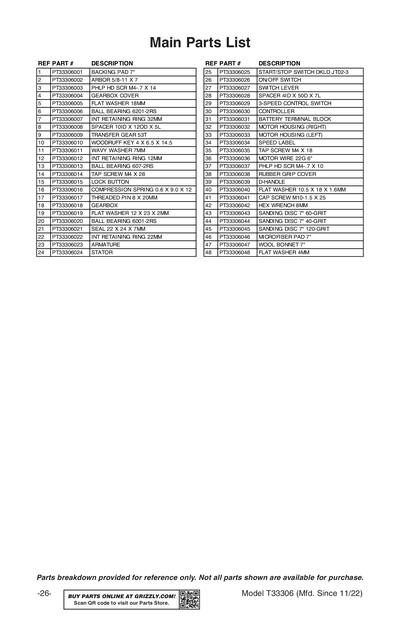

Ref #
Part #
Description
1
*DISCD*BACKING PAD 7"
Item is no longer available
Price
N/A
2
*DISCD*ARBOR 5/8-11 X 7
Item is no longer available
Price
N/A
3
PHLP HD SCR M4-.7 X 14
Price
N/A
4
*DISCD*GEARBOX COVER
Item is no longer available
Price
N/A
5
FLAT WASHER 16MM
Price
N/A
6
BALL BEARING 6201-2RS
Price
N/A
7
INT RETAINING RING 32MM
Price
N/A
8
*DISCD*SPACER 10ID X 12OD X 5L
Item is no longer available
Price
N/A
9
*DISCD*TRANSFER GEAR 53T
Item is no longer available
Price
N/A
10
*DISCD*WOODRUFF KEY 4 X 6.5 X 14.5
Item is no longer available
Price
N/A
11
*DISCD*WAVY WASHER 7MM
Item is no longer available
Price
N/A
12
INT RETAINING RING 12MM
Price
N/A
13
BALL BEARING 607-2RS
Price
N/A
14
*DISCD*TAP SCREW M4 X 28
Item is no longer available
Price
N/A
15
*DISCD*LOCK BUTTON
Item is no longer available
Price
N/A
16
*DISCD*COMPRESSION SPRING 0.6 X 9.0 X 12
Item is no longer available
Price
N/A
17
*DISCD*THREADED PIN 8 X 20MM
Item is no longer available
Price
N/A
18
*DISCD*GEARBOX
Item is no longer available
Price
N/A
19
*DISCD*FLAT WASHER 12 X 23 X 2MM
Item is no longer available
Price
N/A
20
BALL BEARING 6001-2RS
Price
N/A
21
*DISCD*SEAL 22 X 24 X 7MM
Item is no longer available
Price
N/A
22
INT RETAINING RING 28MM
Price
N/A
23
*DISCD*ARMATURE
Item is no longer available
Price
N/A
24
*DISCD*STATOR
Item is no longer available
Price
N/A
25
*DISCD*START/STOP SWITCH DKLD JT02-3
Price
N/A
26
*DISCD*ON/OFF SWITCH
Price
N/A
27
*DISCD*SWITCH LEVER
Price
N/A
28
*DISCD*SPACER 4ID X 5OD X 7L
Price
N/A
29
*DISCD*3-SPEED CONTROL SWITCH
Price
N/A
30
*DISCD*CONTROLLER
Item is no longer available
Price
N/A
31
*DISCD*BATTERY TERMINAL BLOCK
Item is no longer available
Price
N/A
32
*DISCD*MOTOR HOUSING (RIGHT)
Item is no longer available
Price
N/A
33
*DISCD*MOTOR HOUSING (LEFT)
Item is no longer available
Price
N/A
34
*DISCD*SPEED LABEL
Price
N/A
35
TAP SCREW M4 X 18
Price
N/A
36
*DISCD*MOTOR WIRE 22G 6"
Price
N/A
37
PHLP HD SCR M4-.7 X 10
Price
N/A
38
*DISCD*RUBBER GRIP COVER
Item is no longer available
Price
N/A
39
*DISCD*D-HANDLE
Item is no longer available
Price
N/A
40
*DISCD*FLAT WASHER 10.5 X 18 X 1.6MM
Item is no longer available
Price
N/A
41
CAP SCREW M10-1.5 X 25
Price
N/A
42
HEX WRENCH 8MM
Price
N/A
43
*DISCD*SANDING DISC 7" 60-GRIT
Item is no longer available
Price
N/A
44
*DISCD*SANDING DISC 7" 40-GRIT
Item is no longer available
Price
N/A
45
*DISCD*SANDING DISC 7" 120-GRIT
Item is no longer available
Price
N/A
46
*DISCD*MICROFIBER PAD 7"
Item is no longer available
Price
N/A
47
*DISCD*WOOL BONNET 7"
Item is no longer available
Price
N/A
48
FLAT WASHER 4MM
Price
N/A

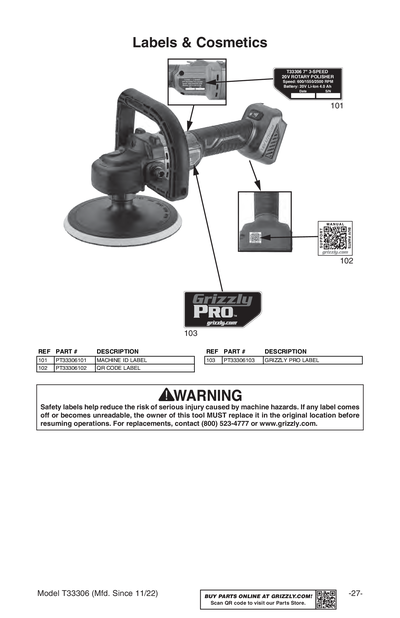

101
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
102
*DISCD*QR CODE LABEL
Item is no longer available
Price
N/A
103
*DISCD*GRIZZLY PRO LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T33306 MFD-11.22+ V1.01.23
Price
$21.95
