Parts for T33307 - 20V Brushless Handheld Planer - Tool Only

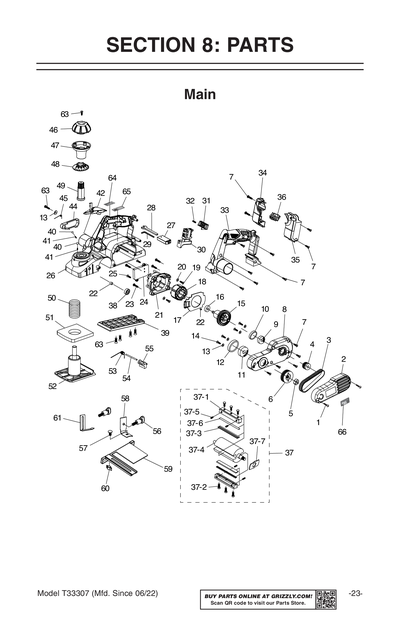

Part Diagram for T33307
Part Diagram for T33307
Part Diagram for T33307
Part Diagram for T33307

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

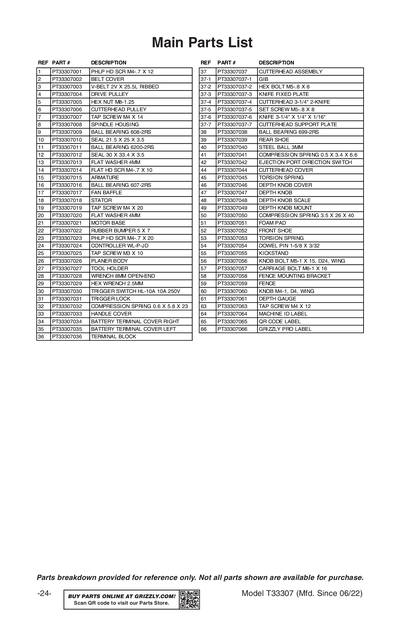

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 12
Price
N/A
2
*DISCD*BELT COVER
Item is no longer available
Price
N/A
3
*DISCD*V-BELT 2V X 25.5L RIBBED
Item is no longer available
Price
N/A
4
*DISCD*DRIVE PULLEY
Item is no longer available
Price
N/A
5
HEX NUT M8-1.25
Price
N/A
6
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
7
TAP SCREW M4 X 14
Price
N/A
8
*DISCD*SPINDLE HOUSING
Item is no longer available
Price
N/A
9
BALL BEARING 608-2RS
Price
N/A
10
*DISCD*SEAL 21.5 X 25 X 3.5
Item is no longer available
Price
N/A
11
BALL BEARING 6200-2RS
Price
N/A
12
*DISCD*SEAL 30 X 33.4 X 3.5
Item is no longer available
Price
N/A
13
FLAT WASHER 4MM
Price
N/A
14
FLAT HD SCR M4-.7 X 10
Price
N/A
15
*DISCD*ARMATURE
Item is no longer available
Price
N/A
16
*DISCD*BALL BEARING 607-2RS
Item is no longer available
Price
N/A
17
*DISCD*FAN BAFFLE
Item is no longer available
Price
N/A
18
*DISCD*STATOR
Item is no longer available
Price
N/A
19
TAP SCREW M4 X 20
Price
N/A
20
FLAT WASHER 4MM
Price
N/A
21
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
22
*DISCD*RUBBER BUMPER 5 X 7
Item is no longer available
Price
N/A
23
PHLP HD SCR M4-.7 X 20
Price
N/A
24
*DISCD*CONTROLLER WL-P-JD
Item is no longer available
Price
N/A
25
TAP SCREW M3 X 10
Price
N/A
26
*DISCD*PLANER BODY
Item is no longer available
Price
N/A
27
*DISCD*TOOL HOLDER
Item is no longer available
Price
N/A
28
*DISCD*WRENCH 8MM OPEN-END
Item is no longer available
Price
N/A
29
HEX WRENCH 2.5MM
Price
N/A
30
*DISCD*TRIGGER SWITCH HL-10A 10A 250V
Item is no longer available
Price
N/A
31
*DISCD*TRIGGER LOCK
Item is no longer available
Price
N/A
32
*DISCD*COMPRESSION SPRING 0.6 X 5.8 X 23
Item is no longer available
Price
N/A
33
*DISCD*HANDLE COVER
Item is no longer available
Price
N/A
34
*DISCD*BATTERY TERMINAL COVER RIGHT
Item is no longer available
Price
N/A
35
*DISCD*BATTERY TERMINAL COVER LEFT
Item is no longer available
Price
N/A
36
*DISCD*TERMINAL BLOCK
Item is no longer available
Price
N/A
37
*DISCD*CUTTERHEAD ASSEMBLY
Item is no longer available
Price
N/A
37-1
*DISCD*GIB
Item is no longer available
Price
N/A
37-2
HEX BOLT M5-.8 X 8
Price
N/A
37-3
*DISCD*KNIFE FIXED PLATE
Item is no longer available
Price
N/A
37-4
*DISCD*CUTTERHEAD 3-1/4" 2-KNIFE
Item is no longer available
Price
N/A
37-5
SET SCREW M5-.8 X 8
Price
N/A
37-6
*DISCD*KNIFE 3-1/4" X 1/4" X 1/16"
Item is no longer available
Price
N/A
37-7
*DISCD*CUTTERHEAD SUPPORT PLATE
Item is no longer available
Price
N/A
38
*DISCD*BALL BEARING 699-2RS
Item is no longer available
Price
N/A
39
*DISCD*REAR SHOE
Item is no longer available
Price
N/A
40
STEEL BALL 3MM
Price
N/A
41
*DISCD*COMPRESION SPRING 0.5 X 3.4 X 6.6
Item is no longer available
Price
N/A
42
*DISCD*EJECTION PORT DIRECTION SWITCH
Item is no longer available
Price
N/A
44
*DISCD*CUTTERHEAD COVER
Item is no longer available
Price
N/A
45
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
46
*DISCD*DEPTH KNOB COVER
Item is no longer available
Price
N/A
47
*DISCD*DEPTH KNOB
Item is no longer available
Price
N/A
48
*DISCD*DEPTH KNOB SCALE
Item is no longer available
Price
N/A
49
*DISCD*DEPTH KNOB MOUNT
Item is no longer available
Price
N/A
50
*DISCD*COMPRESSION SPRING 3.5 X 26 X 40
Item is no longer available
Price
N/A
51
*DISCD*FOAM PAD
Item is no longer available
Price
N/A
52
*DISCD*FRONT SHOE
Item is no longer available
Price
N/A
53
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
54
*DISCD*DOWEL PIN 1-5/8 X 3/32
Item is no longer available
Price
N/A
55
*DISCD*KICKSTAND
Item is no longer available
Price
N/A
56
*DISCD*KNOB BOLT M5-1 X 15, D24, WING
Item is no longer available
Price
N/A
57
CARRIAGE BOLT M6-1 X 16
Price
N/A
58
*DISCD*FENCE MOUNTING BRACKET
Item is no longer available
Price
N/A
59
*DISCD*FENCE
Item is no longer available
Price
N/A
60
*DISCD*KNOB M4-1, D4, WING
Item is no longer available
Price
N/A
61
*DISCD*DEPTH GAUGE
Item is no longer available
Price
N/A
63
TAP SCREW M4 X 12
Price
N/A
64
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
65
*DISCD*QR CODE LABEL
Item is no longer available
Price
N/A
66
*DISCD*GRIZZLY PRO LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T33307 MFD-06.22+ V1.06.22
Price
$14.65
