Parts for T33446 - Bandsaw Outfeed Table

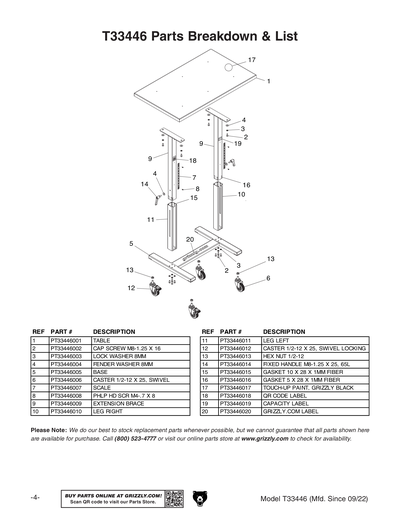

Part Diagram for T33446
Part Diagram for T33446

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
TABLE
Price
$166.65
2
CAP SCREW M8-1.25 X 16
Price
N/A
3
LOCK WASHER 8MM
Price
N/A
4
FENDER WASHER 8MM
Price
N/A
5
BASE
Price
$108.70
6
CASTER 1/2-12 X 25, SWIVEL
Price
$36.25
6-1
CASTER 1/2-12 X 25, SWIVEL
Price
N/A
6-2
LOCK NUT M6-1
Price
N/A
6-3
CASTER 1/2-12 X 25, SWIVEL
Price
N/A
6-4
CASTER 1/2-12 X 25, SWIVEL
Price
N/A
6-5
CASTER 1/2-12 X 25, SWIVEL
Price
N/A
7
SCALE
Price
$10.90
8
PHLP HD SCR M4-.7 X 8
Price
N/A
9V2
EXTENSION BRACE V2.11.22
Price
$94.20
10V2
LEG RIGHT V2.11.22
Price
$83.35
11V2
LEG LEFT V2.11.22
Price
$83.35
12
CASTER 1/2-12 X 25, SWIVEL LOCKING
Price
$36.25
12-1
CASTER 1/2-12 X 25, SWIVEL LOCKING
Price
N/A
12-2
LOCK NUT M6-1
Price
N/A
12-3
CASTER 1/2-12 X 25, SWIVEL LOCKING
Price
N/A
12-4
CASTER 1/2-12 X 25, SWIVEL LOCKING
Price
N/A
12-5
CASTER 1/2-12 X 25, SWIVEL LOCKING
Price
N/A
13
HEX NUT 1/2-12
Price
N/A
14
FIXED HANDLE M8-1.25 X 25, 65L
Price
$10.90
15
GASKET 10 X 28 X 1MM FIBER
Price
$1.85
16
GASKET 5 X 28 X 1MM FIBER
Price
$1.60
17
GLOSSY BLACK
Price
N/A
18
QR CODE LABEL
Price
$3.15
19
CAPACITY LABEL
Price
$3.15
20
GRIZZLY.COM LABEL 13.25",WHITE
Price
N/A
MAN
MANUAL T33446 MFD-09.22-10.22 V1.10.22
Price
$1.50
MANV2
MANUAL T33446 MFD-11.22+ V2.11.22
Price
$1.50
