Parts for T33956 - Fiddleback Maple Electric Guitar Kit

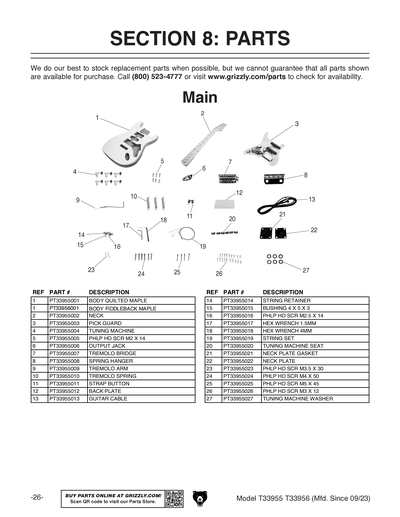

Part Diagram for T33956
Part Diagram for T33956

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BODY, FIDDLEBACK MAPLE
Price
$176.05
2
NECK
Price
N/A
3
PICK GUARD
Price
N/A
4
TUNING MACHINE
Price
N/A
5
TAP SCREW M2.2 X 10
Price
N/A
6
OUTPUT JACK
Price
N/A
7
TREMOLO ASSEMBLY
Price
N/A
8
***USE PT33955007***
Price
N/A
9
***USE PT33955007***
Price
N/A
10
***USE PT33955007***
Price
N/A
11
STRAP BUTTON
Price
N/A
12
BACK PLATE
Price
N/A
13
GUITAR CABLE
Price
N/A
14
STRING RETAINER
Price
N/A
15
BUSHING 2.5 X 5 X 5MM
Price
N/A
16
WOOD SCREW M2.2 X 12
Price
N/A
17
Price
N/A
18
HEX WRENCH 4MM
Price
N/A
19
STRING SET
Price
N/A
20
TUNING MACHINE SEAT
Price
N/A
21
NECK PLATE GASKET
Price
N/A
22
NECK PLATE
Price
N/A
23
WOOD SCREW M4 X 32
Price
N/A
24
WOOD SCREW M4 X 25
Price
N/A
25
WOOD SCREW M5 X 40
Price
N/A
26
TAP SCREW M2.5 X 8
Price
N/A
27
TUNING MACHINE WASHER 8 X 14 X 1
Price
N/A
28
WOOD SCREW M3 X 20
Price
N/A
29
BUSHING 2.5 X 5 X 2.5MM
Price
N/A
30
SOLDERING WIRE 60/40 ROSIN-CORE .062"
Price
N/A
31
PAD 4 X 10 X 1.5MM
Price
N/A
32
NUT
Price
N/A
MAN
MANUAL T33955/56 MFD-09.23+ V1.12.23
Price
N/A
