Parts for T33988 - Table Saw Crosscut Sled

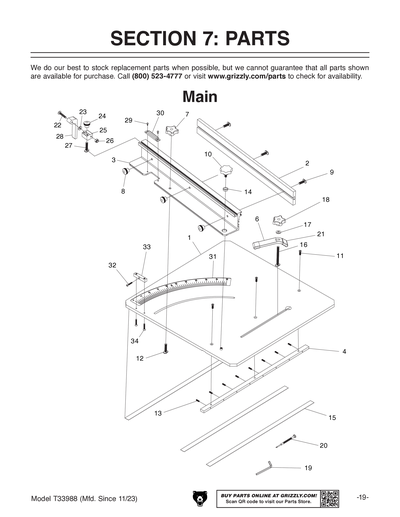

Part Diagram for T33988
Part Diagram for T33988
Part Diagram for T33988
Part Diagram for T33988

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

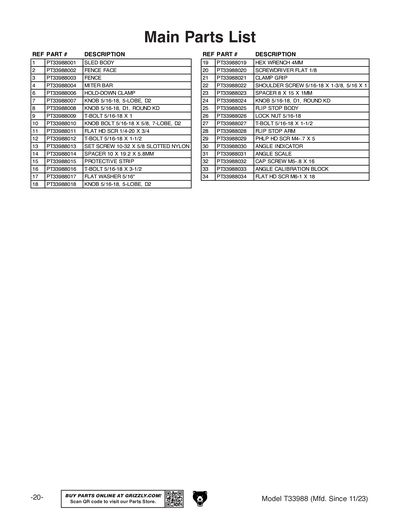

Ref #
Part #
Description
1
Price
$54.35
2
Price
$22.35
3
Price
$79.10
4
Price
$36.55
6
HOLD-DOWN CLAMP
Price
N/A
7
KNOB 5/16-18, 5-LOBE, D2-1/8
Price
N/A
8
KNOB 5/16-18, D1, ROUND KD
Price
$1.60
9
Price
$1.60
10
KNOB BOLT 5/16-18 X 5/8, 7-LOBE, D2
Price
$2.80
11
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
12
Price
$1.60
13
SET SCREW 10-32 X 5/8 SLOTTED NYLON
Price
$1.60
14
SPACER 10 X 19.2 X 5.8MM
Price
$3.60
15
Price
$1.60
16
T-BOLT 5/16-18 X 3-1/2
Price
N/A
17
FLAT WASHER 5/16
Price
N/A
18
KNOB 5/16-18, 5-LOBE, D2-1/8
Price
N/A
19
HEX WRENCH 4MM
Price
N/A
20
SCREWDRIVER FLAT 1/8
Price
N/A
21
CLAMP GRIP
Price
N/A
22
SHOULDER SCREW 5/16-18 X 1-3/8, 5/16 X 1
Price
$1.60
23
Price
$1.60
24
KNOB 5/16-18, D1, ROUND KD
Price
N/A
25
Price
$13.90
26
LOCK NUT 5/16-18
Price
N/A
27
T-BOLT 5/16-18 X 1-1/2
Price
N/A
28
Price
$11.30
29
Price
$1.60
30
Price
$13.40
31
Price
$9.85
32
CAP SCREW M5-.8 X 16
Price
N/A
33
ANGLE CALIBRATION BLOCK
Price
$16.65
34
FLAT HD SCR M6-1 X 18
Price
N/A
MAN
MANUAL T33988 MFD-11.23+ V1.01.24
Price
$14.65
