Parts for W1104 Anti-Kickback Hold-Down Devices For Table Saws - Yellow

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
PIVOT ARM
2
HOUSING
2-1
HOUSING/PIVOT ARM ASSY
2A
HOUSING/PIVOT ARM ASSY
Price
N/A
3
MOUNTING BRACKET
4
YELLOW ROLLER
4-1
ROLLER SHAFT
4-2
YELLOW ROLLER W/SHAFT
4A
YELLOW ROLLER W/SHAFT
Price
N/A
5
HEX NUT 1/2-20 FOR BOARD BUDDY
6
SPRING 42.8 X 336
7
SHOE
8
TIE ROD 5/16"-18 X 2"
9
Now: PWN03
WING NUT 5/16-18
Price
N/A
10
ADJUST ROD 5/16"-18 X 2"
11
THUMBSCREW 1/4-20 X 3/4
Price
N/A
12
ROLL PIN 5 X 20
Price
N/A
13
ROLL PIN 6 X 20
Price
N/A
14
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
14-1
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
15
TAP SCREW #8 X 11/16
Price
N/A
16
CARTON FOR W1104
17
COMPLETE BOLT BAG
MAN

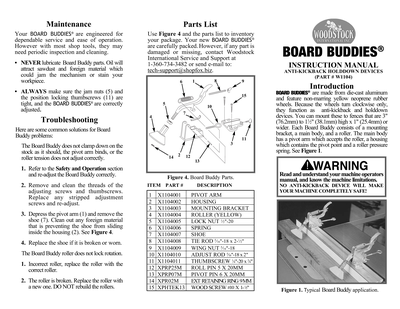

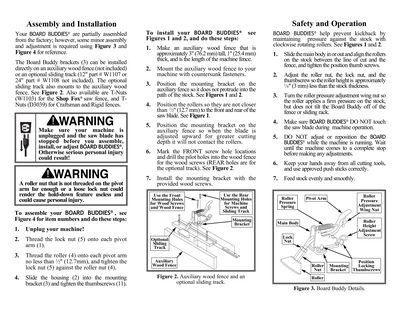

MANUAL FOR W1104 11/02
