Parts for W1410 - Fence w/ Standard Rails

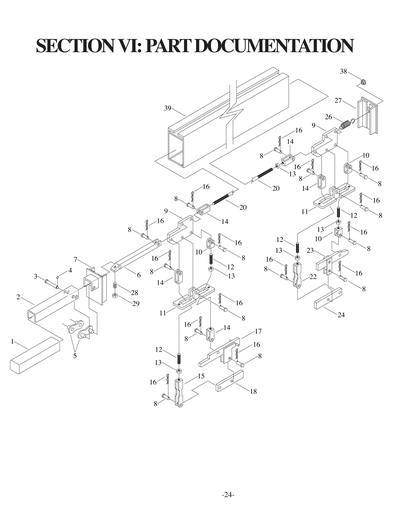

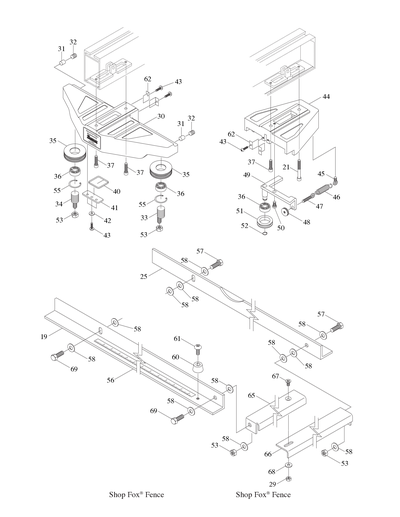

Part Diagram for W1410
Part Diagram for W1410
Part Diagram for W1410
Part Diagram for W1410
Part Diagram for W1410
Part Diagram for W1410

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

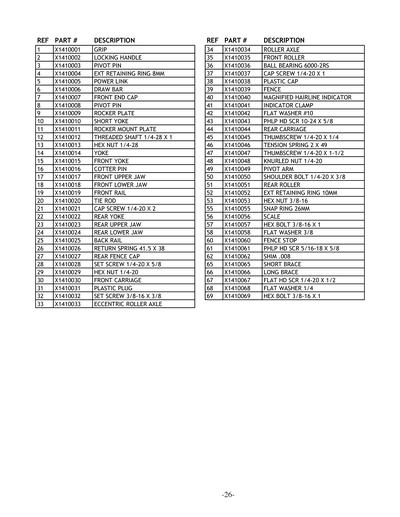

Ref #
Part #
Description
1
Price
$3.05
2
Price
$3.85
2-1
Price
$7.25
2A
HANDLE/DRAW BAR ASSY
Price
N/A
3
Price
$1.80
4
EXT RETAINING RING 8MM
Price
N/A
5
Price
$2.20
6
Price
$2.35
7
Price
$3.65
8
Price
$4.55
8A
Price
$5.20
9
Price
$2.75
10
Price
$2.25
11
Price
$6.05
12
THREADED SHAFT 1/4-28 X 1
Price
$1.80
13
X1410013
Now: PN05
HEX NUT 1/4-20
Price
N/A
14
Price
$3.65
15
*DISCD*FRONT AND REAR YOKE
Price
$3.45
16
Price
$1.80
17
Price
$2.25
18
Price
$1.60
19
Price
$24.30
20
Price
$1.60
21
CAP SCREW 1/4-20 X 2
Price
N/A
22
Price
$1.60
23
Price
$2.40
24
Price
$7.75
25
Price
$21.50
26
RETURN SPRING 41.5 X 38
Price
$1.80
27
Price
$2.60
28
SET SCREW 1/4-20 X 5/8
Price
N/A
29
X1410029
Now: PN05
HEX NUT 1/4-20
Price
N/A
30
Price
$23.75
31
Price
$1.80
32
SET SCREW 3/8-16 X 3/8
Price
N/A
33
Price
$5.80
33-1
Price
$21.50
33A
ECCENTRIC ROLLER ASSY
Price
N/A
34
Price
$3.50
34-1
Price
$18.85
34A
STRAIGHT ROLLER ASSY
Price
N/A
35
Price
$11.95
36
BALL BEARING 6000-2RS
Price
N/A
37
CAP SCREW 1/4-20 X 1
Price
N/A
38
Price
$1.80
39
Price
$93.55
40
MAGNIFIED HAIRLINE INDICATOR
Price
N/A
40A
MAGNIFIED HAIRLINE INDICATOR
Price
$5.50
41
Price
$4.60
42
X1410042
Now: PW08
FLAT WASHER #8
Price
N/A
43
X1410043
Now: PS25
PHLP HD SCR 8-32 X 5/8
Price
N/A
44
Price
$11.80
45
THUMBSCREW 1/4-20 X 1/4
Price
$1.80
46
Price
$3.10
47
THUMBSCREW 1/4-20 X 1-1/2
Price
$1.80
48
Price
$1.80
49
Price
$12.10
49A
Price
$19.10
50
SHOULDER BOLT 1/4-20 X 3/8
Price
$1.80
51
Price
$7.95
52
EXT RETAINING RING 10MM
Price
N/A
53
X1410053
Now: PN08
HEX NUT 3/8-16
Price
N/A
54
X1410054
Now: PW02
FLAT WASHER 3/8
Price
N/A
55
Price
$1.80
56
Price
$11.75
57
X1410057
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
58
X1410058
Now: PW02
FLAT WASHER 3/8
Price
N/A
59
Price
$1.80
60
Price
$3.35
61
X1410061
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
62
Price
$3.40
63
Price
$1.75
64
Price
$1.80
65
Price
$3.55
66
Price
$3.55
67
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
68
X1410068
Now: PW06
FLAT WASHER 1/4
Price
N/A
69
FRONT RAIL BOLT 3/8-16 X 1
Price
$1.70
70
Price
$5.85
71
*DISCD*RUBBER RAIL PROTECTORS
Price
$3.35
72
Price
$5.95
73
Price
$3.10
74
ANGLE BRACKET W/DRILL BIT
Price
$10.40
74A
ANGLE BRACKET W/O DRILL BIT
Price
$7.65
75
RUBBER ANGLE IRON PROTECTORS
Price
$1.80
76
Price
$7.45
77
Price
$1.60
78
Price
$1.80
13
X141013
Now: PN05
HEX NUT 1/4-20
Price
N/A
22
*DISCD*FRONT AND REAR YOKE
Price
N/A
24
REAR LOWER JAW
Price
N/A
29
X141029
Now: PN05
HEX NUT 1/4-20
Price
N/A
49
PIVOT ARM
Price
N/A
52
X141052
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
53
X141053
Now: PN08
HEX NUT 3/8-16
Price
N/A
MANUAL
Price
$15.50
