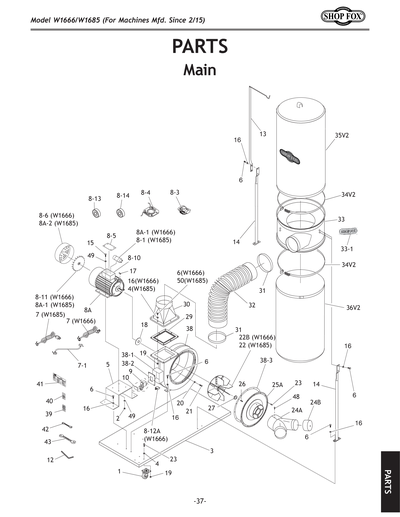

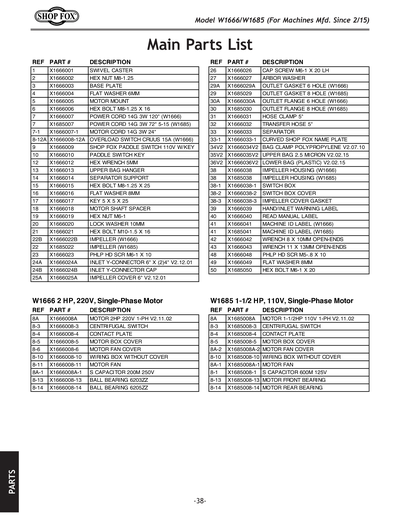

Parts for W1666 - 2 HP Dust Collector

1/3

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SWIVEL CASTER
Price
$5.20
2
HEX NUT M8-1.25
Price
N/A
3
BASE PLATE
Price
$69.90
4
FLAT WASHER 6MM
Price
N/A
5
MOTOR MOUNT
Price
$6.05
6
HEX BOLT M8-1.25 X 16
Price
N/A
7
POWER CORD 14G X 3W 120"
Price
$23.30
7-1
MOTOR CORD 14G X 3W 24"
Price
$4.60
8
MOTOR 2HP 220V 1-PH V2.11.02
Price
N/A
8-1
S CAPACITOR 200M 125V 1-1/2 X 3
Price
$21.00
8-10
WIRING BOX WITHOUT COVER
Price
$3.75
8-11
MOTOR FAN
Price
$10.35
8-12
*DISCD*OVERLOAD SWITCH 12A
Item is no longer available
Price
N/A
8-12A
OVERLOAD SWITCH CRUSS 18A
Price
$4.35
8-13
BALL BEARING 6203ZZ
Price
N/A
8-14
BALL BEARING 6205ZZ
Price
N/A
8-2
R CAPACITOR UPGRD KIT 50M 350V
Price
N/A
8-2A
R CAPACITOR UPGRD KIT 50M 350V
Price
$38.25
8-2A1
PHLP HD SCR M4-.7 X 18
Price
N/A
8-3
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
8-4
CONTACT PLATE & CENTRIFUGAL SWITCH
Price
$11.50
8-5
MOTOR BOX COVER
Price
$8.35
8-6
MOTOR FAN COVER
Price
$5.75
8-7
INNER MOTOR BOX COVER
Price
$8.35
8-8
CAPACITOR STRAP
Price
$23.90
8-9
TERMINAL BLOCK
Price
$1.49
8A
MOTOR 2HP 220V 1-PH V2.11.02
Price
$345.90
8A-1
S CAPACITOR 200M 220/250V 1-3/4 X 3-1/4
Price
$29.90
8B
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
8C
CONTACT PLATE & CENTRIFUGAL SWITCH
Price
N/A
8D
MOTOR BOX COVER
Price
N/A
9
Paddle Switch 125V/250V
Price
N/A
9-1
SWITCH PLATE
Price
$1.49
9-2
PHLP HD SCR M4-.7 X 80
Price
$1.49
10
PADDLE SWITCH KEY
Price
N/A
11
HEX WRENCH 4MM
Price
N/A
12
HEX WRENCH 5MM
Price
N/A
13
UPPER BAG HANGER
Price
$7.50
14
SEPARATOR SUPPORT
Price
$11.25
14-1
*DISCD*SUPPORT BRACKET
Item is no longer available
Price
N/A
15
HEX BOLT M8-1.25 X 25
Price
N/A
16
FLAT WASHER 8MM
Price
N/A
17
KEY 5 X 5 X 25
Price
N/A
18
MOTOR SHAFT SPACER
Price
$1.49
19
HEX NUT M6-1
Price
N/A
19A
IMPELLOR HOUSING
Price
N/A
20
LOCK WASHER 10MM
Price
N/A
21
HEX BOLT M10-1.5 X 16
Price
N/A
22
CURVED-FIN TURBO FAN V2.01.02
Price
N/A
22A
*DISCD*CURVED-FIN TURBO FAN V1.08.00
Item is no longer available
Price
N/A
22B
CURVED-FIN TURBO FAN V2.01.02
Price
$60.10
22B-1
IMPELLER SET SCREW
Price
$1.49
22B-2
GEAR PULLER
Price
$21.75
23
PHLP HD SCR M6-1 X 10
Price
N/A
24
INLET 5 X 4 X 4 V1
Price
$22.45
24A
INLET Y-CONNECTOR 6" X (2) 4" V2.12.01
Price
$39.10
24B
INLET Y-CONNECTOR CAP
Price
$7.50
25
IMPELLER COVER 5" V1
Price
$18.40
25A
IMPELLER COVER 6" V2.12.01
Price
$19.85
26
CAP SCREW M6-1 X 20 LH
Price
N/A
27
ARBOR WASHER (METAL)
Price
$1.49
28
SET SCREW M8-1.25 X 10
Price
N/A
29
OUTLET GASKET 8 HOLE V1
Price
$12.95
29A
OUTLET GASKET 6 HOLE V2.01.2
Price
$12.95
30
OUTLET FLANGE 8 HOLE
Price
$28.50
30A
OUTLET FLANGE 6 HOLE
Price
N/A
31
HOSE CLAMP 5"
Price
$4.05
32
TRANSFER HOSE 5"
Price
$18.70
33
SEPARATOR
Price
$73.05
33-1
CURVED SHOP FOX NAME PLATE
Price
$5.75
34
BAG CLAMP POLYPROPYLENE V2.07.10
Price
N/A
34V2
BAG CLAMP POLYPROPYLENE V2.07.10
Price
$9.50
35
2.5 Micron Upper Filter Bag with Logo
Price
N/A
35V2
2.5 Micron Upper Filter Bag with Logo
Price
N/A
36
Plastic Lower Collection Bag, 5 pk.
Price
N/A
36V2
LOWER BAG (PLASTIC) V2.02.15
Price
$6.90
37
SEPARATOR SUPPORT
Price
N/A
38
IMPELLOR HOUSING
Price
$100.65
38-1
SWITCH BOX
Price
$7.80
38-2
SWITCH BOX COVER
Price
$1.49
38-3
IMPELLER COVER GASKET
Price
$4.60
39
HAND/INLET WARNING LABEL
Price
$2.25
40
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
41
MACHINE ID LABEL
Price
$13.60
42
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
42-1
BOLT BAG FOR CASTERS/OUTLET
Price
N/A
42-2
BOLT BAG FOR COLLECTOR ASSY
Price
N/A
42-3
COLLECTOR/BASE MOUNTING BOLTS
Price
N/A
42A
BOLT BAG FOR CASTERS/OUTLET
Price
N/A
43
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
44
COMPLETE BOLT BAG
Price
$21.00
44-1
BOLT BAG FOR CASTERS/OUTLET
Price
$17.25
44-2
BOLT BAG FOR COLLECTOR ASSY
Price
$15.85
44-3
COLLECTOR/BASE MOUNTING BOLTS
Price
$4.60
45
*DISCD*CARTON FOR W1666
Item is no longer available
Price
N/A
46
STYROFOAM
Price
$57.80
47
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
48
PHLP HD SCR M5-.8 X 10
Price
N/A
49
FLAT WASHER 8MM
Price
N/A
MAN
MANUAL FOR W1666 01/06
Price
$15.65
MANV2
MANUAL FOR W1666 V2.02.05
Price
$15.65
MANV3
MAN FOR W1666 MFG 10/02-01/15 V3.06.13
Price
$17.00
MANV4
MANUAL FOR W1666 MFD 02/15+ V4.04.15
Price
$12.40
