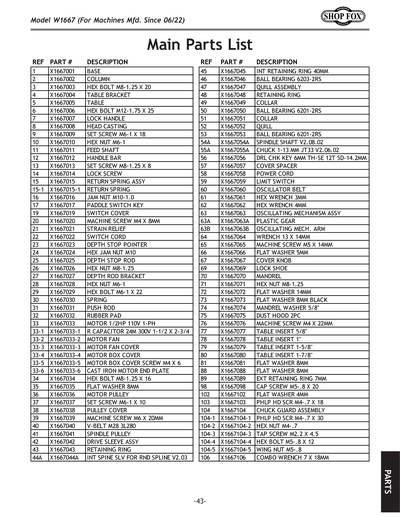

Parts for W1667 - 8-1/2" Benchtop Oscillating Drill Press

Part Diagram for W1667
Part Diagram for W1667
Part Diagram for W1667
Part Diagram for W1667
Part Diagram for W1667
Part Diagram for W1667

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
$37.00
2
COLUMN
Price
$28.35
3
HEX BOLT M8-1.25 X 20
Price
N/A
4
TABLE BRACKET
Price
$9.75
5
TABLE
Price
$71.20
6
HEX BOLT M12-1.75 X 25
Price
N/A
7
LOCK HANDLE
Price
$1.90
8
HEAD CASTING
Price
$19.85
9
SET SCREW M6-1 X 18
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
FEED SHAFT
Price
$8.35
12
HANDLE BAR
Price
N/A
13
SET SCREW M8-1.25 X 8
Price
N/A
14
LOCK SCREW
Price
$2.90
15
RETURN SPRING ASSY
Price
$3.65
15-1
RETURN SPRING
Price
$2.50
16
JAM NUT M10-1.0
Price
$1.49
17
PADDLE SWITCH KEY
Price
N/A
18
PADDLE SWITCH KEY
Price
N/A
19
SWITCH COVER
Price
$4.75
20
MACHINE SCREW M4 X 8MM
Price
$1.90
21
STRAIN RELIEF
Price
$2.85
22
SWITCH CORD
Price
$3.25
23
DEPTH STOP POINTER
Price
$1.90
24
HEX JAM NUT M10
Price
$1.90
25
DEPTH STOP ROD
Price
$10.45
26
HEX NUT M8-1.25
Price
N/A
27
DEPTH ROD BRACKET
Price
$4.75
28
HEX NUT M6-1
Price
N/A
29
HEX BOLT M6-1 X 22
Price
N/A
30
SPRING
Price
$1.49
31
SLIDE BAR
Price
N/A
32
RUBBER PAD
Price
$1.90
33
MOTOR 1/2HP 110V 1-PH
Price
$196.65
33-1
R CAPACITOR 24M 300V 1-1/2 X 2-3/4
Price
$30.60
33-2
MOTOR FAN
Price
$6.90
33-3
MOTOR FAN COVER
Price
$10.45
33-4
MOTOR BOX COVER
Price
$5.75
33-5
MOTOR BOX COVER SCREW M4 X 6
Price
$1.90
33-6
CAST IRON MOTOR END PLATE
Price
$12.25
33A
R CAPACITOR 24M 300V 1-1/2 X 2-3/4
Price
N/A
33B
MOTOR FAN
Price
N/A
33C
MOTOR FAN COVER
Price
N/A
34
HEX BOLT M8-1.25 X 16
Price
N/A
35
FLAT WASHER 8MM
Price
N/A
36
MOTOR PULLEY
Price
$18.70
37
SET SCREW M6-1 X 10
Price
N/A
38
PULLEY COVER
Price
$45.70
39
MACHINE SCREW M6 X 20MM
Price
$1.90
40
V-BELT M28 3L280
Price
N/A
41
SPINDLE PULLEY
Price
$27.35
42
DRIVE SLEEVE ASSY
Price
$9.20
43
RETAINING RING
Price
$1.90
44
INT SLEEVE FOR SQRE SPLINE V1.08.00
Price
$10.45
44A
INT SPINE SLV FOR RND SPLINE V2.03
Price
$10.85
45
INT RETAINING RING 40MM
Price
N/A
46
BALL BEARING 6203-2RS
Price
N/A
47
QUILL ASSEMBLY
Price
$54.00
48
RETAINING RING
Price
$1.90
49
COLLAR
Price
$1.90
50
BALL BEARING 6201-2RS
Price
N/A
51
COLLAR
Price
$1.90
52
QUILL
Price
$14.75
53
BALL BEARING 6201-2RS
Price
N/A
54
*DISCD*SPINDLE SHAFT B-16 STYLE V1.08.00
Item is no longer available
Price
N/A
54A
SPINDLE SHAFT V2.08.02
Price
$13.35
55
CHUCK B-16 STYLE V1.08.00
Price
$29.85
55-1
CAP SCREW M5-.8 X 20
Price
N/A
55A
CHUCK 1-13 MM JT33 V2.06.02
Price
$33.70
56
DRL CHK KEY 6MM TH-SE 12T SD-14.2MM
Price
$3.75
57
COVER SPACER
Price
$1.90
58
POWER CORD
Price
$6.90
59
LIMIT SWITCH
Price
$2.30
60
OSCILLATOR BELT
Price
$3.15
61
HEX WRENCH 3MM
Price
N/A
62
HEX WRENCH 4MM
Price
N/A
63
OSCILLATING MECHANISM ASSY
Price
$76.20
63A
PLASTIC GEAR
Price
$12.95
63B
OSCILLATING MECH. ARM
Price
$21.25
64
WRENCH 14MM X 1/2"
Price
$3.25
65
MACHINE SCREW M5 X 14MM
Price
$1.90
66
FLAT WASHER 5MM
Price
N/A
67
COVER KNOB
Price
$1.49
68
MANUAL W1667 MFD-08.00-12.02 V1.01.00
Price
N/A
69
LOCKING GIB
Price
N/A
70
Mandrel for Sanding Drum Kit
Price
N/A
70-1
*DISCD*MANDREL SPACER 3/8" ALUMINUM
Price
N/A
71
HEX NUT M8-1.25
Price
N/A
72
***USE PX1668094***
Price
$6.50
73
***USE PX1668096***
Price
$1.90
74
***USE PX1668095***
Price
$1.90
75
DUST HOOD 2PC
Price
$5.10
76
MACHINE SCREW M4 X 22MM
Price
$1.90
77
TABLE INSERT 5/8" I.D.
Price
N/A
78
TABLE INSERT 1" I.D.
Price
N/A
79
TABLE INSERT 1-5/8"
Price
$3.00
80
TABLE INSERT 1-7/8" I.D.
Price
N/A
81
FLAT WASHER 8MM
Price
N/A
82

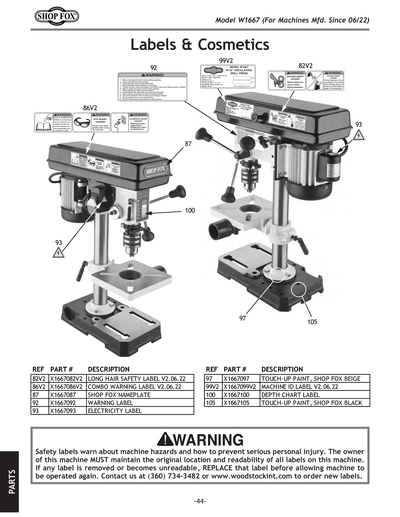

LONG HAIR SAFETY LABEL V1
Price
$1.25
82V2
CLOSE DOOR LABEL V2.06.22
Price
N/A
83
X1667083
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
84
CARTON FOR W1667
Price
$38.50
85
STYROFOAM
Price
$49.25
86
GLASSES SAFETY LABEL V1
Price
$1.90
86V2
COMBO WARNING LABEL V3.04.24
Price
N/A
87
SHOP FOX NAMEPLATE
Price
$2.60
88
FLAT WASHER 8MM
Price
N/A
89
EXT RETAINING RING 7MM
Price
N/A
90
OSCILLATING MECH. ARM
Price
N/A
91
PLASTIC GEAR
Price
N/A
92
WARNING LABEL
Price
$2.20
93
ELECTRICITY 0.7W X 0.6H
Price
N/A
94
R CAPACITOR 24M 300V 1-1/2 X 2-3/4
Price
N/A
95
MOTOR FAN
Price
N/A
96
MOTOR FAN COVER
Price
N/A
97
SHOP FOX OFF WHITE REF G9970 G9971
Price
N/A
98
CAP SCREW M5-.8 X 20
Price
N/A
99
MACHINE ID LABEL V1
Price
$16.40
99V2
MACHINE ID LABEL V2.06.22
Price
$16.40
100
DEPTH CHART LABEL
Price
$1.25
101
PHLP HD SCR M12-1.75 X 25
Price
N/A
102
FLAT WASHER 4MM
Price
N/A
103
PHLP HD SCR M4-.7 X 18
Price
N/A
104
CHUCK GUARD ASSEMBLY
Price
N/A
104-1
PHLP HD SCR M4-.7 X 30
Price
N/A
104-2
HEX NUT M4-.7
Price
N/A
104-3
TAP SCREW M2.2 X 4.5
Price
N/A
104-4
HEX BOLT M5-.8 X 12
Price
N/A
104-5
WING NUT M5-.8
Price
N/A
105
GLOSSY BLACK
Price
N/A
106
COLUMN WRENCH
Price
N/A
MAN
MANUAL W1667 MFD-08.00-12.02 V1.01.00
Price
$15.90
MANV2
MANUAL W1667 MFD-01.03-05.22 V2.02.04
Price
$22.65
MANV3
MANUAL W1667 MFD-06.22+ V3.08.25
Price
$22.65
