Parts for W1668 - 13-1/4" Benchtop Oscillating Drill Press

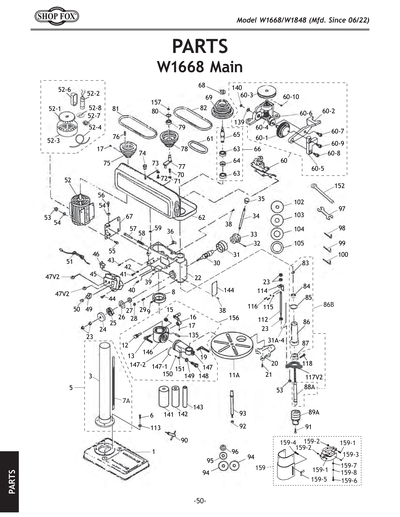

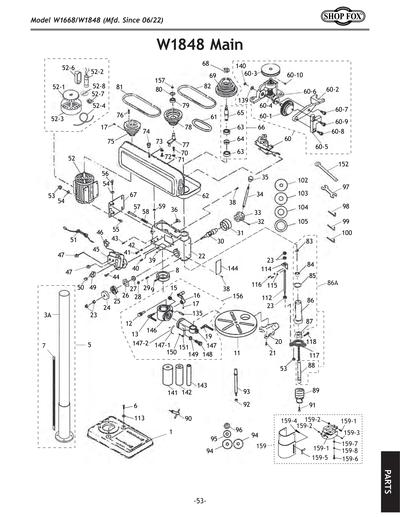

Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668
Part Diagram for W1668

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

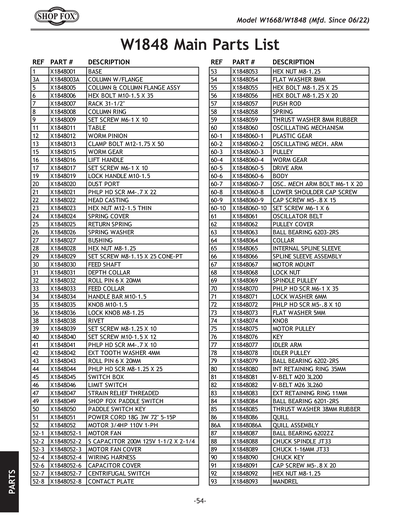

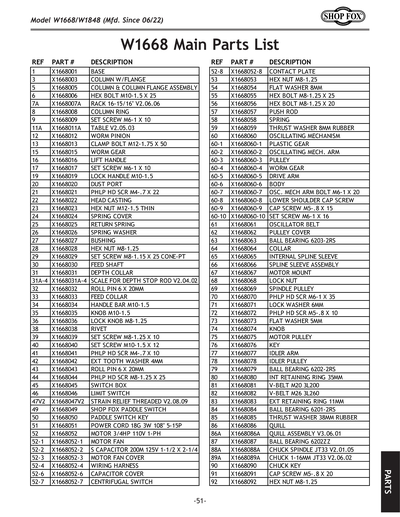

Ref #
Part #
Description
1
BASE
Price
$118.65
2
COLUMN W/FLANGE
Price
N/A
3
COLUMN W/FLANGE
Price
$128.90
3-1
COLUMN & COLUMN FLANGE ASSEMBLY
Price
$63.95
4
TABLE BRACKET
Price
$27.35
5
COLUMN & COLUMN FLANGE ASSEMBLY
Price
N/A
6
HEX BOLT M10-1.5 X 25
Price
N/A
7
RACK V1.08.00
Price
$18.40
7A
RACK 16 - 15/16" V2.06.06
Price
$30.60
8
COLUMN RING
Price
$10.45
9
SET SCREW M6-1 X 10
Price
N/A
10
*DISCD*TABLE BRACKET V1.08.00
Price
$16.05
10A
GEARED TABLE BRACKET V2.02.04
Price
$98.65
10A-1
COLUMN SUPPORT ARM V1.09.02
Price
$37.35
10A-2
COLUMN/TABLE BRACKET ASSY V2.02.04
Price
$197.35
10A-3
AXLE
Price
$4.00
11
*DISCD*TABLE V1.08.00
Item is no longer available
Price
N/A
11A
TABLE V2.05.03
Price
$28.10
12
WORM PINION
Price
$6.90
13
CLAMP BOLT M12-1.75 X 50
Price
$1.90
14
LOCK SHOE
Price
$1.90
15
WORM GEAR
Price
$9.75
16
LIFT HANDLE
Price
$11.60
17
SET SCREW M6-1 X 10
Price
N/A
18
SET SCREW M4-.7 X 12
Price
N/A
19
LOCK HANDLE M10-1.5
Price
$1.90
20
DUST PORT
Price
$5.10
21
PHLP HD SCR M4-.7 X 22
Price
N/A
22
HEAD CASTING
Price
$64.00
24
SPRING COVER
Price
$2.20
25
RETURN SPRING
Price
$6.20
26
SPRING WASHER
Price
$1.90
27
BUSHING
Price
$2.10
28
HEX NUT M8-1.25
Price
N/A
29
SET SCREW M8-1.25 X 25 CONE-PT
Price
$1.90
30
FEED SHAFT
Price
$15.90
31
DEPTH COLLAR V1.08.00
Price
$8.65
31A
DEPTH STOP ROD V2.04.02
Price
$10.45
31A-1
UPPER DEPTH STOP ROD BRACKET
Price
$6.90
31A-2
JAM NUT
Price
$1.90
31A-3
LOWER DEPTH STOP ROD BRACKET
Price
$3.45
31A-4
SCALE FOR DEPTH STOP ROD V2.04.02
Price
$5.45
31A-5
BOTTOM OUT FOR DEPTH STOP ROD
Price
$1.90
31A-6
DEPTH STOP MOUNT
Price
$15.35
32
ROLL PIN 6 X 20
Price
N/A
33
FEED COLLAR
Price
$12.35
34
HANDLE BAR M10-1.5
Price
$2.60
35
KNOB M10-1.5
Price
$5.45
36
LOCK KNOB M8-1.25
Price
$2.20
37
POINTER
Price
$1.90
38
RIVET
Price
$1.90
39
SET SCREW M8-1.25 X 10
Price
N/A
40
SET SCREW M10-1.5 X 12
Price
N/A
41
PHLP HD SCR M4-.7 X 10
Price
N/A
42
EXT TOOTH WASHER 4MM
Price
N/A
43
ROLL PIN 6 X 20
Price
N/A
44
PHLP HD SCR M8-1.25 X 25
Price
N/A
45
SWITCH BOX
Price
$16.60
45V2
SWITCH BOX
Price
N/A
46
LIMIT SWITCH
Price
$9.10
47
STRAIN RELIEF SNAP-ON V1.02.01
Price
$13.35
47V2
STRAIN RELIEF THREADED V2.08.09
Price
$1.90
48
*DISCD*OUTLET
Item is no longer available
Price
N/A
49
Paddle Switch 125V/250V
Price
N/A
50
PADDLE SWITCH KEY
Price
N/A
51
POWER CORD 18G 3W 108" 5-15P
Price
$2.90
52
MOTOR 3/4HP 110V 1-PH
Price
$332.10
52-1
MOTOR FAN
Price
$7.60
52-2
S CAPACITOR 200M 125V 1-1/2 X 2-1/4
Price
N/A
52-3
MOTOR FAN COVER
Price
$16.85
52-4
WIRING HARNESS
Price
$2.20
52-5
WIRE BOX COVER
Price
$1.90
52-6
CAPACITOR COVER
Price
$10.45
52-7
CENTRIFUGAL SWITCH
Price
N/A
52-8
CONTACT PLATE
Price
N/A
52A
S CAPACITOR 200M 125V 1-1/2 X 2-1/4
Price
N/A
52B
CENTRIFUGAL SWITCH
Price
$18.70
52C
CONTACT PLATE
Price
$4.70
52D
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
52E
*DISCD*WIRING HARNESS
Item is no longer available
Price
N/A
53
HEX NUT M8-1.25
Price
N/A
54
FLAT WASHER 8MM
Price
N/A
55
HEX BOLT M8-1.25 X 25
Price
N/A
56
HEX BOLT M8-1.25 X 20
Price
N/A
57
PUSH ROD
Price
$1.90
58
SPRING
Price
$1.90
59
THRUST WASHER 8MM RUBBER
Price
N/A
60
OSCILLATING MECHANISM
Price
$60.75
60-1
PLASTIC GEAR
Price
$15.95
60-10
SET SCREW M6-1 X 6
Price
N/A
60-2
OSCILLATING MECH. ARM
Price
$11.50
60-3
PULLEY
Price
$7.95
60-4
WORM GEAR
Price
$2.20
60-5
DRIVE ARM
Price
$1.90
60-6
BODY
Price
$20.90
60-7
OSC. MECH ARM BOLT M6-1 X 20
Price
$1.90
60-7A
HEX NUT M6-1
Price
N/A
60-8
LOWER SHOULDER CAP SCREW
Price
$1.90
60-9
CAP SCREW M5-.8 X 15
Price
N/A
60A
*DISCD*PLASTIC GEAR
Item is no longer available
Price
N/A
60B
OSCILLATING MECH. ARM
Price
$131.95
61
OSCILLATOR BELT
Price
$4.70
62
PULLEY COVER
Price
$35.95

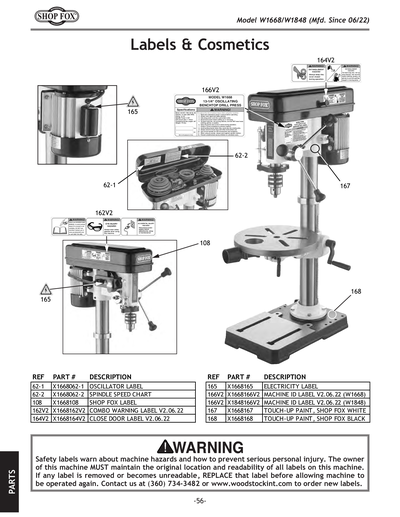

62-1
OSCILLATOR LABEL
Price
$1.25
62-2
SPINDLE SPEED CHART
Price
$1.90
63
BALL BEARING 6203-2RS
Price
N/A
64
COLLAR
Price
$1.90
65
INTERNAL SPLINE SLEEVE
Price
$14.10
66
SPLINE SLEEVE ASSEMBLY
Price
$33.40
67
MOTOR MOUNT
Price
$4.70
68
LOCK NUT M17-1.25 LH
Price
$1.90
69
SPINDLE PULLEY
Price
$51.45
70
PHLP HD SCR M6-1 X 35
Price
N/A
71
LOCK WASHER 6MM
Price
N/A
72
PHLP HD SCR M5-.8 X 10
Price
N/A
73
FLAT WASHER 5MM
Price
N/A
74
KNOB
Price
$1.90
75
MOTOR PULLEY
Price
$31.60
76
KEY
Price
$1.90
77
IDLER ARM
Price
$11.45
78
IDLER PULLEY
Price
$21.60
79
BALL BEARING 6202-2RS
Price
N/A
80
INT RETAINING RING 35MM
Price
N/A
81
V-BELT M20 3L200
Price
N/A
82
V-BELT M26 3L260
Price
N/A
83
EXT RETAINING RING 11MM
Price
N/A
84
BALL BEARING 6201-2RS
Price
N/A
85
THRUST WASHER 38MM RUBBER
Price
N/A
86
QUILL V1.08.00
Price
$21.60
86A
QUILL ASSEMBLY V3.06.01
Price
$88.45
86B
CHUCK QUILL ASSY JT33 V2.01.05
Price
$88.35
87
BALL BEARING 6202ZZ
Price
N/A
88
SPINDLE V1.08.00
Price
$28.10
88A
CHUCK SPINDLE JT33 V2.01.05
Price
$42.85
89
DRILL CHUCK V1.08.00
Price
$41.40
89A
CHUCK W/KEY
Price
N/A
90
CHUCK KEY
Price
$5.10
91
CAP SCREW M5-.8 X 20
Price
N/A
92
HEX NUT M8-1.25
Price
N/A

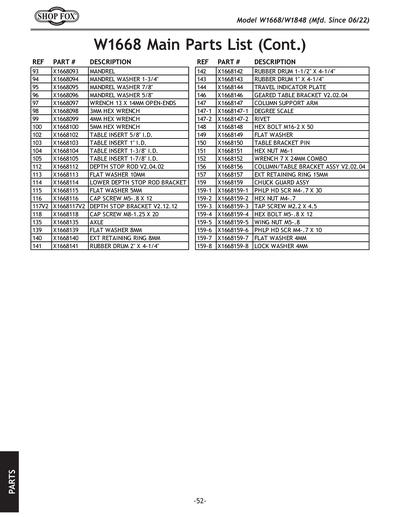

93
MANDREL
Price
$6.85

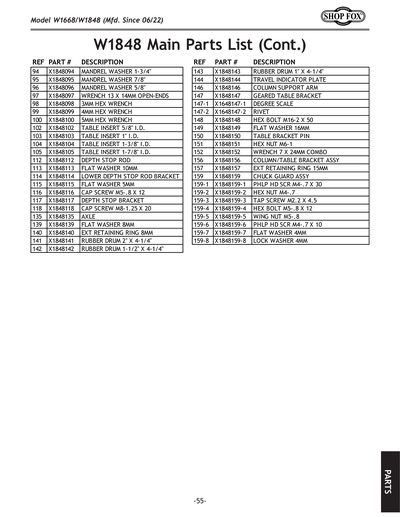

94
MANDREL WASHER 5/8" X 1-3/4"
Price
$1.90
95
MANDREL WASHER 3/8" X 7/8"
Price
$1.90
96
MANDREL WASHER 3/8" X 5/8"
Price
$1.90
97
WRENCH 13 X 14MM OPEN-ENDS
Price
$7.95
98
HEX WRENCH 3MM
Price
N/A
99
HEX WRENCH 4MM
Price
N/A
100
HEX WRENCH 5MM
Price
N/A
101
MANUAL W1668 MFD-03.00-07.16 V1.02.04
Price
N/A
102
TABLE INSERT 5/8" I.D.
Price
$1.90
103
TABLE INSERT 1" I.D.
Price
$2.90
104
TABLE INSERT 1-3/8" I.D.
Price
$3.25
105
TABLE INSERT 1-7/8" I.D.
Price
$3.60
106
LONG HAIR SAFETY LABEL
Price
$1.25
107
GLASSES SAFETY LABEL
Price
$1.25
108
SHOP FOX LABEL
Price
$2.65
109
CARDBOARD BOX FOR W1668 BOX 1 OF 2
Price
N/A
110
HEX BOLT
Price
$1.90
110A
HEX NUT
Price
$1.90
111A
FLAT WASHER
Price
$1.90
111B
TABLE BRACKET PIN
Price
$1.90
112
DEPTH STOP ROD V2.04.02
Price
N/A
113
FLAT WASHER 10MM
Price
N/A
114
LOWER DEPTH STOP ROD BRACKET
Price
N/A
115
FLAT WASHER 5MM
Price
N/A
116
CAP SCREW M5-.8 X 12
Price
N/A
117
DEPTH STOP MOUNT
Price
N/A
117V2
DEPTH STOP BRACKET V2.12.12
Price
$15.35
118
CAP SCREW M8-1.25 X 20
Price
N/A
135
AXLE
Price
N/A
139
FLAT WASHER 8MM
Price
N/A
140
EXT RETAINING RING 8MM
Price
N/A
141
*DISCD*DRUM 2" X 4 1/4"
Price
N/A
142
*DISCD*DRUM 1 1/2" X 4 1/4"
Price
N/A
143
*DISCD*DRUM 1" X 4 1/4"
Price
N/A
144
TRAVEL INDICATOR PLATE
Price
$4.00
145
DATA LABEL
Price
$1.90
146
GEARED TABLE BRACKET V2.02.04
Price
N/A
147
COLUMN SUPPORT ARM V1.09.02
Price
N/A
147-1
DEGREE SCALE
Price
$1.90
147-2
RIVET
Price
$1.90
148
HEX BOLT M16-2 X 50
Price
N/A
149
FLAT WASHER
Price
N/A
150
TABLE BRACKET PIN
Price
N/A
151
HEX NUT M6-1
Price
N/A
152
WRENCH 7 X 24MM COMBO
Price
$16.85
156
COLUMN/TABLE BRACKET ASSY V2.02.04
Price
N/A
157
EXT RETAINING RING 15MM
Price
N/A
158
STYROFOAM 6PC
Price
$30.95
159
CHUCK GUARD ASSEMBLY
Price
$26.75
159-1
PHLP HD SCR M4-.7 X 30
Price
N/A
159-2
HEX NUT M4-.7
Price
N/A
159-3
TAP SCREW M2.2 X 4.5
Price
N/A
159-4
HEX BOLT M5-.8 X 12
Price
N/A
159-5
WING NUT M5-.8
Price
N/A
159-6
PHLP HD SCR M4-.7 X 10
Price
N/A
159-7
FLAT WASHER 4MM
Price
N/A
159-8
LOCK WASHER 4MM
Price
N/A
160
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
161
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
162
READ MANUAL 2.8W X 1.5H
Price
N/A
162V2
COMBO WARNING LABEL V3.04.24
Price
N/A
163
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
164
SLIP ROLL WARNING 2.8W X 1.5H
Price
N/A
164V2
CLOSE DOOR LABEL V2.06.22
Price
N/A
165
ELECTRICITY 0.7W X 0.6H
Price
N/A
166
MACHINE ID LABEL V2.06.22
Price
N/A
166V2
MACHINE ID LABEL V2.06.22
Price
$16.40
BOX2
COMPLETE BASE/TABLE/COLUMN ASSY BOX2
Price
$593.40
MAN
MANUAL W1668 MFD-03.00-07.16 V1.02.04
Price
$16.15
MANV2
MANUAL W1668/48 MFD-08.16-05.22 V2.03.17
Price
$22.65
MANV3
MANUAL W1668/48 MFD-06.22+ V3.10.22
Price
$22.65
PKG1
CARDBOARD BOX FOR W1668 BOX 1 OF 2
Price
$14.75
PKG2
CARDBOARD BOX FOR W1668 BOX 2 OF 2
Price
$25.90
