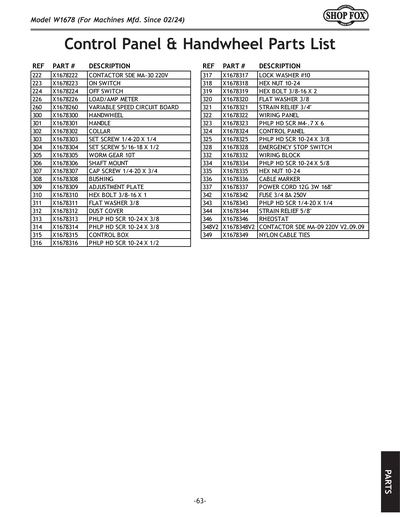

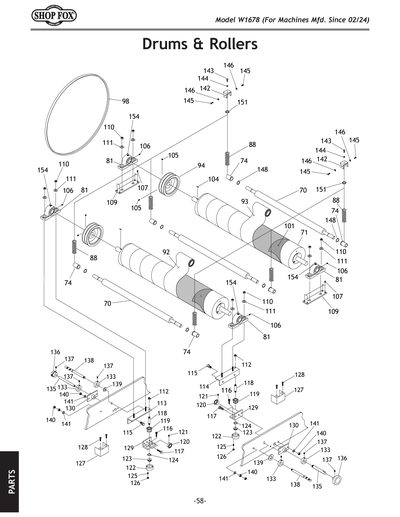

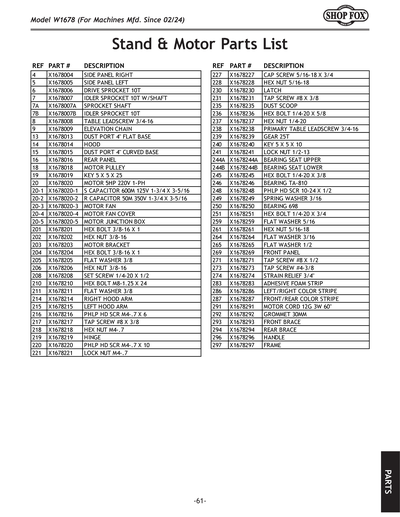

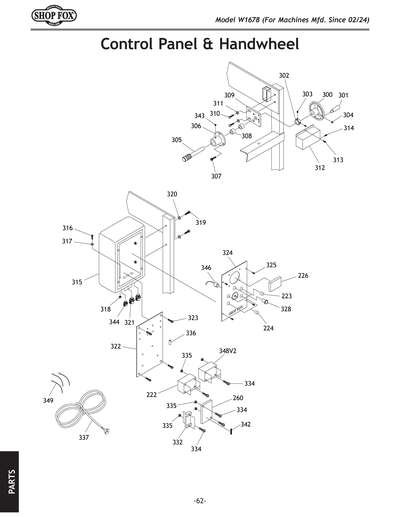

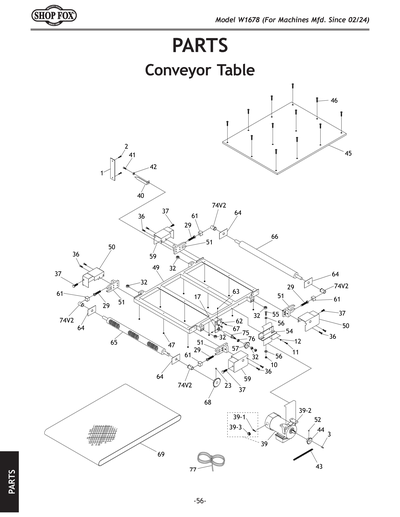

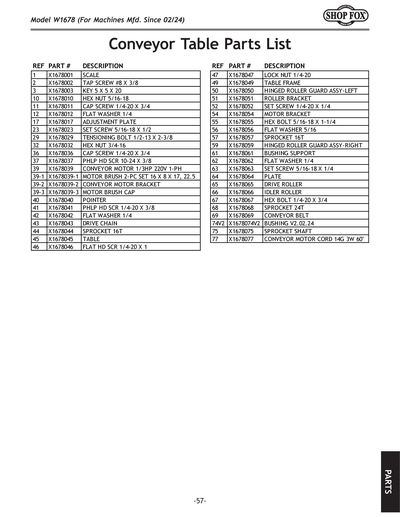

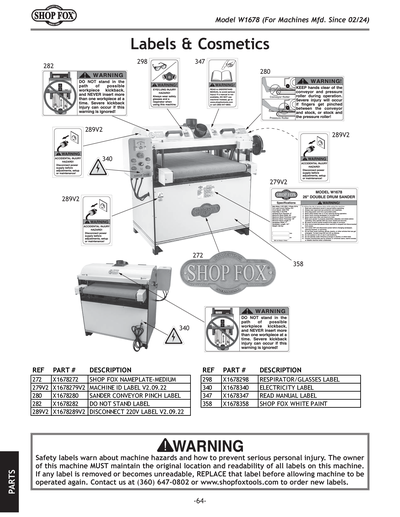

Parts for W1678 - 26" 5 HP Drum Sander

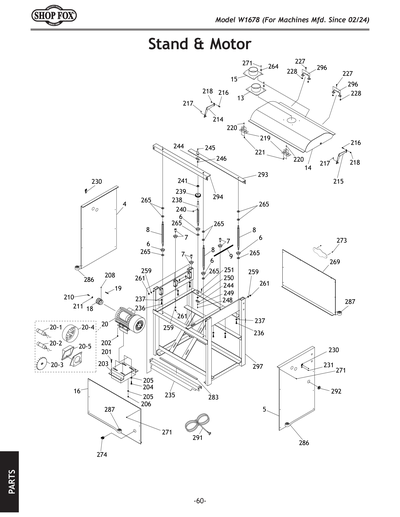

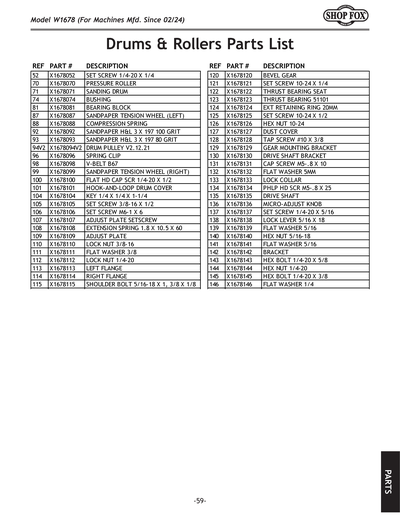

Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678
Part Diagram for W1678

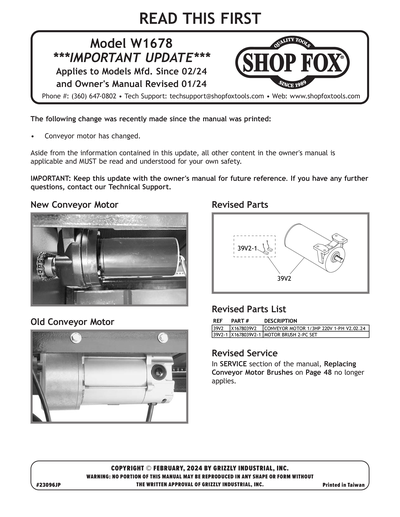

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
MOTOR BRUSH 2-PC SET
Price
$10.90
1
SCALE
Price
$2.95
2
TAP SCREW #8 X 3/8
Price
N/A
3
KEY 5 X 5 X 20
Price
N/A
4
SIDE PANEL, RIGHT
Price
$65.70
4A
SIDE PANEL, LEFT
Price
$71.25
5
***USE PX1678004A***
Item is no longer available
Price
N/A
6
SPROCKET
Price
N/A
7
SPROCKET W/ SHAFT
Price
$5.55
7A
SHAFT OF SPROCKET
Price
$3.15
7B
SPROCKET
Price
$4.10
8
TABLE SCREW FINE THREADS 3/4-16
Price
N/A
8A
FLAT WASHER 1/2
Price
N/A
9
ELEVATION CHAIN
Price
$14.60
10
X1678010
Now: PN02
HEX NUT 5/16-18
Price
N/A
11
CAP SCREW 1/4-20 X 3/4
Price
N/A
12
X1678012
Now: PW06
FLAT WASHER 1/4
Price
N/A
13
Universal Dust Port
Price
N/A
13A
DUST PORT CURVED BASE
Price
$22.95
14
HOOD
Price
$29.00
16
REAR PANEL
Price
$69.90
17
ADJUSTMENT PLATE
Price
$5.45
18
MOTOR PULLEY
Price
N/A
19
KEY 5 X 5 X 25
Price
N/A
20
MOTOR 5HP 22.225MM SHAFT
Price
$898.40
20-1
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
20-1A
S CAPACITOR 800M 250V 2 X 4
Price
N/A
20-2
R CAPACITOR 50M 350V 45 X 85MM
Price
$54.35
20-3
MOTOR FAN
Price
$5.85
20-4
MOTOR FAN COVER
Price
$8.15
20-5
MOTOR JUNCTION BOX
Price
$5.55
21
X1678021
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
X1678022
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
23
SET SCREW 5/16-18 X 1/2
Price
N/A
24
X1678024
Now: PW02
FLAT WASHER 3/8
Price
N/A
26
X1678026
Now: PW02
FLAT WASHER 3/8
Price
N/A
27
X1678027
Now: PN08
HEX NUT 3/8-16
Price
N/A
28
DUST DEFLECTOR
Price
$8.70
29
ROLLER BRACKET BOLT 1/2-13 X 70
Price
N/A
30
GROMMET 28
Price
$1.80
31
POWER CORD 12G X 3W 86"L
Price
N/A
31A
POWER CORD 12G X 3W 36"L
Price
N/A
31B
POWER CORD 12G X 3W 36"L
Price
N/A
32
X1678032
Now: PN03
HEX NUT 3/4-16
Price
N/A
34
X1678034
Now: PN02
HEX NUT 5/16-18
Price
N/A
35
X1678035
Now: PN03
HEX NUT 3/4-16
Price
N/A
36
CAP SCREW 1/4-20 X 3/4
Price
N/A
37
X1678037
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
38
SET SCREW 3/8-16 X 1/4
Price
N/A
39
CONVEYOR MOTOR 1/3HP 220V 1-PH V2.02.24
Price
N/A
39-1
MOTOR BRUSH
Price
$13.45
39-2
FEED BELT MOTOR BRACKET
Price
$108.35
39V2
CONVEYOR MOTOR 1/3HP 220V 1-PH V2.02.24
Price
$815.10
39V2-1
MOTOR BRUSH 2-PC SET
Price
$19.95
40
POINTER
Price
$1.80
41
X1678041
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
42
X1678042
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
CHAIN
Price
N/A
44
SPROCKET
Price
N/A
45
TABLE
Price
$43.90
46
FLAT HD SCR 1/4-20 X 1
Price
N/A
47
LOCK NUT 1/4-20
Price
N/A
48
X1678048
Now: PW06
FLAT WASHER 1/4
Price
N/A
49
TABLE FRAME
Price
$96.85
50
***USE P1066050A***
Price
$23.60
50A
GUARD HINGED LEFT
Price
N/A
50B
GUARD HINGED LEFT
Price
N/A
51
ROLLER BRACKET
Price
N/A
52
SET SCREW 1/4-20 X 1/4
Price
N/A
54
MOTOR BRACKET
Price
$13.90
55
X1678055
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
56
X1678056
Now: PW07
FLAT WASHER 5/16
Price
N/A
57
SPROCKET 16T
Price
$6.60
58
CAP SCREW 1/4-20 X 3/4
Price
N/A
59
GUARD RIGHT
Price
N/A
59A
GUARD RIGHT
Price
N/A
59B
GUARD RIGHT
Price
N/A
61
BUSHING SUPPORT
Price
N/A
62
X1678062
Now: PW06
FLAT WASHER 1/4
Price
N/A
63
SET SCREW 5/16-18 X 1/4
Price
N/A
64
PLATE
Price
N/A
65
DRIVE ROLLER
Price
N/A
65A
DRIVE ROLLER
Price
$61.60
65B
IDLER ROLLER
Price
$72.15
66
IDLER ROLLER
Price
N/A
67
X1678067
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
68
SPROCKET
Price
N/A
69
RUBBER CONVEYOR BELT
Price
N/A
70
PRESSURE ROLLER
Price
$65.75
71
SANDING DRUM
Price
$354.55
73
EXT RETAINING RING 19MM
Price
N/A
74
BUSHING
Price
N/A
75
SPROCKET SHAFT
Price
$8.70
76
BALL BEARING 6201-2RS
Price
N/A
77
VS MOTOR CORD 5' 14 GA
Price
$21.15
81
BEARING BLOCK
Price
N/A
82
SET SCREW 5/16-18 X 1/2
Price
N/A
84
ADJUST PLATE
Price
$3.55
85
X1678085
Now: PW02
FLAT WASHER 3/8
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
SANDPAPER TENSION WHEEL (LEFT)
Price
$42.90
88
COMPRESSION SPRING
Price
N/A
89
X1678089
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
90
X1678090
Now: PW02
FLAT WASHER 3/8
Price
N/A
90A
BRACKET
Price
$3.55
91
HEX BOLT M8-1.25 X 24
Price
N/A
92
FINE SANDPAPER 120 GRIT 3"X195"
Price
$26.80
92A
VELCRO-HOOK DRUM COVER
Price
$40.60
93
COARSE SANDPAPER 80 GRIT 3"X195"
Price
$28.70
94
*SEE EXT. DESCRIPTION*
Price
N/A
94V2
DRUM PULLEY V2.8.21
Price
$45.35
95
X1678095
Now: PK10
KEY 1/4 X 1/4 X 1-1/4
Price
N/A
96
SPRING CLIP
Price
$1.60
97
SET SCREW M6-1 X 6
Price
N/A
98
V-BELT B67
Price
N/A
99
SANDPAPER TENSION WHEEL (RIGHT)
Price
$50.75
101
VELCRO-HOOK DRUM COVER
Price
N/A
102
LATCH
Price
N/A
104
X1678104
Now: PK10
KEY 1/4 X 1/4 X 1-1/4
Price
N/A
105
SET SCREW 3/8-16 X 1/2
Price
N/A
106
SET SCREW M6-1 X 6
Price
N/A
107
SET SCREW 5/16-24 X 5/8
Price
N/A
107A
FLAT WASHER 1/4
Price
N/A
107B
TAP SCREW 1/4 X 1-1/2
Price
N/A
108
EXTENSION SPRING 1.8 X 10.5 X 60
Price
$1.85
109
BEARING BLOCK PLATE, TAPPED
Price
N/A
110
LOCK NUT 3/8-16
Price
N/A
111
X1678111
Now: PW02
FLAT WASHER 3/8
Price
N/A
112
LOCK NUT 1/4-20
Price
N/A
113
LEFT FLANGE
Price
$9.05
114
RIGHT FLANGE
Price
$9.05
115
RIGHT FLANGE BOLT
Price
$1.80
116
CAP SCREW 1/4-20 X 5/8
Price
N/A
117
X1678117
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
118
AXLE
Price
$2.75
119
BEVEL GEAR
Price
$4.00
120
BEVEL GEAR
Price
$4.70
121
SET SCREW 10-24 X 1/4
Price
N/A
122
THRUST BEARING SEAT
Price
$9.60
123
THRUST BEARING 51101
Price
N/A
124
EXT RETAINING RING 20MM
Price
N/A
125
SET SCREW 10-24 X 1/2
Price
N/A
126
X1678126
Now: PN07
HEX NUT 10-24
Price
N/A
127
DUST COVER
Price
$6.55
128
TAP SCREW #10 X 3/8
Price
N/A
129
GEAR MOUNTING BRACKET
Price
$12.85
130
DRIVE SHAFT BRACKET
Price
$23.45
133
LOCK COLLAR
Price
$2.20
135
DRIVE SHAFT
Price
$2.20
136
MICRO-ADJUST KNOB
Price
$22.20
137
SET SCREW 1/4-20 X 5/16
Price
N/A
138
LOCK LEVER 5/16 X 18
Price
$3.55
139
X1678139
Now: PW07
FLAT WASHER 5/16
Price
N/A
140
X1678140
Now: PN02
HEX NUT 5/16-18
Price
N/A
141
X1678141
Now: PW07
FLAT WASHER 5/16
Price
N/A
141A
SANDER REAR EJECT 5.3W X 2.8H V2.04.08
Price
N/A
141B
STOP OIL FILL TAG 4W X 4H
Price
N/A
142
BRACKET
Price
N/A
143
X1678143
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
144
X1678144
Now: PN05
HEX NUT 1/4-20
Price
N/A
145
X1678145
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
146
X1678146
Now: PW06
FLAT WASHER 1/4
Price
N/A
147
SANDER REAR EJECT 5.3W X 2.8H V2.04.08
Price
N/A
148
EXT RETAINING RING 19MM
Price
N/A
150
TENSION TOOL
Price
$8.50
151
SPRING PLATE
Price
N/A
154
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
201
X1678201
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
201A
RIGHT BEARING SEAT
Price
$2.95
202
X1678202
Now: PN08
HEX NUT 3/8-16
Price
N/A
202A
THRUST BEARING SEAT
Price
$9.60
203
BRACKET
Price
N/A
204
X1678204
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
205
X1678205
Now: PW02
FLAT WASHER 3/8
Price
N/A
206
X1678206
Now: PN08
HEX NUT 3/8-16
Price
N/A
207
BEVEL GEAR B
Price
$3.80
208
SET SCREW 1/4-20 X 1/2
Price
N/A
210
HEX BOLT M8-1.25 X 24
Price
N/A
211
X1678211
Now: PW02
FLAT WASHER 3/8
Price
N/A
212
LOCK COLLAR
Price
$1.60
214
RIGHT HOOD ARM
Price
$16.80
215
LEFT HOOD ARM
Price
$12.20
216
PHLP HD SCREW M4-.7 X 6
Price
$1.70
217
TAP SCREW #8 X 3/8
Price
N/A
218
HEX NUT M4-.7
Price
N/A
219
HINGE
Price
$5.15
220
PHLP HD SCR M4-.7 X 10
Price
N/A
221
LOCK NUT M4-.7
Price
N/A
222
MAGNETIC SWITCH 1/2 HP
Price
$161.80
222-1
MAGNETIC AMP SWITCH
Price
$63.95
223
ON SWITCH
Price
$13.55
224
OFF SWITCH
Price
$13.55
225
EMERGENCY STOP SWITCH
Price
$12.20
226
LOAD/AMP METER
Price
$49.80
226-1
WIRE POSITIVE
Price
$2.45
226-2
WIRE NEGATIVE
Price
$2.45
227
CAP SCREW 5/16-18 X 3/4
Price
N/A
228
X1678228
Now: PN02
HEX NUT 5/16-18
Price
N/A
229
CONTROL WIRE
Price
$1.60
230
LATCH
Price
N/A
230-1
LATCH
Price
N/A
231
TAP SCREW #8 X 3/8
Price
N/A
232
CONTROL WIRE
Price
$1.60
233
CONTROL WIRE
Price
$1.60
234
CONTROL WIRE
Price
$1.60
235
DUST SCOOP
Price
$62.25
236
X1678236
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
237
X1678237
Now: PN05
HEX NUT 1/4-20
Price
N/A
238
DRIVING TABLE LEAD SCREW 3/4-16
Price
$19.65
239
GEAR 25-TEETH
Price
$22.00
240
KEY 5 X 5 X 10
Price
N/A
241
LOCK NUT 1/2-13
Price
N/A
242
SET SCREW 1/4-20 X 5/16
Price
N/A
243
LOCK NUT 1/4-20
Price
N/A
244A
UPPER BEARING SEAT
Price
$15.90
244B
LOWER BEARING SEAT
Price
$4.85
245
X1678245
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
246
BEARING TA-810
Price
$5.50
247
X1678247
Now: PW07
FLAT WASHER 5/16
Price
N/A
248
X1678248
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
249
SPRING WASHER 3/16
Price
$1.80
249A
FLAT WASHER #10
Price
N/A
250
BEARING 698
Price
$6.20
251
X1678251
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
252
X1678252
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
253
X1678253
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
254
X1678254
Now: PW07
FLAT WASHER 5/16
Price
N/A
256
X1678256
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
257
X1678257
Now: PW03
FLAT WASHER #10
Price
N/A
258
X1678258
Now: PN07
HEX NUT 10-24
Price
N/A
259
X1678259
Now: PW07
FLAT WASHER 5/16
Price
N/A
260
VARIABLE SPEED CIRCUIT BOARD
Price
$243.40
261
X1678261
Now: PN02
HEX NUT 5/16-18
Price
N/A
262
X1678262
Now: PN07
HEX NUT 10-24
Price
N/A
263
HINGE
Price
$3.65
264
X1678264
Now: PW03
FLAT WASHER #10
Price
N/A
265
X1678265
Now: PW01
FLAT WASHER 1/2
Price
N/A
266
HANDLE
Price
$7.00
267
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
268
THRUST BEARING 51101
Price
N/A
269
FRONT PANEL
Price
$85.45
270
X1678270
Now: PN02
HEX NUT 5/16-18
Price
N/A
271
TAP SCREW #8 X 3/8
Price
N/A
272
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
273
TAP SCREW #8 X 5/8
Price
N/A
274
STRAIN RELIEF 3/4"
Price
$1.60
275
X1678275
Now: PN11
HEX NUT 3/8-24
Price
N/A
276
PHLP HD SCR M4-.7 X 6
Price
N/A
277A
TAP SCREW #8 X 5/8
Price
N/A
278
SELF ADHESIVE FOAM
Price
$1.80
279
MACHINE DATA LABEL
Price
$16.40
280
KEEP HANDS AWAY LABEL
Price
$1.25
281
DUST MASK LABEL
Price
$1.60
282
DO NOT STAND LABEL
Price
$1.25
283
ADHESIVE FOAM STRIP
Price
$1.60
284
DOWN/UP LABEL
Price
$3.35
285
CAP SCREW 5/16-18 X 3/4
Price
N/A
286
LEFT/RIGHT COLOR STRIPE
Price
$7.90
287
FRONT/REAR COLOR STRIPE
Price
$13.10
289
UNPLUG SANDER LABEL
Price
$2.40
290
SAFETY GLASSES LABEL
Price
$0.95
291
MOTOR 220V CORD 5' 12 GA
Price
$8.70
292
GROMMET 35 X 26MM
Price
N/A
293
FRONT BRACE
Price
$3.65
294
REAR BRACE
Price
$3.65
296
HANDLE
Price
$7.00
297
FRAME
Price
$690.25
300
HANDWHEEL
Price
$57.40
301
HANDLE
Price
$19.80
302
COLLAR
Price
$3.70
303
SET SCREW 1/4-20 X 1/4
Price
N/A
304
SET SCREW 5/16-18 X 1/2
Price
N/A
305
WORM GEAR 10 TEETH
Price
$20.10
306
SHAFT MOUNT
Price
$3.55
306A
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
307
CAP SCREW 1/4-20 X 3/4
Price
N/A
308
BUSHING
Price
$6.65
309
ADJUSTMENT PLATE
Price
$1.85
310
X1678310
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
311
X1678311
Now: PW02
FLAT WASHER 3/8
Price
N/A
312
DUST COVER
Price
$2.35
313
X1678313
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
314
X1678314
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
315
CONTROL BOX
Price
$121.70
315-1
WIRING PANEL ASSY
Price
N/A
316
X1678316
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
317
LOCK WASHER #10
Price
N/A
318
X1678318
Now: PN07
HEX NUT 10-24
Price
N/A
319
X1678319
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
320
X1678320
Now: PW02
FLAT WASHER 3/8
Price
N/A
321
STRAIN RELIEF 3/4"
Price
$1.60
322
WIRING PANEL
Price
$80.30
322-1
WIRING PANEL ASSY
Price
$501.05
323
PHLP HD SCR M4-.7 X 6
Price
N/A
324
CONTROL PANEL
Price
$18.40
325
X1678325
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
328
EMERGENCY STOP SWITCH
Price
$22.00
332
WIRING BLOCK
Price
$29.85
334
X1678334
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
335
X1678335
Now: PN07
HEX NUT 10-24
Price
N/A
336
CABLE MARKER
Price
$1.80
337
MAIN POWER CABLE 14' 12 GA
Price
$10.85
340
ELECTRICITY 1.4W X 1.2H
Price
N/A
342
FUSE 3/4" 10A 250V
Price
$1.95
343
X1678343
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
344
STRAIN RELIEF 5/8"
Price
$1.60
346
RHEOSTAT
Price
$14.20
347
READ MANUAL LABEL
Price
$0.95
348
FEED MOTOR SWITCH
Price
$203.35
348V2
CONTACTOR SDE MA-09 220V
Price
$55.40
349
NYLON CABLE TIES
Price
$2.90
350
FUSE 3/4" 10A 250V
Price
N/A
351
X1678351
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
352
STRAIN RELIEF 5/8"
Price
N/A
353
CARTON FOR W1678 COMPONENTS
Price
$86.35
355
HANDLE
Price
N/A
357
HANDLE
Price
N/A
400
CARTON FOR W1678
Price
$32.90
401
STYROFOAM
Price
$36.35
MAN
MANUAL FOR W1678 05/03
Price
$16.65
