Parts for W1681 - Buffing Assembly

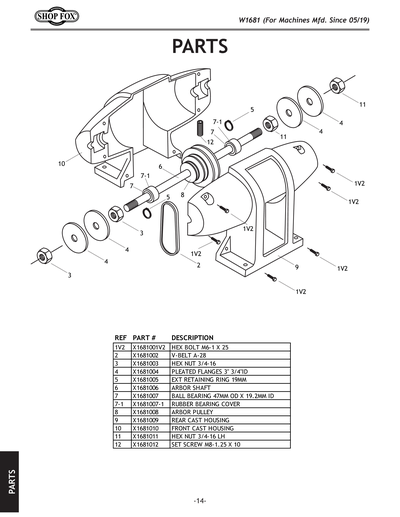

Part Diagram for W1681
Part Diagram for W1681

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEX NUT 3/4-16 LH
Price
N/A
1V2
HEX BOLT M6-1 X 25
Price
N/A
2
V-BELT A28
Price
N/A
3
X1681003
Now: PN03
HEX NUT 3/4-16
Price
N/A
4
PLEATED FLANGES 3" 3/4"ID
Price
$9.30
5
EXT RETAINING RING 19MM
Price
N/A
6
*DISCD*ARBOR SHAFT
Item is no longer available
Price
N/A
7
BALL BEARING 6204-2RS
Price
N/A
7-1
Price
$2.90
8
Price
$5.45
9
Price
$12.95
10
Price
$12.95
11
HEX NUT 3/4-16 LH
Price
N/A
12
SET SCREW M8-1.25 X 10
Price
N/A
100
Price
$11.20
