Parts for W1685 - 1-1/2 HP Dust Collector

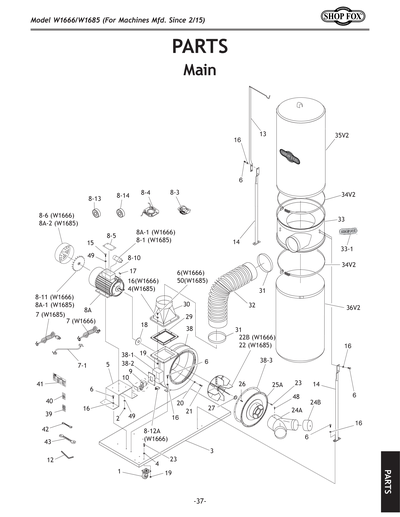

Part Diagram for W1685
Part Diagram for W1685
Part Diagram for W1685
Part Diagram for W1685

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SWIVEL CASTER
Price
N/A
2
HEX NUT M8-1.25
Price
N/A
3
BASE PLATE
Price
N/A
4
FLAT WASHER 6MM
Price
N/A
5
MOTOR MOUNT
Price
N/A
6
HEX BOLT M6-1 X 20
Price
N/A
7
POWER CORD 14G X 3W 72"
Price
$36.70
7A
MOTOR CORD 14G X 3W 24"
Price
N/A
8
*DISCD*MOTOR 1-1/2HP V1.06.02
Item is no longer available
Price
N/A
8-1
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
8-10
WIRING BOX WITHOUT COVER
Price
N/A
8-12A
OVERLOAD SWITCH 18A
Price
N/A
8-13
BALL BEARING 6205ZZ
Price
N/A
8-14
BALL BEARING 6204ZZ
Price
N/A
8-3
CONTACT PLATE & CENTRIFUGAL SWITCH
Price
N/A
8-4
CONTACT PLATE & CENTRIFUGAL SWITCH
Price
N/A
8-5
MOTOR BOX COVER
Price
N/A
8A
MOTOR 1-1/2HP 110V 1-PH V2.11.02
Price
$414.40
8A-1
Price
$10.45
8A-2
Price
$9.40
9
Paddle Switch 125V/250V
Price
N/A
10
PADDLE SWITCH KEY
Price
N/A
11
HEX WRENCH 4MM
Price
N/A
12
HEX WRENCH 5MM
Price
N/A
13
UPPER BAG HANGER
Price
N/A
14
SEPARATOR SUPPORT
Price
N/A
15
HEX BOLT M8-1.25 X 25
Price
N/A
16
FLAT WASHER 6MM
Price
N/A
17
KEY 5 X 5 X 25
Price
N/A
18
MOTOR SHAFT SPACER
Price
N/A
19
HEX NUT M6-1
Price
N/A
20
LOCK WASHER 10MM
Price
N/A
21
HEX BOLT M10-1.5 X 16
Price
N/A
22
Price
$87.40
23
PHLP HD SCR M6-1 X 10
Price
N/A
24
INLET 5 X 4 X 4 V1
Price
N/A
24A
INLET Y-CONNECTOR 6" X (2) 4" V2.12.01
Price
N/A
25
IMPELLER COVER 5" V1
Price
N/A
26
CAP SCREW M6-1 X 20 LH
Price
N/A
27
ARBOR WASHER (METAL)
Price
N/A
28
SET SCREW M8-1.25 X 10
Price
N/A
29
OUTLET GASKET 8 HOLE V1
Price
N/A
29A
OUTLET GASKET 6 HOLE V2.01.2
Price
N/A
30
Price
$35.45
31
HOSE CLAMP 5"
Price
N/A
32
TRANSFER HOSE 5"
Price
N/A
33
SEPARATOR
Price
N/A
33-1
CURVED SHOP FOX NAME PLATE
Price
N/A
34
BAG CLAMP POLYPROPYLENE V2.07.10
Price
N/A
34V2
BAG CLAMP POLYPROPYLENE V2.07.10
Price
N/A
35
Dust Collection Bag-Shop Fox® Logo
Price
N/A
36
Lower Bag for W1666
Price
N/A
38
Price
$74.10
38-1
SWITCH BOX
Price
N/A
38-2
SWITCH BOX COVER
Price
N/A
38-3
IMPELLER COVER GASKET
Price
N/A
39
HAND/INLET WARNING LABEL
Price
N/A
40
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
41
Price
$16.40
42
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
43
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
45
*DISCD*CARTON FOR W1685
Item is no longer available
Price
N/A
48
PHLP HD SCR M5-.8 X 10
Price
N/A
49
FLAT WASHER 8MM
Price
N/A
50
HEX BOLT M6-1 X 20
Price
N/A
MAN
Price
$17.00
MANV2
MAN FOR W1666 MFG 10/02-01/15 V3.06.13
Price
N/A
MANV4
MANUAL FOR W1666 MFD 02/15+ V4.04.15
Price
