Parts for W1686 - 1 HP Oscillating Spindle Sander

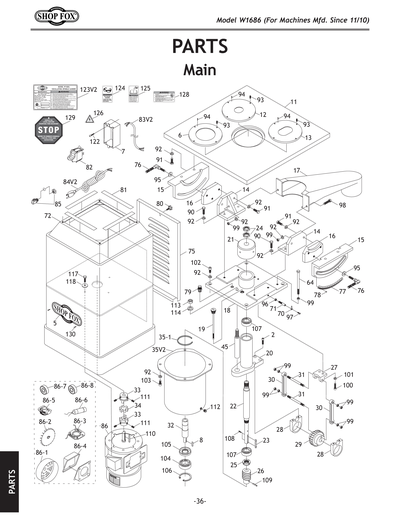

Part Diagram for W1686

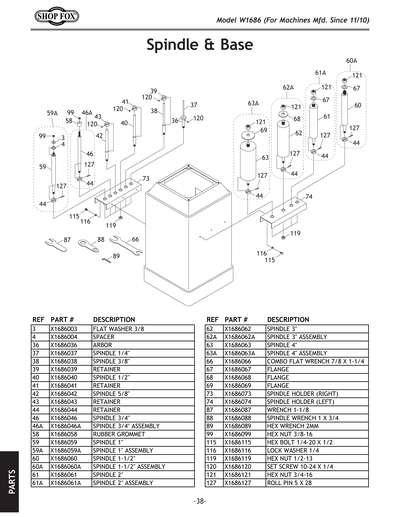

Part Diagram for W1686
Part Diagram for W1686
Part Diagram for W1686
Part Diagram for W1686
Part Diagram for W1686

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

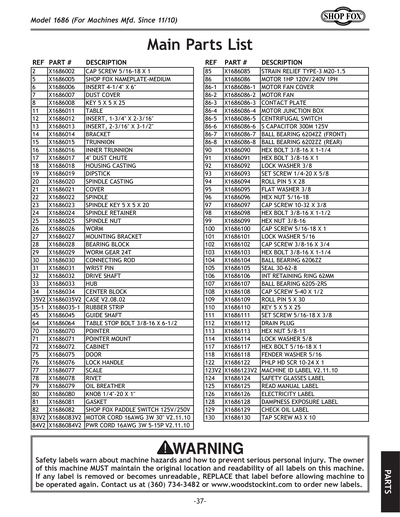

Ref #
Part #
Description
1
X1686001
Now: PN07
HEX NUT 10-24
Price
N/A
2
CAP SCREW 5/16-18 X 1
Price
N/A
3
X1686003
Now: PW02
FLAT WASHER 3/8
Price
N/A
4
SPACER
Price
$2.40
5
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
6
INSERT 4-1/4" X 6"
Price
$21.45
7
DUST COVER
Price
$13.10
8
KEY 5 X 5 X 25
Price
N/A
9
PHLP HD SCR 3/16-24 X 5/8
Price
$1.60
11
TABLE
Price
$443.75
12
INSERT 1-3/4" X 2-3/16"
Price
$21.20
13
INSERT 2-3/16" X 3-1/2"
Price
$22.20
14
BRACKET
Price
$14.25
15
TRUNNION
Price
$26.70
16
INNER TRUNNION
Price
$16.60
17
DUST HOOD
Price
$76.10
18
HOUSING CASTING
Price
$76.05
19
DIPSTICK
Price
$10.60
20
SPINDLE CASTING
Price
$37.05
21
COVER
Price
$25.10
22
SPINDLE
Price
$70.15
23
SPINDLE KEY 5 X 5 X 50MM
Price
$2.25
24
SPINDLE RETAINER
Price
$6.25
25
SPINDLE NUT
Price
$1.70
26
WORM
Price
N/A
27
MOUNTING BRACKET
Price
N/A
28
BEARING BLOCK
Price
$44.85
29
WORM GEAR 24T
Price
$40.75
30
CONNECTING ROD
Price
$5.90
31
WRIST PIN
Price
N/A
32
DRIVE SHAFT
Price
$12.05
33
HUB
Price
N/A
34
CENTER BLOCK
Price
$3.80
35
CASE
Price
$79.55
35-1
RUBBER STRIP
Price
$5.85
35V2
CASE
Price
N/A
36
ARBOR
Price
N/A
37
SPINDLE 1/4"
Price
$24.15
38
SPINDLE 3/8"
Price
N/A
39
RETAINER
Price
N/A
40
SPINDLE 1/2"
Price
$12.20
41
RETAINER
Price
N/A
42
SPINDLE 5/8"
Price
$12.20
43
RETAINER
Price
$2.95
44
RETAINER
Price
N/A
45
GUIDE SHAFT
Price
$12.30
46
SPINDLE 3/4"
Price
$30.85
46A
SPINDLE 3/4" ASSEMBLY
Price
$35.75
58
RUBBER GROMMET
Price
$1.70
59
SPINDLE 1"
Price
$40.35
59A
SPINDLE 1" ASSEMBLY
Price
$28.50
60
SPINDLE 1 1/2"
Price
$46.30
60A
SPINDLE 1-1/2" ASSEMBLY
Price
$51.75
61
SPINDLE 2"
Price
N/A
61A
SPINDLE 2" ASSEMBLY
Price
$65.55
62
SPINDLE 3"
Price
$73.90
62A
SPINDLE 3"
Price
N/A
63
SPINDLE 4"
Price
$114.55
63A
SPINDLE 4" ASSEMBLY
Price
$121.45
64
HEX BOLT 3/8-16 X 6-1/2
Price
$1.70
65
GREASE FITTING
Price
$8.70
66
COMBO FLAT WRENCH 7/8 X 1-1/4
Price
$8.95
67
FLANGE
Price
$1.70
68
FLANGE
Price
$1.49
69
FLANGE
Price
$1.49
70
POINTER
Price
$1.49
71
POINTER MOUNT
Price
$2.95
72
CABINET
Price
$190.15
73
SPINDLE HOLDER (RIGHT)
Price
$29.60
74
SPINDLE HOLDER (LEFT)
Price
$29.60
75
DOOR
Price
$18.05
76
LOCK HANDLE
Price
$3.65
77
SCALE
Price
$2.75
78
RIVET
Price
$1.70
79
OIL BREATHER
Price
$4.60
79A
WRENCH 32 X 22
Price
$2.20
80
KNOB 1/4"-20 X 1"
Price
$2.20
80A
FLAT WASHER 1/4 X 13 X 1
Price
$1.60
81
GASKET
Price
$1.80
82
Paddle Switch 125V/250V
Price
N/A
83
SWITCH-MOTOR CORD V1
Price
$9.40
83V2
MOTOR CORD 16AWG 3C 30" V2.11.10
Price
$13.05
84
POWER CORD V1
Price
$16.65
84V2
POWER CORD 16AWG 3C 12FT 5-15 V2.11.10
Price
N/A
85
STRAIN RELIEF TYPE-3 M20-1.5
Price
$1.80
86
MOTOR 1HP 120V/240V 1 PH
Price
$290.30
86-1
MOTOR FAN COVER
Price
$7.35
86-2
MOTOR FAN
Price
$3.55
86-3
CONTACT PLATE
Price
$3.55
86-4
MOTOR JUNCTION BOX
Price
$2.80
86-5
CENTRIFUGAL SWITCH
Price
$3.55
86-6
S CAPACITOR 300M 125V
Price
$12.20
86-7
BALL BEARING 6204ZZ
Price
N/A
86-8
BALL BEARING 6202ZZ
Price
N/A
87
WRENCH 1-1/8
Price
$6.20
88
SPINDLE WRENCH 1 X 3/4
Price
$6.10
89
HEX WRENCH 2MM
Price
N/A
90
X1686090
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
91
X1686091
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
92
LOCK WASHER 3/8
Price
N/A
93
SET SCREW 1/4-20 X 5/8
Price
N/A
94
ROLL PIN 5 X 28
Price
N/A
95
X1686095
Now: PW02
FLAT WASHER 3/8
Price
N/A
96
X1686096
Now: PN02
HEX NUT 5/16-18
Price
N/A
97
CAP SCREW 10-32 X 3/8
Price
N/A
98
X1686098
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
99
X1686099
Now: PN08
HEX NUT 3/8-16
Price
N/A
100
CAP SCREW 5/16-18 X 1
Price
N/A
101
LOCK WASHER 5/16
Price
N/A
102
CAP SCREW 3/8-16 X 3/4
Price
N/A
103
X1686103
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
104
BALL BEARING 6206ZZ
Price
N/A
105
SEAL 30-62-8
Price
$4.60
106
INT RETAINING RING 62MM
Price
N/A
107
BALL BEARING 6205RS
Price
N/A
108
CAP SCREW 5-40 X 1/2
Price
N/A
109
ROLL PIN 5 X 30
Price
N/A
110
KEY 5 X 5 X 25
Price
N/A
111
SET SCREW 5/16-18 X 3/8
Price
N/A
112
DRAIN PLUG
Price
$1.80
113
X1686113
Now: PN04
HEX NUT 5/8-11
Price
N/A
114
LOCK WASHER 5/8
Price
N/A
115
X1686115
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
116
LOCK WASHER 1/4
Price
N/A
117
X1686117
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
118
FENDER WASHER 5/16
Price
N/A
119
X1686119
Now: PN13
HEX NUT 1/2-13
Price
N/A
120
SET SCREW 10-24 X 1/4
Price
N/A
121
X1686121
Now: PN03
HEX NUT 3/4-16
Price
N/A
122
X1686122
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
123
MACHINE ID LABEL V1
Price
$16.40
123V2
MACHINE ID LABEL V2.11.10
Price
$16.40
124
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
125
READ MANUAL LABEL
Price
$2.25
126
ELECTRICITY 1.4W X 1.2H
Price
N/A
127
ROLL PIN 5 X 28
Price
N/A
128
DAMPNESS EXPOSURE LABEL
Price
$0.95
129
STOP OIL FILL TAG 4W X 4H
Price
N/A
130
TAP SCREW M3 X 10
Price
N/A
200
CARTON FOR W1686
Price
$27.70
201
STYROFOAM FOR W1686
Price
$32.90
MANUAL
MANUAL W1686 MFD-06.02-05.08 V1.08.02
Price
$15.55
MANV2
MANUAL W1686 MFD-06.08 V2.07.18
Price
$17.00
PXP1686104
BALL BEARING 6206ZZ
Price
N/A
