Parts for W1687 - 3 HP Dust Collector

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

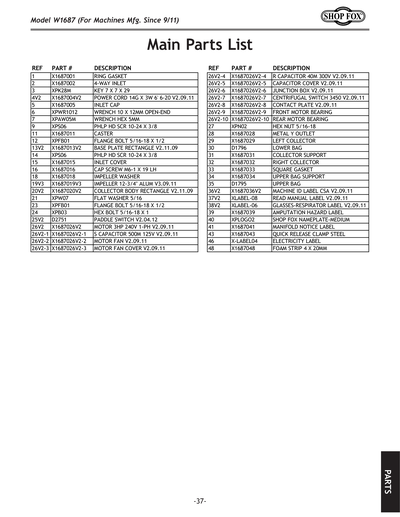

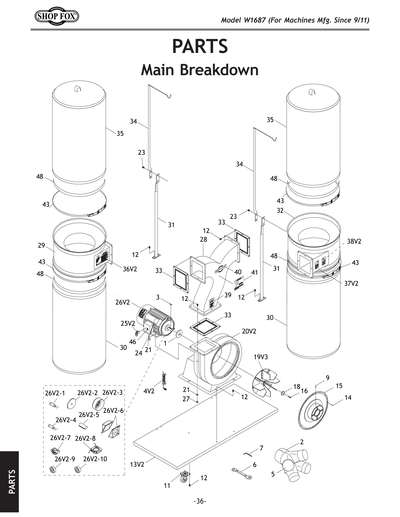

Ref # Part # Description Price Qty
1 X1687001 RING GASKET $5.40
2 X1687002 4-WAY INLET $68.20
3 X1687003
Replaced By PK28M
KEY 7 X 7 X 29
N/A View Replacement
4 X1687004
Replaced By PWRCRD220L
POWER CORD 12G X 3W 86"L
N/A View Replacement
4V2 X1687004V2 POWER CORD 14G X 3W 6' 6-20 V2.09.11 $24.90
5 X1687005 INLET CAP $2.15
6 X1687006
Replaced By PWR1012
WRENCH 10 X 12MM OPEN-ENDS
N/A View Replacement
7 X1687007
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
8 X1687008 BAND CLAMP 68" $10.90
9 X1687009
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
10 X1687010
Replaced By PWRCRD220S
POWER CORD 12G X 3W 36"L
N/A View Replacement
11 X1687011 CASTER $7.60
12 X1687012
Replaced By PFB01
FLANGE BOLT 5/16-18 X 1/2
N/A View Replacement
13 X1687013 *DISCD*BASE PLATE TRAPEZOID V1.04.02 $236.05
13V2 X1687013V2 BASE PLATE RECTANGLE V2.11.09 $161.90
14 X1687014
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
15 X1687015 INLET COVER $30.05
16 X1687016 CAP SCREW M6-1 X 19 LH $0.90
16-1 X1687016-1
Replaced By PX1687026-1
S CAPACITOR 600M 125V V1
N/A View Replacement
17 X1687017
Replaced By PB09
HEX BOLT 5/16-18 X 1/2
N/A View Replacement
18 X1687018 IMPELLER WASHER $1.05
19 X1687019 *DISCD*IMPELLER V1.07.02 $214.30
19V2 X1687019V2 IMPELLER 12-3/4" STEEL V2.11.09 $107.50
19V3 X1687019V3 IMPELLER 12-3/4" ALUM V3.09.11 $162.75
20 X1687020 *DISCD*COLLECTOR BODY TRAPEZOID V1.04.02 $165.25
20V2 X1687020V2 COLLECTOR BODY RECTANGLE V2.11.09 $181.50
21 X1687021
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
22 X1687022
Replaced By PX1666034V2
BAG CLAMP POLYPROPYLENE V2.07.10
N/A View Replacement
23 X1687023
Replaced By PFB01
FLANGE BOLT 5/16-18 X 1/2
N/A View Replacement
24 X1687024
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
25 X1687025 SWITCH 115/230V 30A 60HZ V1 $14.60
25V2 X1687025V2
Replaced By D2751
Paddle Switch 125V/250V
N/A View Replacement
26 X1687026 MOTOR 3HP 220V 1-PH V1 $389.05
26-1 X1687026-1 S CAPACITOR 600M 125V V1 $12.90
26-2 X1687026-2 MOTOR FAN V1 $29.90
26-3 X1687026-3 MOTOR FAN COVER V1 $16.60
26-4 X1687026-4
Replaced By PC040A
R CAPACITOR 40M 250V 1-3/16 X 2-3/8
N/A View Replacement
26-5 X1687026-5 CAPACITOR COVER V1 $12.05
26-6 X1687026-6 WIRING BOX V1 $11.05
26-7 X1687026-7 CENT SWITCH V1 $14.60
26V2 X1687026V2 MOTOR 3HP 240V 1-PH V2.09.11 $454.55
26V2-1 X1687026V2-1 S CAPACITOR 500M 125V V2.09.11 $15.30
26V2-10 X1687026V2-10 REAR MOTOR BEARING $7.15
26V2-2 X1687026V2-2 MOTOR FAN V2.09.11 $10.65
26V2-3 X1687026V2-3 MOTOR FAN COVER V2.09.11 $12.90
26V2-4 X1687026V2-4 R CAPACITOR 40M 300V V2.09.11 $16.35
26V2-5 X1687026V2-5 CAPACITOR COVER V2.09.11 $5.15
26V2-6 X1687026V2-6 JUNCTION BOX V2.09.11 $7.40
26V2-7 X1687026V2-7 CENTRIFUGAL SWITCH 3450 V2.09.11 $13.70
26V2-8 X1687026V2-8 CONTACT PLATE V2.09.11 $8.90
26V2-9 X1687026V2-9 FRONT MOTOR BEARING $8.90
27 X1687027
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
28 X1687028 METAL Y OUTLET $96.30
29 X1687029 LEFT COLLECTOR $75.85
30 X1687030
Replaced By D1796
Lower Bag for W1666
N/A View Replacement

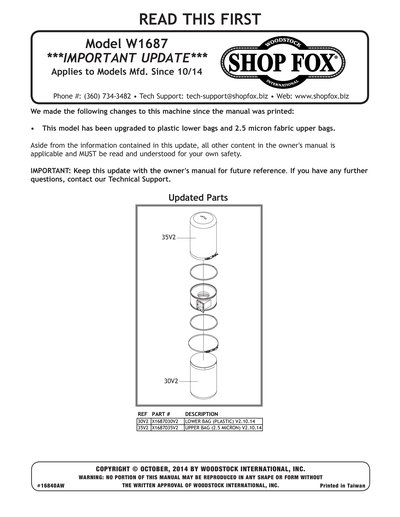

30V2 X1687030V2
Replaced By PX1666036V2
LOWER BAG (PLASTIC) V2.02.15
N/A View Replacement
31 X1687031 COLLECTOR SUPPORT $49.60
32 X1687032 RIGHT COLLECTOR $101.25
33 X1687033 SQUARE GASKET $4.60
34 X1687034 UPPER BAG SUPPORT $49.60
35 X1687035
Replaced By D1795
Dust Collection Bag-Shop Fox® Logo
N/A View Replacement
35V2 X1687035V2
Replaced By D4572
2.5 Micron Upper Filter Bag with Logo
N/A View Replacement

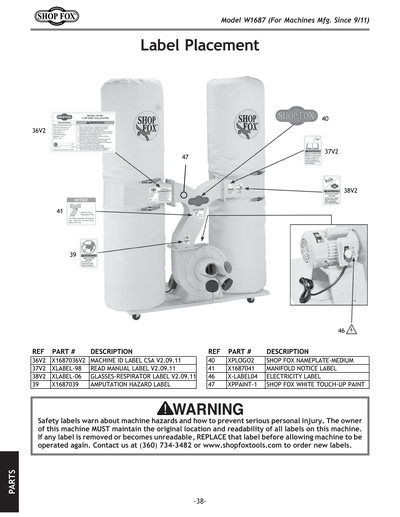

36 X1687036 LABEL-MACHINE ID V1 $13.60
36V2 X1687036V2 MACHINE ID LABEL CSA V2.09.11 $13.60
37 X1687037 LABEL-READ MANUAL V1 $1.45
37V2 X1687037V2
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
38 X1687038 LABEL-DUST MASK V1 $1.45
38V2 X1687038V2
Replaced By PLABEL-58
EAR PROTECTION/RESPIRATOR 2W X 3.3H
N/A View Replacement
39 X1687039 AMPUTATION HAZARD LABEL $1.45
40 X1687040
Replaced By D3376
SHOP FOX NAMEPLATE-MEDIUM
N/A View Replacement
41 X1687041 MANIFOLD NOTICE LABEL $1.45
42 X1687042 INLET WARNING LABEL $1.45
43 X1687043 QUICK RELEASE CLAMP STEEL $10.20
44 X1687044 BOLT BAG $5.40
45 X1687045 COMP MOTOR & IMPELLER ASSY $372.00
46 X1687046
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
47 X1687047 ***USE PXPPAINT-1*** $0.00
48 X1687048 FOAM STRIP 4 X 20MM $1.50
100 X1687100 CARTON FOR W1687 $31.60
101 X1687101 STYROFOAM $48.10
MAN X1687MAN MANUAL FOR W1687 06/02 $16.75
PART X1687PART MISC PART FOR W1687 $0.00
