Parts for W1701 - 1-1/2 HP Shaper

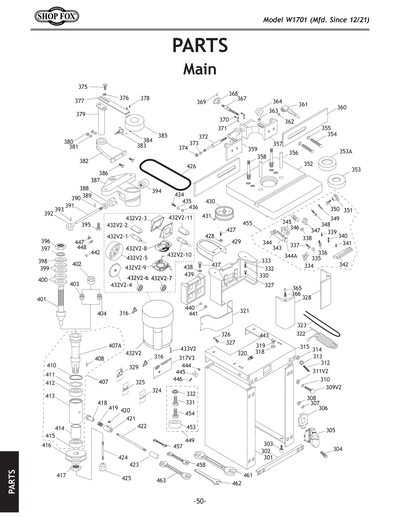

Part Diagram for W1701

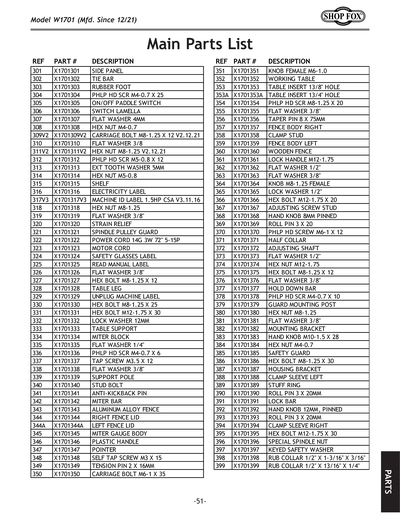

Part Diagram for W1701

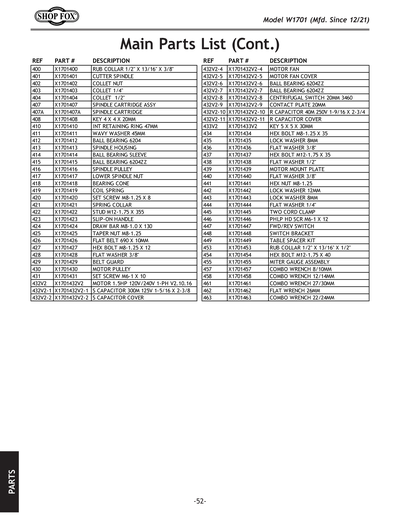

Part Diagram for W1701
Part Diagram for W1701
Part Diagram for W1701
Part Diagram for W1701

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*SIDE PANEL
Price
$15.10
2
TIE BAR
Price
N/A
3
*DISCD*RUBBER FOOT
Price
$1.49
4
PHLP HD SCR M4-.7 X 25
Price
N/A
5
Paddle Switch 125V/250V
Price
N/A
7
X1701007
Now: PW03
FLAT WASHER #10
Price
N/A
8
HEX NUT M4-.7
Price
N/A
9
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
10
X1701010
Now: PW02
FLAT WASHER 3/8
Price
N/A
11
HEX NUT M8-1.25
Price
N/A
12
PHLP HD SCR M5-.8 X 12
Price
N/A
13
EXT TOOTH WASHER 5MM
Price
N/A
14
HEX NUT M5-.8
Price
N/A
15
*DISCD*SHELF
Price
$16.05
16
*DISCD*ELECTRICITY LABEL
Price
$1.10
17
MACHINE ID LABEL NO-CSA V1
Price
N/A
18
HEX NUT M8-1.25
Price
N/A
19
X1701019
Now: PW02
FLAT WASHER 3/8
Price
N/A
20
*DISCD*STRAIN RELIEF
Price
$1.49
21
SPINDLE PULLEY GUARD
Price
N/A
22
POWER CORD 16G X 3W 73"L
Price
N/A
23
POWER CORD 16G X 3W 24"L
Price
N/A
24
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
25
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
26
X1701026
Now: PW02
FLAT WASHER 3/8
Price
N/A
27
HEX BOLT M8-1.25 X 12
Price
N/A
28
TABLE LEG
Price
N/A
29
UNPLUG MACHINE LABEL
Price
N/A
30
HEX BOLT M8-1.25 X 25
Price
N/A
31
HEX BOLT M12-1.75 X 30
Price
N/A
32
LOCK WASHER 12MM
Price
N/A
33
TABLE SUPPORT
Price
N/A
34
MITER BLOCK
Price
N/A
35
X1701035
Now: PW06
FLAT WASHER 1/4
Price
N/A
36
PHLP HD SCR M4-.7 X 6
Price
N/A
37
TAP SCREW M3.5 X 12
Price
N/A
38
X1701038
Now: PW02
FLAT WASHER 3/8
Price
N/A
39
SUPPORT POLE
Price
N/A
40
PLASTIC HANDLE
Price
N/A
41
ANTI-KICKBACK PIN
Price
N/A
42
*DISCD*MITER BAR
Price
$2.80
43
ALUMINUM ALLOY FENCE
Price
N/A
44
RIGHT FENCE LID
Price
N/A
44A
LEFT FENCE LID
Price
N/A
45
*DISCD*MITER GAUGE BODY
Price
$7.45
45-1
COMPLETE MITER GAUGE
Price
N/A
46
PLASTIC HANDLE
Price
N/A
47
POINTER
Price
N/A
48
TAP SCREW M3 X 15
Price
N/A
49
TENSION PIN 2 X 16MM
Price
N/A
50
CARRIAGE BOLT M6-1 X 35
Price
N/A
51
KNOB FEMALE M6-1.0
Price
N/A
52-1
*DISCD*TABLE SPACER KIT
Price
$10.35
53
*DISCD*TABLE INSERT W/SMALL HOLE 1-3/8"
Price
$1.49
53A
TABLE INSERT 1-3/4"
Price
N/A
54
PHLP HD SCR M8-1.25 X 20
Price
N/A
55
X1701055
Now: PW02
FLAT WASHER 3/8
Price
N/A
56
TAPER PIN
Price
N/A
57
*DISCD*FENCE BODY RIGHT
Price
$6.90
58
SHOULDER STUD
Price
N/A
59
*DISCD*FENCE BODY LEFT
Price
$7.20
60
FENCE 1PC
Price
N/A
61
LOCK HANDLE M12-1.75
Price
N/A
62
X1701062
Now: PW01
FLAT WASHER 1/2
Price
N/A
63
X1701063
Now: PW02
FLAT WASHER 3/8
Price
N/A
64
STAR KNOB M8-1.25 FEMALE
Price
N/A
65
LOCK WASHER 1/2
Price
N/A
66
HEX BOLT M12-1.75 X 20
Price
N/A
67
*DISCD*ADJUSTING SCREW STUD 10 X 80
Price
$1.49
69
ROLL PIN 3 X 20
Price
N/A
70
PHLP HD SCR M6-1 X 12
Price
N/A
71
*DISCD*HALF COLLAR
Price
$1.49
72
SHOULDER STUD
Price
N/A
73
X1701073
Now: PW01
FLAT WASHER 1/2
Price
N/A
74
HEX NUT M12-1.75
Price
N/A
75
HEX BOLT M8-1.25 X 12
Price
N/A
76
X1701076
Now: PW02
FLAT WASHER 3/8
Price
N/A
77
*DISCD*HOLD DOWN BAR
Price
$1.49
78
PHLP HD SCR M4-.7 X 10
Price
N/A
79
*DISCD*HEX POST
Price
$3.25
80
HEX NUT M8-1.25
Price
N/A
81
X1701081
Now: PW02
FLAT WASHER 3/8
Price
N/A
83
*DISCD*HAND KNOB M10-1.5 X 28
Price
$1.49
84
HEX NUT M4-.7
Price
N/A
86
HEX BOLT M8-1.25 X 35
Price
N/A
87
*DISCD*HOUSING BRACKET
Price
$6.70
88
*DISCD*CLAMP SLEEVE LEFT
Price
$1.49
89
*DISCD*STUFF RING
Price
$1.49
90
ROLL PIN 3 X 20
Price
N/A
91
LOCK BAR THREADED BOTH ENDS V2.01.07
Price
N/A
92
STAR KNOB M10-1.5 THREADED V2.01.07
Price
N/A
93
ROLL PIN 3 X 20
Price
N/A
94
*DISCD*CLAMP SLEEVE RIGHT
Price
$1.49
95
HEX BOLT M12-1.75 X 30
Price
N/A
97
SAFETY WASHER
Price
N/A
98
RUB COLLAR 1/2 X 1-3/16 X 3/16
Price
N/A
99
RUB COLLAR 1/2 X 1-3/16 X 1/4
Price
N/A
100
RUB COLLAR 1/2 X 1-3/16 X 3/8
Price
N/A
101A
*DISCD*CUTTER SPINDLE V2.12.04
Price
$27.90
102
ROUTER BIT COLLET NUT
Price
N/A
103A
*DISCD*1/4" ROUTR BIT COLET INSERT V2.12
Price
$17.00
104
ROUTER BIT COLLET 1/2"
Price
N/A
104A
ROUTER BIT COLLET 1/2"
Price
N/A
107C
*DISCD*COMP SPINDLE CARTRIDGE V3.05.05
Price
$37.00
108
KEY 4 X 4 X 20
Price
N/A
109
*DISCD*CLAMP RING
Price
$1.49
110
INT RETAINING RING 47MM
Price
N/A
112
BALL BEARING 6204ZZ
Price
N/A
113
*DISCD*SPINDLE HOUSING
Price
$5.70
114
BEARING SLEEVE
Price
N/A
115
BALL BEARING 6204ZZ
Price
N/A
116
SPINDLE PULLEY
Price
N/A
117
CARTRIDGE NUT M16-1.0
Price
N/A
118
BEARING CONE
Price
N/A
119
COIL SPRING
Price
N/A
120
SET SCREW M8-1.25 X 8
Price
N/A
121
SPRING COLLAR
Price
N/A
122
*DISCD*STUD
Price
$1.49
123
*DISCD*SLIP ON HANDLE 12MM
Price
$1.49
124
*DISCD*RAW BAR M8-1-1.0
Price
$4.95
127
HEX BOLT M8-1.25 X 12
Price
N/A
128
X1701128
Now: PW02
FLAT WASHER 3/8
Price
N/A
129
BELT GUARD
Price
N/A
130
MOTOR PULLEY ID 3/4"
Price
$15.50
131
SET SCREW M6-1 X 10
Price
N/A
132
MOTOR 1HP 110V 1-PH V1
Price
N/A
132-1
S CAPACITOR 300M 125V 1-5/16 X 2-3/8
Price
N/A
132-3
MOTOR WIRING JUNCTION BOX
Price
N/A
132-4
MOTOR FAN
Price
N/A
133
KEY 5 X 5 X 22
Price
N/A
134
HEX BOLT M8-1.25 X 35
Price
N/A
135
LOCK WASHER 8MM
Price
N/A
136
X1701136
Now: PW02
FLAT WASHER 3/8
Price
N/A
137
HEX BOLT M12-1.75 X 35
Price
N/A
138
X1701138
Now: PW01
FLAT WASHER 1/2
Price
N/A
139
*DISCD*MOTOR MOUNT PLATE
Price
$5.70
140
X1701140
Now: PW02
FLAT WASHER 3/8
Price
N/A
141
HEX NUT M8-1.25
Price
N/A
142
LOCK WASHER 12MM
Price
N/A
143
LOCK WASHER 8MM
Price
N/A
144
X1701144
Now: PW06
FLAT WASHER 1/4
Price
N/A
145
STRAIN RELIEF
Price
N/A
146
PHLP HD SCR M6-1 X 12
Price
N/A
147
FWD/REV SWITCH V1
Price
N/A
148
*DISCD*SWITCH BRACKET
Price
$2.10
151
*DISCD*WRENCH SET 4PC
Price
$7.95
217V3
MACHINE ID LABEL 1.5HP CSA V3.11.16
Price
$16.40
301
***USE P0510Z201***
Price
$35.10
302
***USE P0510Z202***
Price
$2.60
303
RUBBER FOOT
Price
N/A
304
PHLP HD SCR M4-.7 X 25
Price
N/A
305
Paddle Switch 125V/250V
Price
N/A
306
SWITCH LAMELLA
Price
$1.90
307
FLAT WASHER 4MM
Price
N/A
308
HEX NUT M4-.7
Price
N/A
309
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
309V2
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
310
X1701310
Now: PW02
FLAT WASHER 3/8
Price
N/A
311
X1701311
Now: PN02
HEX NUT 5/16-18
Price
N/A
311V2
HEX NUT M8-1.25
Price
N/A
312
PHLP HD SCR M5-.8 X 12
Price
N/A
313
EXT TOOTH WASHER 5MM
Price
N/A
314
HEX NUT M5-.8
Price
N/A
315
SHELF
Price
$40.65
316
ELECTRICITY LABEL
Price
$1.25
317
MACHINE ID LABEL NO-CSA V1
Price
$16.40
317V2
MACHINE ID LABEL CSA V2.07.12
Price
$16.40
317V3
MACHINE ID LABEL 1.5HP CSA V3.11.16
Price
$16.40
318
HEX NUT M8-1.25
Price
N/A
319
X1701319
Now: PW02
FLAT WASHER 3/8
Price
N/A
320
STRAIN RELIEF
Price
N/A
321
SPINDLE PULLEY GUARD
Price
N/A
322
POWER CORD
Price
N/A
323
POWER CORD 16G X 3W 24"L
Price
N/A
324
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
325
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
326
X1701326
Now: PW02
FLAT WASHER 3/8
Price
N/A
327
HEX BOLT M8-1.25 X 12
Price
N/A
328
TABLE LEG
Price
N/A
329
UNPLUG MACHINE LABEL
Price
$1.25
330
HEX BOLT M8-1.25 X 25
Price
N/A
331
HEX BOLT M12-1.75 X 30
Price
N/A
332
LOCK WASHER 12MM
Price
N/A
333
TABLE SUPPORT
Price
N/A
334
MITER BLOCK
Price
$1.90
335
X1701335
Now: PW06
FLAT WASHER 1/4
Price
N/A
336
PHLP HD SCR M4-.7 X 6
Price
N/A
337
TAP SCREW M3.5 X 12
Price
N/A
338
X1701338
Now: PW02
FLAT WASHER 3/8
Price
N/A
339
SUPPORT POLE
Price
$1.90
340
PLASTIC HANDLE
Price
N/A
341
ANTI-KICKBACK PIN
Price
$1.90
342
MITER BAR
Price
$6.90
343
ALUMINUM ALLOY FENCE
Price
$7.20
344
RIGHT FENCE LID
Price
$1.90
344A
LEFT FENCE LID
Price
$1.90
345
MITER GAUGE BODY
Price
$11.50
346
PLASTIC HANDLE
Price
$1.90
347
POINTER
Price
$1.90
348
TAP SCREW M3 X 15
Price
N/A
349
TENSION PIN 2 X 16MM
Price
$1.90
350
CARRIAGE BOLT M6-1 X 35
Price
N/A
351
KNOB FEMALE M6-1.0
Price
$1.90
352
WORKING TABLE
Price
$151.35
353
TABLE INSERT 1-3/8"
Price
N/A
353A
TABLE INSERT 1-3/4"
Price
N/A
354
PHLP HD SCR M8-1.25 X 20
Price
N/A
355
X1701355
Now: PW02
FLAT WASHER 3/8
Price
N/A
356
TAPER PIN
Price
N/A
357
FENCE BODY RIGHT
Price
N/A
358
SHOULDER STUD
Price
N/A
359
FENCE BODY LEFT
Price
N/A
360
FENCE 1PC
Price
N/A
361
LOCK HANDLE M12-1.75
Price
N/A
362
X1701362
Now: PW01
FLAT WASHER 1/2
Price
N/A
363
X1701363
Now: PW02
FLAT WASHER 3/8
Price
N/A
364
STAR KNOB M8-1.25 FEMALE
Price
N/A
365
LOCK WASHER 1/2
Price
N/A
366
HEX BOLT M12-1.75 X 20
Price
N/A
367
STAR KNOB 10MM PINNED ASSEMBLY
Price
N/A
368
STAR KNOB 10MM PINNED ASSEMBLY
Price
N/A
369
ROLL PIN 3 X 20
Price
N/A
370
PHLP HD SCR M6-1 X 12
Price
N/A
371
HALF COLLAR
Price
N/A
372
SHOULDER STUD
Price
N/A
373
X1701373
Now: PW01
FLAT WASHER 1/2
Price
N/A
374
HEX NUT M12-1.75
Price
N/A
375
HEX BOLT M8-1.25 X 12
Price
N/A
376
X1701376
Now: PW02
FLAT WASHER 3/8
Price
N/A
377A
HOLD DOWN BAR V2.03.08
Price
$3.25
378
PHLP HD SCR M4-.7 X 10
Price
N/A
379
GUARD MOUNTING POST
Price
$8.35
380
HEX NUT M8-1.25
Price
N/A
381
X1701381
Now: PW02
FLAT WASHER 3/8
Price
N/A
382
***USE P0510Z250***
Price
$7.20
383
STAR KNOB BOLT M10-1.5 X 28
Price
N/A
384
HEX NUT M4-.7
Price
N/A
385A
SAFETY GUARD
Price
N/A
386
HEX BOLT M8-1.25 X 35
Price
N/A
387
HOUSING BRACKET
Price
N/A
388
CLAMP SLEEVE LEFT
Price
N/A
389
STUFF RING
Price
N/A
390
ROLL PIN 3 X 20
Price
N/A
391
LOCK BAR THREADED BOTH ENDS V2.01.07
Price
N/A
392
STAR KNOB M10-1.5 THREADED V2.01.07
Price
N/A
393
ROLL PIN 3 X 20
Price
N/A
394
SAFETY GUARD
Price
N/A
395
HEX BOLT M8-1.25 X 30
Price
N/A
396
SPINDLE NUT
Price
N/A
397
SAFETY WASHER
Price
N/A
398
RUB COLLAR 1/2 X 1-3/16 X 3/16
Price
N/A
399
RUB COLLAR 1/2 X 1-3/16 X 1/4
Price
N/A
400
RUB COLLAR 1/2 X 1-3/16 X 3/8
Price
N/A
401
CUTTER SPINDLE V2.02.08
Price
N/A
402
ROUTER BIT COLLET NUT
Price
N/A
403
ROUTER BIT COLLET 1/4"
Price
N/A
403A
ROUTER BIT COLLET 1/4"
Price
N/A
404
ROUTER BIT COLLET 1/2"
Price
N/A
404A
ROUTER BIT COLLET 1/2"
Price
N/A
407
SPINDLE CARTRIDGE ASSY
Price
N/A
407A
SPINDLE CARTRIDGE
Price
N/A
408
KEY 4 X 4 X 20
Price
N/A
409
CLAMP RING
Price
$11.20
410
INT RETAINING RING 47MM
Price
N/A
411
WAVY WASHER 45MM
Price
N/A
412
BALL BEARING 6204ZZ
Price
N/A
413
SPINDLE HOUSING
Price
N/A
414
BEARING SLEEVE
Price
N/A
415
BALL BEARING 6204ZZ
Price
N/A
416
SPINDLE PULLEY
Price
N/A
417
CARTRIDGE NUT M16-1.0
Price
N/A
418
BEARING CONE
Price
N/A
419
COIL SPRING
Price
N/A
420
SET SCREW M8-1.25 X 8
Price
N/A
421
SPRING COLLAR
Price
N/A
422
STUD-UDE M10/12-1.5/1.75 X 142 12/18
Price
N/A
423
SLIP ON HANDLE 12MM
Price
N/A
424
DRAWBAR M8-1.25 X 130 V2.02.08
Price
N/A
425
TAPER NUT M8-1.25 V2.07.08
Price
N/A
426
FLAT BELT 690 X 10MM V1
Price
N/A
427
HEX BOLT M8-1.25 X 12
Price
N/A
428
X1701428
Now: PW02
FLAT WASHER 3/8
Price
N/A
429
BELT GUARD
Price
$3.75
430
MOTOR PULLEY
Price
N/A
431
SET SCREW M6-1 X 10
Price
N/A
432
MOTOR 1HP 110V 1-PH V1
Price
$357.25
432-1
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
Price
N/A
432-2
CAPACITOR COVER
Price
$1.90
432-3
MOTOR WIRING JUNCTION BOX
Price
$1.90
432-4
MOTOR FAN
Price
$1.90
432-5
MOTOR FAN COVER
Price
$6.15
432-6
BALL BEARING 6204ZZ
Price
N/A
432-7
BALL BEARING 6204ZZ
Price
N/A
432-8
CENTRIFUGAL SWITCH 220MM 3450
Price
$4.20
432-9
CONTACT PLATE 20MM
Price
$3.65
432V2
MOTOR 1.5HP 120V/240V 1-PH V2.10.16
Price
$373.45
432V2-1
S CAPACITOR 300M 125V 1-5/16 X 2-3/8
Price
N/A
432V2-10
R CAPACITOR 40M 250V 1-9/16 X 2-3/4
Price
$12.65
432V2-11
R CAPACITOR COVER
Price
$7.20
432V2-2
S CAPACITOR COVER
Price
$1.90
432V2-3
JUNCTION BOX
Price
$1.90
432V2-4
MOTOR FAN
Price
$1.90
432V2-5
MOTOR FAN COVER
Price
$5.10
432V2-6
BALL BEARING 6204ZZ
Price
N/A
432V2-7
BALL BEARING 6204ZZ
Price
N/A
432V2-8
CENTRIFUGAL SWITCH 20MM 3460
Price
$6.90
432V2-9
CONTACT PLATE 20MM
Price
$3.65
433
KEY 5 X 5 X 22
Price
N/A
433V2
KEY 5 X 5 X 30
Price
N/A
434
HEX BOLT M8-1.25 X 35
Price
N/A
435
LOCK WASHER 8MM
Price
N/A
436
X1701436
Now: PW02
FLAT WASHER 3/8
Price
N/A
437
HEX BOLT M12-1.75 X 35
Price
N/A
438
X1701438
Now: PW01
FLAT WASHER 1/2
Price
N/A
439
MOTOR MOUNTING PLATE
Price
N/A
440
X1701440
Now: PW02
FLAT WASHER 3/8
Price
N/A
441
HEX NUT M8-1.25
Price
N/A
442
LOCK WASHER 12MM
Price
N/A
443
LOCK WASHER 8MM
Price
N/A
444
X1701444
Now: PW06
FLAT WASHER 1/4
Price
N/A
445
STRAIN RELIEF
Price
N/A
446
PHLP HD SCR M6-1 X 12
Price
N/A
447
FWD/REV SWITCH V1
Price
N/A
449
ROUTER TABLE SPACER KIT
Price
N/A
450V2
WRENCH SET 2PC V2.08.10
Price
$11.90
451
FLAT WRENCH 26MM
Price
$7.20
452
WRENCH 27 X 30MM OPEN-ENDS
Price
N/A
453
RUB COLLAR 1/2 X 1-3/16 X 1/2
Price
N/A
454
HEX BOLT M12-1.75 X 40
Price
N/A
455
COMPLETE MITER GAUGE
Price
$23.40
456
FENCE KNOB & BOLT BAG
Price
$4.35
457
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
458
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
459
CARTON FOR W1701
Price
$75.15
460
STYROFOAM FOR W1701
Price
$41.70
461
COMBO WRENCH 27/30MM
Price
$10.45
462
FLAT WRENCH 26MM
Price
$6.90
463
COMBO WRENCH 22/24MM
Price
$7.60
MANUAL
MANUAL FOR W1701 03/06
Price
$17.45
MANV2
MANUAL W1701 MFD-10.16-11.21 V2.03.17
Price
$14.65
MANV3
MANUAL W1701 MFD-12.21+ V3.02.22
Price
$14.65
