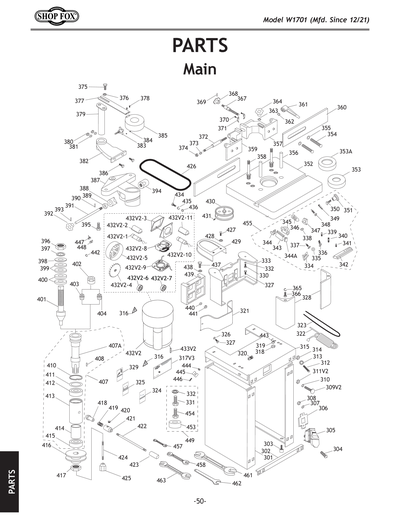

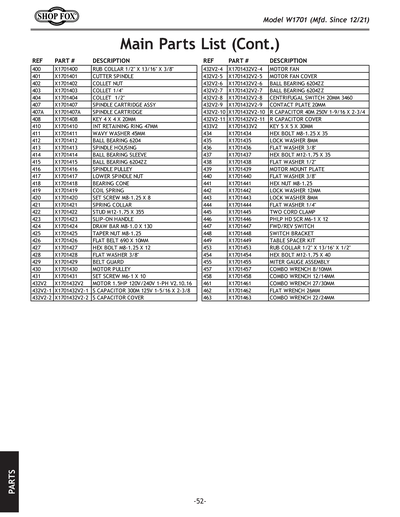

Parts for W1701 1-1/2 HP Shaper

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*SIDE PANEL
2
TIE BAR
Price
N/A
3
*DISCD*RUBBER FOOT
4
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
5
Now: D2751
Paddle Switch 125V/250V
Price
N/A
7
Now: PW03
FLAT WASHER #10
Price
N/A
8
Now: PN04M
HEX NUT M4-.7
Price
N/A
9
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
10
Now: PW02
FLAT WASHER 3/8
Price
N/A
11
Now: PN03M
HEX NUT M8-1.25
Price
N/A
12
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
13
EXT TOOTH WASHER 5MM
Price
N/A
14
Now: PN06M
HEX NUT M5-.8
Price
N/A
15
*DISCD*SHELF
16
*DISCD*ELECTRICITY LABEL
17
MACHINE ID LABEL NO-CSA V1
Price
N/A
18
Now: PN03M
HEX NUT M8-1.25
Price
N/A
19
Now: PW02
FLAT WASHER 3/8
Price
N/A
20
*DISCD*STRAIN RELIEF
21
SPINDLE PULLEY GUARD
Price
N/A
22
POWER CORD 16G X 3W 73"L
Price
N/A
23
POWER CORD 16G X 3W 24"L
Price
N/A
24
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
25
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
26
Now: PW02
FLAT WASHER 3/8
Price
N/A
27
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
28
TABLE LEG
Price
N/A
29
UNPLUG MACHINE LABEL
Price
N/A
30
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
31
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
32
LOCK WASHER 12MM
Price
N/A
33
TABLE SUPPORT
Price
N/A
34
MITER BLOCK
Price
N/A
35
Now: PW06
FLAT WASHER 1/4
Price
N/A
36
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
37
TAP SCREW M3.5 X 12
Price
N/A
38
Now: PW02
FLAT WASHER 3/8
Price
N/A
39
SUPPORT POLE
Price
N/A
40
PLASTIC HANDLE
Price
N/A
41
ANTI-KICKBACK PIN
Price
N/A
42
*DISCD*MITER BAR
43
ALUMINUM ALLOY FENCE
Price
N/A
44
RIGHT FENCE LID
Price
N/A
44A
LEFT FENCE LID
Price
N/A
45
*DISCD*MITER GAUGE BODY
45-1
COMPLETE MITER GAUGE
Price
N/A
46
PLASTIC HANDLE
Price
N/A
47
POINTER
Price
N/A
48
TAP SCREW M3 X 15
Price
N/A
49
TENSION PIN 2 X 16MM
Price
N/A
50
CARRIAGE BOLT M6-1 X 35
Price
N/A
51
KNOB FEMALE M6-1.0
Price
N/A
52-1
*DISCD*TABLE SPACER KIT
53
*DISCD*TABLE INSERT W/SMALL HOLE 1-3/8"
53A
TABLE INSERT 1-3/4"
Price
N/A
54
Now: PS04M
PHLP HD SCR M8-1.25 X 20
Price
N/A
55
Now: PW02
FLAT WASHER 3/8
Price
N/A
56
TAPER PIN
Price
N/A
57
*DISCD*FENCE BODY RIGHT
58
SHOULDER STUD
Price
N/A
59
*DISCD*FENCE BODY LEFT
60
FENCE 1PC
Price
N/A
61
LOCK HANDLE M12-1.75
Price
N/A
62
Now: PW01
FLAT WASHER 1/2
Price
N/A
63
Now: PW02
FLAT WASHER 3/8
Price
N/A
64
STAR KNOB M8-1.25 FEMALE
Price
N/A
65
Now: PLW07
LOCK WASHER 1/2
Price
N/A
66
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
67
*DISCD*ADJUSTING SCREW STUD 10 X 80
69
ROLL PIN 3 X 20
Price
N/A
70
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
71
*DISCD*HALF COLLAR
72
SHOULDER STUD
Price
N/A
73
Now: PW01
FLAT WASHER 1/2
Price
N/A
74
Now: PN09M
HEX NUT M12-1.75
Price
N/A
75
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
76
Now: PW02
FLAT WASHER 3/8
Price
N/A
77
*DISCD*HOLD DOWN BAR
78
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
79
*DISCD*HEX POST
80
Now: PN03M
HEX NUT M8-1.25
Price
N/A
81
Now: PW02
FLAT WASHER 3/8
Price
N/A
83
*DISCD*HAND KNOB M10-1.5 X 28
84
Now: PN04M
HEX NUT M4-.7
Price
N/A
86
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
87
*DISCD*HOUSING BRACKET
88
*DISCD*CLAMP SLEEVE LEFT
89
*DISCD*STUFF RING
90
ROLL PIN 3 X 20
Price
N/A
91
LOCK BAR THREADED BOTH ENDS V2.01.07
Price
N/A
92
STAR KNOB M10-1.5 THREADED V2.01.07
Price
N/A
93
ROLL PIN 3 X 20
Price
N/A
94
*DISCD*CLAMP SLEEVE RIGHT
95
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
97
SAFETY WASHER
Price
N/A
98
RUB COLLAR 1/2 X 1-3/16 X 3/16
Price
N/A
99
RUB COLLAR 1/2 X 1-3/16 X 1/4
Price
N/A
100
RUB COLLAR 1/2 X 1-3/16 X 3/8
Price
N/A
101A
*DISCD*CUTTER SPINDLE V2.12.04
102
ROUTER BIT COLLET NUT
Price
N/A
103A
*DISCD*1/4" ROUTR BIT COLET INSERT V2.12
104
ROUTER BIT COLLET 1/2"
Price
N/A
104A
ROUTER BIT COLLET 1/2"
Price
N/A
107C
*DISCD*COMP SPINDLE CARTRIDGE V3.05.05
108
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
109
*DISCD*CLAMP RING
110
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
112
BALL BEARING 6204ZZ
Price
N/A
113
*DISCD*SPINDLE HOUSING
114
BEARING SLEEVE
Price
N/A
115
BALL BEARING 6204ZZ
Price
N/A
116
SPINDLE PULLEY
Price
N/A
117
CARTRIDGE NUT M16-1.0
Price
N/A
118
BEARING CONE
Price
N/A
119
COIL SPRING
Price
N/A
120
SET SCREW M8-1.25 X 8
Price
N/A
121
SPRING COLLAR
Price
N/A
122
*DISCD*STUD
123
*DISCD*SLIP ON HANDLE 12MM
124
*DISCD*RAW BAR M8-1-1.0
127
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
128
Now: PW02
FLAT WASHER 3/8
Price
N/A
129
BELT GUARD
Price
N/A
130
MOTOR PULLEY ID 3/4"
131
SET SCREW M6-1 X 10
Price
N/A
132
MOTOR 1HP 110V 1-PH V1
Price
N/A
132-1
S CAPACITOR 300M 125V 1-5/16 X 2-3/8
Price
N/A
132-3
MOTOR WIRING JUNCTION BOX
Price
N/A
132-4
MOTOR FAN
Price
N/A
133
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
134
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
135
LOCK WASHER 8MM
Price
N/A
136
Now: PW02
FLAT WASHER 3/8
Price
N/A
137
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
138
Now: PW01
FLAT WASHER 1/2
Price
N/A
139
*DISCD*MOTOR MOUNT PLATE
140
Now: PW02
FLAT WASHER 3/8
Price
N/A
141
Now: PN03M
HEX NUT M8-1.25
Price
N/A
142
LOCK WASHER 12MM
Price
N/A
143
LOCK WASHER 8MM
Price
N/A
144
Now: PW06
FLAT WASHER 1/4
Price
N/A
145
STRAIN RELIEF
Price
N/A
146
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
147
FWD/REV SWITCH V1
Price
N/A
148
*DISCD*SWITCH BRACKET
151
*DISCD*WRENCH SET 4PC
217V3
MACHINE ID LABEL 1.5HP CSA V3.11.16
301
*DISCD*SIDE PANEL
302
***USE P0510Z202***
303
RUBBER FOOT
Price
N/A
304
Now: PS18M
PHLP HD SCR M4-.7 X 25
Price
N/A
305
Now: D2751
Paddle Switch 125V/250V
Price
N/A
306
SWITCH LAMELLA
307
Now: PW05M
FLAT WASHER 4MM
Price
N/A
308
Now: PN04M
HEX NUT M4-.7
Price
N/A
309
Now: PCB02
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
309V2
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
310
Now: PW02
FLAT WASHER 3/8
Price
N/A
311
Now: PN02
HEX NUT 5/16-18
Price
N/A
311V2
Now: PN03M
HEX NUT M8-1.25
Price
N/A
312
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
313
EXT TOOTH WASHER 5MM
Price
N/A
314
Now: PN06M
HEX NUT M5-.8
Price
N/A
315
SHELF
316
ELECTRICITY LABEL
317
MACHINE ID LABEL NO-CSA V1
317V2
MACHINE ID LABEL CSA V2.07.12
317V3
MACHINE ID LABEL 1.5HP CSA V3.11.16
318
Now: PN03M
HEX NUT M8-1.25
Price
N/A
319
Now: PW02
FLAT WASHER 3/8
Price
N/A
320
STRAIN RELIEF
Price
N/A
321
SPINDLE PULLEY GUARD
Price
N/A
322
POWER CORD
Price
N/A
323
POWER CORD 16G X 3W 24"L
Price
N/A
324
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
325
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
326
Now: PW02
FLAT WASHER 3/8
Price
N/A
327
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
328
TABLE LEG
Price
N/A
329
UNPLUG MACHINE LABEL
330
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
331
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
332
LOCK WASHER 12MM
Price
N/A
333
TABLE SUPPORT
Price
N/A
334
MITER BLOCK
335
Now: PW06
FLAT WASHER 1/4
Price
N/A
336
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
337
TAP SCREW M3.5 X 12
Price
N/A
338
Now: PW02
FLAT WASHER 3/8
Price
N/A
339
SUPPORT POLE
340
PLASTIC HANDLE
Price
N/A
341
ANTI-KICKBACK PIN
342
MITER BAR
343
ALUMINUM ALLOY FENCE
344
RIGHT FENCE LID
344A
LEFT FENCE LID
345
MITER GAUGE BODY
346
PLASTIC HANDLE
347
POINTER
348
TAP SCREW M3 X 15
Price
N/A
349
TENSION PIN 2 X 16MM
350
CARRIAGE BOLT M6-1 X 35
Price
N/A
351
KNOB FEMALE M6-1.0
352
WORKING TABLE
353
TABLE INSERT 1-3/8"
Price
N/A
353A
TABLE INSERT 1-3/4"
Price
N/A
354
Now: PS04M
PHLP HD SCR M8-1.25 X 20
Price
N/A
355
Now: PW02
FLAT WASHER 3/8
Price
N/A
356
TAPER PIN
Price
N/A
357
FENCE BODY RIGHT
Price
N/A
358
SHOULDER STUD
Price
N/A
359
FENCE BODY LEFT
Price
N/A
360
FENCE 1PC
Price
N/A
361
LOCK HANDLE M12-1.75
Price
N/A
362
Now: PW01
FLAT WASHER 1/2
Price
N/A
363
Now: PW02
FLAT WASHER 3/8
Price
N/A
364
STAR KNOB M8-1.25 FEMALE
Price
N/A
365
Now: PLW07
LOCK WASHER 1/2
Price
N/A
366
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
367
STAR KNOB 10MM PINNED ASSEMBLY
Price
N/A
368
STAR KNOB 10MM PINNED ASSEMBLY
Price
N/A
369
ROLL PIN 3 X 20
Price
N/A
370
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
371
HALF COLLAR
Price
N/A
372
SHOULDER STUD
Price
N/A
373
Now: PW01
FLAT WASHER 1/2
Price
N/A
374
Now: PN09M
HEX NUT M12-1.75
Price
N/A
375
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
376
Now: PW02
FLAT WASHER 3/8
Price
N/A
377A
HOLD DOWN BAR V2.03.08
378
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
379
GUARD MOUNTING POST
380
Now: PN03M
HEX NUT M8-1.25
Price
N/A
381
Now: PW02
FLAT WASHER 3/8
Price
N/A
382
***USE P0510Z250***
383
STAR KNOB BOLT M10-1.5 X 28
Price
N/A
384
Now: PN04M
HEX NUT M4-.7
Price
N/A
385A
SAFETY GUARD
Price
N/A
386
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
387
HOUSING BRACKET
Price
N/A
388
CLAMP SLEEVE LEFT
Price
N/A
389
STUFF RING
Price
N/A
390
ROLL PIN 3 X 20
Price
N/A
391
LOCK BAR THREADED BOTH ENDS V2.01.07
Price
N/A
392
STAR KNOB M10-1.5 THREADED V2.01.07
Price
N/A
393
ROLL PIN 3 X 20
Price
N/A
394
SAFETY GUARD
Price
N/A
395
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
396
SPINDLE NUT
Price
N/A
397
SAFETY WASHER
Price
N/A
398
RUB COLLAR 1/2 X 1-3/16 X 3/16
Price
N/A
399
RUB COLLAR 1/2 X 1-3/16 X 1/4
Price
N/A
400
RUB COLLAR 1/2 X 1-3/16 X 3/8
Price
N/A
401
CUTTER SPINDLE V2.02.08
Price
N/A
402
ROUTER BIT COLLET NUT
Price
N/A
403
ROUTER BIT COLLET 1/4"
Price
N/A
403A
ROUTER BIT COLLET 1/4"
Price
N/A
404
ROUTER BIT COLLET 1/2"
Price
N/A
404A
ROUTER BIT COLLET 1/2"
Price
N/A
407
SPINDLE CARTRIDGE ASSY
Price
N/A
407A
SPINDLE CARTRIDGE
Price
N/A
408
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
409
CLAMP RING
410
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
411
WAVY WASHER 45MM
Price
N/A
412
BALL BEARING 6204ZZ
Price
N/A
413
SPINDLE HOUSING
Price
N/A
414
BEARING SLEEVE
Price
N/A
415
BALL BEARING 6204ZZ
Price
N/A
416
SPINDLE PULLEY
Price
N/A
417
CARTRIDGE NUT M16-1.0
Price
N/A
418
BEARING CONE
Price
N/A
419
COIL SPRING
Price
N/A
420
SET SCREW M8-1.25 X 8
Price
N/A
421
SPRING COLLAR
Price
N/A
422
STUD-UDE M10/12-1.5/1.75 X 142 12/18
Price
N/A
423
SLIP ON HANDLE 12MM
Price
N/A
424
DRAWBAR M8-1.25 X 130 V2.02.08
Price
N/A
425
TAPER NUT M8-1.25 V2.07.08
Price
N/A
426
FLAT BELT 690 X 10MM V1
Price
N/A
427
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
428
Now: PW02
FLAT WASHER 3/8
Price
N/A
429
BELT GUARD
430
MOTOR PULLEY
Price
N/A
431
SET SCREW M6-1 X 10
Price
N/A
432
MOTOR 1HP 110V 1-PH V1
432-1
Now: PC200
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
Price
N/A
432-2
CAPACITOR COVER
432-3
MOTOR WIRING JUNCTION BOX
432-4
MOTOR FAN
432-5
MOTOR FAN COVER
432-6
BALL BEARING 6204ZZ
Price
N/A
432-7
BALL BEARING 6204ZZ
Price
N/A
432V2
MOTOR 1.5HP 120V/240V 1-PH V2.10.16
432V2-1
S CAPACITOR 300M 125V 1-5/16 X 2-3/8
Price
N/A
432V2-10
R CAPACITOR 40M 250V 1-9/16 X 2-3/4
432V2-11
R CAPACITOR COVER
432V2-2
S CAPACITOR COVER
432V2-3
JUNCTION BOX
432V2-4
MOTOR FAN
432V2-5
MOTOR FAN COVER
432V2-6
BALL BEARING 6204ZZ
Price
N/A
432V2-7
BALL BEARING 6204ZZ
Price
N/A
432V2-8
CENTRIFUGAL SWITCH 20MM 3460
432V2-9
CONTACT PLATE 20MM
433
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
433V2
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
434
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
435
LOCK WASHER 8MM
Price
N/A
436
Now: PW02
FLAT WASHER 3/8
Price
N/A
437
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
438
Now: PW01
FLAT WASHER 1/2
Price
N/A
439
MOTOR MOUNTING PLATE
Price
N/A
440
Now: PW02
FLAT WASHER 3/8
Price
N/A
441
Now: PN03M
HEX NUT M8-1.25
Price
N/A
442
LOCK WASHER 12MM
Price
N/A
443
LOCK WASHER 8MM
Price
N/A
444
Now: PW06
FLAT WASHER 1/4
Price
N/A
445
STRAIN RELIEF
Price
N/A
446
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
447
FWD/REV SWITCH V1
Price
N/A
449
ROUTER TABLE SPACER KIT
Price
N/A
450V2
WRENCH SET 2PC V2.08.10
451
FLAT WRENCH 26MM
452
WRENCH 27 X 30MM OPEN-ENDS
Price
N/A
453
RUB COLLAR 1/2 X 1-3/16 X 1/2
Price
N/A
454
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
455
COMPLETE MITER GAUGE
456
FENCE KNOB & BOLT BAG
457
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
458
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
459
CARTON FOR W1701
460
STYROFOAM FOR W1701
461
COMBO WRENCH 27/30MM
462
FLAT WRENCH 26MM
463
COMBO WRENCH 22/24MM
MANUAL
MANUAL FOR W1701 03/06
MANV2
MANUAL W1701 MFD-10.16-11.21 V2.03.17
MANV3
MANUAL W1701 MFD-12.21+ V3.02.22
