Parts for W1710 - 24" 10 HP Wide-Belt Sander

Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710
Part Diagram for W1710

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

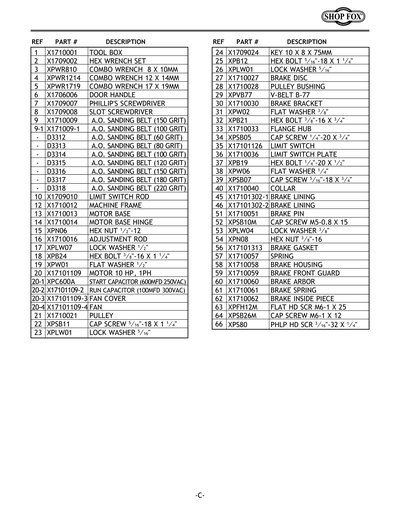

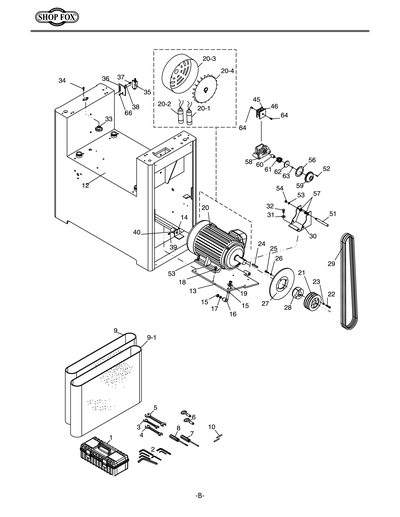

Ref #
Part #
Description
6
DOOR HANDLE 2 PCS
Price
N/A
1
TOOL BOX
Item is no longer available
Price
N/A
2
HEX WRENCH SET
Price
N/A
3
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
4
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
5
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
6
DOOR HANDLE 2 PCS
Price
N/A
7
PHLP HD SCREWDRIVER
Price
N/A
8
SLOT SCREWDRIVER
Price
N/A
9
A/O SANDING BELT-150 GRIT
Item is no longer available
Price
N/A
9-1
A/O SANDING BELT-100 GRIT
Item is no longer available
Price
N/A
10
LIMIT SWITCH ROD
Price
N/A
12
MACHINE FRAME
Item is no longer available
Price
N/A
13
MOTOR BASE
Item is no longer available
Price
N/A
14
MOTOR BASE HINGE
Item is no longer available
Price
N/A
15
X1710015
Now: PN06
HEX NUT 1/2-12
Price
N/A
16
ADJUSTMENT ROD
Item is no longer available
Price
N/A
17
LOCK WASHER 1/2
Price
N/A
18
X1710018
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
19
X1710019
Now: PW01
FLAT WASHER 1/2
Price
N/A
20
SANDING BELT MOTOR 10HP 220V 1-PH
Price
N/A
20-1
S CAPACITOR 600M 250V 1-3/4 X 3-3/4
Price
N/A
20-2
R CAPACITOR 100M 300V 2-3/4 X 4
Price
N/A
20-3
FAN COVER
Price
N/A
20-4
FAN
Price
N/A
21
PULLEY
Item is no longer available
Price
N/A
22
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
23
LOCK WASHER 5/16
Price
N/A
24
KEY 8 X 8 X 55
Price
N/A
25
X1710025
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
26
LOCK WASHER 5/16
Price
N/A
27
BRAKE DISC
Item is no longer available
Price
N/A
28
PULLEY BUSHING
Item is no longer available
Price
N/A
29
V-BELT B77
Price
N/A
30
BRAKE BRACKET
Item is no longer available
Price
N/A
31
X1710031
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
X1710032
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
33
FLANGE HUB
Item is no longer available
Price
N/A
34
CAP SCREW 1/4-20 X 3/4
Price
N/A
35
*** USE P04861126***
Price
N/A
36
LIMIT SWITCH PLATE
Price
$11.50
37
X1710037
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
38
X1710038
Now: PW06
FLAT WASHER 1/4
Price
N/A
39
CAP SCREW 5/16-18 X 3/4
Price
N/A
40
COLLAR
Item is no longer available
Price
N/A
45
BRAKE LINING
Price
N/A
46
BRAKE LINING
Price
N/A
51
BRAKE PIN
Item is no longer available
Price
N/A
52
CAP SCREW M5-.8 X 15
Price
N/A
53
LOCK WASHER 3/8
Price
N/A
54
X1710054
Now: PN08
HEX NUT 3/8-16
Price
N/A
56
BRAKE GASKET
Price
N/A
57
SPRING 2.5 X 34 X 15
Price
$1.49
58
BRAKE HOUSING
Item is no longer available
Price
N/A
59
BRAKE FRONT HOUSING
Price
$21.60
60
BRAKE ARBOR
Item is no longer available
Price
N/A
61
BRAKE SPRING 33 X 24.5 X 24
Price
$4.35
62
BRAKE INSIDE PIECE
Price
$21.60
63
FLAT HD SCR M6-1 X 25
Price
N/A
64
CAP SCREW M6-1 X 12
Price
N/A
66
X1710066
Now: PS80
PHLP HD SCR 10-32 X 1/4
Price
N/A

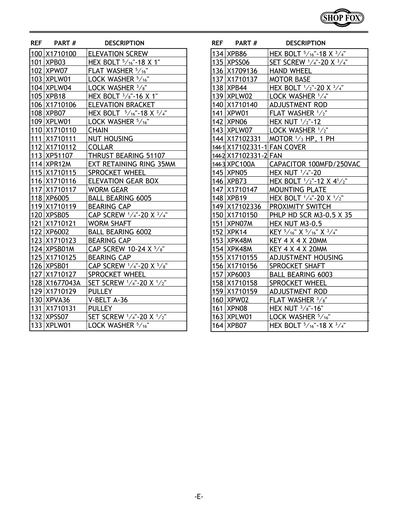

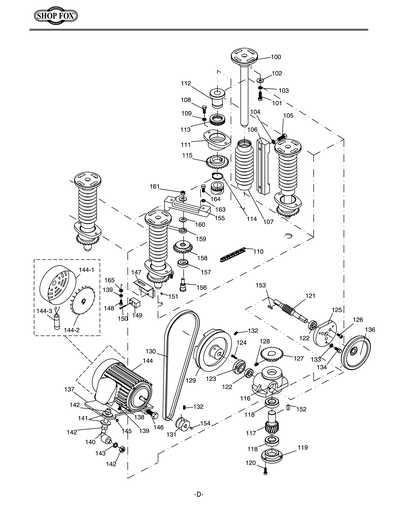

100
ELEVATION SCREW M25-5 X 80
Item is no longer available
Price
N/A
101
X1710101
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
102
X1710102
Now: PW07
FLAT WASHER 5/16
Price
N/A
103
LOCK WASHER 5/16
Price
N/A
104
LOCK WASHER 3/8
Price
N/A
105
X1710105
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
106
ELEVATION BRACKET
Item is no longer available
Price
N/A
108
X1710108
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
109
LOCK WASHER 5/16
Price
N/A
110
CHAIN
Item is no longer available
Price
N/A
1109
SANDING BELT MOTOR 10HP 220V 1-PH
Price
N/A
1109-2
***USE P0571109-3***
Price
$124.80
1109-3
FAN COVER
Price
$21.85
1109-4
FAN
Item is no longer available
Price
N/A
1109-5
CENTRIFUGAL SWITCH
Price
N/A
1109-6
CONTACT PLATE
Item is no longer available
Price
N/A
111
NUT HOUSING
Item is no longer available
Price
N/A
1119
V-BELT B77
Price
N/A
112
COLLAR
Item is no longer available
Price
N/A
1126
LIMIT SWITCH
Price
N/A
113
THRUST BEARING 51107
Price
N/A
114
EXT RETAINING RING 35MM
Price
N/A
115
SPROCKET WHEEL
Item is no longer available
Price
N/A
116
ELEVATION GEAR BOX
Item is no longer available
Price
N/A
117
WORM GEAR
Price
$52.90
118
BALL BEARING 6005-2RS
Price
N/A
119
BEARING CAP
Item is no longer available
Price
N/A
120
CAP SCREW 1/4-20 X 3/4
Price
N/A
121
WORM SHAFT
Price
$52.20
122
BALL BEARING 6002-2RS
Price
N/A
123
BEARING CAP
Item is no longer available
Price
N/A
124
CAP SCREW M6-1 X 16
Price
N/A
125
BEARING CAP
Item is no longer available
Price
N/A
126
CAP SCREW 1/4-20 X 5/8
Price
N/A
127
SPROCKET WHEEL
Item is no longer available
Price
N/A
128
SET SCREW 1/4-20 X 1/2
Price
N/A
129
PULLEY
Item is no longer available
Price
N/A
130
V-BELT A36
Price
N/A
1302-1
BRAKE LINING
Price
$29.35
1302-2
BRAKE LINING
Price
$29.35
131
PULLEY
Item is no longer available
Price
N/A
1313
BRAKE GASKET
Price
$10.95
132
SET SCREW 1/4-20 X 1/2
Price
N/A
133
LOCK WASHER 5/16
Price
N/A
134
X1710134
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
135
SET SCREW 1/4-20 X 3/4
Price
N/A
136
HAND WHEEL
Price
N/A
137
MOTOR BASE
Item is no longer available
Price
N/A
138
X1710138
Now: PB44
HEX BOLT 1/2-20 X 3/4
Price
N/A
139
LOCK WASHER 1/4
Price
N/A
140
ADJUSTMENT ROD
Item is no longer available
Price
N/A
141
X1710141
Now: PW01
FLAT WASHER 1/2
Price
N/A
143
LOCK WASHER 1/2
Price
N/A
144
MOTOR 1/3HP 1-PH
Price
N/A
144-1
FAN COVER
Price
N/A
144-2
FAN
Price
N/A
144-3
S CAPACITOR 100M 250V 1-3/8 X 3
Price
N/A
145
X1710145
Now: PN05
HEX NUT 1/4-20
Price
N/A
146
X1710146
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
147
MOUNTING PLATE
Item is no longer available
Price
N/A
148
X1710148
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
149
PROXIMITY SWITCH
Price
N/A
150
PHLP HD SCR M3-.5 X 35
Item is no longer available
Price
N/A
151
HEX NUT M3-.5
Price
N/A
152
X1710152
Now: PK14
KEY 5/16 X 5/16 X 3/4
Price
N/A
153
KEY 4 X 4 X 20
Price
N/A
154
KEY 4 X 4 X 20
Price
N/A
155
ADJUSTMENT HOUSING
Item is no longer available
Price
N/A
156
SPROCKET SHAFT
Item is no longer available
Price
N/A
157
BALL BEARING 6003-2RS
Price
N/A
158
SPROCKET WHEEL
Item is no longer available
Price
N/A
159
ADJUSTMENT ROD
Item is no longer available
Price
N/A
160
X1710160
Now: PW02
FLAT WASHER 3/8
Price
N/A
161
X1710161
Now: PN08
HEX NUT 3/8-16
Price
N/A
163
LOCK WASHER 5/16
Price
N/A
164
X1710164
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A

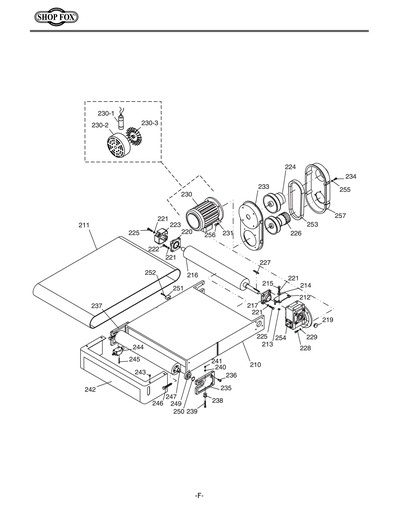

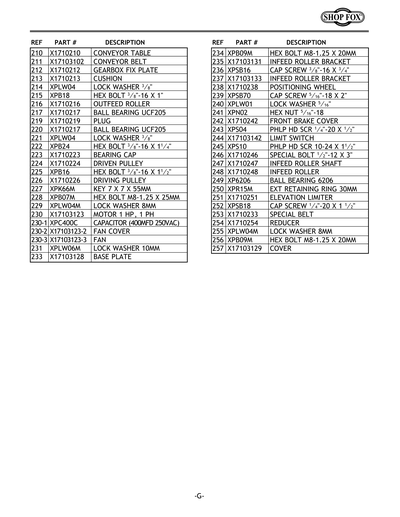

210
CONVEYOR TABLE
Item is no longer available
Price
N/A
211
CONVEYOR BELT
Price
N/A
212
GEARBOX FIX PLATE
Item is no longer available
Price
N/A
213
CUSHION
Item is no longer available
Price
N/A
214
LOCK WASHER 3/8
Price
N/A
215
X1710215
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
216
OUTFEED ROLLER
Item is no longer available
Price
N/A
217
MOUNTED BEARING UCF205
Price
N/A
219
PLUG
Item is no longer available
Price
N/A
220
MOUNTED BEARING UCF205
Price
N/A
221
LOCK WASHER 3/8
Price
N/A
222
X1710222
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
223
BEARING CAP
Price
$30.80
224
DRIVEN PULLEY
Price
$274.60
225
X1710225
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
226
DRIVING PULLEY
Item is no longer available
Price
N/A
227
KEY 7 X 7 X 55
Price
N/A
228
HEX BOLT M8-1.25 X 25
Price
N/A
229
LOCK WASHER 8MM
Price
N/A
230
MOTOR 1HP 220V 1-PH
Price
N/A
230-1
S CAPACITOR 400M 250V 1-3/4 X 3-3/4
Price
N/A
230-2
FAN COVER
Price
N/A
230-3
FAN
Price
N/A
231
LOCK WASHER 10MM
Price
N/A
2315
V-BELT A36
Price
N/A
233
VARIABLE SPEED UNIT BASE PLATE
Price
N/A
2331
MOTOR 1/3HP 1-PH
Price
N/A
2331-1
FAN COVER
Price
N/A
2331-2
FAN
Price
N/A
2336
PROXIMITY SWITCH
Price
$18.35
2336A
ADJUSTABLE PROXIMITY SWITCH
Price
$18.35
234
HEX BOLT M8-1.25 X 20
Price
N/A
235
INFEED ROLLER BRACKET R.H
Price
N/A
236
CAP SCREW 3/8-16 X 3/4
Price
N/A
237
INFEED ROLLER BRACKET L.H
Price
N/A
238
POSITIONING WHEEL
Item is no longer available
Price
N/A
239
CAP SCREW 5/16-18 X 2
Price
N/A
240
LOCK WASHER 5/16
Price
N/A
241
X1710241
Now: PN02
HEX NUT 5/16-18
Price
N/A
242
FRONT BRAKE COVER
Item is no longer available
Price
N/A
243
X1710243
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
244
*** USE P0539306***
Price
N/A
245
X1710245
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
246
CONVEYOR TABLE BOLT 1/2"-12 X 3"
Item is no longer available
Price
N/A
247
INFEED ROLLER SHAFT
Item is no longer available
Price
N/A
248
INFEED ROLLER
Item is no longer available
Price
N/A
249
BALL BEARING 6206-2RS
Price
N/A
250
EXT RETAINING RING 30MM
Price
N/A
251
ELEVATION LIMITER
Item is no longer available
Price
N/A
252
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
253
TIMING BELT
Price
N/A
254
REDUCER
Item is no longer available
Price
N/A
255
LOCK WASHER 8MM
Price
N/A
256
HEX BOLT M8-1.25 X 20
Price
N/A
257
VARIABLE SPEED UNIT
Price
N/A
3102
CONVEYOR BELT
Item is no longer available
Price
N/A
3123
MOTOR 1HP 220V 1-PH
Price
N/A
3123-2
FAN COVER
Price
N/A
3123-3
FAN
Price
N/A
3126
TIMING BELT
Item is no longer available
Price
N/A
3128
VARIABLE SPEED UNIT BASE PLATE
Item is no longer available
Price
N/A
3129
VARIABLE SPEED UNIT
Price
$135.50
3131
INFEED ROLLER BRACKET R.H
Item is no longer available
Price
N/A
3133
INFEED ROLLER BRACKET L.H
Price
N/A
3142
LIMIT SWITCH
Price
N/A
3171
INFEED ROLLER BRACKET R.H
Price
N/A

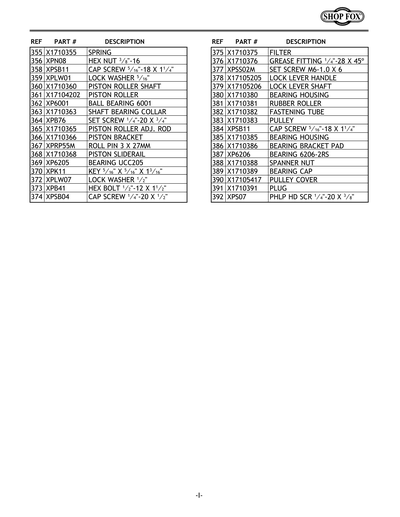

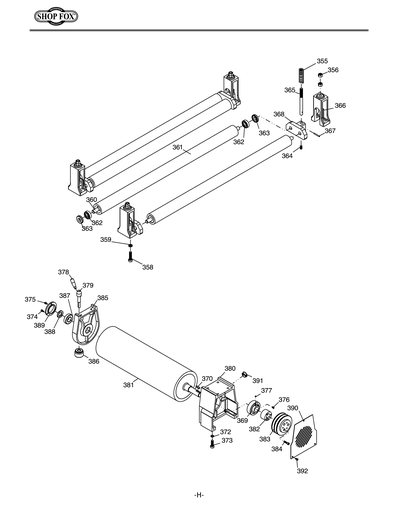

355
SPRING 3 X 15.6 X 57
Price
N/A
356
X1710356
Now: PN08
HEX NUT 3/8-16
Price
N/A
358
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
359
LOCK WASHER 5/16
Price
N/A
360
PISTON ROLLER SHAFT
Item is no longer available
Price
N/A
361
PISTON ROLLER
Price
N/A
362
BALL BEARING 6001-2RS
Price
N/A
363
SHAFT BEARING COLLAR
Item is no longer available
Price
N/A
364
X1710364
Now: PB76
HEX BOLT 5/16-18 X 1-5/8
Price
N/A
365
PISTON ROLLER ADJ. ROD
Item is no longer available
Price
N/A
366
PISTON BRACKET
Item is no longer available
Price
N/A
367
ROLL PIN 3 X 27
Price
N/A
368
PISTON SLIDERAIL
Item is no longer available
Price
N/A
369
CARTRIDGE BEARING UCC206
Price
N/A
370
X1710370
Now: PK11
KEY 5/16 X 5/16 X 1-3/16
Price
N/A
372
LOCK WASHER 1/2
Price
N/A
373
X1710373
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
374
CAP SCREW 1/4-20 X 1/2
Price
N/A
375
FILTER
Item is no longer available
Price
N/A
376
GREASE FITTING 1/4"-28 X 45D
Item is no longer available
Price
N/A
377
SET SCREW M6-1 X 6
Price
N/A
378
LOCK LEVER HANDLE
Price
N/A
379
LOCK LEVER SHAFT
Price
N/A
380
BEARING HOUSING
Item is no longer available
Price
N/A
381
RUBBER ROLLER
Price
N/A
382
FASTENING TUBE
Item is no longer available
Price
N/A
383
PULLEY
Item is no longer available
Price
N/A
384
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
385
BEARING HOUSING
Item is no longer available
Price
N/A
386
BEARING BRACKET PAD
Price
$34.20
387
BALL BEARING 6206-2RS
Price
N/A
388
SPANNER NUT M6 X 16
Item is no longer available
Price
N/A
389
BEARING CAP
Item is no longer available
Price
N/A
390
PULLEY COVER
Price
N/A
391
PLUG
Item is no longer available
Price
N/A
392
X1710392
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A

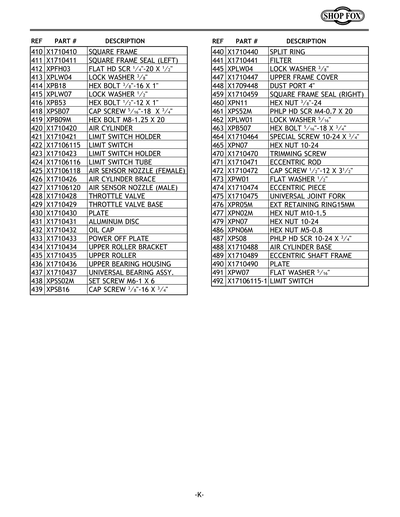

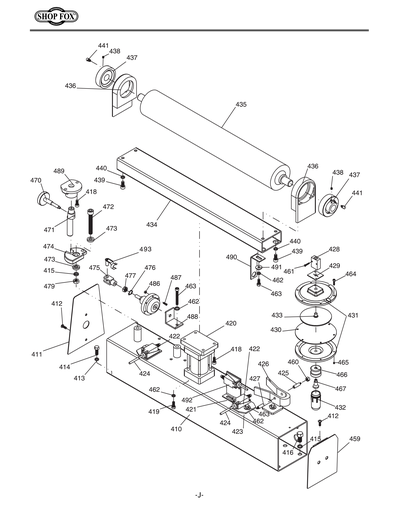

410
SQUARE FRAME
Item is no longer available
Price
N/A
411
SQUARE FRAME SEAL LEFT
Item is no longer available
Price
N/A
412
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
413
LOCK WASHER 3/8
Price
N/A
414
X1710414
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
415
LOCK WASHER 1/2
Price
N/A
416
X1710416
Now: PB53
HEX BOLT 1/2-12 X 1
Price
N/A
418
CAP SCREW 5/16-18 X 3/4
Price
N/A
419
HEX BOLT M8-1.25 X 20
Price
N/A
420
*** USE P05276113***
Price
N/A
4202
PISTON ROLLER
Price
$237.25
421
LIMIT SWITCH HOLDER
Item is no longer available
Price
N/A
422
***USE PSB10966115***
Price
N/A
423
LIMIT SWITCH HOLDER
Item is no longer available
Price
N/A
424
LIMIT SWITCH TUBE
Price
N/A
425
FEMALE AIR SENSOR NOZZLE
Price
N/A
426
AIR CYLINDER BRACE
Price
$64.40
427
MALE AIR SENSOR NOZZLE
Price
N/A
428
THROTTLE VALVE
Price
$68.45
429
THROTTLE VALVE BASE
Item is no longer available
Price
N/A
430
PLATE
Price
$12.85
431
ALUMINUM DISC
Item is no longer available
Price
N/A
432
OIL CAP
Price
N/A
433
ALUMINUM PLATE
Item is no longer available
Price
N/A
434
UPPER ROLLER BRACKET
Item is no longer available
Price
N/A
435
UPPER ROLLER
Item is no longer available
Price
N/A
436
UPPER BEARING HOUSING
Item is no longer available
Price
N/A
437
UNIVERSAL BEARING ASSY.
Price
$31.95
438
SET SCREW M6-1 X 6
Price
N/A
439
CAP SCREW 3/8-16 X 3/4
Price
N/A
440
SPLIT RING
Item is no longer available
Price
N/A
441
FILTER
Item is no longer available
Price
N/A
445
LOCK WASHER 3/8
Price
N/A
447
UPPER FRAME COVER
Item is no longer available
Price
N/A
448
DUST PORT 4"
Price
N/A
459
SQUARE FRAME SEAL RIGHT
Item is no longer available
Price
N/A
460
X1710460
Now: PN11
HEX NUT 3/8-24
Price
N/A
461
PHLP HD SCR M4-.7 X 20
Price
N/A
462
LOCK WASHER 5/16
Price
N/A
463
X1710463
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
464
ALUMINUM DISC SCR 10-24 X 3/4
Item is no longer available
Price
N/A
465
X1710465
Now: PN07
HEX NUT 10-24
Price
N/A
470
TRIMMING SCREW 2 X 90 X W3/8 X 24
Item is no longer available
Price
N/A
471
ECCENTRIC ROD
Item is no longer available
Price
N/A
472
CAP SCREW 1/2-12 X 3-1/2
Item is no longer available
Price
N/A
473
X1710473
Now: PW01
FLAT WASHER 1/2
Price
N/A
474
ECCENTRIC PIECE
Item is no longer available
Price
N/A
475
UNIVERSAL JOINT FORK
Item is no longer available
Price
N/A
476
EXT RETAINING RING 15MM
Price
N/A
477
HEX NUT M10-1.5
Price
N/A
479
X1710479
Now: PN07
HEX NUT 10-24
Price
N/A
485
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
485V2
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
$157.00
486
HEX NUT M5-.8
Price
N/A
487
X1710487
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
488
AIR CYLINDER BASE
Item is no longer available
Price
N/A
489
ECCENTRIC SHAFT FRAME
Item is no longer available
Price
N/A
490
SANDING BELT POWER OFF PLATE
Item is no longer available
Price
N/A
491
X1710491
Now: PW07
FLAT WASHER 5/16
Price
N/A
492
LIMIT SWITCH
Price
N/A
493
UNIVERSAL JOINT FORK
Price
N/A
494
CONN 1/4"N X 1/8"T 90-DEG BRONZE
Price
N/A
495
LOCK WASHER 5/16
Price
N/A
496
X1710496
Now: PN02
HEX NUT 5/16-18
Price
N/A
497
X1710497
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
501
FLAT HD SCR M6-1 X 10
Price
N/A

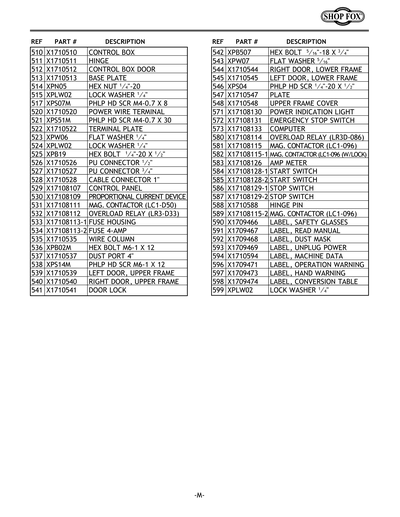

510

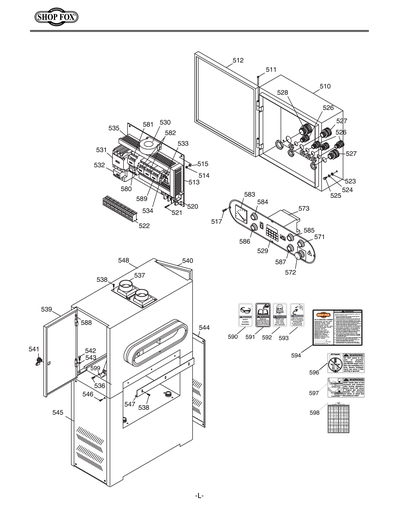

ELECTRICAL CONTROL BOX
Item is no longer available
Price
N/A
511
HINGE
Item is no longer available
Price
N/A
512
CONTROL BOX DOOR
Item is no longer available
Price
N/A
513
BASE PLATE
Item is no longer available
Price
N/A
514
X1710514
Now: PN05
HEX NUT 1/4-20
Price
N/A
515
LOCK WASHER 1/4
Price
N/A
517
PHLP HD SCR M4-.7 X 8
Price
N/A
520
INCOMING POWER TERMINAL BAR 3P V1
Item is no longer available
Price
N/A
5205
LOCK LEVER HANDLE
Price
$29.35
5206
LOCK LEVER SHAFT
Price
$14.70
520V2
INCOMING POWER TERMINAL BAR 3R V2.01.14
Item is no longer available
Price
N/A
521
PHLP HD SCR M4-.7 X 30
Price
N/A
522
TERMINAL BAR 24P V1
Item is no longer available
Price
N/A
522V2
TERMINAL BAR 24P V2.01.14
Item is no longer available
Price
N/A
523
X1710523
Now: PW06
FLAT WASHER 1/4
Price
N/A
524
LOCK WASHER 1/4
Price
N/A
525
X1710525
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
526
PU CONNECTOR 1/2"
Item is no longer available
Price
N/A
527
PU CONNECTOR 3/4"
Item is no longer available
Price
N/A
528
CABLE CONNECTOR 1"
Item is no longer available
Price
N/A
529
DIGITAL CONTROLLER
Price
N/A
530
*** USE P04868109***
Price
N/A
531
MAGNETIC CONTACTOR LC1-D50
Price
N/A
531V2
CONTACTOR SCHN LC1D50A 220V V2.01.14
Item is no longer available
Price
N/A
532
OVERLOAD RELAY LR3-D33
Price
N/A
533
FUSE HOUSING
Price
N/A
533V2
FUSE HOUSING SCHN DF101 V2.01.14
Item is no longer available
Price
N/A
534
FUSE 500V 4A
Price
N/A
534V2
FUSE 4A 10 X 38MM V2.01.14
Price
$26.20
535
WIRE COLUMN
Item is no longer available
Price
N/A
536
HEX BOLT M6-1 X 12
Price
N/A
537
DUST PORT 4"
Price
$7.45
537-1
DUST PORT ADAPTER 4"
Item is no longer available
Price
N/A
538
PHLP HD SCR M6-1 X 12
Price
N/A
539
LEFT UPPER DOOR FRAME
Item is no longer available
Price
N/A
540
RIGHT UPPER DOOR FRAME
Item is no longer available
Price
N/A
541
DOOR LOCK
Price
$43.65
5417
PULLEY COVER
Item is no longer available
Price
N/A
542
X1710542
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
543
X1710543
Now: PW07
FLAT WASHER 5/16
Price
N/A
544
RIGHT LOWER DOOR FRAME
Item is no longer available
Price
N/A
545
LEFT LOWER DOOR FRAME
Item is no longer available
Price
N/A
546
X1710546
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
547
PLATE
Item is no longer available
Price
N/A
548
UPPER FRAME COVER V1
Item is no longer available
Price
N/A
548V2
UPPER FRAME COVER V2.02.22
Item is no longer available
Price
N/A
550
OL RELAY SCHN LT47 5-60A
Price
N/A
571
POWER INDICATION LIGHT
Price
N/A
572
EMERGENCY STOP SWITCH
Price
N/A
573
DIGITAL CONTROLLER
Price
N/A
580
OVERLOAD RELAY LR3D-086
Price
N/A
581
*** USE PH29338115***
Price
N/A
582
*** USE PH29338139***
Price
N/A
583
AMP METER
Price
N/A
584
START SWITCH
Price
N/A
585
START SWITCH
Price
N/A
586
STOP SWITCH
Price
N/A
587
STOP SWITCH
Price
N/A
588
HINGE PIN
Item is no longer available
Price
N/A
589
MAG CONTACTOR LC1-096
Price
N/A
590
SAFETY GLASSES LABEL
Price
N/A
591
READ MANUAL LABEL
Price
N/A
592
DUST MASK LABEL
Price
N/A
593
UNPLUG POWER LABEL
Price
N/A
594
MACHINE DATA LABEL
Price
$10.75
596
GENERAL WARNINGS LABEL
Price
N/A
597
HAND WARNING LABEL
Price
N/A
598
CONVERSION TABLE LABEL
Price
N/A
599
LOCK WASHER 1/4
Price
N/A
6115
LIMIT SWITCH MOUJEN ME-8166
Price
N/A
6115-1
LIMIT SWITCH
Item is no longer available
Price
N/A
6116
LIMIT SWITCH TUBE
Price
$21.60
6118
FEMALE AIR SENSOR NOZZLE
Price
$6.65
6120
MALE AIR SENSOR NOZZLE
Price
$5.75
6123
PLATE
Price
N/A
6125
OIL CAP
Price
N/A

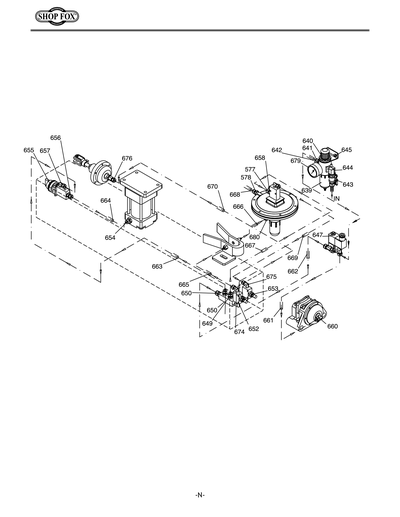

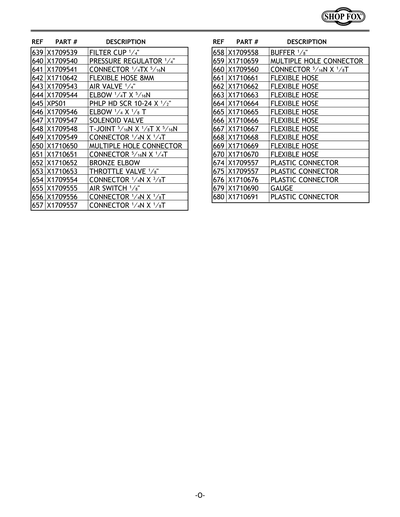

639
FILTER CUP 1/4"
Price
N/A
640
PRESSURE REGULATOR 1/4"
Price
N/A
641
CONNECTOR 1/4"T X 5/16"N BRONZE
Price
N/A
642
FLEXIBLE HOSE 8MM
Price
$4.65
643
AIR SWITCH 1/4"
Price
N/A
644
ELBOW 1/4"T X 1/4"T
Price
N/A
645
X1710645
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
646
ELBOW 1/4"N X 1/8"T
Price
N/A
647
SOLENOID VALVE
Price
$93.05
648
T-JOINT 5/16"N X 1/8"T X 5/16"N
Price
N/A
649
CONNECTOR 1/4"N X 1/4"T BRONZE
Price
N/A
650
MULTIPLE HOLE CONNECTOR
Item is no longer available
Price
N/A
651
CONNECTOR 5/16N X 1/4T
Item is no longer available
Price
N/A
652
ELBOW 1/4T X 1/8T X 90DEG (BRONZE)
Item is no longer available
Price
N/A
653
THROTTLE VALVE 1/8"
Item is no longer available
Price
N/A
654
CONNECTOR 1/4"N X 3/8"T BRONZE
Price
N/A
655
AIR SWITCH 1/8"
Price
N/A
656
CONN 1/4"N X 1/8"T BRONZE
Price
N/A
657
CONN 1/4"N X 1/8"T 90-DEG BRONZE
Price
N/A
658
BUFFER 1/8" BRONZE
Price
N/A
660
CONN 5/16"N X 1/8"T 90-DEG BRONZE
Price
N/A
661
FLEXIBLE HOSE 8MM
Price
$4.35
662
FLEXIBLE HOSE 8MM
Price
$4.35
663
FLEXIBLE HOSE 6MM
Price
$4.35
664
FLEXIBLE HOSE 6MM
Price
$4.35
665
FLEXIBLE HOSE 6MM
Price
$4.35
666
FLEXIBLE HOSE 6MM
Price
$4.65
667
FLEXIBLE HOSE 6MM
Price
$4.65
668
FLEXIBLE HOSE 6MM
Price
$4.65
669
FLEXIBLE HOSE 6MM
Price
$4.35
670
FLEXIBLE HOSE 6MM
Price
N/A
674
CONN 1/4"N X 1/8"T 90-DEG BRONZE
Price
N/A
675
CONN 1/4"N X 1/8"T 90-DEG BRONZE
Price
N/A
676
PLASTIC CONNECTOR
Item is no longer available
Price
N/A
677
CONNECTOR 1/4N
Item is no longer available
Price
N/A
680
CONNECTOR 1/4N X 1/8T
Item is no longer available
Price
N/A
690
PRESSURE GAUGE
Price
$21.50
800
LOGO PLATE
Price
N/A
801
MACHINE DATA LABEL
Price
N/A
802
CONTROL PANEL LABEL
Price
N/A
803
DISCONNECT 220V 2W X 3.3H
Price
N/A
804
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
805
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
806
CONVERSION TABLE LABEL
Price
N/A
807
SANDER BELT PINCH 5.3W X 2.8H
Price
N/A
808
SANDER REAR EJECT 5.3W X 2.8H V2.04.08
Price
N/A
809
APPLY BRAKE LABEL
Price
N/A
810
EMERGENCY STOP LABEL
Price
N/A
8107
DIGITAL CONTROLLER
Price
N/A
8109
CURRENT SENSOR
Price
N/A
811
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
8111
MAGNETIC CONTACTOR LC1-D50
Price
$138.00
8112
OVERLOAD RELAY LR3-D33
Price
$36.65
8113-1
FUSE HOUSING
Price
$25.65
8113-2
FUSE 500V 4A
Price
$24.15
8114
OVERLOAD RELAY LR3D-086
Price
$32.95
8115
CONTACTOR SCHN LC1D09 220V
Price
N/A
8115-1
CONTACTOR SCHN LC1D09 220V W/LOCK
Price
N/A
8115-2
MAG CONTACTOR LC1-096
Item is no longer available
Price
N/A
812
ELEVATION DIRECTION LABEL
Price
N/A
8126
AMP METER
Price
$29.35
8128-1
START SWITCH
Price
$14.70
8128-2
START SWITCH
Price
$14.70
8129-1
STOP SWITCH
Price
$14.70
8129-2
STOP SWITCH
Price
$14.70
8130
POWER INDICATION LIGHT
Price
$14.70
8131
EMERGENCY STOP SWITCH
Price
$29.35
8133
DIGITAL CONTROLLER
Price
N/A
814
BLACK/TAN TRIM TAPE
Price
N/A
815
KEEP DOOR CLOSED 2W X 3.3H
Price
N/A
816
BLACK TRIM TAPE
Price
N/A
819
AMP LOAD LABEL
Item is no longer available
Price
N/A
820
ELECTRICITY 1.4W X 1.2H
Price
N/A
823
LABEL
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR W1710 09/05
Price
$16.90
