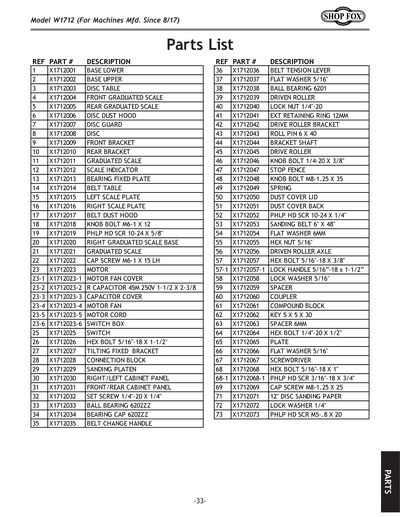

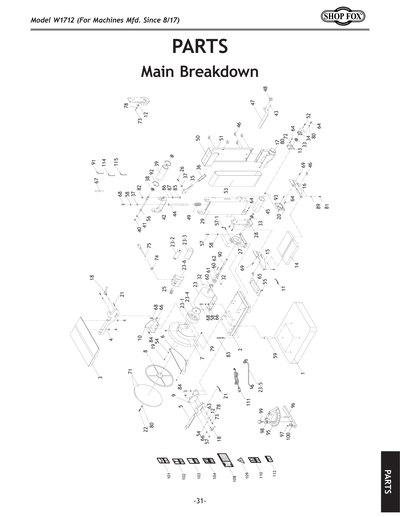

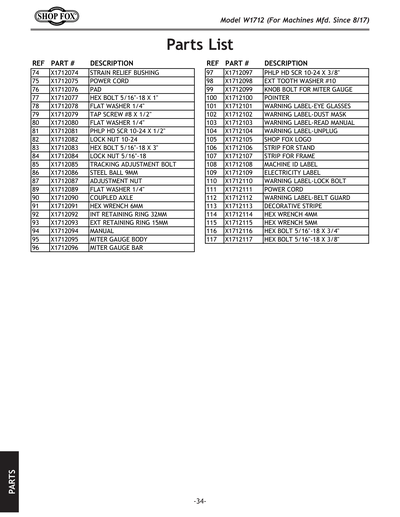

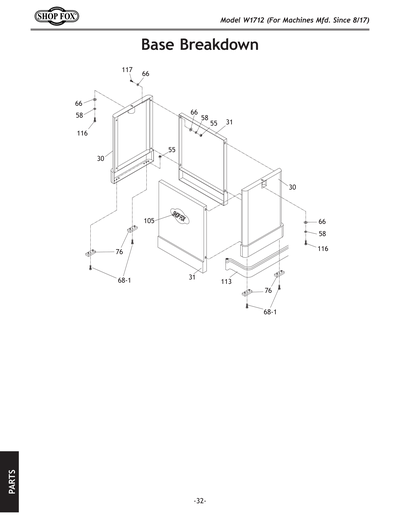

Parts for W1712 6" x 48" Belt/12" Disc Combo Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE LOWER
2
BASE UPPER
3
DISC TABLE
4
FRONT GRADUATED SCALE
5
REAR GRADUATED SCALE
6
DISC DUST HOOD
7
DISC GUARD
8
DISC
9
FRONT BRACKET
10
REAR BRACKET
11
GRADUATED SCALE
12
SCALE INDICATOR
13
BEARING FIX PLATE
14
BELT TABLE
15
LEFT SCALE PLATE V2.09.24
Price
N/A
15V2
LEFT SCALE PLATE V2.09.24
16
RIGHT SCALE PLATE
16V2
RIGHT SCALE PLATE V2.09.24
17
BELT DUST HOOD
18
LEVER BOLT M6-1 X 12
18V2
ADJUSTABLE HANDLE M6-1 X 15
19
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
20
RIGHT GRADUATED SCALE BASE
21
***USE PX1712011***
22
CAP SCREW M6-1 X 15 LH
Price
N/A
23
MOTOR 1-1/2HP 110V 1-PH
23-1
MOTOR FAN COVER
23-10
BALL BEARING 6203ZZ
Price
N/A
23-11
BALL BEARING 6203ZZ
Price
N/A
23-2
R CAPACITOR 45M 250V
Price
N/A
23-3
CAPACITOR COVER
23-4
MOTOR FAN
23-5
POWER CORD
Price
N/A
23-6
MOTOR 1-1/2HP 110V 1-PH
Price
N/A
23-7
S CAP 300M 125V 1-3/8 X 2-5/8 V2.05.20
Price
N/A
23-7V2
S CAP 300M 125V 1-3/8 X 2-5/8 V2.05.20
23-8
MOTOR 1-1/2HP 110V 1-PH
Price
N/A
23-9
MOTOR 1-1/2HP 110V 1-PH
Price
N/A
24
SWITCH BOX
25
Now: D2751
Paddle Switch 125V/250V
Price
N/A
26
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
27
TILTING SWITCH BRACKET
28
CONNECTION BLOCK
29
SANDING PLATEN
29A
COMPLETE BELT SANDER ASSEMBLY
30
RIGHT/LEFT CABINET PANEL
31
FRONT CABINET PANEL
31V2
REAR CABINET PANEL V2.09.24
32
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
33
BALL BEARING 6202-2RS
Price
N/A
34
BEARING CAP 6202ZZ
35
BELT CHANGE HANDLE
36
BELT TENSION LEVER
37
Now: PW07
FLAT WASHER 5/16
Price
N/A
38
BALL BEARING 6201ZZ
Price
N/A
39
DRIVEN ROLLER
40
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
41
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
42
DRIVE ROLLER BRACKET
43
ROLL PIN 6 X 40
Price
N/A
44
BRACKET SHAFT
45
DRIVE ROLLER
46
KNOB BOLT 1/4-20 X 3/8
46V2
ADJUSTABLE HANDLE 1/4-20 X 5/8, 50L V2
47
STOP FENCE
48
KNOB BOLT M8-1.25 X 35
49
SPRING
50
DUST COVER LID
51
DUST COVER BACK
52
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
53
SANDING BELT 6 X 48
54
Now: PW03M
FLAT WASHER 6MM
Price
N/A
54V2
FLAT WASHER 1/4 X 5/8 X 5/64
55
Now: PN02
HEX NUT 5/16-18
Price
N/A
56
DRIVEN ROLLER AXLE
57
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
57-1
LOCK HANDLE 5/16-18 X 1-1/2
58
Now: PLW01
LOCK WASHER 5/16
Price
N/A
59
SPACER
60
COUPLER
61
COMPOUND BLOCK
62
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
63
SPACER 6MM
63V2
SPACER 8MM
64
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
65
PLATE
66
Now: PW07
FLAT WASHER 5/16
Price
N/A
67
SCREW DRIVER
68
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
68-1
Now: PS79
PHLP HD SCR 5/16-18 X 5/8
Price
N/A
69
CAP SCREW 5/16-18 X 1/2
Price
N/A
70
DISC DUST HOOD
71
SANDING DISC 12" PAPER 100 GRIT
72
Now: PLW02
LOCK WASHER 1/4
Price
N/A
73
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
74
STRAIN RELIEF BUSHING
75
POWER CORD
Price
N/A
76
PAD
77
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
78
Now: PW06
FLAT WASHER 1/4
Price
N/A
79
TAP SCREW #8 X 1/2
Price
N/A
80
Now: PW06
FLAT WASHER 1/4
Price
N/A
81
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
82
Now: PLN04
LOCK NUT 10-24
Price
N/A
83
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
84
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
85
TRACKING ADJUSTMENT BOLT
86
STEEL BALL 9MM W/HOLE
87
ADJUSTMENT NUT
89
Now: PW06
FLAT WASHER 1/4
Price
N/A
90
COUPLED AXLE
91
HEX WRENCH 6MM
Price
N/A
92
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
93
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
95
COMPLETE MITER GAUGE
Price
N/A
95-1
COMPLETE MITER GAUGE ASSY
96
MITER GAUGE BAR
97
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
98
Now: PW07
FLAT WASHER 5/16
Price
N/A
99
KNOB BOLT FOR MITER GAUGE
100
POINTER
101
EYE GLASSES LABEL
102
DUST MASK LABEL
103
READ MANUAL LABEL
104
UNPLUG LABEL
105
Now: D3376
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
106
STRIP FOR STAND
107
STRIP FOR FRAME
108
MACHINE ID LABEL
109
ELECTRICITY LABEL
110
LOCK BOLT LABEL
111
POWER CORD
112
BELT GUARD LABEL
113
DECORATIVE STRIPE LENGTH 6'6"
114
HEX WRENCH 4MM
115
HEX WRENCH 5MM
116
HEX BOLT 5/16-18 X 3/4
118
GRAPHITE PAD
119
HEX NUT 5/32-32
120
PHLP HD SCR 5/32-32 X 3/4
123
POSITION PLATE
125
MODEL NUMBER LABEL
126
LOCK WASHER 3/16
127
SPACER 5MM
200
CARTON FOR W1712
201
STYROFOAM
BAG1
TABLE HARDWARE BAG
BAG2
STAND HARDWARE BAG
BAG3
FLOOR PAD BAG
BAG4
ACCESSORIES BAG
MANUAL
