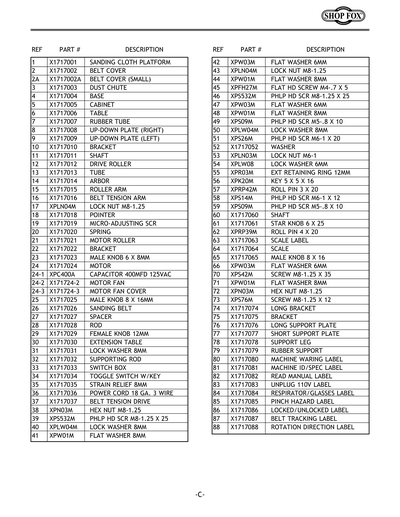

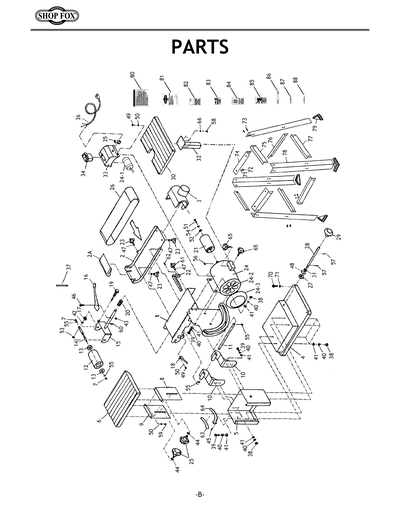

Parts for W1717 1/3 HP Horizontal/Vertical Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SANDING CLOTH PLATFORM
2
BELT COVER
2A
SMALL BELT COVER
3
DUST COVER
4
BASE
5
CABINET
6
TABLE
8
RIGHT UP-DOWN PLATE
9
LEFT UP-DOWN PLATE
10
BRACKET
11
SHAFT
12
*DISCD*RIVE ROLLER V1.09.03
Item is no longer available
Price
N/A
12A
DRIVE ROLLER ASSEMBLY V2.10.07
Price
N/A
12AV2
DRIVE ROLLER ASSEMBLY V2.10.07
12V2
*DISCD*RIVE ROLLER V2.10.07
14
DRIVE ROLLER ASSEMBLY V2.10.07
Price
N/A
14V2
DRIVE ROLLER ASSEMBLY V2.10.07
Price
N/A
15
ROLLER ARM
16
BELT TENSION ARM
17
LOCK NUT M8-1.25
Price
N/A
18
POINTER
19
MICRO-ADJUSTING SCREW M8 X 52.2
20
SPRING 15 X 3 X 50
21
MOTOR ROLLER
22
BRACKET
23
MALE KNOB 6 X 8MM
24
MOTOR
24-1
S CAPACITOR 400M 120V 3-3/8 X 1-7/16
24-2
MOTOR FAN
24-3
MOTOR FAN COVER
25
MALE KNOB 8 X 16MM
26
SANDING BELT
27
SPACER
28
ROD
29
FEMALE KNOB 12MM
2A
SMALL BELT COVER
30
EXTENSION TABLE
31
LOCK WASHER 8MM
Price
N/A
32
SUPPORTING ROD
33
SWITCH BOX
34
Now: D2751
Paddle Switch 125V/250V
Price
N/A
35
STRAIN RELIEF 8MM
36
POWER CORD 18GA 3 WIRE
37
BELT TENSION DRIVE
38
Now: PN03M
HEX NUT M8-1.25
Price
N/A
39
Now: PS32M
PHLP HD SCR M8-1.25 X 25
Price
N/A
40
LOCK WASHER 8MM
Price
N/A
41
Now: PW01M
FLAT WASHER 8MM
Price
N/A
42
Now: PW03M
FLAT WASHER 6MM
Price
N/A
43
LOCK NUT M8-1.25
Price
N/A
44
Now: PW01M
FLAT WASHER 8MM
Price
N/A
45
FLAT HD SCR M4-.7 X 6
Price
N/A
46
Now: PS32M
PHLP HD SCR M8-1.25 X 25
Price
N/A
47
Now: PW03M
FLAT WASHER 6MM
Price
N/A
48
Now: PW01M
FLAT WASHER 8MM
Price
N/A
49
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
50
LOCK WASHER 8MM
Price
N/A
51
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
52
WASHER 23 X 6 X 2.8
53
LOCK NUT M6-1
Price
N/A
54
Now: PLW08
LOCK WASHER #6
Price
N/A
55
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
56
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
57
ROLL PIN 3 X 20
Price
N/A
58
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
59
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
60
SHAFT
61
STAR KNOB 6 X 25
62
ROLL PIN 4 X 20
Price
N/A
63
SCALE LABEL
64
SCALE
65
MALE KNOB 8 X 16
66
Now: PW03M
FLAT WASHER 6MM
Price
N/A
70
Now: PS42M
PHLP HD SCR M8-1.25 X 35
Price
N/A
71
Now: PW01M
FLAT WASHER 8MM
Price
N/A
72
Now: PN03M
HEX NUT M8-1.25
Price
N/A
73
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
74
LONG BRACKET
75
BRACKET
76
LONG SUPPORT PLATE
77
SHORT SUPPORT PLATE
78
SUPPORT LEG
79
RUBBER SUPPORT
80
MACHINE WARNING LABEL
81
MACHINE ID SPEC LABEL
82
READ MANUAL LABEL
83
UNPLUG 110V LABEL
84
RESPIRATOR GLASSES LABEL
85
PINCH HAZARD LABEL
86
LOCKED/UNLOCKED LABEL
87
BELT TRACKING LABEL
88
ROTATION DIRECTION LABEL
89
CARTON FOR W1717
90
STYROFOAM 2PCS
91
COMPLETE MITER GAUGE
MANUAL
MANUAL FOR W1717 08/03
