Parts for W1720 - Aluma-Classic Fence w/ Long Rails

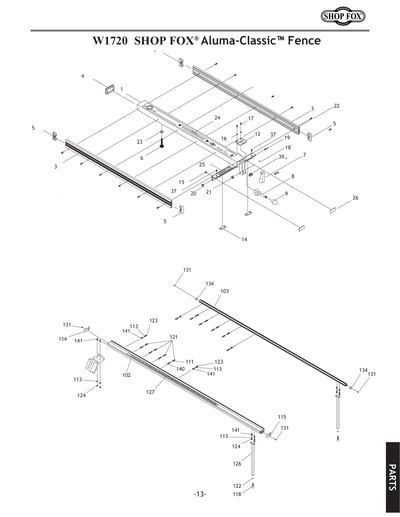

Part Diagram for W1720
Part Diagram for W1720
Part Diagram for W1720
Part Diagram for W1720

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

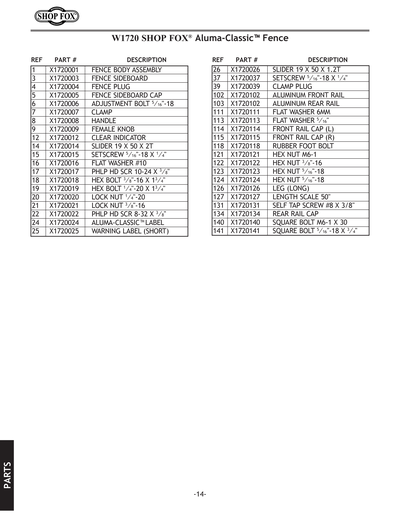

Ref #
Part #
Description
1
FENCE TUBE
Price
N/A
3
FENCE SIDEBOARD
Price
N/A
4
FENCE PLUG
Price
N/A
5
FENCE SIDEBOARD CAP
Price
N/A
6
ADJUSTMENT BOLT 5/16-18
Price
N/A
7
CLAMP
Price
N/A
8
HANDLE
Price
N/A
9
*** USE P0651326***
Price
N/A
12
CLEAR INDICATOR
Price
N/A
14
SLIDER 19 X 50 X 2T
Price
N/A
15
SET SCREW 5/16-18 X 1/4
Price
N/A
16
X1720016
Now: PW03
FLAT WASHER #10
Price
N/A
17
X1720017
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
18
X1720018
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
19
X1720019
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
20
LOCK NUT 1/4-20
Price
N/A
21
LOCK NUT 3/8-16
Price
N/A
22
X1720022
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
24
ALUMA CLASSIC TM LABEL
Price
N/A
25
WARNING LABEL SHORT
Price
N/A
26
SLIDER 19 X 50 X 1.2T
Price
N/A
37
SET SCREW 5/16-18 X 1/4
Price
N/A
39
CLAMP PLUG
Price
N/A
102
ALUMINUM FRONT RAIL
Price
N/A
103
ALUMINUM REAR RAIL
Price
N/A
111
X1720111
Now: PW06
FLAT WASHER 1/4
Price
N/A
113
X1720113
Now: PW07
FLAT WASHER 5/16
Price
N/A
114
LEFT FRONT RAIL CAP
Price
N/A
115
RIGHT FRONT RAIL CAP
Price
N/A
118
RUBBER FOOT BOLT 3/8-16
Price
N/A
120
X1720120
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
121
X1720121
Now: PN05
HEX NUT 1/4-20
Price
N/A
122
X1720122
Now: PN08
HEX NUT 3/8-16
Price
N/A
123
X1720123
Now: PN02
HEX NUT 5/16-18
Price
N/A
124
X1720124
Now: PN02
HEX NUT 5/16-18
Price
N/A
126
LONG LEG
Price
N/A
127
LENGTH SCALE 50"
Price
N/A
128
LOCK NUT 1/4-20
Price
N/A
129
LOCK NUT 3/8-16
Price
N/A
131
X1720131
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
134
REAR RAIL CAP
Price
N/A
140
SQUARE BOLT M6-1 X 32 V2.02.17
Price
N/A
141
SQUARE BOLT 5/16-18 X 1"
Price
N/A
201
METAL WING
Price
N/A
202
X1720202
Now: PN02
HEX NUT 5/16-18
Price
N/A
203
X1720203
Now: PW07
FLAT WASHER 5/16
Price
N/A
204
SQUARE BOLT 5/16-18 X 1"
Price
N/A
BOX2
7' Rails & Legs Only
Price
N/A
