Parts for W1721 - 7' Rails & Legs Only

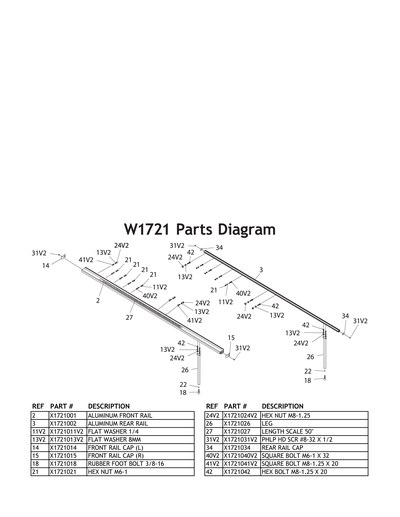

Part Diagram for W1721
Part Diagram for W1721

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
Price
$130.75
3
Price
$37.80
11
X1721011
Now: PW06
FLAT WASHER 1/4
Price
N/A
11V2
FLAT WASHER 1/4
Price
N/A
13
X1721013
Now: PW07
FLAT WASHER 5/16
Price
N/A
13V2
FLAT WASHER 8MM
Price
N/A
14
Price
$2.25
15
Price
$2.25
18
RUBBER FOOT BOLT 3/8-16
Price
$1.60
20
X1721020
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
21
X1721021
Now: PN05
HEX NUT 1/4-20
Price
N/A
22
X1721022
Now: PN08
HEX NUT 3/8-16
Price
N/A
23
X1721023
Now: PN02
HEX NUT 5/16-18
Price
N/A
24
X1721024
Now: PN02
HEX NUT 5/16-18
Price
N/A
24V2
HEX NUT M8-1.25
Price
N/A
26
Price
$21.70
27
Price
$8.30
28
LOCK NUT 1/4-20
Price
N/A
29
LOCK NUT 3/8-16
Price
N/A
31
X1721031
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
34
Price
$2.25
40
SQUARE BOLT M6-1 X 32 V2.02.17
Price
N/A
40V2
SQUARE BOLT M6-1 X 32 V2.02.17
Price
$1.60
41
SQUARE BOLT 5/16-18 X 1"
Item is no longer available
Price
N/A
41V2
SQUARE BOLT M8-1.25 X 20 V2.02.17
Price
$1.49
42
HEX BOLT M8-1.25 X 20
Price
N/A
MAN
Price
$14.65
