Parts for W1729 - 19" 2 HP Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

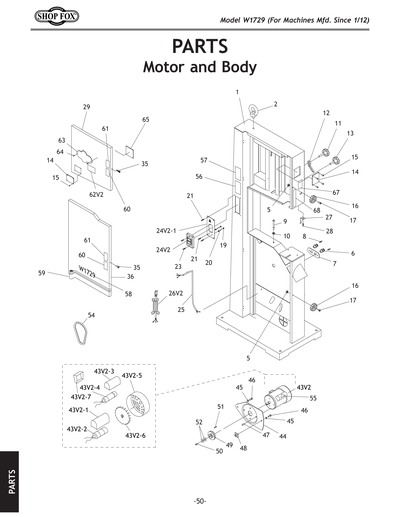

2 X1729002
EYE BOLT
N/A
5 X1729005
***USE PLN03M***
Item is no longer available
PX1729005 Replaced By PLN03M
N/A View Replacement
6 X1729006
STRAIN RELIEF 16MM
N/A
7 X1729007
PLATE
N/A
8 X1729008
***USE PS09M ***
Item is no longer available
PX1729008 Replaced By PS09M
N/A View Replacement
9 X1729009
***USE PB45M***
Item is no longer available
PX1729009 Replaced By PB45M
N/A View Replacement
10 X1729010
***USE PN03M***
Item is no longer available
PX1729010 Replaced By PN03M
N/A View Replacement
11 X1729011
KNOB BOLT 3/8"-16 M10-1.5P X 53MM
N/A
12 X1729012
THREADED HANDLE 3/8"-16 M10-1.5P X 73MM
N/A
13 X1729013
KNOB BOLT 3/8"-16 M10-1.5P X 53MM
Item is no longer available
PX1729013 Replaced By PX1729011
N/A View Replacement
14 X1729014
CLEAR WINDOW
N/A
15 X1729015
RIVET 3.2 X 6
N/A
16 X1729016
***USE PX1707036***
Item is no longer available
PX1729016 Replaced By PX1707036
N/A View Replacement
17 X1729017
***USE PCAP02M***
Item is no longer available
PX1729017 Replaced By PCAP02M
N/A View Replacement
19 X1729019
***USE PN06M***
Item is no longer available
PX1729019 Replaced By PN06M
N/A View Replacement
20 X1729020
***USE PTLW02M***
Item is no longer available
PX1729020 Replaced By PTLW02M
N/A View Replacement
21 X1729021
***USE PS09M***
Item is no longer available
PX1729021 Replaced By PS09M
N/A View Replacement
23 X1729023
***USE PS40M***
Item is no longer available
PX1729023 Replaced By PS40M
N/A View Replacement
24 X1729024
PUSH BUTTON SWITCH V1
N/A
24-1 X1729024-1
SWITCH PLATE V1
N/A
24-2 X1729024-2
***USE PLABEL-14A***
Item is no longer available
PX1729024-2 Replaced By PLABEL-14A
N/A View Replacement
25 X1729025
MOTOR CORD
N/A
26 X1729026
POWER CORD
N/A
27 X1729027
HEIGHT POINTER
N/A
28 X1729028
***USE PS09M***
Item is no longer available
PX1729028 Replaced By PS09M
N/A View Replacement
29 X1729029
UPPER WHEEL COVER
N/A
29A X1729029A
UPPER WHEEL COVER W/LABELS & WINDOW
N/A
35 X1729035
***USE PCAP04M***
Item is no longer available
PX1729035 Replaced By PCAP04M
N/A View Replacement
36 X1729036
LOWER WHEEL COVER
N/A
36A X1729036A
LOWER WHEEL COVER W/LABELS
N/A
43 X1729043
MOTOR 2HP 110V/220V V1
N/A
43-1 X1729043-1
S CAPACITOR COVER
Item is no longer available
PX1729043-1 Replaced By PX1729043V2-1
N/A View Replacement
43-2 X1729043-2
***USE PC200***
Item is no longer available
PX1729043-2 Replaced By PC200
N/A View Replacement
43-3 X1729043-3
R CAPACITOR COVER
Item is no longer available
PX1729043-3 Replaced By PX1729043V2-3
N/A View Replacement
43-4 X1729043-4
***USE PC40D***
Item is no longer available
PX1729043-4 Replaced By PC40D
N/A View Replacement
43-5 X1729043-5
FAN COVER
N/A
43-6 X1729043-6
FAN
N/A
43-7 X1729043-7
JUNCTION BOX COVER
Item is no longer available
PX1729043-7 Replaced By PX1729043V2-7
N/A View Replacement
43V2 X1729043V2
MOTOR 2HP 115V/230V V2.06.11
N/A
43V2-1 X1729043V2-1
S CAPACITOR COVER
N/A
43V2-2 X1729043V2-2
S CAPACITOR 300M 250V
N/A
43V2-3 X1729043V2-3
R CAPACITOR COVER
N/A
43V2-4 X1729043V2-4
R CAPACITOR 40M 250V
N/A
43V2-5 X1729043V2-5
MOTOR FAN COVER
N/A
43V2-6 X1729043V2-6
MOTOR FAN
N/A
43V2-7 X1729043V2-7
JUNCTION BOX COVER
N/A
44 X1729044
MOTOR BRACKET
N/A
45 X1729045
***USE PLW06M***
Item is no longer available
PX1729045 Replaced By PLW06M
N/A View Replacement
46 X1729046
***USE PB32M***
Item is no longer available
PX1729046 Replaced By PB32M
N/A View Replacement
47 X1729047
MOTOR MOUNT SCREW M8-1.25 X 20
N/A
48 X1729048
T-NUT
N/A
49 X1729049
MOTOR PULLEY
N/A
50 X1729050
***USE PB81M***
Item is no longer available
PX1729050 Replaced By PB81M
N/A View Replacement
51 X1729051
***USE PK15M***
Item is no longer available
PX1729051 Replaced By PK15M
N/A View Replacement
52 X1729052
***USE PW01M ***
Item is no longer available
PX1729052 Replaced By PW01M
N/A View Replacement
53 X1729053
***USE PW01M***
Item is no longer available
PX1729053 Replaced By PW01M
N/A View Replacement
54 X1729054
***USE PVA42***
Item is no longer available
PX1729054 Replaced By PVA42
N/A View Replacement
55 X1729055
***USE PLABEL-14A***
Item is no longer available
PX1729055 Replaced By PLABEL-14A
N/A View Replacement
56 X1729056
***USE PLABEL-12A***
Item is no longer available
PX1729056 Replaced By PLABEL-12A
N/A View Replacement
57 X1729057
***USE PLABEL-58A***
Item is no longer available
PX1729057 Replaced By PLABEL-58A
N/A View Replacement
58 X1729058
MODEL NUMBER LABEL
N/A
59 X1729059
PINSTRIPE TAPE
N/A
60 X1729060
***USE PLABEL-62***
Item is no longer available
PX1729060 Replaced By PLABEL-62
N/A View Replacement
61 X1729061
KEEP DOOR CLOSED LABEL
N/A
62 X1729062
MACHINE ID LABEL V1
N/A
62V2 X1729062V2
MACHINE ID LABEL CSA V2.02.12
N/A
63 X1729063
***USE D3376***
Item is no longer available
PX1729063 Replaced By D3376
N/A View Replacement
64 X1729064
***USE PHTEK10***
Item is no longer available
PX1729064 Replaced By PHTEK10
N/A View Replacement
65 X1729065
TENSION GAP LABEL
N/A
67 X1729067
CUTTING HAZARD LABEL
N/A
68 X1729068
BLADE DIRECTION LABEL
N/A

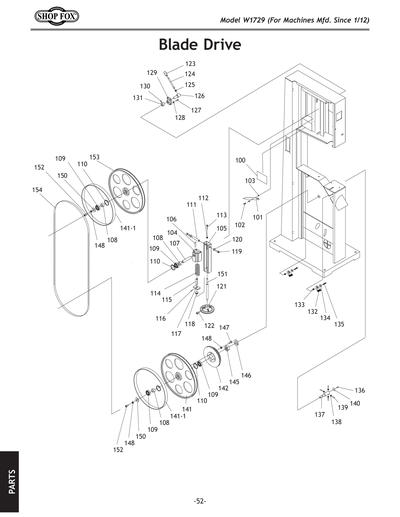

100 X1729100
TENSION SCALE
N/A
101 X1729101
POINTER
N/A
102 X1729102
STEP SCREW M4-.7 X 6
N/A
103 X1729103
***USE PW03M***
Item is no longer available
PX1729103 Replaced By PW03M
N/A View Replacement
104 X1729104
UPPER WHEEL SHAFT HINGE
N/A
105 X1729105
UPPER WHEEL BRACKET
N/A
106 X1729106
***USE PRP91M***
Item is no longer available
PX1729106 Replaced By PRP91M
N/A View Replacement
107 X1729107
UPPER WHEEL SHAFT
N/A
108 X1729108
BUSHING
N/A
109 X1729109
***USE P6204ZZ***
Item is no longer available
PX1729109 Replaced By P6204ZZ
N/A View Replacement
110 X1729110
***USE PR25M***
Item is no longer available
PX1729110 Replaced By PR25M
N/A View Replacement
111 X1729111
UPPER SHAFT
N/A
112 X1729112
***USE PN01M***
Item is no longer available
PX1729112 Replaced By PN01M
N/A View Replacement
113 X1729113
***USE PCAP37M***
Item is no longer available
PX1729113 Replaced By PCAP37M
N/A View Replacement
114 X1729114
COMPRESSION SPRING
N/A
115 X1729115
BUSHING
N/A
116 X1729116
***USE PRP02M***
Item is no longer available
PX1729116 Replaced By PRP02M
N/A View Replacement
117 X1729117
BLOCK
N/A
118 X1729118
***USE P51201***
Item is no longer available
PX1729118 Replaced By P51201
N/A View Replacement
119 X1729119
***USE PCAP11M***
Item is no longer available
PX1729119 Replaced By PCAP11M
N/A View Replacement
120 X1729120
***USE PW01M ***
Item is no longer available
PX1729120 Replaced By PW01M
N/A View Replacement
121 X1729121
HANDWHEEL 5.5"
N/A
122 X1729122
***USE PSS01M***
Item is no longer available
PX1729122 Replaced By PSS01M
N/A View Replacement
123 X1729123
KNOB
N/A
124 X1729124
LEVER ROD
N/A
125 X1729125
***USE PN09M***
Item is no longer available
PX1729125 Replaced By PN09M
N/A View Replacement
126 X1729126
SHAFT
N/A
127 X1729127
TENSION LEVER SCREW M8-1.25 X 20
N/A
128 X1729128
***USE PLW04M***
Item is no longer available
PX1729128 Replaced By PLW04M
N/A View Replacement
129 X1729129
BLOCK
N/A
130 X1729130
***USE PCAP06M***
Item is no longer available
PX1729130 Replaced By PCAP06M
N/A View Replacement
131 X1729131
CAM
N/A
132 X1729132
BRUSH
N/A
133 X1729133
***USE PLN03M***
Item is no longer available
PX1729133 Replaced By PLN03M
N/A View Replacement
134 X1729134
***USE PW03M***
Item is no longer available
PX1729134 Replaced By PW03M
N/A View Replacement
135 X1729135
***USE PB10M***
Item is no longer available
PX1729135 Replaced By PB10M
N/A View Replacement
136 X1729136
***USE PFS07M***
Item is no longer available
PX1729136 Replaced By PFS07M
N/A View Replacement
137 X1729137
LOWER WHEEL SHAFT
N/A
138 X1729138
***USE PN34M***
Item is no longer available
PX1729138 Replaced By PN34M
N/A View Replacement
139 X1729139
***USE PSS09M***
Item is no longer available
PX1729139 Replaced By PSS09M
N/A View Replacement
140 X1729140
COVER
N/A
141 X1729141
LOWER WHEEL 19"
N/A
141-1 X1729141-1
TIRE 80-85
N/A
142 X1729142
IDLER WHEEL
N/A
145 X1729145
***USE PN32***
Item is no longer available
PX1729145 Replaced By PN32
N/A View Replacement
146 X1729146
***USE PLW09***
Item is no longer available
PX1729146 Replaced By PLW09
N/A View Replacement
147 X1729147
***USE PCAP31M***
Item is no longer available
PX1729147 Replaced By PCAP31M
N/A View Replacement
148 X1729148
***USE PLW04M***
Item is no longer available
PX1729148 Replaced By PLW04M
N/A View Replacement
150 X1729150
***USE PW01M ***
Item is no longer available
PX1729150 Replaced By PW01M
N/A View Replacement
151 X1729151
SHAFT
N/A
152 X1729152
***USE PCAP11M***
Item is no longer available
PX1729152 Replaced By PCAP11M
N/A View Replacement
153 X1729153
UPPER WHEEL 19"
N/A
154 X1729154
BLADE 143" X 3/4" 0.65MM
N/A

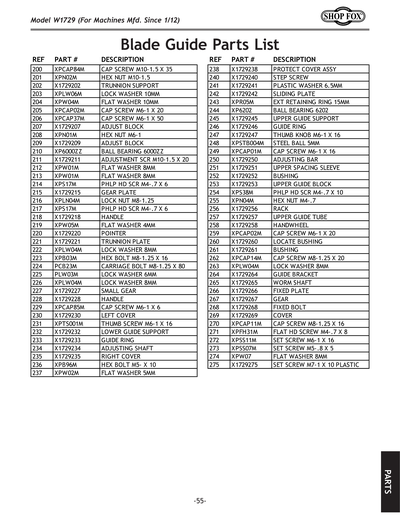

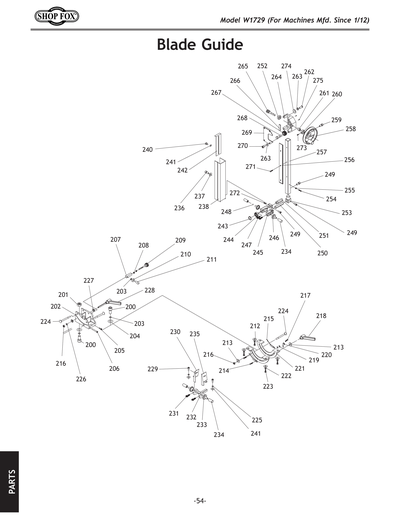

200 X1729200
***USE PCAP84M***
Item is no longer available
PX1729200 Replaced By PCAP84M
N/A View Replacement
201 X1729201
***USE PN02M***
Item is no longer available
PX1729201 Replaced By PN02M
N/A View Replacement
202 X1729202
TRUNNION SUPPORT
N/A
203 X1729203
***USE PLW06M***
Item is no longer available
PX1729203 Replaced By PLW06M
N/A View Replacement
204 X1729204
***USE PW04M***
Item is no longer available
PX1729204 Replaced By PW04M
N/A View Replacement
205 X1729205
***USE PCAP02M***
Item is no longer available
PX1729205 Replaced By PCAP02M
N/A View Replacement
206 X1729206
***USE PCAP37M***
Item is no longer available
PX1729206 Replaced By PCAP37M
N/A View Replacement
207 X1729207
ADJUST BLOCK
N/A
208 X1729208
***USE PN01M***
Item is no longer available
PX1729208 Replaced By PN01M
N/A View Replacement
209 X1729209
ADJUST BLOCK M6-1.0 X 65MM
N/A
210 X1729210
***USE P6000ZZ***
Item is no longer available
PX1729210 Replaced By P6000ZZ
N/A View Replacement
211 X1729211
ADJUSTMENT SCR M10-1.5 X 20
N/A
212 X1729212
***USE PW01M ***
Item is no longer available
PX1729212 Replaced By PW01M
N/A View Replacement
213 X1729213
***USE PW01M ***
Item is no longer available
PX1729213 Replaced By PW01M
N/A View Replacement
214 X1729214
***USE PS17M***
Item is no longer available
PX1729214 Replaced By PS17M
N/A View Replacement
215 X1729215
GEAR PLATE
N/A
216 X1729216
***USE PLN04M***
Item is no longer available
PX1729216 Replaced By PLN04M
N/A View Replacement
217 X1729217
***USE PS17M***
Item is no longer available
PX1729217 Replaced By PS17M
N/A View Replacement
218 X1729218 HANDLE M8-1.25 X 25MM $9.20
219 X1729219
***USE PW05M***
Item is no longer available
PX1729219 Replaced By PW05M
N/A View Replacement
220 X1729220
POINTER
N/A
221 X1729221
TRUNNION PLATE
N/A
222 X1729222
***USE PLW04M***
Item is no longer available
PX1729222 Replaced By PLW04M
N/A View Replacement
223 X1729223
***USE PB03M***
Item is no longer available
PX1729223 Replaced By PB03M
N/A View Replacement
224 X1729224
***USE PCB23M***
Item is no longer available
PX1729224 Replaced By PCB23M
N/A View Replacement
226 X1729226
***USE PLW04M***
Item is no longer available
PX1729226 Replaced By PLW04M
N/A View Replacement
227 X1729227
SMALL GEAR
N/A
228 X1729228
HANDLE
N/A
229 X1729229
***USE PCAP85M***
Item is no longer available
PX1729229 Replaced By PCAP85M
N/A View Replacement
230 X1729230
LEFT COVER
N/A
231 X1729231
***USE PTS001M***
Item is no longer available
PX1729231 Replaced By PTS001M
N/A View Replacement
232 X1729232
LOWER GUIDE SUPPORT
N/A
232-1 X1729232-1
LOWER GUIDE ASSY
N/A
233 X1729233
GUIDE RING
N/A
234 X1729234
ADJUSTING SHAFT
N/A
235 X1729235
RIGHT COVER
N/A
236 X1729236
***USE PB96M***
Item is no longer available
PX1729236 Replaced By PB96M
N/A View Replacement
237 X1729237
***USE PW02M***
Item is no longer available
PX1729237 Replaced By PW02M
N/A View Replacement
238 X1729238
PROTECT COVER ASSY
N/A
239 X1729239
***USE PW03M***
Item is no longer available
PX1729239 Replaced By PW03M
N/A View Replacement
240 X1729240
STEP SCREW M4-0.7 X 5MM
N/A
241 X1729241
PLASTIC WASHER 6.5MM
N/A
242 X1729242
SLIDING PLATE
N/A
243 X1729243
***USE PR05M***
Item is no longer available
PX1729243 Replaced By PR05M
N/A View Replacement
244 X1729244
***USE P6202ZZ***
Item is no longer available
PX1729244 Replaced By P6202ZZ
N/A View Replacement
245 X1729245
UPPER GUIDE SUPPORT
N/A
245-1 X1729245-1
UPPER GUIDE ASSY
N/A
246 X1729246
GUIDE RING
N/A
247 X1729247
***USE PTS001M***
Item is no longer available
PX1729247 Replaced By PTS001M
N/A View Replacement
248 X1729248
***USE PSTB004M***
Item is no longer available
PX1729248 Replaced By PSTB004M
N/A View Replacement
249 X1729249
***USE PCAP01M***
Item is no longer available
PX1729249 Replaced By PCAP01M
N/A View Replacement
250 X1729250
ADJUSTING BAR
N/A
251 X1729251
UPPER SPACING SLEEVE
N/A
252 X1729252
BUSHING
N/A
253 X1729253
UPPER GUIDE BLOCK
N/A
254 X1729254
***USE PS38M***
Item is no longer available
PX1729254 Replaced By PS38M
N/A View Replacement
255 X1729255
***USE PN04M***
Item is no longer available
PX1729255 Replaced By PN04M
N/A View Replacement
256 X1729256
RACK
N/A
257 X1729257
UPPER GUIDE TUBE
N/A
258 X1729258
HANDLEWHEEL 5.5"
N/A
259 X1729259
***USE PCAP02M***
Item is no longer available
PX1729259 Replaced By PCAP02M
N/A View Replacement
260 X1729260
LOCATE BUSHING
N/A
261 X1729261
BUSHING
N/A
262 X1729262
***USE PCAP14M***
Item is no longer available
PX1729262 Replaced By PCAP14M
N/A View Replacement
263 X1729263
***USE PLW04M***
Item is no longer available
PX1729263 Replaced By PLW04M
N/A View Replacement
264 X1729264
GUIDE BRACKET
N/A
265 X1729265
WORM SHAFT
N/A
266 X1729266
FIXED PLATE
N/A
267 X1729267
GEAR
N/A
268 X1729268
FIXED BOLT
N/A
269 X1729269
COVER
N/A
270 X1729270
***USE PCAP11M***
Item is no longer available
PX1729270 Replaced By PCAP11M
N/A View Replacement
271 X1729271
***USE PFH31M***
Item is no longer available
PX1729271 Replaced By PFH31M
N/A View Replacement
272 X1729272
***USE PSS11M***
Item is no longer available
PX1729272 Replaced By PSS11M
N/A View Replacement
273 X1729273
***USE PSS07M***
Item is no longer available
PX1729273 Replaced By PSS07M
N/A View Replacement
274 X1729274
***USE PW07***
Item is no longer available
PX1729274 Replaced By PW07
N/A View Replacement
275 X1729275
PLASTIC SET SCREW M7-1 X 10
N/A

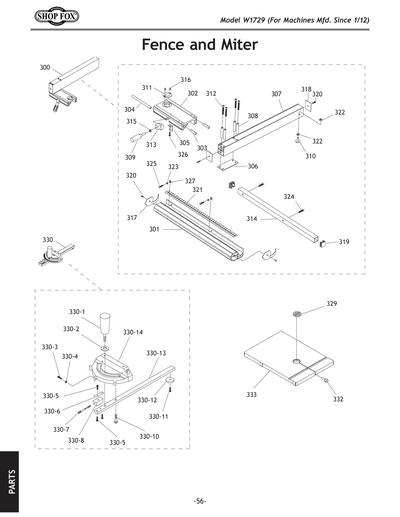

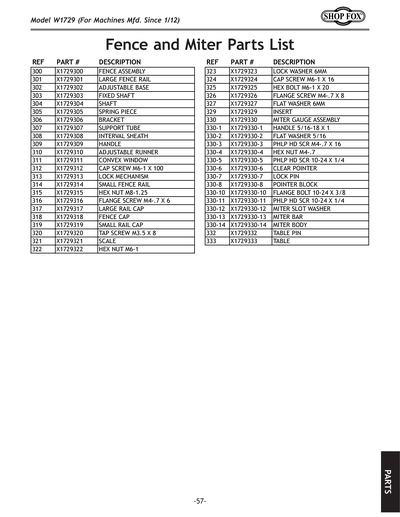

300 X1729300
FENCE ASSEMBLY
N/A
301 X1729301
FRONT FENCE RAIL L=710MM
N/A
302 X1729302
ADJUSTABLE BASE
N/A
303 X1729303
FIXED SHAFT
N/A
304 X1729304
SHAFT
N/A
305 X1729305
SPRING PIECE
N/A
306 X1729306
BRACKET
N/A
307 X1729307
SUPPORT TUBE L=640MM
N/A
308 X1729308
INTERVAL SHEATH
N/A
309 X1729309
HANDLE
N/A
310 X1729310
ADJUSTABLE RUNNER
N/A
311 X1729311
CONVEX WINDOW
N/A
312 X1729312
***USE PCAP199M***
Item is no longer available
PX1729312 Replaced By PCAP199M
N/A View Replacement
313 X1729313
LOCK MECHANISM
N/A
314 X1729314
SMALL FENCE RAIL L=710MM
N/A
315 X1729315
***USE PN03M***
Item is no longer available
PX1729315 Replaced By PN03M
N/A View Replacement
316 X1729316
***USE PFS04M***
Item is no longer available
PX1729316 Replaced By PFS04M
N/A View Replacement
317 X1729317
LARGE RAIL CAP
N/A
318 X1729318
FENCE CAP
N/A
319 X1729319
***USE PX1706161***
Item is no longer available
PX1729319 Replaced By PX1706161
N/A View Replacement
320 X1729320
***USE PHTEK3M***
Item is no longer available
PX1729320 Replaced By PHTEK3M
N/A View Replacement
321 X1729321
SCALE
N/A
322 X1729322
***USE PN01M***
Item is no longer available
PX1729322 Replaced By PN01M
N/A View Replacement
323 X1729323
***USE PLW03M***
Item is no longer available
PX1729323 Replaced By PLW03M
N/A View Replacement
324 X1729324
***USE PCAP01M***
Item is no longer available
PX1729324 Replaced By PCAP01M
N/A View Replacement
325 X1729325
***USE PB08M***
Item is no longer available
PX1729325 Replaced By PB08M
N/A View Replacement
326 X1729326
***USE PFS17M***
Item is no longer available
PX1729326 Replaced By PFS17M
N/A View Replacement
327 X1729327
***USE PW03M***
Item is no longer available
PX1729327 Replaced By PW03M
N/A View Replacement
329 X1729329 INSERT $1.30
330 X1729330
MITER GAUGE ASSEMBLY
N/A
330-10 X1729330-10
***USE PFB17***
Item is no longer available
PX1729330-10 Replaced By PFB17
N/A View Replacement
330-11 X1729330-11
***USE PS18***
Item is no longer available
PX1729330-11 Replaced By PS18
N/A View Replacement
330-2 X1729330-2
***USE PW07***
Item is no longer available
PX1729330-2 Replaced By PW07
N/A View Replacement
330-3 X1729330-3
***USE PS56M***
Item is no longer available
PX1729330-3 Replaced By PS56M
N/A View Replacement
330-4 X1729330-4
***USE PN04M***
Item is no longer available
PX1729330-4 Replaced By PN04M
N/A View Replacement
330-5 X1729330-5
CLEAR POINTER SCREW
N/A
330-9 X1729330-9
***USE PS18***
Item is no longer available
PX1729330-9 Replaced By PS18
N/A View Replacement
332 X1729332
TABLE PIN
N/A
333 X1729333
TABLE 19" X 26-7/8"
N/A
MANUAL X1729MANUAL
MANUAL FOR W1729 11/04
N/A
PART X1729PART
MISC PART FOR W1729
N/A
