Parts for W1730 - Oscillating Edge Sander

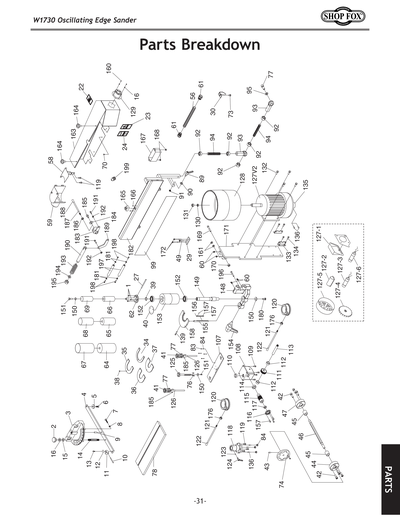

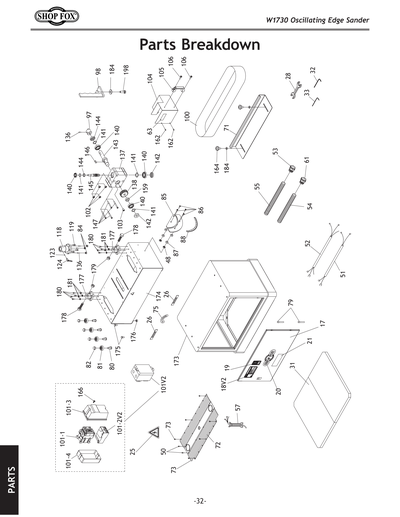

Part Diagram for W1730
Part Diagram for W1730
Part Diagram for W1730
Part Diagram for W1730
Part Diagram for W1730
Part Diagram for W1730
Part Diagram for W1730
Part Diagram for W1730

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

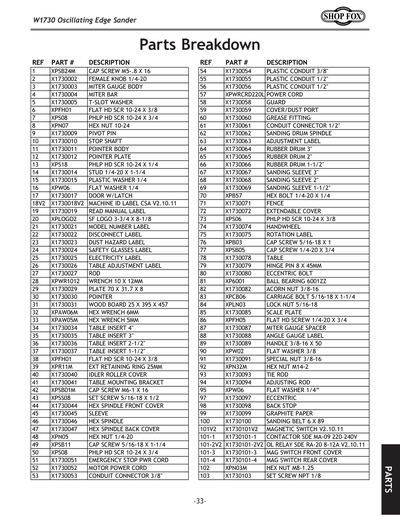

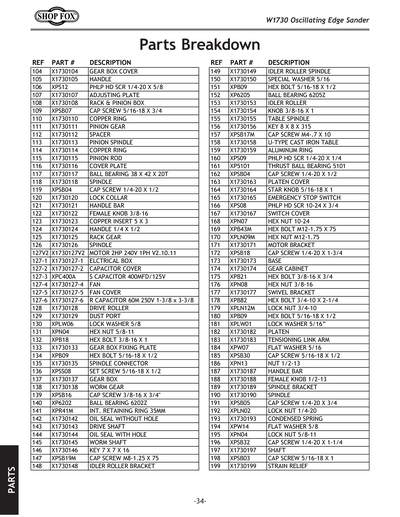

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 16
Price
N/A
2
MITER GAUGE ASSY
Price
N/A
3
MITER GAUGE ASSY
Price
N/A
3-1
MITER GAUGE ASSY
Price
$57.55
4
MITER GAUGE ASSY
Price
N/A
5
MITER GAUGE ASSY
Price
N/A
6
FLAT HD SCR 10-24 X 3/8
Price
N/A
7
X1730007
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
8
X1730008
Now: PN07
HEX NUT 10-24
Price
N/A
9
MITER GAUGE ASSY
Price
N/A
10
MITER GAUGE ASSY
Price
N/A
11
MITER GAUGE ASSY
Price
N/A
12
MITER GAUGE ASSY
Price
N/A
13
X1730013
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
14
MITER GAUGE ASSY
Price
N/A
15
MITER GAUGE ASSY
Price
N/A
16
X1730016
Now: PW06
FLAT WASHER 1/4
Price
N/A
17
DOOR W/LATCH
Price
$72.65
18
MACHINE ID LABEL V1
Price
$16.40
18V2
MACHINE ID LABEL CSA V2.10.11
Price
$16.40
19
READ MANUAL LABEL
Price
$0.95
20
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
21
MODEL NUMBER LABEL
Price
$19.55
22
DISCONNECT LABEL
Price
$0.95
23
DUST HAZARD LABEL
Price
$0.95
24
SAFETY GLASSES LABEL
Price
$0.95
25
ELECTRICITY LABEL
Price
N/A
26
TABLE ADJUSTMENT LABEL
Price
N/A
27
ROD
Price
N/A
28
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
29
PLATE 70 X 31.7 X 5/16
Price
N/A
30
POINTER
Price
N/A
31
WOOD BOARD 25 X 395 X 457
Price
N/A
32
HEX WRENCH 6MM
Price
N/A
33
HEX WRENCH 5MM
Price
N/A
34
TABLE INSERT 4"
Price
N/A
35
TABLE INSERT 3"
Price
N/A
36
TABLE INSERT 2"
Price
N/A
37
TABLE INSERT 1-1/2"
Price
N/A
38
FLAT HD SCR 10-24 X 3/8
Price
N/A
39
EXT RETAINING RING 25MM
Price
N/A
40
IDLER ROLLER COVER
Price
N/A
41
TABLE MOUNTING BRACKET
Price
N/A
42
CAP SCREW M6-1 X 16
Price
N/A
43
SET SCREW 5/16-18 X 1/2
Price
N/A
44
HEX SPINDLE FRONT COVER
Price
N/A
45
SLEEVE
Price
N/A
46
HEX SPINDLE
Price
N/A
47
HEX SPINDLE BACK COVER
Price
N/A
48
X1730048
Now: PN05
HEX NUT 1/4-20
Price
N/A
49
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
50
X1730050
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
51
EMERGENCY STOP POWER CORD
Price
N/A
52
MOTOR POWER CORD
Price
N/A
53
CONDUIT CONNECTOR 3/8
Price
$4.70
54
PLASTIC CONDUIT 3/8" X 11"
Price
$1.70
55
PLASTIC CONDUIT 1/2 " V1
Price
$2.65
55V2
PLASTIC CONDUIT 3/8 X 12" V2.09.11
Price
N/A
56
CONDUIT 1/2 PLASTIC V1
Price
N/A
56V2
PLASTIC CONDUIT 3/8 X 18" V2.09.11
Price
N/A
57
POWER CORD 12G X 3W 86"L
Price
N/A
58
GUARD
Price
$15.00
59
COVER/DUST PORT
Price
$16.00
59-1
COVER/DUST PORT PIN
Price
$17.65
60
GREASE FITTING 1/8 30-DEG
Price
N/A
61
CONDUIT CONNECTOR 1/2" V1
Price
$4.95
61V2
CONDUIT CONNECTOR 3/8"
Price
N/A
62
SANDING DRUM SPINDLE
Price
N/A
63
OIL LABEL
Price
N/A
64
RUBBER DRUM 3
Price
N/A
65
RUBBER DRUM 2
Price
$14.65
66
RUBBER DRUM 1-1/2
Price
$11.55
67
SANDING SLEEVE 3 X 4-1/2" 100-GRIT
Price
N/A
68
SANDING SLEEVE 2 X 4-1/2" 100-GRIT
Price
N/A
69
SANDING SLEEVE 1-1/2 X 4-1/2" 100-GRIT
Price
N/A
70
X1730070
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
71
FENCE
Price
$23.20
72
EXTENDABLE COVER
Price
N/A
73
X1730073
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
74
HANDWHEEL
Price
$30.95
75
ROTATION LABEL
Price
N/A
76
X1730076
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
77
CAP SCREW 1/4-20 X 3/4
Price
N/A
78
TABLE
Price
N/A
79
HINGE PIN 8 X 45MM
Price
$1.60
80
ECCENTRIC SHAFT
Price
$1.60
81
BALL BEARING 6001ZZ
Price
N/A
82
X1730082
Now: PN47
ACORN NUT 3/8-16
Price
N/A
83
CARRIAGE BOLT 5/16-18 X 1-1/4
Price
N/A
84
LOCK NUT 5/16-18
Price
N/A
85
SCALE PLATE
Price
N/A
86
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
87
SPACER 6.5 X 19 X 12.5
Price
N/A
88
ANGLE GAUGE LABEL
Price
N/A
89
ADJUSTABLE HANDLE 3/8-16 X 2, 80MM
Price
N/A
90
X1730090
Now: PW02
FLAT WASHER 3/8
Price
N/A
91
PLATEN NUT 3/8-16
Price
$2.80
92
HEX NUT M14-2
Price
N/A
93
FEMALE BALL JOINT ROD END M14-2
Price
N/A
94
ADJUSTING ROD
Price
N/A
95
X1730095
Now: PW06
FLAT WASHER 1/4
Price
N/A
97
ECCENTRIC
Price
N/A
98
BACK STOP
Price
$24.70
99
GRAPHITE 6-3/4" X 30-3/8"
Price
$28.00
100
SANDING BELT 6 X 89"
Price
N/A
101
MAGNETIC SWITCH V1
Price
$75.40
101-1
CONTACTOR SDE MA-09 220-240V
Price
N/A
101-2V2
OL RELAY SDE RA-20 8-12A V2.10.11
Price
N/A
101-3
MAG SWITCH FRONT COVER
Price
N/A
101-4
MAG SWITCH REAR COVER
Price
N/A
101V2
MAGNETIC SWITCH V2.10.11
Price
$119.75
102
HEX NUT M8-1.25
Price
N/A
103
SET SCREW 1/8" NPT
Price
N/A
104
GEAR BOX COVER
Price
$35.05
105
GEARBOX COVER HANDLE
Price
N/A
106
X1730106
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
107
ADJUSTING PLATE
Price
N/A
108
RACK & PINION BOX
Price
N/A
109
CAP SCREW 5/16-18 X 3/4
Price
N/A
110
RING COPPER
Price
N/A
111
PINION GEAR
Price
N/A
112
SPACER 12 X 16 X 11
Price
N/A
113
PINION SPINDLE
Price
N/A
114
RING COPPER
Price
N/A
115
PINION ROD
Price
N/A
116
COVER PLATE
Price
$13.20
117
BALL BEARING 38 X 42 X 20T
Price
N/A
118
SPINDLE
Price
$31.50
119
CAP SCREW 1/4-20 X 1/2
Price
N/A
120
LOCK COLLAR
Price
N/A
121
HANDLE BAR
Price
N/A
122
KNOB 3/8-16, D13/16, TAPERED
Price
N/A
123
COPPER INSERT 5 X 3
Price
$1.80
124
ADJUSTABLE HANDLE 1/4-20 X 1/2, 80MM
Price
N/A
125
RACK GEAR
Price
N/A
126
SPINDLE
Price
N/A
127
MOTOR 2HP V1
Price
$506.60
127-1
ELECTRICAL BOX
Price
N/A
127-2
CAPACITOR COVER
Price
$5.20
127-3
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
127-4
FAN
Price
$10.80
127-5
FAN COVER
Price
$22.80
127-6
R CAPACITOR 60M 250V 1-3/8 X 3-3/8
Price
N/A
127V2
MOTOR 2HP 240V 1PH V2.10.11
Price
$469.25
128
DRIVE ROLLER
Price
N/A
129
DUST PORT
Price
$5.05
130
LOCK WASHER 5/8
Price
N/A
131
X1730131
Now: PN04
HEX NUT 5/8-11
Price
N/A
132
X1730132
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
133
GEAR BOX FIXING PLATE
Price
$1.60
134
X1730134
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
135
SPINDLE CONNECTOR
Price
$53.05
136
SET SCREW 5/16-18 X 1/2
Price
N/A
137
GEAR BOX
Price
$92.75
137-1
COMPLETE GEAR BOX ASSY
Price
$104.75
138
WORM GEAR
Price
$24.65
139
CAP SCREW 3/8-16 X 3/4
Price
N/A
140
***SEE EXT DESCRIPTION***
Price
N/A
141
INT RETAINING RING 35MM
Price
N/A
142
OIL SEAL W/O HOLE
Price
N/A
143
DRIVE SHAFT
Price
N/A
144
OIL SEAL W/O HOLE
Price
N/A
145
WORM SHAFT
Price
$14.25
146
KEY 7 X 7 X 16
Price
$1.80
147
CAP SCREW M8-1.25 X 75
Price
N/A
148
IDLER ROLLER BRACKET
Price
N/A
149
IDLER ROLLER SPINDLE
Price
N/A
150
ADJUSTING PLATE WASHER 5/16
Price
N/A
151
X1730151
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
152
BALL BEARING 6205Z
Price
N/A
153
IDLER ROLLER
Price
N/A
154
KNOB 3/8-16 X 1
Price
$8.60
155
TABLE SPINDLE
Price
N/A
156
KEY 8 X 8 X 315
Price
N/A
157
CAP SCREW M4-.7 X 10
Price
N/A
158
CAST IRON TABLE U-TYPE
Price
N/A
159
ALUMINUM RING
Price
N/A
160
X1730160
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
161
THRUST BEARING 51101
Price
N/A
162
CAP SCREW 1/4-20 X 1/2
Price
N/A
163
PLATEN COVER
Price
$123.20
164
STAR KNOB 5/16-18 X 1
Price
$3.20
165
EMERGENCY STOP SWITCH
Price
$24.85
166
X1730166
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
167
SWITCH COVER
Price
$1.70
168
X1730168
Now: PN07
HEX NUT 10-24
Price
N/A
169
HEX BOLT M12-1.75 X 75
Price
N/A
170
LOCK NUT M12-1.75
Price
N/A
171
MOTOR BRACKET
Price
$93.30
172
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
173
BASE
Price
N/A
174
GEAR CABINET
Price
$152.45
175
X1730175
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
176
X1730176
Now: PN08
HEX NUT 3/8-16
Price
N/A
177
SWIVEL BRACKET
Price
$17.65
178
X1730178
Now: PB82
HEX BOLT 3/4-10 X 2-1/4
Price
N/A
179
LOCK NUT 3/4-10
Price
N/A
180
X1730180
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
181
LOCK WASHER 5/16
Price
N/A
182
PLATEN
Price
$261.75
183
TENSIONING LINK ARM
Price
$7.25
184
X1730184
Now: PW07
FLAT WASHER 5/16
Price
N/A
185
CAP SCREW 5/16-18 X 1/2
Price
N/A
186
X1730186
Now: PN13
HEX NUT 1/2-13
Price
N/A
187
STUD DE-1/2-13 X 9-7/8, 1/2
Price
N/A
188
KNOB 1/2-13, D1, TAPERED
Price
N/A
189
SPINDLE BRACKET
Price
N/A
190
SPINDLE
Price
N/A
191
CAP SCREW 1/4-20 X 3/4
Price
N/A
192
LOCK NUT 1/4-20
Price
N/A
193
CONDENSED SPRING 4.5 X 21 X 30 X 99MM
Price
$3.65
194
X1730194
Now: PW14
FLAT WASHER 5/8
Price
N/A
195
X1730195
Now: PN04
HEX NUT 5/8-11
Price
N/A
196
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
197
SHAFT
Price
N/A
198
CAP SCREW 5/16-18 X 1
Price
N/A
199
STRAIN RELIEF
Price
$5.55
200
CARTON FOR W1730
Price
$7.00
201
STYROFOAM
Price
$1.60
MAN
MANUAL FOR W1730 09/04
Price
$16.40
