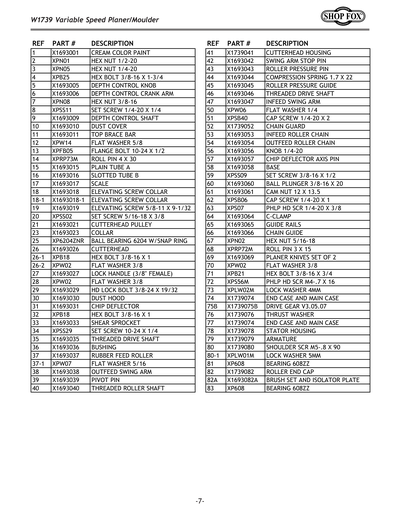

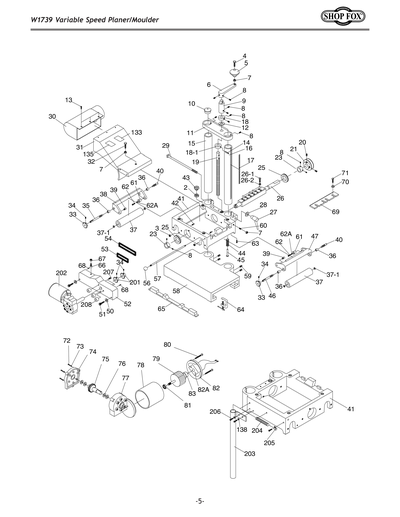

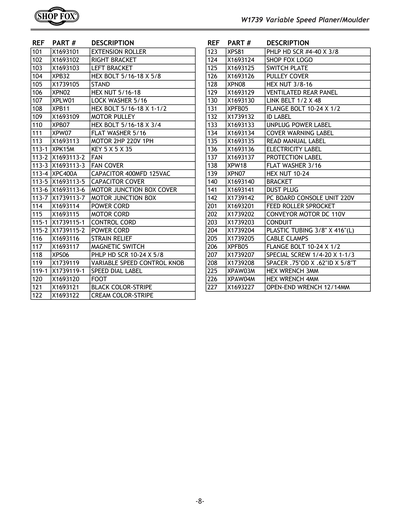

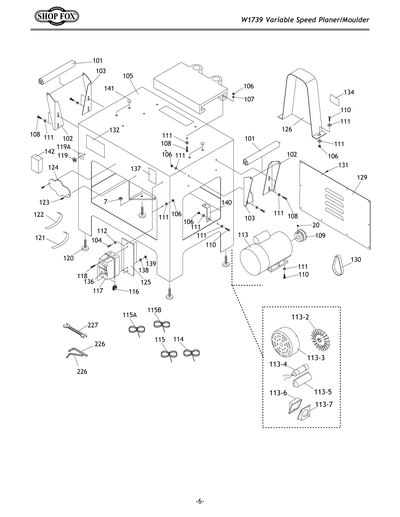

Parts for W1739 Variable Speed Planer/Molder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2
Now: PN01
HEX NUT 1/2-20
Price
N/A
3
Now: PN05
HEX NUT 1/4-20
Price
N/A
4
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
5
KNOB
Price
N/A
6
*DISCD*DEPTH CONTROL CRANK ARM
Price
N/A
7
Now: PN08
HEX NUT 3/8-16
Price
N/A
8
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
9
DEPTH CONTROL SHAFT
Price
N/A
10
*DISCD*DUST COVER
Price
N/A
11
*DISCD*BRACE BAR TOP
Price
N/A
12
Now: PW14
FLAT WASHER 5/8
Price
N/A
13
Now: PFB05
FLANGE BOLT 10-24 X 1/2
Price
N/A
14
ROLL PIN 4 X 30
Price
N/A
15
PLAIN TUBE A
Price
N/A
16
SLOTTED TUBE B
Price
N/A
17
SCALE
Price
N/A
18
*DISCD*ELEVATED OUTER SCREW COLLAR
Price
N/A
18-1
*DISCD*ELEVATED INNER SCREW COLLAR
Price
N/A
19
ELEVATING SCREW 5/8-11 X 9-1/32
Price
N/A
20
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
21
*DISCD*CUTTERHEAD PULLEY
Price
N/A
23
*DISCD*COLLAR
Price
N/A
25
BALL BEARING 6204 W/SNAP RING
Price
N/A
26
*DISCD*CUTTERHEAD
Price
N/A
26-1
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
26-2
Now: PW02
FLAT WASHER 3/8
Price
N/A
27
*DISCD*LOCK HANDLE 3/8" FEMALE
Price
N/A
28
Now: PW02
FLAT WASHER 3/8
Price
N/A
29
*DISCD*HD LOCK BOLT 3/8 X 8-1/2
Price
N/A
30
*** USE PX1812030V2***
Price
N/A
31
*DISCD*CHIP DEFLECTOR
Price
N/A
32
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
33
SHEAR SPROCKET
Price
N/A
34
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
35
*DISCD*THREADED DRIVE SHAFT
Price
N/A
36
*DISCD*BUSHING
Price
N/A
37
***USE PX1812037***
Price
N/A
37-1
Now: PW07
FLAT WASHER 5/16
Price
N/A
38
*DISCD*OUTFEED SWING ARM
Price
N/A
39
PIVOT PIN
Price
N/A
40
THREADED DRIVE SHAFT
Price
N/A
41
CUTTERHEAD HOUSING
41A
*DISCD*COMPLETE HEAD ASSY
Item is no longer available
Price
N/A
42
*DISCD*SWING ARM STOP PIN
Price
N/A
43
*DISCD*ROLLER PRESSURE SCREW
Price
N/A
44
COMPRESSION SPRING 1.7 X 22
Price
N/A
45
*DISCD*ROLLER PRESSURE PIN
Price
N/A
46
THREADED DRIVE SHAFT
Price
N/A
47
*DISCD* INFEED SWING ARM
Price
N/A
50
Now: PW06
FLAT WASHER 1/4
Price
N/A
51
CAP SCREW 3/8-16 X 3-1/4
Price
N/A
52
CHAIN GUARD
53
INFEED ROLLER DRIVE CHAIN
Price
N/A
54
OUTFEED ROLLER DRIVE CHAIN
Price
N/A
56
*DISCD*KNOB FEMALE
Price
N/A
57
*DISCD*CHIP DEFLECTOR AXIS PIN
Price
N/A
58
BASE
Price
N/A
59
Now: PSS09
SET SCREW 3/8-16 X 1/2
Price
N/A
60
*DISCD*BALL PLUNGER 3/8-16 X 20
Price
N/A
61
CAM NUT 12 X 13.5
Price
N/A
62
CAP SCREW 1/4-20 X 1
Price
N/A
63
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
64
*DISCD*C-CLAMP
Price
N/A
65
*DISCD*GUIDE RAIL
Price
N/A
66
*** USE PX1812366***
Price
N/A
67
Now: PN02
HEX NUT 5/16-18
Price
N/A
68
ROLL PIN 3 X 15
Price
N/A
69
*DISCD*PLANER KNIVES 2PC
Price
N/A
70
Now: PW02
FLAT WASHER 3/8
Price
N/A
71
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
72
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
73
LOCK WASHER 4MM
Price
N/A
74
END CASE AND MAIN CASE
75
*DISCD*DRIVE GEAR V2.10.06
Item is no longer available
Price
N/A
75A
*DISCD*DRIVE GEAR V1.01.06
Item is no longer available
Price
N/A
75B
*DISCD*DRIVE GEAR V3.05.07
Item is no longer available
Price
N/A
76
THRUST WASHER
77
END CASE AND MAIN CASE
Price
N/A
78
STATOR HOUSING
79
ARMATURE
80
SHOULDER SCR M5-.8 X 90
80-1
LOCK WASHER 5MM
Price
N/A
81
BALL BEARING 608-2RS
Price
N/A
82
ROLLER END CAP
82A
BRUSH SET ISOL PLATE W/END CAP V1.11.06
82AV2
BRUSH SET AND ISOLATOR PLATE V2.10.08
83
BALL BEARING 608-2RS
Price
N/A
101
*DISCD*EXTENSION ROLLER
Price
N/A
102
*DISCD*BRACKET RIGHT
Price
N/A
103
*DISCD*BRACKET LEFT
Price
N/A
104
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
105
STAND
105A
COMPLETE STAND ASSY BOX 2
106
Now: PN02
HEX NUT 5/16-18
Price
N/A
107
Now: PLW01
LOCK WASHER 5/16
Price
N/A
108
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
109
*DISCD*MOTOR PULLEY
Price
N/A
110
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
111
Now: PW07
FLAT WASHER 5/16
Price
N/A
113
*** USE PX1812213***
Price
N/A
113-1
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
113-2
FAN
Price
N/A
113-3
FAN COVER
Price
N/A
113-4
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
113-5
CAPACITOR COVER
Price
N/A
113-6
JUNCTION BOX COVER
Price
N/A
113-7
MOTOR JUNCTION BOX
114
*DISCD*POWER CORD
Price
N/A
115
*DISCD*MOTOR CORD
Price
N/A
115-1
CONSOLE UNIT POWER CORD 29"L
115-2
FEED MOTOR POWER CORD 44"L
116
SNAP IN STRAIN RELIEF
Price
N/A
117
*DISCD*SWITCH
Price
N/A
118
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
119
VARIABLE SPEED CONTROL KNOB
119-1
SPEED DIAL LABEL
119-2
VARIABLE SPEED CONTROL SWITCH SET
119A
*DISCD*SPEED DIAL LABEL
Item is no longer available
Price
N/A
120
*DISCD*FOOT
Price
N/A
121
BLACK COLOR-STRIPE
Price
N/A
122
CREAM COLOR-STRIPE
Price
N/A
123
Now: PS81
PHLP HD SCR 4-40 X 3/8
Price
N/A
124
Now: D3377
Nameplate - Large
Price
N/A
125
SWITCH BRACKET
Price
N/A
126
*DISCD*PULLEY COVER
Price
N/A
128
Now: PN08
HEX NUT 3/8-16
Price
N/A
129
VENTILATED REAR PANEL
Price
N/A
131
Now: PFB05
FLANGE BOLT 10-24 X 1/2
Price
N/A
132
ID LABEL
133
DISCONNECT 220V 2W X 3.3H
Price
N/A
134
COVER WARNING LABEL
Price
N/A
135
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
136
ELECTRICITY 1.4W X 1.2H
Price
N/A
137
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
138
Now: PW03
FLAT WASHER #10
Price
N/A
139
Now: PN07
HEX NUT 10-24
Price
N/A
140
BRACKET
Price
N/A
142
*DISCD*PC BOARD CONSOLE UNIT 220V
Item is no longer available
Price
N/A
142A
*DISCD*PC BOARD AND SWITCH ASSEMBLY
Item is no longer available
Price
N/A
149-1
CONSOLE UNIT POWER CORD
201
FEED ROLL SPROCKET
Price
N/A
202
*DISCD*CONVEYOR MOTOR DC 100V
Item is no longer available
Price
N/A
202-1
CONVEYOR MOTOR POWER CORD
202-2
*DISCD*DRIVE GEAR V1.01.06
Price
N/A
203
STEEL CONDUIT
204
PLASTIC TUBING 3/8" X 416"
205
CABLE CLAMPS
206
Now: PFB05
FLANGE BOLT 10-24 X 1/2
Price
N/A
207
CHAIN GUARD SCREW 1/4-20 X 1-1/3
208
SPACER .75"OD X .62"ID X 5/8"T
225
HEX WRENCH 3MM
Price
N/A
226
HEX WRENCH 4MM
Price
N/A
227
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
228
CARTON FOR W1739 STAND
229
CARTON FOR W1739 UPPER HALF
BOX1
COMPLETE MACHINE ASSY BOX 1
MAN
MANUAL FOR W1739
MANUAL
MANUAL FOR W1739
PCBOARD
PC BOARD
