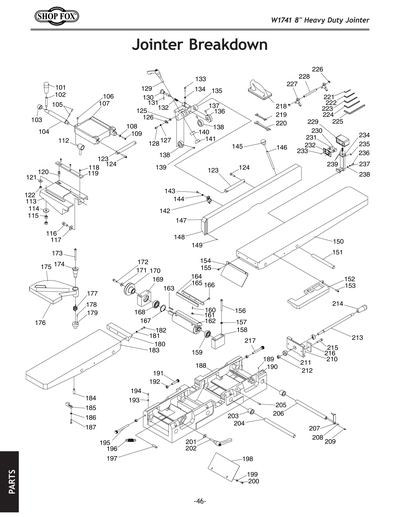

Parts for W1741 - 8" Jointer with Adjustable Beds

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

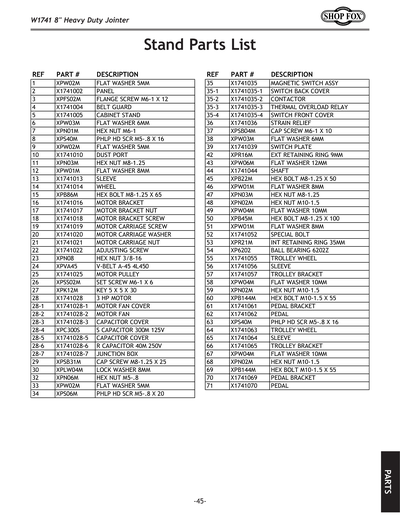

Ref # Part # Description Price Qty
1 X1741001
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
2 X1741002 PANEL $27.25
3 X1741003
Replaced By PFS02M
FLANGE SCREW M6-1 X 12
N/A View Replacement
4 X1741004 BELT GUARD $2.00
5 X1741005 CABINET $208.25
5-1 X1741005-1 COMPLETE STAND ASSEMBLY BOX 2 $960.10
6 X1741006
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
7 X1741007
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
8 X1741008
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
9 X1741009
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
10 X1741010 DUST HOOD $6.85
11 X1741011
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
12 X1741012
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
13 X1741013 SLEEVE $1.10
14 X1741014 WHEEL $2.95
15 X1741015
Replaced By PB86M
HEX BOLT M8-1.25 X 65
N/A View Replacement
16 X1741016 MOTOR BRACKET $8.45
17 X1741017 MOTOR BRACKET NUT $0.90
18 X1741018 MOTOR BRACKET SCREW $0.90
19 X1741019 MOTOR CARRIAGE SCREW $0.90
20 X1741020 MOTOR CARRIAGE WASHER $0.90
21 X1741021 MOTOR CARRIAGE NUT $0.90
22 X1741022 ADJUSTING SCREW $0.90
23 X1741023
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
24 X1741024
Replaced By PVA45
V-BELT A45
N/A View Replacement
24V2 X1741024V2 RIBBED V-BELT 8PK-1172 V2.03.09 $11.30
25 X1741025 MOTOR PULLEY CAST IRON V1 $23.25
25V2 X1741025V2 MOTOR PULLEY ALUM V2.03.09 $19.40
26 X1741026
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
27 X1741027
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
28 X1741028 MOTOR 3HP 240V 1-PH $269.85
28-1 X1741028-1 MOTOR FAN COVER $7.90
28-10 X1741028-10
Replaced By PCS003
CENT SWITCH 5/8-3450
N/A View Replacement
28-11 X1741028-11
Replaced By PCP001
CONTACT PLT-TUNGSTEN 5HP OR LESS
N/A View Replacement
28-2 X1741028-2 MOTOR FAN $3.75
28-3 X1741028-3 CAPACITOR COVER $1.90
28-4 X1741028-4 S CAPACITOR 200M 250V $11.10
28-5 X1741028-5 CAPACITOR COVER $1.90
28-6 X1741028-6 R CAPACITOR 30M 450V $12.35
28-7 X1741028-7 MOTOR JUNCTION BOX $3.40
28-8 X1741028-8
Replaced By P6204ZZ
BALL BEARING 6204ZZ
N/A View Replacement
28-9 X1741028-9
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
29 X1741029
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
30 X1741030
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
32 X1741032
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
33 X1741033
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
34 X1741034
Replaced By PS06M
PHLP HD SCR M5-.8 X 20
N/A View Replacement
35 X1741035 MAGNETIC SWITCH ASSEMBLY $92.30
35-1 X1741035-1 MAG SWITCH COVER ASSEMBLY $15.05
35-2 X1741035-2 CONTACTOR NHD 09D 230V $39.15
35-3 X1741035-3 OL RELAY NHD NTH-17 14-17A $25.20
35-4 X1741035-4
Replaced By PX1741035-1
MAG SWITCH COVER ASSEMBLY
N/A View Replacement
35-5 X1741035-5 MOTOR CORD 3-WIRE $2.00
35-6 X1741035-6 POWER CORD 3-WIRE V1 $3.95
35-6V2 X1741035-6V2 POWER CORD 12G 3W 72" 6-20P V2.07.12 $29.30
35-7 X1741035-7 SWITCH CORD 5-WIRE $5.30
36 X1741036 STRAIN RELIEF $0.90
37 X1741037
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
38 X1741038
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
39 X1741039 SWITCH PLATE $1.60
42 X1741042
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
43 X1741043
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
44 X1741044
Replaced By PX1742010
SHAFT 12MM
N/A View Replacement
45 X1741045
Replaced By PB22M
HEX BOLT M8-1.25 X 50
N/A View Replacement
46 X1741046
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
47 X1741047
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
48 X1741048
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
49 X1741049
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
50 X1741050
Replaced By PB45M
HEX BOLT M8-1.25 X 100
N/A View Replacement
51 X1741051
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
52 X1741052
Replaced By PX1742023
TROLLEY WHEEL BOLT
N/A View Replacement
53 X1741053
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement
54 X1741054
Replaced By P6202
***SEE EXT DESCRIPTION***
N/A View Replacement
55 X1741055
Replaced By PX1742019
TROLLEY WHEEL
N/A View Replacement
56 X1741056
Replaced By PX1742020
SLEEVE
N/A View Replacement
57 X1741057
Replaced By PX1742024
TROLLEY UNIVERSAL KIT
N/A View Replacement
58 X1741058
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
59 X1741059
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
60 X1741060
Replaced By PB144M
HEX BOLT M10-1.5 X 55
N/A View Replacement
61 X1741061 PEDAL BRACKET $2.95
62 X1741062
Replaced By PX1742011
PEDAL
N/A View Replacement
63 X1741063
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
64 X1741064
Replaced By PX1742011
PEDAL
N/A View Replacement
65 X1741065
Replaced By PX1742011
PEDAL
N/A View Replacement
66 X1741066
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
67 X1741067
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
68 X1741068
Replaced By PB144M
HEX BOLT M10-1.5 X 55
N/A View Replacement
69 X1741069
Replaced By PX1742011
PEDAL
N/A View Replacement
70 X1741070
Replaced By PX1742011
PEDAL
N/A View Replacement

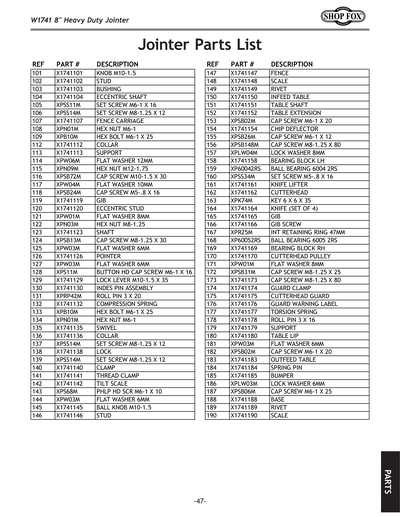

101 X1741101 KNOB M10-1.5 $0.90
102 X1741102 STANDOFF STUD $0.90
103 X1741103 BUSHING $0.90
104 X1741104 ECCENTRIC SHAFT $6.45
105 X1741105
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
106 X1741106
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
107 X1741107 FENCE CARRIAGE $27.35
108 X1741108
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
109 X1741109
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
112 X1741112 COLLAR $1.90
113 X1741113 SUPPORT $10.75
114 X1741114
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
115 X1741115
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
116 X1741116
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
117 X1741117
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
118 X1741118
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
119 X1741119 GIB $5.55
120 X1741120 ECCENTRIC SHOULDER STUD $1.50
121 X1741121
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
122 X1741122
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
123 X1741123 SHAFT $2.00
124 X1741124
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
125 X1741125
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
126 X1741126 POINTER $0.90
127 X1741127
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
128 X1741128
Replaced By PS11M
PHLP HD SCR M6-1 X 16
N/A View Replacement
129 X1741129 LOCK LEVER M10-1.5 X 35 $4.45
130 X1741130 INDES PIN ASSEMBLY $1.35
131 X1741131
Replaced By PRP42M
ROLL PIN 3 X 20
N/A View Replacement
132 X1741132 COMPRESSION SPRING $0.65
133 X1741133
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
134 X1741134
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
135 X1741135 SWIVEL $14.30
136 X1741136 COLLAR $2.30
138 X1741138 LOCK $2.00
139 X1741139
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
140 X1741140 CLAMP $1.10
141 X1741141 THREAD CLAMP $1.10
142 X1741142 TILT SCALE $0.90
143 X1741143
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
144 X1741144
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
145 X1741145
Replaced By PX1745190
BALL KNOB M10-1.5
N/A View Replacement
146 X1741146 STUD-DE M10-1.5 X 130 10/10 $0.90
147 X1741147 FENCE $81.35
148 X1741148 SCALE $0.90
149 X1741149 RIVET $0.90
150 X1741150 TABLE RH $241.30
151 X1741151 TABLE SHAFT $3.60
152 X1741152 TABLE EXTENSION $12.00
153 X1741153
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
154 X1741154 CHIP DEFLECTOR $2.50
155 X1741155
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
156 X1741156
Replaced By PCAP148M
CAP SCREW M8-1.25 X 80
N/A View Replacement
157 X1741157
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
158 X1741158 BEARING BLOCK LH $6.65
159 X1741159
Replaced By P6004-2RS
BALL BEARING 6004-2RS
N/A View Replacement
160 X1741160
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
161 X1741161 KNIFE LIFTER $1.45
162 X1741162 CUTTERHEAD $68.85
163 X1741163
Replaced By PK74M
KEY 6 X 6 X 35
N/A View Replacement
164 X1741164 KNIFE 4PC $38.70
165 X1741165 GIB $2.95
166 X1741166 GIB SCREW $0.90
167 X1741167
Replaced By PR25M
INT RETAINING RING 47MM
N/A View Replacement
168 X1741168
Replaced By P6005-2RS
BALL BEARING 6005-2RS
N/A View Replacement
169 X1741169 BEARING BLOCK RH $5.70
170 X1741170 CUTTERHEAD PULLEY CAST IRON V1 $22.50
170V2 X1741170V2 CUTTERHEAD PULLEY ALUM V2.03.09 $7.90
171 X1741171
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
172 X1741172
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
173 X1741173
Replaced By PCAP148M
CAP SCREW M8-1.25 X 80
N/A View Replacement
174 X1741174 GUARD CLAMP $3.15
175 X1741175 CUTTERHEAD GUARD $19.70
176 X1741176 GUARD WARNING LABEL $1.25
177 X1741177 TORSION SPRING $0.90
178 X1741178
Replaced By PRP02
ROLL PIN 1/8 X 3/4
N/A View Replacement
179 X1741179 SUPPORT $3.70
180 X1741180 TABLE LIP $10.80
181 X1741181
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
182 X1741182
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
183 X1741183 OUTFEED TABLE $173.95
184 X1741184 SPRING PIN $0.75
185 X1741185 BUMPER $2.15
186 X1741186
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
187 X1741187
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
188 X1741188 BASE $240.40
188A X1741188A COMPLETE JOINTER ASSY W/O STAND $1,092.00
189 X1741189 RIVET $0.75
190 X1741190 SCALE $0.90

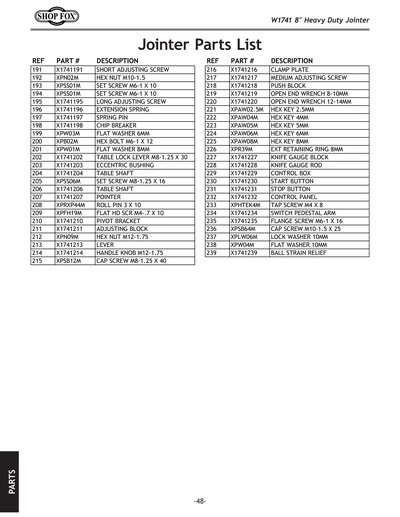

191 X1741191 SHORT ADJUSTING SCREW $1.10
192 X1741192
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
193 X1741193
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
194 X1741194
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
195 X1741195 LONG ADJUSTING SCREW $0.90
196 X1741196 EXTENSION SPRING $0.90
197 X1741197 SPRING PIN $0.75
198 X1741198 CHIP BREAKER $3.40
199 X1741199
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
200 X1741200
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
201 X1741201
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
202 X1741202 TABLE LOCK LEVER M8-1.25 X 30 $4.25
203 X1741203 ECCENTRIC BUSHING $1.45
204 X1741204 TABLE SHAFT $3.90
205 X1741205
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
206 X1741206 TABLE SHAFT $5.55
207 X1741207 POINTER $0.80
208 X1741208
Replaced By PRP44M
ROLL PIN 3 X 10
N/A View Replacement
209 X1741209
Replaced By PFH19M
FLAT HD SCR M4-.7 X 10
N/A View Replacement
210 X1741210 PIVOT BRACKET $5.10
211 X1741211 ADJUSTING BLOCK $1.00
212 X1741212
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
213 X1741213 LEVER $6.80
214 X1741214 HANDLE KNOB M12-1.75 $0.95
215 X1741215
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
N/A View Replacement
216 X1741216 CLAMP PLATE $2.35
217 X1741217 MEDIUM ADJUSTING SCREW $0.90
218 X1741218 PUSH BLOCK $3.50
219 X1741219 OPEN END WRENCH 8-10MM $0.95
220 X1741220 OPEN END WRENCH 12-14MM $1.10
221 X1741221
Replaced By PAW02.5M
N/A View Replacement
222 X1741222
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
223 X1741223
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
224 X1741224
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
225 X1741225
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
226 X1741226
Replaced By PR39M
EXT RETAINING RING 8MM
N/A View Replacement
227 X1741227 KNIFE GAUGE BLOCK $1.10
228 X1741228 KNIFE GAUGE ROD $0.90
229 X1741229
Replaced By PX1744169
SWITCH BOX
N/A View Replacement
230 X1741230 START BUTTON $11.90
231V2 X1741231V2 STOP BUTTON V2.01.11 $14.20
232 X1741232 CONTROL PANEL $6.35
233 X1741233
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
234 X1741234 SWITCH PEDESTAL ARM $13.05
235 X1741235
Replaced By PFS14M
FLANGE SCREW M6-1 X 16
N/A View Replacement
236 X1741236
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
237 X1741237
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
238 X1741238
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
239 X1741239 BALL STRAIN RELIEF $1.20

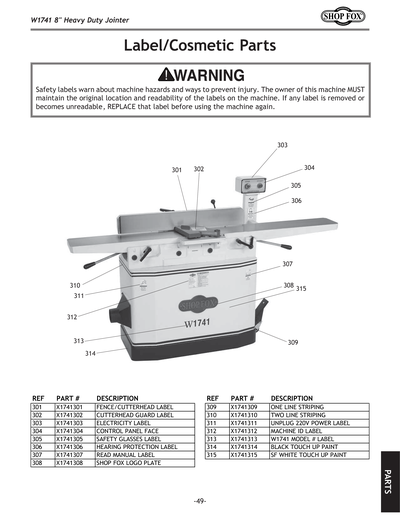

301 X1741301 FENCE/CUTTERHEAD LABEL $0.90
302 X1741302 CUTTERHEAD GUARD LABEL $0.95
303 X1741303
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
305 X1741305 SAFETY GLASSES LABEL $0.90
306 X1741306 HEARING PROTECTION LABEL $0.95
307 X1741307 READ MANUAL LABEL $0.90
308 X1741308
Replaced By D3377
Shop Fox Nameplate - Large
N/A View Replacement
309 X1741309 ONE LINE STRIPING $1.30
310 X1741310 TWO LINE STRIPING $1.30
311 X1741311 UNPLUG 220V POWER LABEL $0.90
312 X1741312 MACHINE ID LABEL NO-CSA V1 $13.60
312V2 X1741312V2 MACHINE ID LABEL CSA V2.07.12 $13.60
313 X1741313 MODEL NUMBER LABEL $19.55
314 X1741314
Replaced By PPAINT-7
GLOSSY BLACK
N/A View Replacement
315 X1741315
Replaced By PPAINT-13
SHOP FOX CREAM WHITE REF G4790
N/A View Replacement
316 X1741316 CARTON FOR W1741 STAND $15.50
317 X1741317 STYROFOAM FOR W1741 STAND $12.80
318 X1741318 STYROFOAM FOR W1741 CRATE $11.35
MANUAL X1741MANUAL MANUAL FOR W1741 $17.55
