Parts for W1741S - 8" x 76" Jointer with Adjustable Beds and Spiral Cutterhead

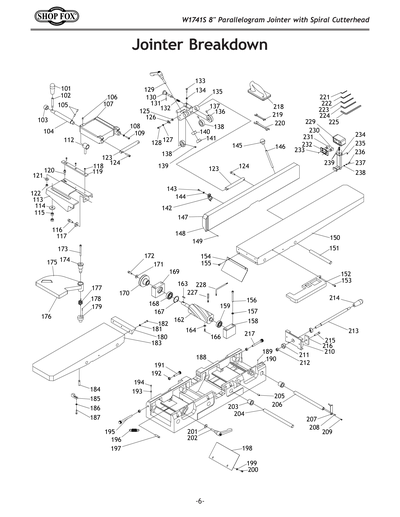

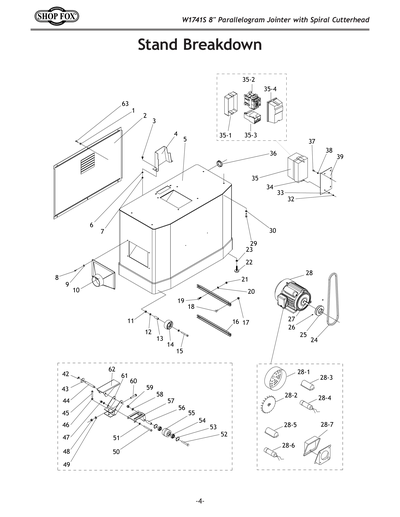

Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S
Part Diagram for W1741S

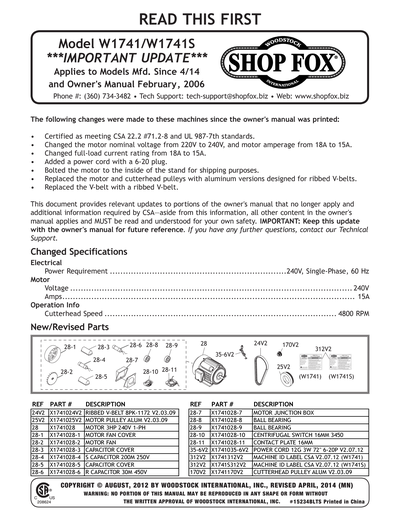

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

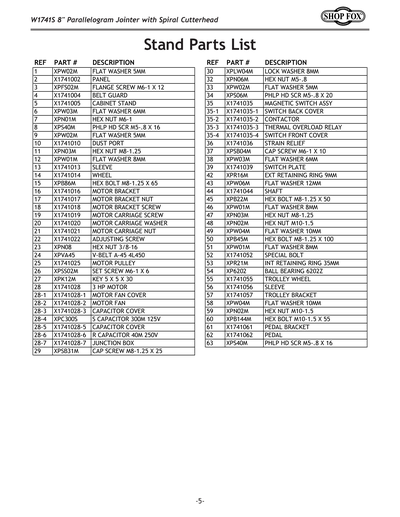

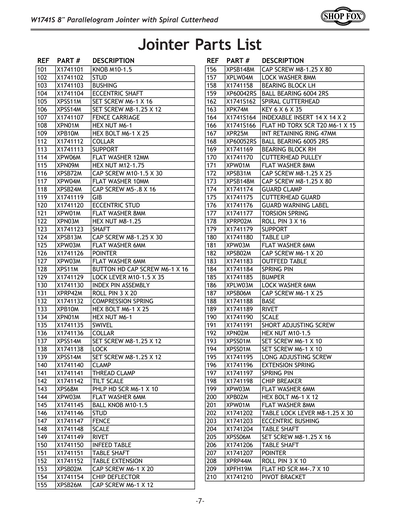

Ref #
Part #
Description
1
FLAT WASHER 5MM
Price
N/A
2
PANEL
Price
N/A
3
FLANGE SCREW M6-1 X 12
Price
N/A
4
BELT GUARD
Price
N/A
5
CABINET
Price
N/A
6
FLAT WASHER 6MM
Price
N/A
7
HEX NUT M6-1
Price
N/A
8
PHLP HD SCR M5-.8 X 16
Price
N/A
9
FLAT WASHER 5MM
Price
N/A
10
DUST HOOD
Price
N/A
11
HEX NUT M8-1.25
Price
N/A
12
FLAT WASHER 8MM
Price
N/A
13
SLEEVE
Price
N/A
14
WHEEL
Price
N/A
15
HEX BOLT M8-1.25 X 65
Price
N/A
16
MOTOR BRACKET
Price
N/A
17
MOTOR BRACKET NUT
Price
N/A
18
MOTOR BRACKET SCREW
Price
N/A
19
MOTOR CARRIAGE SCREW
Price
N/A
20
MOTOR CARRIAGE WASHER
Price
N/A
21
MOTOR CARRIAGE NUT
Price
N/A
22
ADJUSTING SCREW
Price
N/A
23
HEX NUT 3/8-16
Price
N/A
24
V-BELT A45
Price
N/A
25
MOTOR PULLEY CAST IRON V1
Price
N/A
26
SET SCREW M6-1 X 6
Price
N/A
27
KEY 5 X 5 X 30
Price
N/A
28
MOTOR 3HP 240V 1-PH
Price
N/A
28-1
MOTOR FAN COVER
Price
N/A
28-10
CENT SWITCH 5/8-3450
Price
N/A
28-11
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
28-2
MOTOR FAN
Price
N/A
28-3
CAPACITOR COVER
Price
N/A
28-4
S CAPACITOR 200M 250V
Price
N/A
28-5
CAPACITOR COVER
Price
N/A
28-6
R CAPACITOR 30M 450V
Price
N/A
28-7
MOTOR JUNCTION BOX
Price
N/A
28-8
BALL BEARING 6204ZZ
Price
N/A
28-9
BALL BEARING 6203ZZ
Price
N/A
29
CAP SCREW M8-1.25 X 25
Price
N/A
30
LOCK WASHER 8MM
Price
N/A
32
HEX NUT M5-.8
Price
N/A
33
FLAT WASHER 5MM
Price
N/A
34
PHLP HD SCR M5-.8 X 20
Price
N/A
35
MAGNETIC SWITCH ASSEMBLY
Price
N/A
35-1
MAG SWITCH COVER ASSEMBLY
Price
N/A
35-2
CONTACTOR NHD 09D 230V
Price
N/A
35-3
OL RELAY NHD NTH-17 14-17A
Price
N/A
35-4
MAG SWITCH COVER ASSEMBLY
Price
N/A
35-6
POWER CORD 3-WIRE V1
Price
N/A
35-6V2
POWER CORD 12G 3W 72" 6-20P V2.07.12
Price
N/A
36
STRAIN RELIEF
Price
N/A
37
CAP SCREW M6-1 X 10
Price
N/A
38
FLAT WASHER 6MM
Price
N/A
39
SWITCH PLATE
Price
N/A
42
EXT RETAINING RING 9MM
Price
N/A
43
FLAT WASHER 12MM
Price
N/A
44
SHAFT 12MM
Price
N/A
45
HEX BOLT M8-1.25 X 50
Price
N/A
46
FLAT WASHER 8MM
Price
N/A
47
HEX NUT M8-1.25
Price
N/A
48
HEX NUT M10-1.5
Price
N/A
49
FLAT WASHER 10MM
Price
N/A
50
HEX BOLT M8-1.25 X 100
Price
N/A
51
FLAT WASHER 8MM
Price
N/A
52
TROLLEY WHEEL BOLT
Price
N/A
53
INT RETAINING RING 35MM
Price
N/A
54
***SEE EXT DESCRIPTION***
Price
N/A
55
TROLLEY WHEEL
Price
N/A
56
SLEEVE
Price
N/A
57
TROLLEY UNIVERSAL KIT
Price
N/A
58
FLAT WASHER 10MM
Price
N/A
59
HEX NUT M10-1.5
Price
N/A
60
HEX BOLT M10-1.5 X 55
Price
N/A
61
PEDAL BRACKET
Price
N/A
62
PEDAL
Price
N/A
63
PHLP HD SCR M5-.8 X 16
Price
N/A
101
KNOB M10-1.5
Price
N/A
102
STANDOFF STUD
Price
N/A
103
BUSHING
Price
N/A
104
ECCENTRIC SHAFT
Price
N/A
105
SET SCREW M6-1 X 16
Price
N/A
106
SET SCREW M8-1.25 X 12
Price
N/A
107
FENCE CARRIAGE
Price
N/A
108
HEX NUT M6-1
Price
N/A
109
HEX BOLT M6-1 X 25
Price
N/A
112
COLLAR
Price
N/A
113
SUPPORT
Price
N/A
114
FLAT WASHER 12MM
Price
N/A
115
HEX NUT M12-1.75
Price
N/A
116
CAP SCREW M10-1.5 X 30
Price
N/A
117
FLAT WASHER 10MM
Price
N/A
118
CAP SCREW M5-.8 X 16
Price
N/A
119
GIB
Price
N/A
120
ECCENTRIC SHOULDER STUD
Price
N/A
121
FLAT WASHER 8MM
Price
N/A
122
HEX NUT M8-1.25
Price
N/A
123
SHAFT
Price
N/A
124
CAP SCREW M8-1.25 X 30
Price
N/A
125
FLAT WASHER 6MM
Price
N/A
126
POINTER
Price
N/A
127
FLAT WASHER 6MM
Price
N/A
128
PHLP HD SCR M6-1 X 16
Price
N/A
129
LOCK LEVER M10-1.5 X 35
Price
N/A
130
INDES PIN ASSEMBLY
Price
N/A
131
ROLL PIN 3 X 20
Price
N/A
132
COMPRESSION SPRING
Price
N/A
133
HEX BOLT M6-1 X 25
Price
N/A
134
HEX NUT M6-1
Price
N/A
135
SWIVEL
Price
N/A
136
COLLAR
Price
N/A
137
SET SCREW M8-1.25 X 12
Price
N/A
138
LOCK
Price
N/A
139
SET SCREW M8-1.25 X 12
Price
N/A
140
CLAMP
Price
N/A
141
THREAD CLAMP
Price
N/A
142
TILT SCALE
Price
N/A
143
PHLP HD SCR M6-1 X 10
Price
N/A
144
FLAT WASHER 6MM
Price
N/A
145
BALL KNOB M10-1.5
Price
N/A
146
STUD-DE M10-1.5 X 130 10/10
Price
N/A
147
FENCE
Price
N/A
148
SCALE
Price
N/A
149
RIVET
Price
N/A
150
TABLE RH
Price
N/A
151
TABLE SHAFT
Price
N/A
152
TABLE EXTENSION
Price
N/A
153
CAP SCREW M6-1 X 20
Price
N/A
154
CHIP DEFLECTOR
Price
N/A
155
CAP SCREW M6-1 X 12
Price
N/A
156
CAP SCREW M8-1.25 X 80
Price
N/A
157
LOCK WASHER 8MM
Price
N/A
158
BEARING BLOCK LH
Price
N/A
158-1
COMPLETE SPIRAL CUTTERHEAD ASSY
Item is no longer available
Price
N/A
159
BALL BEARING 6004-2RS
Price
N/A
162
SPIRAL CUTTERHEAD 8" V2.04.15
Price
N/A
162V2
SPIRAL CUTTERHEAD V2.04.15
Item is no longer available
Price
N/A
163
KEY 6 X 6 X 35
Price
N/A
164
Indexable Carbide Inserts - 14.18 x 14.18 x 2mm, 10-Pk.
Price
N/A
164V2
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
166
FLAT HD TORX SCR T20 M6-1 X 15
Price
$1.90
167
INT RETAINING RING 47MM
Price
N/A
168
BALL BEARING 6005-2RS
Price
N/A
169
BEARING BLOCK RH
Price
N/A
170
CUTTERHEAD PULLEY CAST IRON V1
Price
N/A
171
FLAT WASHER 8MM
Price
N/A
172
CAP SCREW M8-1.25 X 25
Price
N/A
173
CAP SCREW M8-1.25 X 80
Price
N/A
174
GUARD CLAMP
Price
N/A
175
CUTTERHEAD GUARD
Price
N/A
176
GUARD WARNING LABEL
Price
N/A
177
TORSION SPRING
Price
N/A
178
ROLL PIN 3 X 16
Price
N/A
179
SUPPORT
Price
N/A
180
TABLE LIP
Price
N/A
181
FLAT WASHER 6MM
Price
N/A
182
CAP SCREW M6-1 X 20
Price
N/A
183
OUTFEED TABLE
Price
N/A
184
SPRING PIN
Price
N/A
185
BUMPER
Price
N/A
186
LOCK WASHER 6MM
Price
N/A
187
CAP SCREW M6-1 X 25
Price
N/A
188
BASE
Price
N/A
189
RIVET
Price
N/A
190
SCALE
Price
N/A
191
SHORT ADJUSTING SCREW
Price
N/A
192
HEX NUT M10-1.5
Price
N/A
193
SET SCREW M6-1 X 10
Price
N/A
194
SET SCREW M6-1 X 10
Price
N/A
195
LONG ADJUSTING SCREW
Price
N/A
196
EXTENSION SPRING
Price
N/A
197
SPRING PIN
Price
N/A
198
CHIP BREAKER
Price
N/A
199
FLAT WASHER 6MM
Price
N/A
200
HEX BOLT M6-1 X 12
Price
N/A
201
FLAT WASHER 8MM
Price
N/A
202
TABLE LOCK LEVER M8-1.25 X 30
Price
N/A
203
ECCENTRIC BUSHING
Price
N/A
204
TABLE SHAFT
Price
N/A
205
SET SCREW M8-1.25 X 16
Price
N/A
206
TABLE SHAFT
Price
N/A
207
POINTER
Price
N/A
208
ROLL PIN 3 X 10
Price
N/A
209
FLAT HD SCR M4-.7 X 10
Price
N/A
210
PIVOT BRACKET
Price
N/A
211
ADJUSTING BLOCK
Price
N/A
212
HEX NUT M12-1.75
Price
N/A
213
LEVER
Price
N/A
214
HANDLE KNOB M12-1.75
Price
N/A
215
CAP SCREW M8-1.25 X 40
Price
N/A
216
CLAMP PLATE
Price
N/A
217
MEDIUM ADJUSTING SCREW
Price
N/A
218
PUSH BLOCK
Price
N/A
219
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
220
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
221
HEX WRENCH 2.5MM
Price
N/A
222
HEX WRENCH 4MM
Price
N/A
223
HEX WRENCH 5MM
Price
N/A
224
HEX WRENCH 6MM
Price
N/A
225
HEX WRENCH 8MM
Price
N/A
227
DRIVER BIT TORX T20
Price
$1.49
228
L-WRENCH TORX T20
Price
$1.49
229
SWITCH BOX
Price
N/A
230
START BUTTON
Price
N/A
232
CONTROL PANEL
Price
N/A
233
PHLP HD SCR M4-.7 X 8
Price
N/A
234
SWITCH PEDESTAL ARM
Price
N/A
235
FLANGE SCREW M6-1 X 16
Price
N/A
236
CAP SCREW M10-1.5 X 25
Price
N/A
237
LOCK WASHER 10MM
Price
N/A
238
FLAT WASHER 10MM
Price
N/A
239
BALL STRAIN RELIEF
Price
N/A

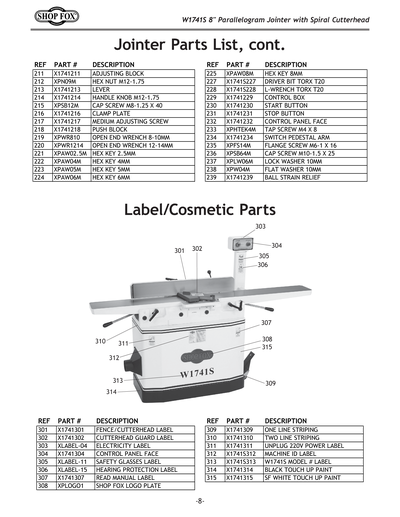

301
FENCE/CUTTERHEAD LABEL
Price
N/A
302
CUTTERHEAD GUARD LABEL
Price
N/A
303
ELECTRICITY 1.4W X 1.2H
Price
N/A
305
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
306
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
307
READ MANUAL LABEL
Price
N/A
308
Nameplate - Large
Price
N/A
309
ONE LINE STRIPING
Price
N/A
310
TWO LINE STRIPING
Price
N/A
311
UNPLUG 220V POWER LABEL
Price
N/A
312
MACHINE ID LABEL NO-CSA V1
Item is no longer available
Price
N/A
312V2
MACHINE ID LABEL CSA V2.07.12
Item is no longer available
Price
N/A
313
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
314
GLOSSY BLACK
Price
N/A
315
SHOP FOX CREAM WHITE REF G4790
Price
N/A
BOX2
COMPLETE STAND ASSEMBLY BOX 2
Price
N/A
MAN
MANUAL FOR W1741S 05/08
Item is no longer available
Price
N/A
