Parts for W1741SW 8" Jointer with Spiral Cutterhead and Adjustable Beds

Parts Diagrams for W1741SW - 8" Jointer with Spiral Cutterhead and Adjustable Beds

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for W1741SW 8" Jointer with Spiral Cutterhead and Adjustable Beds

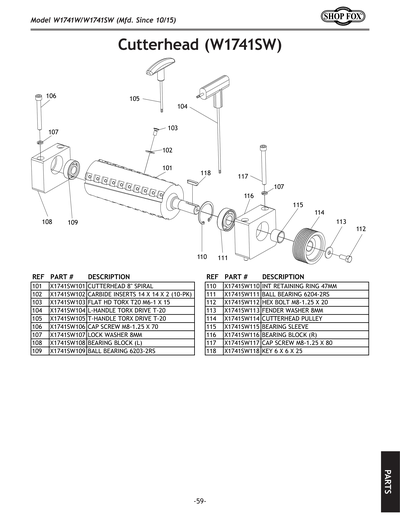

101
*DISCD*CUTTERHEAD 8" SPIRAL
$773.30
Enter quantity between 1 and 99
102
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
242
Now: W1400
Safety Push Block - Small
Price
N/A

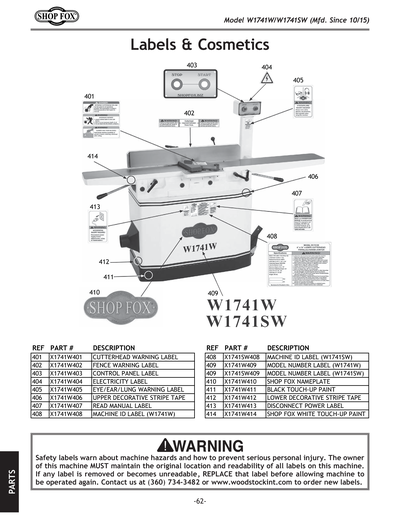

404
ELECTRICITY 1.4W X 1.2H
Price
N/A
405
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
407
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
409
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
410
Now: D3377
Nameplate - Large
Price
N/A
413
DISCONNECT 110V 2W X 3.3H
Price
N/A
MAN
MANUAL W1741W W1741SW MFD-10.15 V1.02.16
Price
N/A
MANV2
MANUAL W1741W W1741SW MFD-08.16 V2.09.16
Price
N/A
