Parts for W1754H 20" Planer with Built in Mobile Base and Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

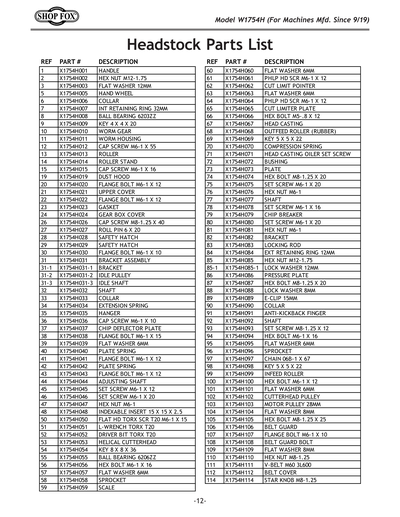

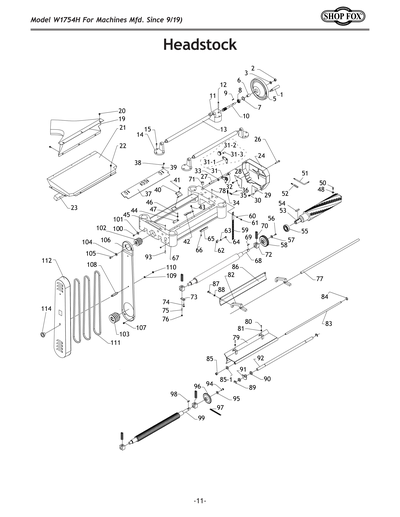

HANDLE
5
HAND WHEEL
Price
N/A
6
COLLAR
10
WORM GEAR
Price
N/A
11
WORM HOUSING
13
ROLLER
14
ROLLER STAND
19
DUST HOOD
Price
N/A
21
UPPER COVER
23
GASKET
24
GEAR BOX COVER
28
SAFETY HATCH
29
SAFETY HATCH
31
BRACKET ASSEMBLY
31-1
BRACKET
31-2
IDLE PULLEY
31-3
IDLE SHAFT
32
SHAFT
33
COLLAR
34
EXTENSION SPRING
35
HANGER
37
CHIP DEFLECTOR PLATE
Price
N/A
40
PLATE SPRING
42
PLATE SPRING
44
ADJUSTING SHAFT
48
INDEXABLE INSERT 15 X 15 X 2.5
50
FLAT HD TORX SCR T20 M6-1 X 15
Price
N/A
51
L-WRENCH TORX T20
52
DRIVER BIT TORX T20
53
HELICAL CUTTERHEAD
58
SPROCKET
Price
N/A
59
SCALE
Price
N/A
62
CUT LIMIT POINTER
65
CUT LIMITER PLATE
67
HEAD CASTING
68
Now: D4785
Rubber Outfeed Roller for W1754/ST1014
Price
N/A
70
COMPRESSION SPRING
Price
N/A
71
HEAD CASTING OILER SET SCREW
72
BUSHING
Price
N/A
73
PLATE
Price
N/A
77
SHAFT
79
CHIP BREAKER
Price
N/A
82
BRACKET
83
LOCKING ROD
86
PRESSURE PLATE
90
COLLAR
91
ANTI-KICKBACK FINGER
92
SHAFT
96
SPROCKET
Price
N/A
97
CHAIN 06B-1 X 67
Price
N/A
99
INFEED ROLLER
Price
N/A
102
CUTTERHEAD PULLEY
103
MOTOR PULLEY 28MM
Price
N/A
106
BELT GUARD
108
BELT GUARD BOLT
112
BELT COVER
114
STAR KNOB M8-1.25
Price
N/A

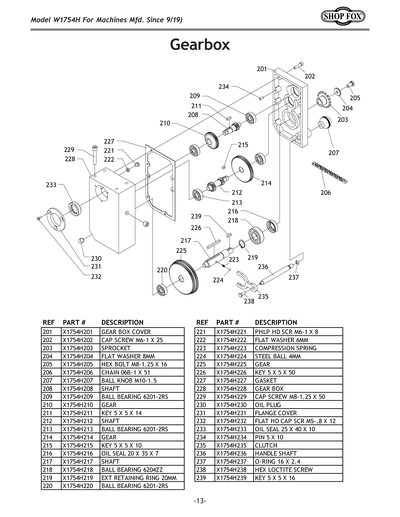

201
GEAR BOX COVER
203
SPROCKET
Price
N/A
206
CHAIN 06B-1 X 51
Price
N/A
207
BALL KNOB M10-1.5
Price
N/A
208
SHAFT
Price
N/A
210
GEAR
212
SHAFT
Price
N/A
214
GEAR
216
OIL SEAL 20 X 35 X 7
Price
N/A
217
SHAFT
Price
N/A
223
COMPRESSION SPRING
225
GEAR
227
PACKING PIECE
Price
N/A
228
GEAR BOX
230
OIL PLUG
231
FLANGE COVER
233
OIL SEAL 25 X 40 X 10
Price
N/A
234
PIN 5 X 10
235
CLUTCH
236
HANDLE SHAFT
Price
N/A
238
HEX LOCTITE SCREW

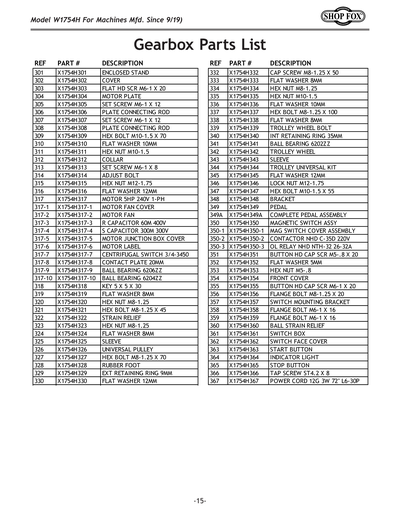

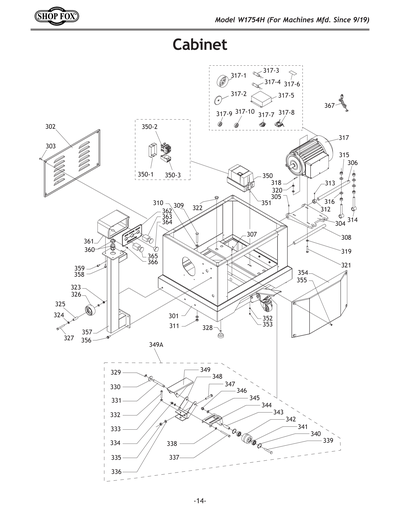

301
ENCLOSED STAND
302
COVER
304
MOTOR PLATE
306
PLATE CONNECTING ROD
308
PLATE CONNECTING ROD
312
COLLAR
314
ADJUST BOLT
317
MOTOR 5HP 240V 1-PH
Price
N/A
317-1
MOTOR FAN COVER
317-2
MOTOR FAN
Price
N/A
317-3
R CAPACITOR 60M 400V
Price
N/A
317-4
S CAPACITOR 300M 300V
317-5
MOTOR JUNCTION BOX COVER
317-6
MOTOR LABEL
322
STRAIN RELIEF
325
SLEEVE
326
UNIVERSAL PULLEY
328
RUBBER FOOT
331
SHAFT 12MM
339
TROLLEY WHEEL BOLT
342
TROLLEY WHEEL
343
SLEEVE
344
TROLLEY UNIVERSAL KIT
Price
N/A
348
BRACKET
349
PEDAL
349A
COMPLETE PEDAL ASSEMBLY
350
MAG SWITCH ASSY V2.01.11
Price
N/A
350-1
MAG SWITCH COVER ASSEMBLY
350-2
CONTACTOR NHD C-35D 220V
350-3
OL RELAY NHD NTH-32 26-32A
354
FRONT COVER
357
SWITCH MOUNTING BRACKET
360
BALL STRAIN RELIEF
361
SWITCH BOX
362
SWITCH FACE COVER
363
START BUTTON V2.01.11
Price
N/A
364
INDICATOR LIGHT
Price
N/A
365
STOP BUTTON V2.01.11
Price
N/A
366
TAP SCREW ST4.2 X 8
367
POWER CORD 12G 3W 72" L6-30P V2.0

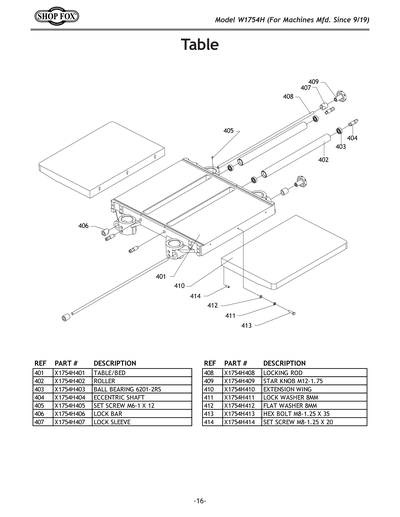

401
TABLE/BED
402
ROLLER
404
ECCENTRIC SHAFT
406
LOCK BAR
Price
N/A
407
LOCK SLEEVE
Price
N/A
408
LOCKING ROD
409
STAR KNOB M12-1.75
410
EXTENSION WING
Price
N/A

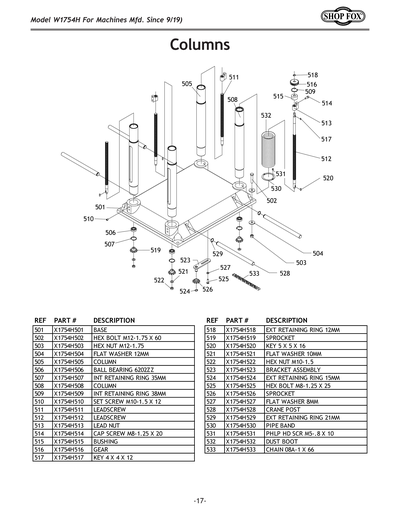

501
BASE
505
COLUMN
508
COLUMN
511
LEAD SCREW
512
LEAD SCREW
513
LEAD NUT
Price
N/A
515
BUSHING
516
GEAR
519
SPROCKET
Price
N/A
523
BRACKET ASSEMBLY
Price
N/A
526
SPROCKET
Price
N/A
528
CRANE POST
530
PIPE BAND
532
DUST BOOT
Price
N/A
533
CHAIN 08A-1 X 66

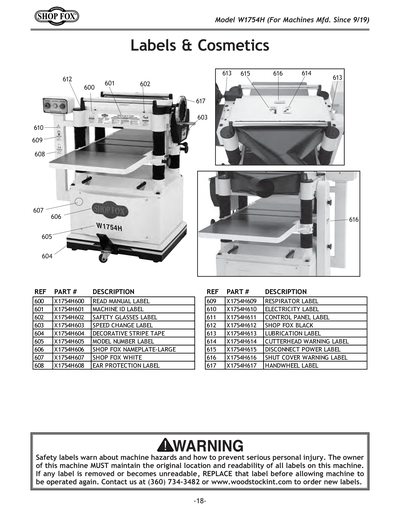

600
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
601
MACHINE ID LABEL
602
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
603
SPEED CHANGE LABEL
604
DECORATIVE STRIPE TAPE
605
MODEL NUMBER LABEL
606
Now: D3377
Nameplate - Large
Price
N/A
608
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
609
RESPIRATOR LABEL
613
LUBRICATION LABEL
614
CUTTERHEAD WARNING LABEL
615
DISCONNECT POWER LABEL
616
SHUT COVER WARNING LABEL
617
HAND WHEEL LABEL
MAN
MANUAL W1754H MFD-09.19+ V1.11.19
