Parts for W1755H 6" Parallelogram Jointer with Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

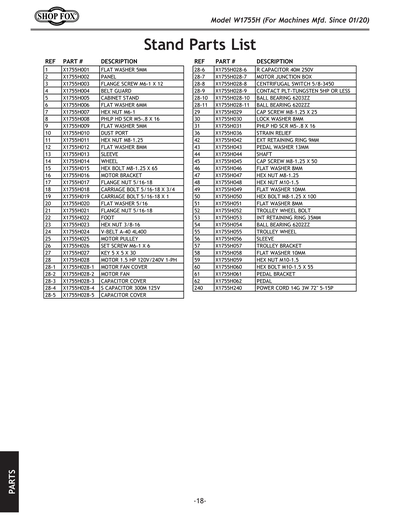

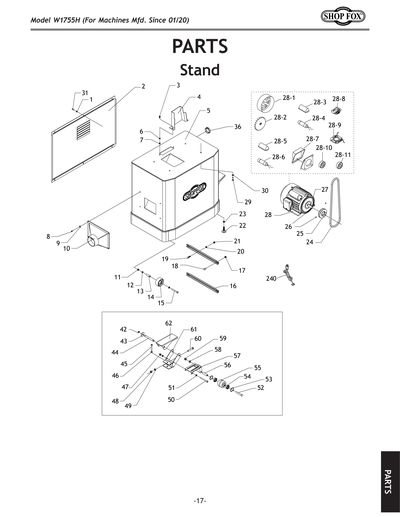

1
Now: PW02M
FLAT WASHER 5MM
Price
N/A
2
PANEL
Price
N/A
3
FLANGE SCREW M6-1 X 12
Price
N/A
4
BELT GUARD
Price
N/A
5
CABINET STAND
Price
N/A
6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
7
Now: PN01M
HEX NUT M6-1
Price
N/A
8
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
9
Now: PW02M
FLAT WASHER 5MM
Price
N/A
10
DUST PORT
Price
N/A
11
Now: PN03M
HEX NUT M8-1.25
Price
N/A
12
Now: PW01M
FLAT WASHER 8MM
Price
N/A
13
SLEEVE
Price
N/A
14
WHEEL
Price
N/A
15
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
16
MOTOR BRACKET
Price
N/A
17
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
18
Now: PCB05
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
19
Now: PCB11
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
20
Now: PW07
FLAT WASHER 5/16
Price
N/A
21
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
22
FOOT
Price
N/A
23
Now: PN08
HEX NUT 3/8-16
Price
N/A
24
Now: PVA40
V-BELT A40
Price
N/A
25
MOTOR PULLEY
Price
N/A
26
SET SCREW M6-1 X 6
Price
N/A
27
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
28
MOTOR 1.5HP 120V/240V 1-PH
Price
N/A
28-1
MOTOR FAN COVER
Price
N/A
28-10
BALL BEARING 6203ZZ
Price
N/A
28-11
BALL BEARING 6202ZZ
Price
N/A
28-2
MOTOR FAN
Price
N/A
28-3
CAPACITOR COVER
Price
N/A
28-4
S CAPACITOR 300M 125V
Price
N/A
28-5
CAPACITOR COVER
Price
N/A
28-6
R CAPACITOR 40M 250V
Price
N/A
28-7
MOTOR JUNCTION BOX
Price
N/A
28-8
CENT SWITCH 5/8-3450
Price
N/A
28-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
29
CAP SCREW M8-1.25 X 25
Price
N/A
30
LOCK WASHER 8MM
Price
N/A
31
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
36
STRAIN RELIEF
Price
N/A
42
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
43
PEDAL WASHER 13MM
Price
N/A
44
SHAFT
Price
N/A
45
CAP SCREW M8-1.25 X 50
Price
N/A
46
Now: PW01M
FLAT WASHER 8MM
Price
N/A
47
Now: PN03M
HEX NUT M8-1.25
Price
N/A
48
Now: PN02M
HEX NUT M10-1.5
Price
N/A
49
Now: PW04M
FLAT WASHER 10MM
Price
N/A
50
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
51
Now: PW01M
FLAT WASHER 8MM
Price
N/A
52
TROLLEY WHEEL BOLT
Price
N/A
53
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
54
BALL BEARING 6202ZZ
Price
N/A
55
TROLLEY WHEEL
Price
N/A
56
SLEEVE
Price
N/A
57
TROLLEY BRACKET
Price
N/A
58
Now: PW04M
FLAT WASHER 10MM
Price
N/A
59
Now: PN02M
HEX NUT M10-1.5
Price
N/A
60
HEX BOLT M10-1.5 X 55
Price
N/A
61
PEDAL BRACKET
Price
N/A
62
PEDAL
Price
N/A

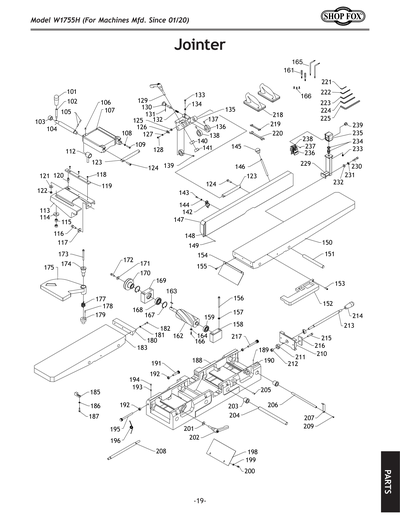

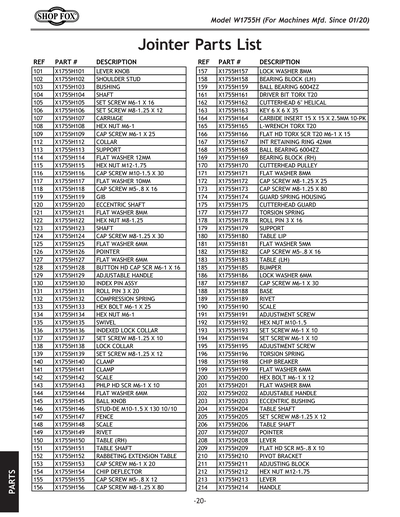

101
LEVER KNOB
Price
N/A
102
SHOULDER STUD
Price
N/A
103
BUSHING
Price
N/A
104
SHAFT
Price
N/A
105
SET SCREW M6-1 X 16
Price
N/A
106
SET SCREW M8-1.25 X 12
Price
N/A
107
CARRIAGE
Price
N/A
108
Now: PN01M
HEX NUT M6-1
Price
N/A
109
CAP SCREW M6-1 X 25
Price
N/A
112
COLLAR
Price
N/A
113
SUPPORT
Price
N/A
114
Now: PW06M
FLAT WASHER 12MM
Price
N/A
115
Now: PN09M
HEX NUT M12-1.75
Price
N/A
116
CAP SCREW M10-1.5 X 30
Price
N/A
117
Now: PW04M
FLAT WASHER 10MM
Price
N/A
118
CAP SCREW M5-.8 X 16
Price
N/A
119
GIB
Price
N/A
120
ECCENTRIC SHAFT
Price
N/A
121
Now: PW01M
FLAT WASHER 8MM
Price
N/A
122
Now: PN03M
HEX NUT M8-1.25
Price
N/A
123
SHAFT
Price
N/A
124
CAP SCREW M8-1.25 X 30
Price
N/A
125
Now: PW03M
FLAT WASHER 6MM
Price
N/A
126
POINTER
Price
N/A
127
Now: PW03M
FLAT WASHER 6MM
Price
N/A
128
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
129
ADJUSTABLE HANDLE
Price
N/A
130
INDEX PIN ASSY
Price
N/A
131
ROLL PIN 3 X 20
Price
N/A
132
COMPRESSION SPRING
Price
N/A
133
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
134
Now: PN01M
HEX NUT M6-1
Price
N/A
135
SWIVEL
Price
N/A
136
INDEXED LOCK COLLAR
Price
N/A
137
SET SCREW M8-1.25 X 10
Price
N/A
138
LOCK COLLAR
Price
N/A
139
SET SCREW M8-1.25 X 12
Price
N/A
140
CLAMP
Price
N/A
141
CLAMP
Price
N/A
142
SCALE
Price
N/A
143
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
144
Now: PW03M
FLAT WASHER 6MM
Price
N/A
145
BALL KNOB
Price
N/A
146
STUD-DE M10-1.5 X 130 10/10
Price
N/A
147
FENCE
Price
N/A
148
SCALE
Price
N/A
149
RIVET
Price
N/A
150
TABLE RH
Price
N/A
151
TABLE SHAFT
Price
N/A
152
RABBETING EXTENSION TABLE
Price
N/A
153
CAP SCREW M6-1 X 20
Price
N/A
154
CHIP DEFLECTOR
Price
N/A
155
CAP SCREW M5-.8 X 12
Price
N/A
156
CAP SCREW M8-1.25 X 80
Price
N/A
157
LOCK WASHER 8MM
Price
N/A
158
BEARING BLOCK LEFT
Price
N/A
159
BALL BEARING 6004ZZ
Price
N/A
161
DRIVER BIT TORX T20
Price
N/A
162
CUTTERHEAD 6" HELICAL
Item is no longer available
Price
N/A
163
Now: PK74M
KEY 6 X 6 X 35
Price
N/A
164
Now: D4655
Replacement Inserts for Helical Cutterheads - 15 x 15 x 2.5mm, 10 Pk.
Price
N/A
165
L-WRENCH TORX T20
Price
N/A
166
FLAT HD TORX T20 M6-1 X 15
Price
N/A
167
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
168
BALL BEARING 6004ZZ
Price
N/A
169
BEARING BLOCK RIGHT
Price
N/A
170
CUTTERHEAD PULLEY
Price
N/A
171
Now: PW01M
FLAT WASHER 8MM
Price
N/A
172
CAP SCREW M8-1.25 X 25
Price
N/A
173
CAP SCREW M8-1.25 X 80
Price
N/A
174
GUARD SPRING HOUSING
Price
N/A
175
CUTTERHEAD GUARD
Price
N/A
177
TORSION SPRING
Price
N/A
178
ROLL PIN 3 X 16
Price
N/A
179
SUPPORT
Price
N/A
180
TABLE LIP
Price
N/A
181
Now: PW02M
FLAT WASHER 5MM
Price
N/A
182
CAP SCREW M5-.8 X 16
Price
N/A
183
TABLE LH
Price
N/A
185
BUMPER
Price
N/A
186
LOCK WASHER 6MM
Price
N/A
187
CAP SCREW M6-1 X 30
Price
N/A
188
BASE
Price
N/A
189
RIVET
Price
N/A
190
SCALE
Price
N/A
191
ADJUSTMENT SCREW
Price
N/A
192
Now: PN02M
HEX NUT M10-1.5
Price
N/A
193
SET SCREW M6-1 X 10
Price
N/A
194
SET SCREW M6-1 X 10
Price
N/A
195
ADJUSTMENT SCREW
Price
N/A
196
TORSION SPRING
Price
N/A
198
CHIPBREAKER
Price
N/A
199
Now: PW03M
FLAT WASHER 6MM
Price
N/A
200
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
201
Now: PW01M
FLAT WASHER 8MM
Price
N/A
202
*DISCD*ADJUSTABLE HANDLE
Price
N/A
203
ECCENTRIC BUSHING
Price
N/A
204
TABLE SHAFT
Price
N/A
205
SET SCREW M8-1.25 X 12
Price
N/A
206
TABLE SHAFT
Price
N/A
207
POINTER
Price
N/A
208
LEVER
Price
N/A
209
FLAT HD SCR M5-.8 X 10
Price
N/A
210
PIVOT BRACKET
Price
N/A
211
ADJUSTING BLOCK
Price
N/A
212
Now: PN09M
HEX NUT M12-1.75
Price
N/A
213
LEVER
Price
N/A
214
*DISCD*HANDLE
Price
N/A

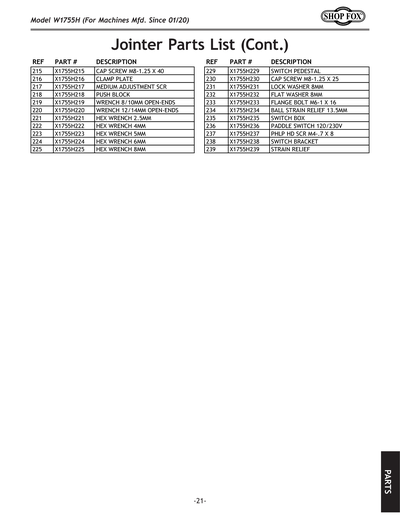

215
CAP SCREW M8-1.25 X 40
Price
N/A
216
CLAMP PLATE
Price
N/A
217
MEDIUM ADJUSTMENT SCR
Price
N/A
218
PUSH BLOCK
Price
N/A
219
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
220
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
221
HEX WRENCH 2.5MM
Price
N/A
222
HEX WRENCH 4MM
Price
N/A
223
HEX WRENCH 5MM
Price
N/A
224
HEX WRENCH 6MM
Price
N/A
225
HEX WRENCH 8MM
Price
N/A
229
SWITCH PEDESTAL
Price
N/A
230
CAP SCREW M8-1.25 X 25
Price
N/A
231
LOCK WASHER 8MM
Price
N/A
232
Now: PW01M
FLAT WASHER 8MM
Price
N/A
233
FLANGE BOLT M6-1 X 16
Price
N/A
234
BALL STRAIN RELIEF 13.5MM
Price
N/A
235
SWITCH BOX
Price
N/A
236
Now: D4151
Paddle Switch 120/230V
Price
N/A
237
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
238
SWITCH BRACKET
Price
N/A
239
STRAIN RELIEF
Price
N/A
240
POWER CORD
Price
N/A
300

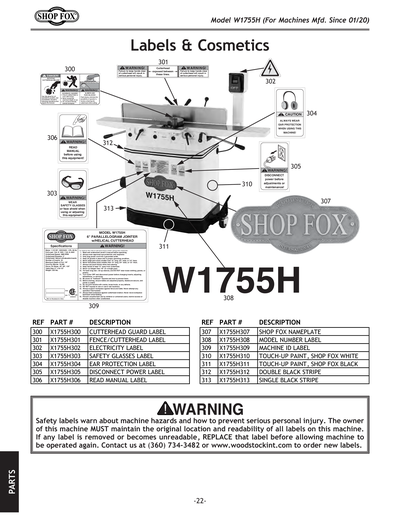

CUTTERHEAD GUARD LABEL
Price
N/A
301
FENCE/CUTTERHEAD LABEL
Price
N/A
302
ELECTRICITY 1.4W X 1.2H
Price
N/A
303
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
304
EAR PROTECTION LABEL
Price
N/A
305
DISCONNECT 220V 2W X 3.3H
Price
N/A
306
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
307
Now: D3377
Nameplate - Large
Price
N/A
308
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
309
MACHINE ID LABEL
Item is no longer available
Price
N/A
310
SHOP FOX WHITE M1006
Price
N/A
311
GLOSSY BLACK
Price
N/A
312
DOUBLE BLACK STRIPE
Price
N/A
313
SINGLE BLACK STRIPE
Price
N/A
MAN
MANUAL W1755H MFD-01.20 V1.03.20
Item is no longer available
Price
N/A
