Parts for W1763 2-1/2 HP Shaper

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

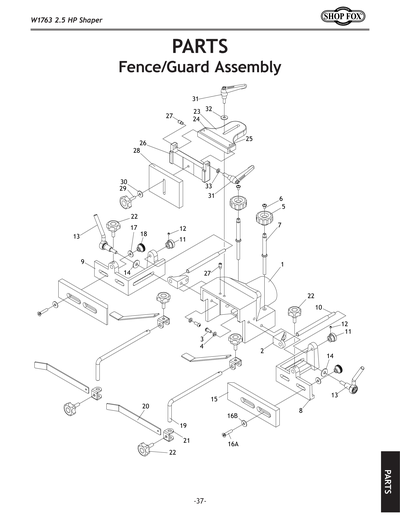

1
SAFETY GUARD
Item is no longer available
Price
N/A
2
THREADED SHAFT BRACKET
Item is no longer available
Price
N/A
3
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
KNOB
Item is no longer available
Price
N/A
6
CAPTURED SCREW M6-1 X 12
Item is no longer available
Price
N/A
7
SAFETY GUARD BOLT
8
LEFT FENCE MOUNT BRACKET
9
RIGHT FENCE MOUNT BRACKET
10
FENCE ADJUST SHAFT
11
KNOB
Item is no longer available
Price
N/A
12
SET SCREW M6-1 X 6
Price
N/A
13
LOCK HANDLE
Item is no longer available
Price
N/A
14
Now: PW04M
FLAT WASHER 10MM
Price
N/A
15
WOODEN FENCE
16A
FLAT HD SCR M8-1.25 X 40
Price
N/A
16B
Now: PW01M
FLAT WASHER 8MM
Price
N/A
17
Now: PW01M
FLAT WASHER 8MM
Price
N/A
18
KNOB NUT
Item is no longer available
Price
N/A
19
HOLD DOWN ROD
20
HOLD DOWN BAR
21
HOLD DOWN BRACKET
22
KNOB
23
SLIDING BLOCK
25
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
26
GUARD BRACKET
Item is no longer available
Price
N/A
27
SAFETY GUARD BOLT
Item is no longer available
Price
N/A
28
WOODEN EDGE
Item is no longer available
Price
N/A
29
KNOB
Item is no longer available
Price
N/A
30
Now: PW01M
FLAT WASHER 8MM
Price
N/A
31
LOCK HANDLE
32
Now: PW01M
FLAT WASHER 8MM
Price
N/A
33
LOCK WASHER 8MM
Price
N/A
34A
COMPLETE FENCE/GUARD ASSY
Item is no longer available
Price
N/A

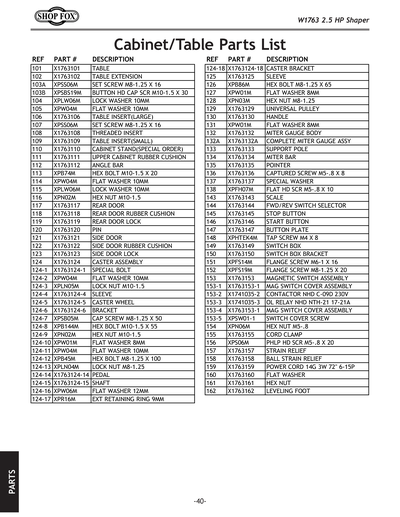

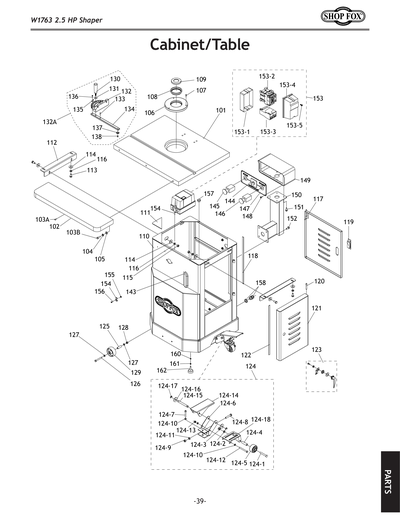

101
TABLE
102
TABLE EXTENSION
Item is no longer available
Price
N/A
103A
SET SCREW M8-1.25 X 16
Price
N/A
103B
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
104
LOCK WASHER 10MM
Price
N/A
105
Now: PW04M
FLAT WASHER 10MM
Price
N/A
106
LARGE TABLE INSERT
107
SET SCREW M8-1.25 X 16
Price
N/A
108
THREADED INSERT
109
SMALL TABLE INSERT
110
CABINET STAND
Item is no longer available
Price
N/A
111
UPPER CABINET RUBBER CUSHION
Item is no longer available
Price
N/A
112
ANGLE BAR
Item is no longer available
Price
N/A
113
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
114
Now: PW04M
FLAT WASHER 10MM
Price
N/A
115
LOCK WASHER 10MM
Price
N/A
116
Now: PN02M
HEX NUT M10-1.5
Price
N/A
117
REAR DOOR
Item is no longer available
Price
N/A
118
REAR DOOR RUBBER CUSHION
Item is no longer available
Price
N/A
119
REAR DOOR LOCK
Item is no longer available
Price
N/A
120
PIN
121
SIDE DOOR
Item is no longer available
Price
N/A
122
SIDE DOOR RUBBER CUSHION
Item is no longer available
Price
N/A
123
SIDE DOOR LOCK
124
CASTER ASSEMBLY
124-1
CASTER BOLT
Item is no longer available
Price
N/A
124-10
Now: PW01M
FLAT WASHER 8MM
Price
N/A
124-11
Now: PW04M
FLAT WASHER 10MM
Price
N/A
124-12
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
124-13
LOCK NUT M8-1.25
Price
N/A
124-14
PEDAL
Item is no longer available
Price
N/A
124-15
SHAFT
Item is no longer available
Price
N/A
124-16
Now: PW06M
FLAT WASHER 12MM
Price
N/A
124-17
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
124-18
CASTER BRACKET
Item is no longer available
Price
N/A
124-2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
124-3
LOCK NUT M10-1.5
Price
N/A
124-4
SLEEVE
Item is no longer available
Price
N/A
124-5
CASTER WHEEL
Item is no longer available
Price
N/A
124-6
BRACKET
Item is no longer available
Price
N/A
124-7
CAP SCREW M8-1.25 X 50
Price
N/A
124-8
HEX BOLT M10-1.5 X 55
Price
N/A
124-9
Now: PN02M
HEX NUT M10-1.5
Price
N/A
125
SLEEVE
126
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
127
Now: PW01M
FLAT WASHER 8MM
Price
N/A
128
Now: PN03M
HEX NUT M8-1.25
Price
N/A
129
UNIVERSAL PULLEY
130
HANDLE
131
Now: PW01M
FLAT WASHER 8MM
Price
N/A
132
MITER GAUGE BODY
Item is no longer available
Price
N/A
132A
COMPLETE MITER GAUGE ASSY
133
SUPPORT POLE
134
MITER BAR
Item is no longer available
Price
N/A
135
POINTER
Item is no longer available
Price
N/A
136
CAPTURED SCREW M5-.8 X 8
Item is no longer available
Price
N/A
137
MITER BAR WASHER
Item is no longer available
Price
N/A
138
FLAT HD SCR M5-.8 X 10
Price
N/A
143
SCALE
Item is no longer available
Price
N/A
144
FWD/REV SWITCH SELECTOR
146
START BUTTON
Item is no longer available
Price
N/A
147
BUTTON PLATE
Item is no longer available
Price
N/A
148
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
149
SWITCH BOX
150
SWITCH BOX BRACKET
Item is no longer available
Price
N/A
151
FLANGE SCREW M6-1 X 16
Price
N/A
152
FLANGE SCREW M6-1 X 16
Price
N/A
153
MAGNETIC SWITCH ASSEMBLY
Item is no longer available
Price
N/A
153-1
MAG SWITCH COVER ASSEMBLY
Item is no longer available
Price
N/A
153-2
CONTACTOR NHD 09D 230V
Price
N/A
153-3
OL RELAY NHD NTH-17 14-17A
Price
N/A
153-4
MAG SWITCH COVER ASSEMBLY
Price
N/A
153-5
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
154
Now: PN06M
HEX NUT M5-.8
Price
N/A
155
CORD CLAMP
Item is no longer available
Price
N/A
156
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
157
STRAIN RELIEF
Item is no longer available
Price
N/A
158
BALL STRAIN RELIEF
Item is no longer available
Price
N/A
159
POWER CORD 14G 3W 96" V1
Item is no longer available
Price
N/A
159V2
POWER CORD 14G 3W 72" 6-15P V2.07.12
Item is no longer available
Price
N/A
160
Now: PW01M
FLAT WASHER 8MM
Price
N/A
161
Now: PN03M
HEX NUT M8-1.25
Price
N/A
162
LEVELING FOOT M8-1.25 X 35MM

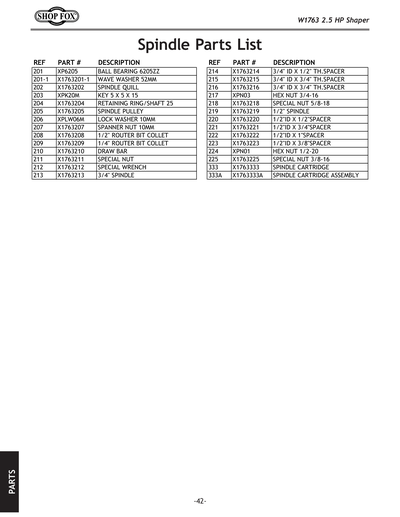

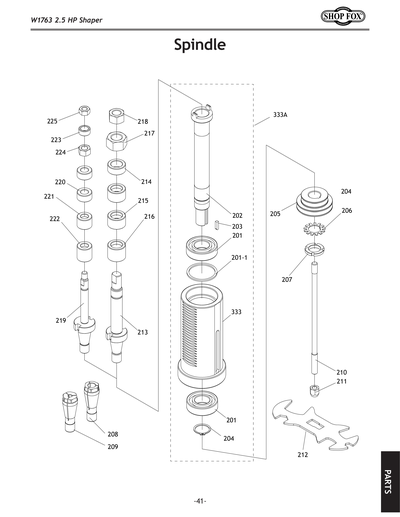

201
BALL BEARING 6205ZZ
Price
N/A
201-1
WAVY WASHER 52MM
202
SPINDLE QUILL
Item is no longer available
Price
N/A
203
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
204
RETAINING RING/SHAFT 25
Item is no longer available
Price
N/A
205
SPINDLE PULLEY
206
LOCK WASHER 10MM
Price
N/A
207
SPANNER NUT 10MM
208
ROUTER BIT COLLET 1/2"
209
ROUTER BIT COLLET 1/4"
210
DRAW BAR
211
DRAW BAR NUT
212
SPINDLE WRENCH
213
SPINDLE 3/4"
213A
SPINDLE 3/4" ASSEMBLY
214
SPACER 3/4" ID X 1/2"
215
SPACER 3/4" ID X 3/4"
216
SPACER 3/4" ID X 3/4"
217
Now: PN03
HEX NUT 3/4-16
Price
N/A
218
SPINDLE NUT 5/8-18
219
SPINDLE 1/2"
219A
SPINDLE 1/2" ASSEMBLY
220
SPACER 1/2"ID X 1/2"
221
SPACER 1/2"ID X 3/4"
222
SPACER 1/2"ID X 1"
223
SPACER 1/2"ID X 3/8"
224
Now: PN01
HEX NUT 1/2-20
Price
N/A
225
SPINDLE NUT 3/8-16

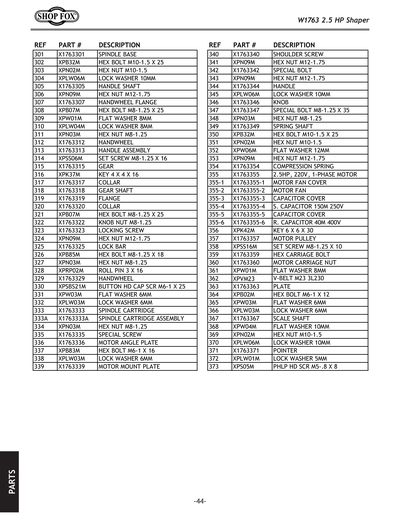

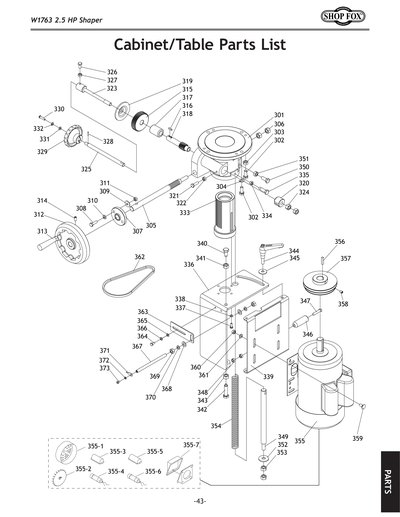

301
SPINDLE BASE
302
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
303
Now: PN02M
HEX NUT M10-1.5
Price
N/A
304
LOCK WASHER 10MM
Price
N/A
305
HANDLE SHAFT
306
Now: PN09M
HEX NUT M12-1.75
Price
N/A
307
HANDWHEEL FLANGE
Item is no longer available
Price
N/A
308
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
309
Now: PW01M
FLAT WASHER 8MM
Price
N/A
310
LOCK WASHER 8MM
Price
N/A
311
Now: PN03M
HEX NUT M8-1.25
Price
N/A
312
HANDWHEEL
313
HANDLE ASSEMBLY
314
SET SCREW M8-1.25 X 16
Price
N/A
315
GEAR
Item is no longer available
Price
N/A
316
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
317
COLLAR
318
GEAR SHAFT
Item is no longer available
Price
N/A
319
FLANGE
320
COLLAR
Item is no longer available
Price
N/A
321
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
322
KNOB NUT M8-1.25
Item is no longer available
Price
N/A
323
LOCKING SCREW
324
Now: PN09M
HEX NUT M12-1.75
Price
N/A
325
LOCK BAR
Item is no longer available
Price
N/A
326
Now: PB85M
HEX BOLT M8-1.25 X 18
Price
N/A
327
Now: PN03M
HEX NUT M8-1.25
Price
N/A
328
ROLL PIN 3 X 16
Price
N/A
329
HANDWHEEL
330
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
331
Now: PW03M
FLAT WASHER 6MM
Price
N/A
332
LOCK WASHER 6MM
Price
N/A
333
SPINDLE CARTRIDGE
333A
SPINDLE CARTRIDGE ASSEMBLY
334
Now: PN03M
HEX NUT M8-1.25
Price
N/A
335
SPINDLE BASE SCREW
Item is no longer available
Price
N/A
336
MOTOR ANGLE PLATE
337
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
338
LOCK WASHER 6MM
Price
N/A
339
MOTOR MOUNT PLATE
340
SHOULDER SCREW
Item is no longer available
Price
N/A
341
Now: PN09M
HEX NUT M12-1.75
Price
N/A
342
MOTOR ANGLE PLATE BOLT
Item is no longer available
Price
N/A
343
Now: PN09M
HEX NUT M12-1.75
Price
N/A
344
HANDLE
Item is no longer available
Price
N/A
345
LOCK WASHER 10MM
Price
N/A
346
KNOB
347
KNOB BOLT M8-1.25 X 35
348
Now: PN03M
HEX NUT M8-1.25
Price
N/A
349
SPRING SHAFT
Item is no longer available
Price
N/A
350
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
351
Now: PN02M
HEX NUT M10-1.5
Price
N/A
352
Now: PW06M
FLAT WASHER 12MM
Price
N/A
353
Now: PN09M
HEX NUT M12-1.75
Price
N/A
354
COMPRESSION SPRING
355
MOTOR 2-1/2HP 220V 1-PH
355-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
355-10
BALL BEARING 6203ZZ
Price
N/A
355-2
MOTOR FAN
Item is no longer available
Price
N/A
355-3
CAPACITOR COVER
Item is no longer available
Price
N/A
355-4
S. CAPACITOR 150M 250V V1
355-4V2
S CAPACITOR 200M 250V V2.08.07
355-5
CAPACITOR COVER
Item is no longer available
Price
N/A
355-6V2
R CAPACITOR 50M 400V V2.08.07
355-7
CENT SWITCH 5/8-3450
Price
N/A
355-8
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
355-9
BALL BEARING 6205ZZ
Price
N/A
355-AV2
S CAPACITOR 200M 250V V2.08.07
Price
N/A
356
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
357
MOTOR PULLEY
358
SET SCREW M8-1.25 X 10
Price
N/A
359
HEX CARRIAGE BOLT
Item is no longer available
Price
N/A
360
MOTOR CARRIAGE NUT
Item is no longer available
Price
N/A
361
Now: PW01M
FLAT WASHER 8MM
Price
N/A
362
Now: PVM23
V-BELT M23 3L230
Price
N/A
363
PLATE
Item is no longer available
Price
N/A
364
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
365
Now: PW03M
FLAT WASHER 6MM
Price
N/A
366
LOCK WASHER 6MM
Price
N/A
367
SCALE SHAFT
Item is no longer available
Price
N/A
368
Now: PW04M
FLAT WASHER 10MM
Price
N/A
369
Now: PN02M
HEX NUT M10-1.5
Price
N/A
370
LOCK WASHER 10MM
Price
N/A
371
POINTER
Item is no longer available
Price
N/A
372
LOCK WASHER 5MM
Price
N/A
373
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
401
GLOSSY BLACK
Price
N/A
402
SPINDLE LOCK LABEL
Item is no longer available
Price
N/A
403
SPINDLE ELEVATION LABEL
Item is no longer available
Price
N/A
404
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
405
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
406
Now: D3377
Nameplate - Large
Price
N/A
407
MACHINE ID LABEL NO-CSA V1
Item is no longer available
Price
N/A
407V2
MACHINE ID LABEL CSA V2.07.12
Item is no longer available
Price
N/A
409
MODEL NUMBER LABEL
411
DISCONNECT 220V 2W X 3.3H
Price
N/A
412
HEARING PROTECTION LABEL
Item is no longer available
Price
N/A
413
SHOP FOX OFF WHITE REF G9970 G9971
Price
N/A
414
KEEP DOOR CLOSED 2W X 3.3H
Price
N/A
417
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL FOR W1673 09/09
Item is no longer available
Price
N/A
