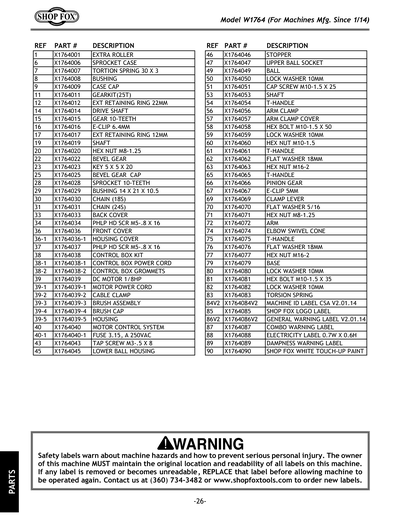

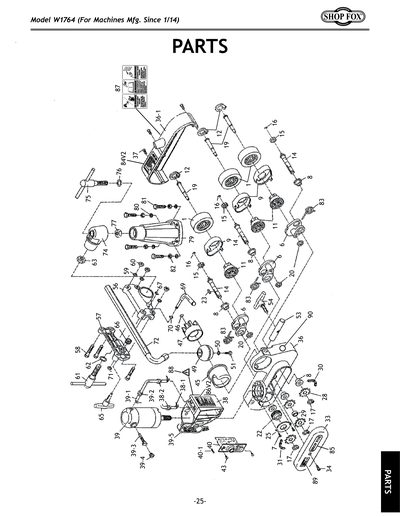

Parts for W1764 1/8 HP Variable-Speed 3-Roller Power Feeder, Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: D3870
Extra Roller for W1764 Power Feeder
Price
N/A
6
SPROCKET CASE
7
FLAT HD SCR M6-1 X 10
Price
N/A
8
BUSHING
9
CASE CAP
11
GEAR KIT 25-TOOTH
12
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
14
DRIVE SHAFT
15
GEAR 10-TEETH
16
E-CLIP 6.4MM
17
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
19
SHAFT
20
Now: PN03M
HEX NUT M8-1.25
Price
N/A
22
BEVEL GEAR
23
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
25
BEVEL GEAR CAP
28
SPROCKET 10-TEETH
29
BUSHING 14 X 21 X 10.5
Price
N/A
30
CHAIN 18S
31
CHAIN 24S
33
BACK COVER
34
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
36
HOUSING
36-1
HOUSING COVER
37
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
38
CONTROL BOX
38-1
CONTROL BOX POWER CORD
Price
N/A
38-2
GROMMET M15
Price
N/A
39
DC MOTOR 1/8HP
39-1
MOTOR POWER CORD
Price
N/A
39-2
CABLE CLAMP
39-3
BRUSH ASSEMBLY
Price
N/A
39-4
BRUSH CAP
39-5
CONTROL BOX
Price
N/A
40
MOTOR CONTROL SYSTEM
40-1
FUSE 3.15A 250VAC
43
TAP SCREW M3 X 8
Price
N/A
45
LOWER BALL SOCKET
46
STOPPER
47
UPPER BALL SOCKET
49
BALL
50
LOCK WASHER 10MM
Price
N/A
51
CAP SCREW M10-1.5 X 25
Price
N/A
53
SHAFT
54
T-HANDLE
56
ARM CLAMP
57
ARM CLAMP COVER
58
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
59
LOCK WASHER 10MM
Price
N/A
60
Now: PN02M
HEX NUT M10-1.5
Price
N/A
61
T-HANDLE
62
Now: PW18M
FLAT WASHER 18MM
Price
N/A
63
Now: PN13M
HEX NUT M16-2
Price
N/A
65
T-HANDLE
66
PINION
Price
N/A
67
E-CLIP 5MM
Price
N/A
69
CLAMP LEVER
70
Now: PW07
FLAT WASHER 5/16
Price
N/A
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
72
ARM
74
ELBOW SWIVEL CONE
75
T-HANDLE M16-2.0P
Price
N/A
76
Now: PW18M
FLAT WASHER 18MM
Price
N/A
77
Now: PN13M
HEX NUT M16-2
Price
N/A
79
BASE
80
Now: PW04M
FLAT WASHER 10MM
Price
N/A
81
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
82
LOCK WASHER 10MM
Price
N/A
83
TORSION SPRING
84
MACHINE ID LABEL V1
84V2
MACHINE ID LABEL CSA V2.01.14
85
SHOP FOX LOGO LABEL
86
GENERAL WARNING LABEL V1
86V2
GENERAL WARNING LABEL V2.01.14
87
COMBO WARNING LABEL V1
88
ELECTRICITY 0.7W X 0.6H
Price
N/A
89
DAMPNESS WARNING LABEL
90
SHOP FOX WHITE M1006
Price
N/A
100
CARTON FOR W1764
101
STYROFOAM FOR W1764
MAN
MANUAL W1764 MFG-05.07-12.14 V1.06.07
MANV2
MANUAL W1764 MFG-01.14+ V2.02.14
