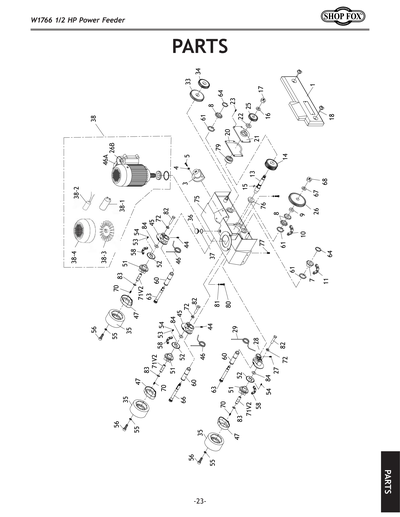

Parts for W1766 - 1/2 HP Power Feeder

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

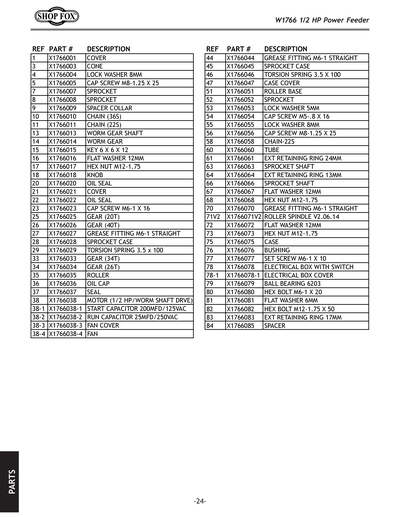

Ref # Part # Description Price Qty
1 X1766001
COVER
N/A
3 X1766003
CONE
N/A
4 X1766004
***USE PLW04M***
Item is no longer available
PX1766004 Replaced By PLW04M
N/A View Replacement
5 X1766005
***USE PCAP31M***
Item is no longer available
PX1766005 Replaced By PCAP31M
N/A View Replacement
7 X1766007
SPROCKET
N/A
8 X1766008
SPROCKET
N/A
9 X1766009
SPACER COLLAR
N/A
10 X1766010
CHAIN 36S
N/A
11 X1766011
CHAIN 22S
N/A
13 X1766013
WORM GEAR SHAFT
N/A
14 X1766014
WORM GEAR
N/A
15 X1766015
***USE PK81M***
Item is no longer available
PX1766015 Replaced By PK81M
N/A View Replacement
16 X1766016
***USE PW06M***
Item is no longer available
PX1766016 Replaced By PW06M
N/A View Replacement
17 X1766017
***USE PN09M***
Item is no longer available
PX1766017 Replaced By PN09M
N/A View Replacement
18 X1766018
KNOB
N/A
20 X1766020
OIL SEAL
N/A
21 X1766021
COVER
N/A
22 X1766022
OIL SEAL
N/A
23 X1766023
***USE PCAP01M***
Item is no longer available
PX1766023 Replaced By PCAP01M
N/A View Replacement
25 X1766025
GEAR 20T
N/A
26 X1766026
GEAR 40T
N/A
27 X1766027
GREASE NIPPLE
N/A
28 X1766028
SPROCKET CASE
N/A
29 X1766029
TORSION SPRING 3.5 X 100
N/A
33 X1766033
GEAR 34T
N/A
34 X1766034
GEAR 26T
N/A
35 X1766035
ROLLER
N/A
36 X1766036
OIL CAP
N/A
37 X1766037
SEAL
N/A
38 X1766038
MOTOR 1/2HP W/WORM SHAFT DRIVE
N/A
38-1 X1766038-1
S CAPACITOR 200M 125V
N/A
38-2 X1766038-2
R CAPACITOR 25M 250V
N/A
38-3 X1766038-3
FAN COVER
N/A
38-4 X1766038-4
FAN
N/A
44 X1766044
GREASE NIPPLE
N/A
45 X1766045
SPROCKET CASE
N/A
46 X1766046
TORSION SPRING 3.5 X 100
Item is no longer available
PX1766046 Replaced By PX1766029
N/A View Replacement
47 X1766047
CASE COVER
N/A
51 X1766051
ROLLER BASE
N/A
52 X1766052
SPROCKET
N/A
53 X1766053
***USE PLW01M***
Item is no longer available
PX1766053 Replaced By PLW01M
N/A View Replacement
54 X1766054
***USE PCAP24M***
Item is no longer available
PX1766054 Replaced By PCAP24M
N/A View Replacement
55 X1766055
***USE PLW04M***
Item is no longer available
PX1766055 Replaced By PLW04M
N/A View Replacement
56 X1766056
***USE PCAP31M***
Item is no longer available
PX1766056 Replaced By PCAP31M
N/A View Replacement
58 X1766058
CHAIN-22S
N/A
60 X1766060
TUBE
N/A
61 X1766061
***USE PR58M***
Item is no longer available
PX1766061 Replaced By PR58M
N/A View Replacement
63 X1766063
SPROCKET SHAFT
N/A
64 X1766064
***USE PR47M***
Item is no longer available
PX1766064 Replaced By PR47M
N/A View Replacement
66 X1766066
SPROCKET SHAFT
N/A
67 X1766067
***USE PW06M***
Item is no longer available
PX1766067 Replaced By PW06M
N/A View Replacement
68 X1766068
***USE PN09M***
Item is no longer available
PX1766068 Replaced By PN09M
N/A View Replacement
70 X1766070
GREASE NIPPLE
N/A
71 X1766071
ROLLER SPINDLE V1
N/A
71V2 X1766071V2
ROLLER SPINDLE V2.06.14
N/A
72 X1766072
***USE PW06M***
Item is no longer available
PX1766072 Replaced By PW06M
N/A View Replacement
73 X1766073
***USE PN09M***
Item is no longer available
PX1766073 Replaced By PN09M
N/A View Replacement
75 X1766075
CASE
N/A
76 X1766076
BUSHING
N/A
77 X1766077
***USE PSS01M***
Item is no longer available
PX1766077 Replaced By PSS01M
N/A View Replacement
779 X17660779
***USE P6203-OPEN***
Item is no longer available
PX17660779 Replaced By P6203-OPEN
N/A View Replacement
78 X1766078
ELECTRICAL BOX WITH SWITCH
N/A
78-1 X1766078-1
ELECTRICAL BOX COVER
N/A
780 X17660780
***USE PB08M***
Item is no longer available
PX17660780 Replaced By PB08M
N/A View Replacement
781 X17660781
***USE PW03M***
Item is no longer available
PX17660781 Replaced By PW03M
N/A View Replacement
82 X1766082
***USE PB33M***
Item is no longer available
PX1766082 Replaced By PB33M
N/A View Replacement
83 X1766083
***USE PR18M***
Item is no longer available
PX1766083 Replaced By PR18M
N/A View Replacement
84 X1766084
SPACER
N/A

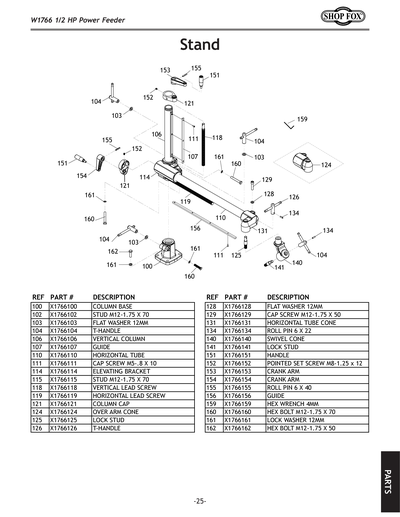

100 X1766100
COLUMN BASE
Item is no longer available
PX1766100 Replaced By PX1766101
N/A View Replacement
101 X1766101
COLUMN BASE
N/A
102 X1766102
STUD-DE M12-1.75 X 70 50
N/A
103 X1766103
***USE PW06M***
Item is no longer available
PX1766103 Replaced By PW06M
N/A View Replacement
104 X1766104
T-HANDLE
N/A
106 X1766106
VERTICAL COLUMN
N/A
107 X1766107
GUIDE
N/A
110 X1766110
HORIZONTAL TUBE
N/A
111 X1766111
***USE PCAP50M***
Item is no longer available
PX1766111 Replaced By PCAP50M
N/A View Replacement
114 X1766114
ELEVATING BRACKET
N/A
115 X1766115
STUD-DE M12-1.75 X 70 50
Item is no longer available
PX1766115 Replaced By PX1766102
N/A View Replacement
118 X1766118
VERTICAL LEAD SCREW
N/A
119 X1766119
HORIZONTAL LEAD SCREW
N/A
121 X1766121
COLUMN CAP
N/A
124 X1766124
OVER ARM CONE
N/A
125 X1766125
SHOULDER LOCK STUD
N/A
126 X1766126
T-HANDLE
N/A
128 X1766128
***USE PW06M***
Item is no longer available
PX1766128 Replaced By PW06M
N/A View Replacement
129 X1766129
***USE PCAP73M***
Item is no longer available
PX1766129 Replaced By PCAP73M
N/A View Replacement
131 X1766131
HORIZONTAL TUBE CONE
N/A
134 X1766134
***USE PRP71M***
Item is no longer available
PX1766134 Replaced By PRP71M
N/A View Replacement
140 X1766140
SWIVEL CONE
N/A
141 X1766141
SHOULDER LOCK STUD
N/A
151 X1766151
HANDLE
N/A
152 X1766152
POINTED SET SCREW M8-1.25 X 12
N/A
153 X1766153
CRANK ARM
N/A
154 X1766154
CRANK ARM
N/A
155 X1766155
***USE PRP32M***
Item is no longer available
PX1766155 Replaced By PRP32M
N/A View Replacement
156 X1766156
GUIDE
N/A
159 X1766159
***USE PAW04M***
Item is no longer available
PX1766159 Replaced By PAW04M
N/A View Replacement
160 X1766160
***USE PB140M***
Item is no longer available
PX1766160 Replaced By PB140M
N/A View Replacement
161 X1766161
***USE PLW05M***
Item is no longer available
PX1766161 Replaced By PLW05M
N/A View Replacement
162 X1766162
***USE PB33M***
Item is no longer available
PX1766162 Replaced By PB33M
N/A View Replacement

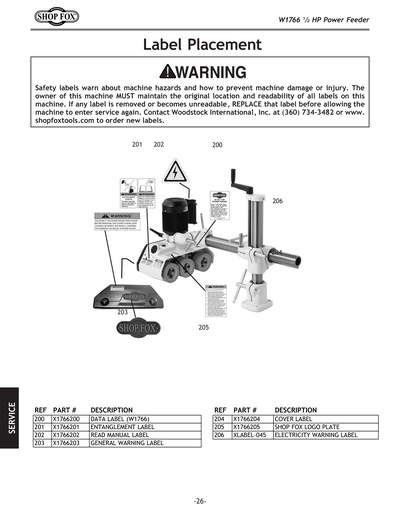

200 X1766200
DATA LABEL
N/A
201 X1766201
ENTANGLEMENT/READ MANUAL LABEL
N/A
202 X1766202
ENTANGLEMENT/READ MANUAL LABEL
Item is no longer available
PX1766202 Replaced By PX1766201
N/A View Replacement
203 X1766203
GENERAL WARNING LABEL
N/A
204 X1766204
COVER LABEL
N/A
205 X1766205
SHOP FOX NAMEPLATE-SMALL
N/A
206 X1766206
***USE PLABEL-14A***
Item is no longer available
PX1766206 Replaced By PLABEL-14A
N/A View Replacement
300 X1766300
CARTON FOR W1766 HEAD
N/A
301 X1766301
STYROFOAM FOR W1766 HEAD
N/A
302 X1766302
CARTON FOR W1766 COLUMN
N/A
303 X1766303
STYROFOAM FOR W1766 COLUMN
N/A
BOX2 X1766BOX2 COMPLETE STAND ASSEMBLY BOX 2 $573.40
MAN X1766MAN
MANUAL FOR W1766 09/07
N/A
TEMPLATE X1766TEMPLATE
MOUNTING TEMPLATE STICKER
Item is no longer available
PX1766TEMPLATE Replaced By PX1765TEMPLATE
N/A View Replacement
