Parts for W1768 - 1 HP 4-Speed 4-Roller Power Feeder, Single-Phase

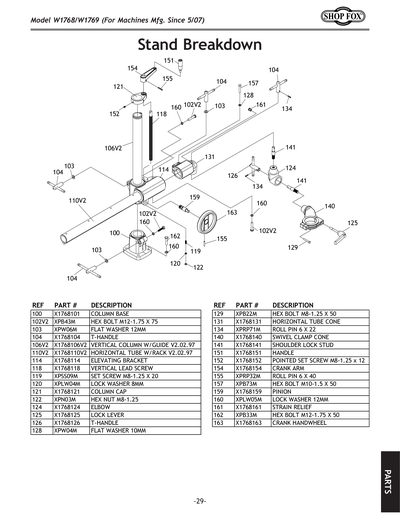

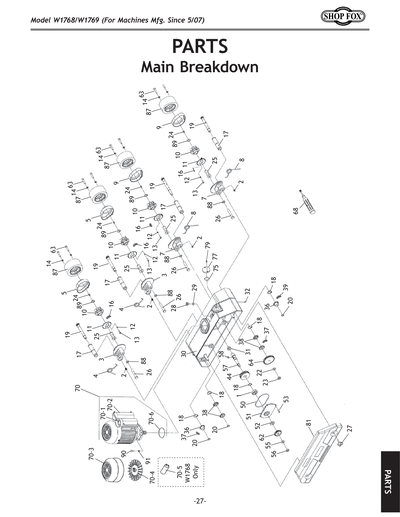

Part Diagram for W1768
Part Diagram for W1768
Part Diagram for W1768
Part Diagram for W1768
Part Diagram for W1768
Part Diagram for W1768
Part Diagram for W1768
Part Diagram for W1768

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

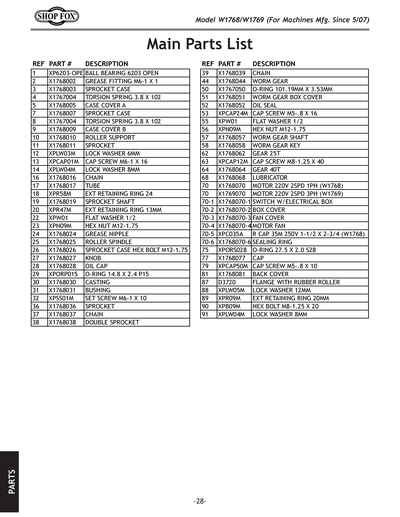

Ref #
Part #
Description
1
BALL BEARING 6203-OPEN
Price
N/A
2
GREASE FITTING M6-1 X 1
Item is no longer available
Price
N/A
3
SPROCKET CASE
Item is no longer available
Price
N/A
4
TORSION SPRING 3.8 X 102
Price
N/A
5
Price
$2.20
7
SPROCKET CASE
Item is no longer available
Price
N/A
8
TORSION SPRING 3.8 X 102
Price
N/A
9
CASE COVER B
Item is no longer available
Price
N/A
10
ROLLER SUPPORT
Item is no longer available
Price
N/A
11
Price
$10.85
12
LOCK WASHER 6MM
Price
N/A
13
CAP SCREW M6-1 X 16
Price
N/A
14
LOCK WASHER 8MM
Price
N/A
16
CHAIN
Item is no longer available
Price
N/A
17
TUBE
Item is no longer available
Price
N/A
18
EXT RETAINING RING 24MM
Price
N/A
19
SPROCKET SHAFT
Item is no longer available
Price
N/A
20
EXT RETAINING RING 13MM
Price
N/A
22
X1768022
Now: PW01
FLAT WASHER 1/2
Price
N/A
23
HEX NUT M12-1.75
Price
N/A
24
GREASE NIPPLE
Item is no longer available
Price
N/A
25
ROLLER SPINDLE
Item is no longer available
Price
N/A
26
SPROCKET CASE HEX BOLT M12-1.75
Item is no longer available
Price
N/A
27
Price
$2.10
28
Price
$1.49
29
O-RING 14.8 X 2.4 P15
Price
N/A
30
CASTING
Item is no longer available
Price
N/A
31
BUSHING
Item is no longer available
Price
N/A
32
SET SCREW M6-1 X 10
Price
N/A
36
Price
$4.70
37
CHAIN
Item is no longer available
Price
N/A
38
Price
$4.90
39
CHAIN
Item is no longer available
Price
N/A
44
WORM GEAR
Item is no longer available
Price
N/A
50
O-RING 101.19MM X 3.53MM
Price
N/A
51
WORM GEAR BOX COVER
Item is no longer available
Price
N/A
52
OIL SEAL
Item is no longer available
Price
N/A
53
CAP SCREW M5-.8 X 16
Price
N/A
55
X1768055
Now: PW01
FLAT WASHER 1/2
Price
N/A
56
HEX NUT M12-1.75
Price
N/A
57
WORM GEAR SHAFT
Item is no longer available
Price
N/A
58
WORM GEAR KEY
Item is no longer available
Price
N/A
62
GEAR 25T
Item is no longer available
Price
N/A
63
CAP SCREW M8-1.25 X 40
Price
N/A
64
GEAR 40T
Item is no longer available
Price
N/A
68
Price
$15.95
70
Price
$763.70
70-1
SWITCH W/ELECTRICAL BOX
Price
$65.75
70-2
BOX COVER
Item is no longer available
Price
N/A
70-3
FAN COVER
Item is no longer available
Price
N/A
70-4
MOTOR FAN
Item is no longer available
Price
N/A
70-5
R CAPACITOR 35M 250V 1-1/2 X 2-3/4
Price
N/A
70-6
SEALING RING
Item is no longer available
Price
N/A
70-7
Price
$45.10
75
O-RING 27.5 X 2.0 S28
Price
N/A
77
CAP
Item is no longer available
Price
N/A
79
CAP SCREW M5-.8 X 10
Price
N/A
81
Price
$8.15
87
Flange with Rubber Roller
Price
N/A
88
LOCK WASHER 12MM
Price
N/A
89
EXT RETAINING RING 20MM
Price
N/A
90
HEX BOLT M8-1.25 X 20
Price
N/A
91
LOCK WASHER 8MM
Price
N/A
93
SPROCKET SHAFT (THREADED)
Price
$26.05
100
COLUMN BASE
Price
N/A
101
Price
$148.55
102
STUD-DE M12-1.75 X 70 25RH
Price
N/A
102V2
HEX BOLT M12-1.75 X 75
Price
N/A
103
FLAT WASHER 12MM
Price
N/A
104
Price
$23.15
105
CAP SCREW M5-.8 X 16
Price
N/A
106
VERTICAL COLUMN W/GUIDE V2.02.97
Price
N/A
106V2
VERTICAL COLUMN W/GUIDE V2.02.97
Item is no longer available
Price
N/A
106V3
VERTICAL COLUMN W/GUIDE V3.08.15
Item is no longer available
Price
N/A
107
GUIDE
Item is no longer available
Price
N/A
110
HORIZONTAL TUBE W/RACK V2.02.97
Price
N/A
110V2
HORIZONTAL TUBE W/RACK V2.02.97
Item is no longer available
Price
N/A
112
CAP SCREW M5-.8 X 10
Price
N/A
114
Price
$302.70
118
Price
$11.25
119
SET SCREW M8-1.25 X 20
Price
N/A
120
LOCK WASHER 8MM
Price
N/A
121
COLUMN CAP V1
Item is no longer available
Price
N/A
121V2
COLUMN CAP V2.08.15
Item is no longer available
Price
N/A
122
HEX NUT M8-1.25
Price
N/A
124
ELBOW
Item is no longer available
Price
N/A
125
Price
$8.55
126
Price
$8.95
128
FLAT WASHER 10MM
Price
N/A
129
HEX BOLT M8-1.25 X 50
Price
N/A
131
HORIZONTAL TUBE CONE
Item is no longer available
Price
N/A
134
ROLL PIN 6 X 22
Price
N/A
140
Price
$92.40
141
SHOULDER LOCK STUD
Item is no longer available
Price
N/A
151
Price
$3.35
152
POINTED SET SCREW M8-1.25 X 12
Item is no longer available
Price
N/A
154
Price
$18.50
155
ROLL PIN 6 X 40
Price
N/A
156
RACK
Item is no longer available
Price
N/A
157
HEX BOLT M10-1.5 X 50
Price
N/A
159
PINION
Item is no longer available
Price
N/A
160
LOCK WASHER 12MM
Price
N/A
161
STRAIN RELIEF
Item is no longer available
Price
N/A
162
HEX BOLT M12-1.75 X 50
Price
N/A
163
CRANK HANDWHEEL
Item is no longer available
Price
N/A

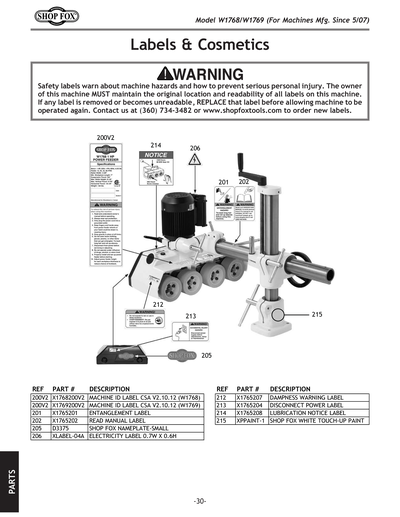

200
MACHINE ID LABEL CSA V2.10.12
Price
N/A
200V2
MACHINE ID LABEL CSA V2.10.12
Item is no longer available
Price
N/A
201
ENTANGLEMENT LABEL
Price
N/A
202
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
203
MACHINE ID LABEL CSA V2.10.12
Price
N/A
204
COVER LABEL
Item is no longer available
Price
N/A
205
Shop Fox Nameplate - Small
Price
N/A
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
CARTON FOR W1768 MACHINE
Item is no longer available
Price
N/A
208
FEEDER STYROFOAM - LARGE
Item is no longer available
Price
N/A
209
CARTON FOR W1768 STAND
Item is no longer available
Price
N/A
210
BASE STYROFOAM - LONG
Item is no longer available
Price
N/A
211
MOUNTING TEMPLATE STICKER
Price
N/A
212
DAMPNESS WARNING LABEL
Price
N/A
213
DISCONNECT POWER LABEL
Price
N/A
214
LUBRICATION NOTICE LABEL
Price
N/A
215
SHOP FOX WHITE M1006
Price
N/A
216
ANCHOR FINNED M8-1.25
Item is no longer available
Price
N/A
217
FLAT WASHER 8MM
Price
N/A
218
CAP SCREW M8-1.25 X 25
Price
N/A
219
FLAT WASHER 14MM
Price
N/A
BOX2
COMPLETE STAND ASSEMBLY BOX 2
Item is no longer available
Price
N/A
TEMPLATE
MOUNTING TEMPLATE STICKER
Price
N/A
