Parts for W1774 - 18 Gauge Brad Nailer Kit

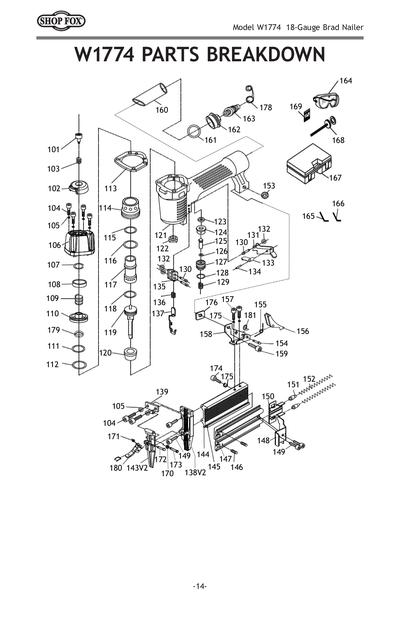

Part Diagram for W1774
Part Diagram for W1774
Part Diagram for W1774
Part Diagram for W1774

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

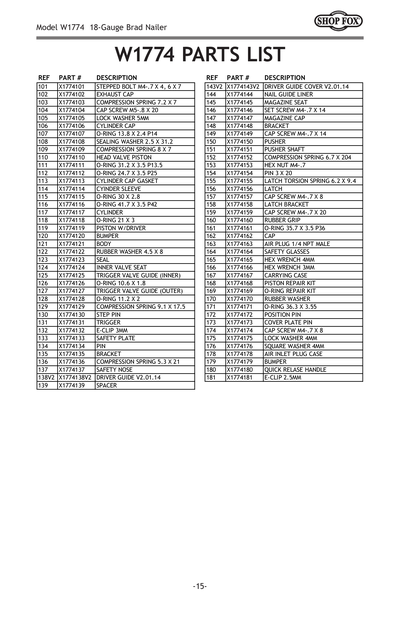

Ref #
Part #
Description
101
STEPPED BOLT M4-.7 X 4, 6 X 7
Price
$1.49
102
EXHAUST CAP
Price
$1.49
103
COMPRESSION SPRING 7.2 X 7
Price
$1.49
106
CYLINDER CAP
Price
$1.49
108
SEALING WASHER 2.5 X 31.2
Item is no longer available
Price
N/A
109
COMPRESSION SPRING 8 X 7
Item is no longer available
Price
N/A
110
HEAD VALVE PISTON
Item is no longer available
Price
N/A
111
O-RING 31.2 X 3.5 P13.5
Item is no longer available
Price
N/A
113
CYLINDER CAP GASKET
Price
$1.49
114
CYINDER SLEEVE
Item is no longer available
Price
N/A
115
O-RING 30 X 2.8
Item is no longer available
Price
N/A
116
O-RING 41.7 X 3.5 P42
Item is no longer available
Price
N/A
117
CYLINDER
Item is no longer available
Price
N/A
118
O-RING 21 X 3
Item is no longer available
Price
N/A
119
PISTON W/DRIVER
Price
$1.49
120
BUMPER
Item is no longer available
Price
N/A
121
BODY
Item is no longer available
Price
N/A
122
RUBBER WASHER 4.5 X 8
Item is no longer available
Price
N/A
123
SEAL
Item is no longer available
Price
N/A
124
INNER VALVE SEAT
Item is no longer available
Price
N/A
125
TRIGGER VALVE GUIDE (INNER)
Item is no longer available
Price
N/A
126
O-RING 10.6 X 1.8
Item is no longer available
Price
N/A
127
TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
128
O-RING 10.6 X 1.8
Price
N/A
129
COMPRESSION SPRING 9.1 X 17.5
Item is no longer available
Price
N/A
130
STEP PIN
Item is no longer available
Price
N/A
131
TRIGGER
Item is no longer available
Price
N/A
133
SAFETY PLATE
Item is no longer available
Price
N/A
134
PIN
Item is no longer available
Price
N/A
135
BRACKET
Item is no longer available
Price
N/A
136
COMPRESSION SPRING 5.3 X 21
Item is no longer available
Price
N/A
137
SAFETY NOSE
Item is no longer available
Price
N/A
138
DRIVER GUIDE V1
Item is no longer available
Price
N/A
138V2
DRIVER GUIDE V2.01.14
Item is no longer available
Price
N/A
139
SPACER
Item is no longer available
Price
N/A
143
DRIVER GUIDE COVER V1
Item is no longer available
Price
N/A
143V2
DRIVER GUIDE COVER V2.01.14
Item is no longer available
Price
N/A
144
NAIL GUIDE LINER
Item is no longer available
Price
N/A
145
MAGAZINE SEAT
Item is no longer available
Price
N/A
147
MAGAZINE CAP
Item is no longer available
Price
N/A
148
BRACKET
Item is no longer available
Price
N/A
150
PUSHER
Item is no longer available
Price
N/A
151
PUSHER SHAFT
Item is no longer available
Price
N/A
152
COMPRESSION SPRING 6.7 X 204
Item is no longer available
Price
N/A
154
PIN
Item is no longer available
Price
N/A
155
LATCH TORSION SPRING 6.2 X 9.4
Item is no longer available
Price
N/A
156
LATCH
Item is no longer available
Price
N/A
158
LATCH BRACKET
Item is no longer available
Price
N/A
160
RUBBER GRIP
Item is no longer available
Price
N/A
161
O-RING 35.7 X 3.5 P36
Price
$1.49
162
CAP
Price
$1.49
163
AIR PLUG 1/4 NPT MALE
Item is no longer available
Price
N/A
164
*DISCD* SAFETY GLASSES
Price
$3.45
167
CARRYING CASE
Item is no longer available
Price
N/A
168
PISTON REPAIR KIT
Price
$1.49
169
O-RING REPAIR KIT
Price
$1.49
170
RUBBER WASHER
Item is no longer available
Price
N/A
171
O-RING 36.3 X 3.55
Item is no longer available
Price
N/A
172
POSITION PIN
Item is no longer available
Price
N/A
173
COVER PLATE PIN
Item is no longer available
Price
N/A
174
CAP SCREW M4-.7 X 8
Item is no longer available
Price
N/A
176
SQUARE WASHER 4MM
Item is no longer available
Price
N/A
178
AIR INLET PLUG CASE
Item is no longer available
Price
N/A
179
BUMPER
Item is no longer available
Price
N/A
180
QUICK RELASE HANDLE
Item is no longer available
Price
N/A
MANV2
MANUAL W1774 MFD-01.14 V2.11.17
Item is no longer available
Price
N/A
