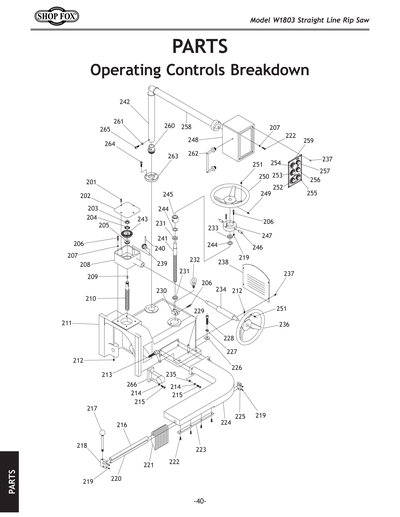

Parts for W1803 12" 15 HP 3-Phase Straight Line Rip Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

202
GEAR BOX COVER
203
SPANNER LOCK NUT M20-1.0
208
GEAR BOX
210
LEAD SCREW
211
HOUSING
213
LOCKING HANDLE
216
SHAFT
217
LEVER M10-1.5 X 135
218
BRACKET
220
SHAFT
221
ANTI-KICKBACK FINGER
223
FIXED PLATE
224
MOUNTING ARM
225
BRACKET
229
HOUSING TAPER PIN
230
CLAMP
231
HANDWHEEL RING
232
LIFTING EYE BOLT M12-1.75 X 22
233
HANDWHEEL RING
234
SHAFT
236
HANDWHEEL
238
COVER
239
BEVEL GEAR
241
LEAD SCREW
242
CONTROL BOX ARM
243
BEVEL GEAR
244
SPACER
245
BUSHING
246
MOUNTING BRACKET PIN
247
MOUNTING BRACKET
248
CONTROL BOX
250
HANDWHEEL
252
FEED MOTOR ON BUTTON
253
SAW MOTOR ON BUTTON
254
EMERGENCY STOP BUTTON
255
FEED MOTOR OFF BUTTON
256
SAW MOTOR OFF BUTTON
257
POWER LIGHT
258
CONTROL BOX ARM
259
CONTROL PANEL
260
BUSHING
262
HANDLE
263
MOUNTING BRACKET
266
BRACKET
301
ADJUSTING RING EYE-BOLT M16-2 X 90 LH
303
ADJUSTING RING NUT M16-2 LH/RH
304
ADJUSTING RING BOLT M16-2 X 110
306
ADJUSTING RING
307
SAW MOTOR PULLEY
311
MOTOR 2HP 220/440V 3PH
311-1
MOTOR FAN COVER
311-2
MOTOR FAN
311-3
MOTOR JUNCTION BOX
313
FEED MOTOR PULLEY
317
REDUCER GEAR BOX
318
REDUCER PULLEY
319
COG TOOTH BELT 1922V30-22
320
SHAFT
322
STUD-FT M12-1.75 X 117.5 100
324
MOTOR MOUNT
330
MOTOR MOUNT
332
SPROCKET 10T
334
BRUSH
335
BRACE
338
RAIL BODY
339
BRACE
340
OIL NOZZLE 1/8" PT X 4MM
341
IDLE WHEEL
342
BALL BEARING ASSEMBLY
345
SHAFT
346-1
CONVEYOR PLATE
346A
COMPLETE CONVEYOR BELT
347
BAKELITE CONVEYOR INSERT
348
SHAFT
350
SHAFT
351
SPACER
352
MOTOR 15HP 220/440V 3PH
352-1
MOTOR FAN COVER
352-2
MOTOR FAN
352-3
MOTOR JUNCTION BOX
403
SAW BLADE WASHER 12 X 30 X 5MM
404
ARBOR FLANGE
405
BLADE SPINDLE
407
MOUNTING BRACKET
409
RING
410
RING
411
FLANGE RING
413
SPANNER LOCK NUT M40-15 LH
414
SPINDLE SHAFT BOX NUT M12-1.75
415
SPINDLE SHAFT BOX
418
LOCK COLLAR
420
SHAFT
421
SPINDLE SHAFT BOX NUT TW22-P5
423
FLANGE RING
424
SPINDLE COVER
426
SPACER
427
SPINDLE PULLEY
432
SAW BLADE 12" X 48T X 4W
501
KNOB SCREW M10-1.5 X 20
503
DUST HOOD
506
HINGE PIN
507
HINGE
509
BUSHING 6 X 10 X 10T
512
ROCKER ARM
513
BUSHING 6 X 10 X 6T
514
SIDE GUARD
516
STEEL KNOB FEMALE 7MM
519
BRACKET
520
LIMIT SWITCH
522
COVER
524
BACK SAFETY GUARD
526
SHAFT
527
BEARING COVER RIGHT
529
ROLLER
530
BEARING COVER LEFT
531
ARM NUT M10-1.5
532
SPRING SEAT
533
ARM
534
HELICAL SPRING 26 X 30 X 155
535
SPRING ARM
536
SHAFT
537
GREASE FITTING M6-1 X 6
538
SHAFT
540
BEARING COVER LEFT
543
PRESSURE ROLLER LEFT
544
PRESSURE ROLLER RIGHT
545
BEARING COVER RIGHT
546
SPRING ARM
547
HINGE
549
LOCKING HANDLE M12-30
550
SHAFT
551
ANTI-KICKBACK FINGERS
552
BRACKET
553
ROCKER ARM
554
SHAFT
555
GIB
556
LOCK BAR
557
POINTER
562
BRACKET
563
LOCK BAR
565
HEAD STOCK

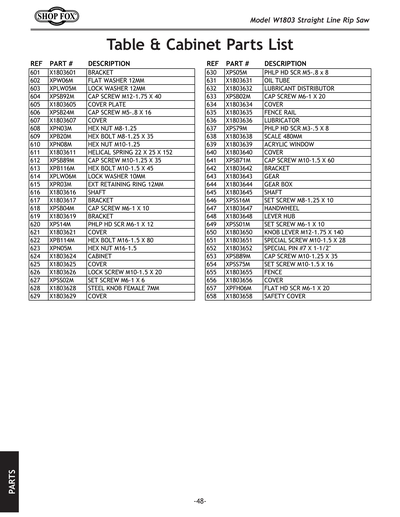

601
BRACKET
605
COVER PLATE
607
COVER
611
HELICAL SPRING 22 X 25 X 152
616
SHAFT
617
BRACKET
619
BRACKET
621
COVER
624
CABINET
625
COVER
626
LOCK SCREW M10-1.5 X 20
628
STEEL KNOB FEMALE 7MM
629
COVER
631
OIL TUBE
632
LUBRICANT DISTRIBUTOR
634
COVER
635
FENCE RAIL
636
LUBRICATOR
638
SCALE 480MM
639
ACRYLIC WINDOW
640
COVER
642
BRACKET
643
GEAR
644
GEAR BOX
645
SHAFT
647
HANDWHEEL
648
LEVER HUB
650
KNOB LEVER M12-1.75 X 140
651
FENCE SCREW M10-1.5 X 28
652
FENCE PIN #7 X 1-1/2"
655
FENCE
656
COVER
658
SAFETY COVER
701
SPRING BRACKET LEFT
702
SHAFT
703
BEARING COVER RIGHT
704
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
707
ROLLER RIGHT
708
ROLLER LEFT
710
SPRING BRACKET RIGHT
713
STUD-FT M8-1.25 X 40 40
716
BEARING COVER LEFT
801
RELAY MY2NJ-200/220VAC
802
TIMER
803
TRANSFORMER OV-440V/DC24V
804
TERMINAL BLOCK 6-P
805
FUSE 10*38-4A
806
FUSE 10*38-4A
807
CONTACTOR CN-11
808
OVERLOAD RH10E/7C 5.5-8.5A
809
CONTACTOR CN-18
810
OVERLOAD RH18/20 16-24A
811
CONTACTOR CN-18
812
CONTACTOR CN-16
813
TERMINAL 30-P
814
GROUND BLOCK
815
RELAY MY2NJ-200/220VAC
816
TIMER
817
RELAY MY2NJ-200/220VAC
818
COMMUTATOR S2506
819
STRAIN RELIEF
Price
N/A
819A
POWER WIRING HARNESS
Price
N/A
820
WIRING HARNESS CONDUIT
Price
N/A
821
POWER WIRES
Price
N/A
822
CONVERSION KIT 440V
823
POWER WIRING HARNESS
823-1
STRAIN RELIEF
823-2
WIRING HARNESS CONDUIT
823-3
POWER WIRES
824
FEED MOTOR WIRING HARNESS
824-1
STRAIN RELIEF
824-2
WIRING HARNESS CONDUIT
824-3
POWER WIRES
825
HEAD SAFETY SW WIRING HARNESS
825-1
STRAIN RELIEF
825-2
WIRING HARNESS CONDUIT
825-3
POWER WIRES
826
CONTROL PANEL WIRING HARNESS
826-1
STRAIN RELIEF
826-2
WIRING HARNESS CONDUIT
826-3
POWER WIRES
827
LUBRICANT PUMP WIRING HARNESS
827-1
STRAIN RELIEF
827-2
WIRING HARNESS CONDUIT
827-3
POWER WIRES
828
SAW MOTOR WIRING HARNESS
828-1
STRAIN RELIEF
828-2
WIRING HARNESS CONDUIT
828-3
POWER WIRES

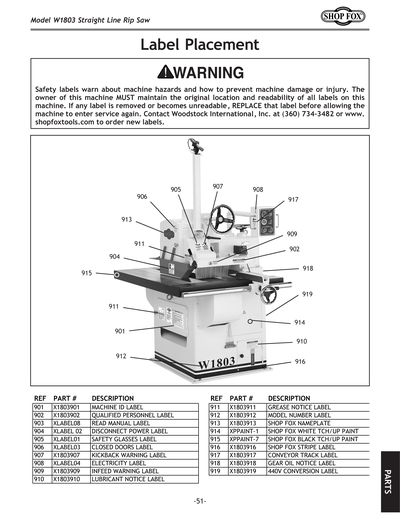

901
MACHINE ID LABEL
902
QUALIFIED PERSONNEL LABEL
903
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
904
DISCONNECT 220V 2W X 3.3H
Price
N/A
905
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
906
KEEP DOOR CLOSED 2W X 3.3H
Price
N/A
907
KICKBACK WARNING LABEL
908
ELECTRICITY 1.4W X 1.2H
Price
N/A
909
INFEED WARNING LABEL
910
LUBRICANT NOTICE LABEL
911
GREASE NOTICE LABEL
912
MODEL NUMBER LABEL
913
SHOP FOX NAMEPLATE
917
CONVEYOR TRACK LABEL
918
GEAR OIL NOTICE LABEL
919
CONVERSION 440V LABEL
920
COMPLETE TOOL BOX W/TOOLS
MAN
MANUAL FOR W1803 07/07
