Parts for W1805 - 16-1/2" Dovetail Machine

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

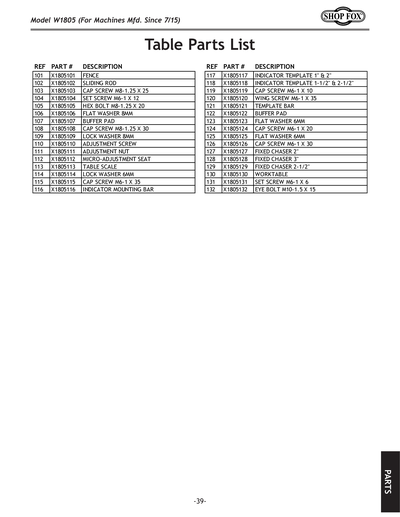

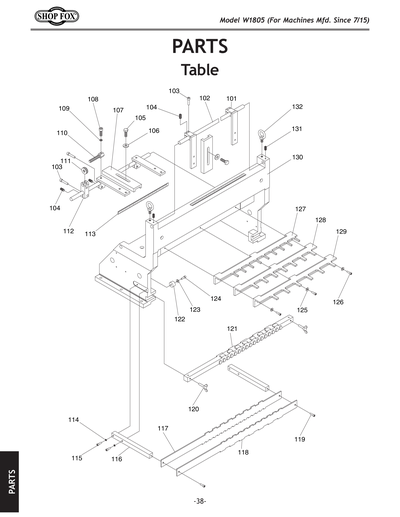

101 X1805101
FENCE
N/A
102 X1805102
SLIDING ROD
N/A
103 X1805103
***USE PCAP31M***
Item is no longer available
PX1805103 Replaced By PCAP31M
N/A View Replacement
104 X1805104
***USE PSS04M***
Item is no longer available
PX1805104 Replaced By PSS04M
N/A View Replacement
105 X1805105
***USE PB09M***
Item is no longer available
PX1805105 Replaced By PB09M
N/A View Replacement
106 X1805106
***USE PW01M***
Item is no longer available
PX1805106 Replaced By PW01M
N/A View Replacement
107 X1805107
BUFFER PAD
N/A
108 X1805108
***USE PCAP13M***
Item is no longer available
PX1805108 Replaced By PCAP13M
N/A View Replacement
109 X1805109
***USE PLW04M***
Item is no longer available
PX1805109 Replaced By PLW04M
N/A View Replacement
110 X1805110
ADJUSTMENT SCREW
N/A
111 X1805111
ADJUSTMENT NUT
N/A
112 X1805112
MICRO-ADJUSTMENT SEAT
N/A
113 X1805113
TABLE SCALE
N/A
114 X1805114
***USE PLW03M***
Item is no longer available
PX1805114 Replaced By PLW03M
N/A View Replacement
115 X1805115
***USE PCAP48M***
Item is no longer available
PX1805115 Replaced By PCAP48M
N/A View Replacement
116 X1805116
INDICATOR MOUNTING BAR
N/A
117 X1805117
INDICATOR TEMPLATE 1" & 2"
N/A
118 X1805118
INDICATOR TEMPLATE 1-1/2" & 2-1/2"
N/A
119 X1805119
***USE PCAP04M***
Item is no longer available
PX1805119 Replaced By PCAP04M
N/A View Replacement
120 X1805120
WING SCREW M6-1 X 35
Item is no longer available
PX1805120 Replaced By PX1804138
N/A View Replacement
121 X1805121
TEMPLATE BAR
N/A
122 X1805122
BUFFER PAD
N/A
123 X1805123
***USE PW03M***
Item is no longer available
PX1805123 Replaced By PW03M
N/A View Replacement
124 X1805124
***USE PCAP02M***
Item is no longer available
PX1805124 Replaced By PCAP02M
N/A View Replacement
125 X1805125
***USE PW03M***
Item is no longer available
PX1805125 Replaced By PW03M
N/A View Replacement
126 X1805126
***USE PCAP07M***
Item is no longer available
PX1805126 Replaced By PCAP07M
N/A View Replacement
127 X1805127
FIXED CHASER 2"
N/A
128 X1805128
FIXED CHASER 3"
N/A
129 X1805129
FIXED CHASER 2-1/2"
N/A
130 X1805130
WORKTABLE
N/A
131 X1805131
***USE PSS02M***
Item is no longer available
PX1805131 Replaced By PSS02M
N/A View Replacement
132 X1805132
EYE BOLT M10-1.5 X 15
Item is no longer available
PX1805132 Replaced By PX1804106
N/A View Replacement

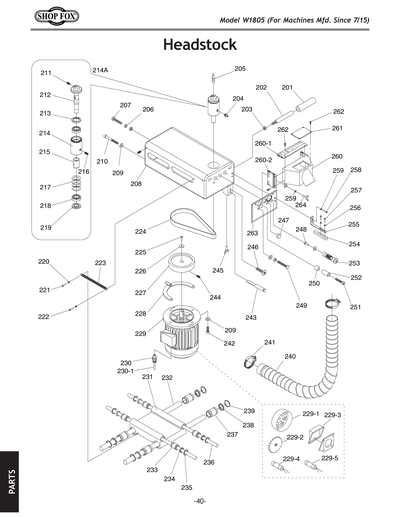

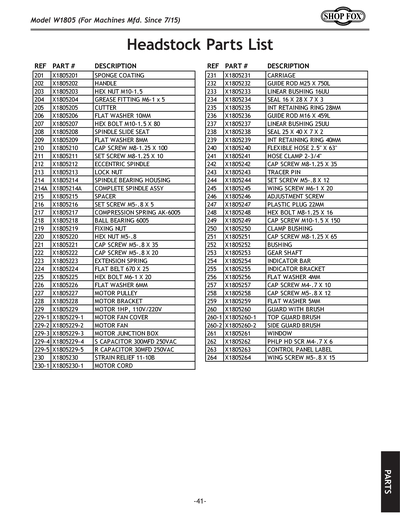

201 X1805201
SPONGE COATING
N/A
202 X1805202
HANDLE
N/A
203 X1805203
***USE PN02M***
Item is no longer available
PX1805203 Replaced By PN02M
N/A View Replacement
204 X1805204
***USE PZERK002***
Item is no longer available
PX1805204 Replaced By PZERK002
N/A View Replacement
205 X1805205
Dovetail Bit for G0610 & G0611X
Item is no longer available
PX1805205 Replaced By H9388
N/A View Replacement
206 X1805206
***USE PW04M***
Item is no longer available
PX1805206 Replaced By PW04M
N/A View Replacement
207 X1805207
***USE PB13M***
Item is no longer available
PX1805207 Replaced By PB13M
N/A View Replacement
208 X1805208
SPINDLE SLIDE SEAT
N/A
209 X1805209
***USE PW01M***
Item is no longer available
PX1805209 Replaced By PW01M
N/A View Replacement
210 X1805210
***USE PCAP157M***
Item is no longer available
PX1805210 Replaced By PCAP157M
N/A View Replacement
211 X1805211
***USE PSS16M***
Item is no longer available
PX1805211 Replaced By PSS16M
N/A View Replacement
212 X1805212
ECCENTRIC SPINDLE
N/A
213 X1805213
LOCK NUT
N/A
214 X1805214
SPINDLE BEARING HOUSING
N/A
214A X1805214A
COMPLETE SPINDLE ASSY
N/A
215 X1805215
SPACER
N/A
216 X1805216
***USE PSS07M***
Item is no longer available
PX1805216 Replaced By PSS07M
N/A View Replacement
217 X1805217
COMPRESSION SPRING AK-6005
Item is no longer available
PX1805217 Replaced By PX1804219
N/A View Replacement
218 X1805218
BALL BEARING 6005TB.P63
N/A
219 X1805219
FIXING NUT
N/A
220 X1805220
***USE PN06M***
Item is no longer available
PX1805220 Replaced By PN06M
N/A View Replacement
221 X1805221
***USE PCAP79M***
Item is no longer available
PX1805221 Replaced By PCAP79M
N/A View Replacement
222 X1805222
***USE PCAP15M***
Item is no longer available
PX1805222 Replaced By PCAP15M
N/A View Replacement
223 X1805223
EXTENSION SPRING
N/A
224 X1805224
FLAT BELT 670 X 25
Item is no longer available
PX1805224 Replaced By PX1804214
N/A View Replacement
225 X1805225
***USE PB08M***
Item is no longer available
PX1805225 Replaced By PB08M
N/A View Replacement
226 X1805226
***USE PW03M***
Item is no longer available
PX1805226 Replaced By PW03M
N/A View Replacement
227 X1805227
MOTOR PULLEY
N/A
228 X1805228
MOTOR BRACKET
N/A
229 X1805229
MOTOR 1HP 110V/220V
N/A
229-1 X1805229-1
MOTOR FAN COVER
N/A
229-2 X1805229-2
MOTOR FAN
N/A
229-3 X1805229-3
MOTOR JUNCTION BOX
N/A
229-4 X1805229-4
S CAPACITOR 300MFD 250VAC
N/A
229-5 X1805229-5
R CAPACITOR 30M 250V
N/A
230 X1805230
STRAIN RELIEF 11-10B
N/A
230-1 X1805230-1
***USE PWRCRD110S***
Item is no longer available
PX1805230-1 Replaced By PWRCRD110S
N/A View Replacement
231 X1805231
CARRIAGE
N/A
232 X1805232
GUIDE ROD M25 X 750L
N/A
233 X1805233
LINEAR BUSHING 16UU
N/A
234 X1805234
SEAL 16 X 28 X 7 X 3
N/A
235 X1805235
***USE PR20M***
Item is no longer available
PX1805235 Replaced By PR20M
N/A View Replacement
236 X1805236
GUIDE ROD M16 X 459L
N/A
237 X1805237
LINEAR BUSHING 25UU
N/A
238 X1805238
SEAL 25 X 40 X 7 X 2
N/A
239 X1805239
***USE PR23M***
Item is no longer available
PX1805239 Replaced By PR23M
N/A View Replacement
240 X1805240
FLEXIBLE HOSE 2.5" X 63"
N/A
241 X1805241
HOSE CLAMP 2-3/4"
N/A
242 X1805242
***USE PCAP40M***
Item is no longer available
PX1805242 Replaced By PCAP40M
N/A View Replacement
243 X1805243
TRACER PIN
N/A
244 X1805244
***USE PSS53M***
Item is no longer available
PX1805244 Replaced By PSS53M
N/A View Replacement
245 X1805245
WING SCREW M6-1 X 20
Item is no longer available
PX1805245 Replaced By PX1804256
N/A View Replacement
246 X1805246
ADJUSTMENT SCREW
N/A
247 X1805247
PLASTIC PLUG 22MM
N/A
248 X1805248
***USE PB03M***
Item is no longer available
PX1805248 Replaced By PB03M
N/A View Replacement
249 X1805249
CAP SCREW M10-1.5 X 150
N/A
250 X1805250
CLAMP BUSHING
N/A
251 X1805251
***USE PCAP66M***
Item is no longer available
PX1805251 Replaced By PCAP66M
N/A View Replacement
252 X1805252
BUSHING
N/A
253 X1805253
GEAR SHAFT
N/A
254 X1805254
INDICATOR BAR
N/A
255 X1805255
INDICATOR BRACKET
N/A
256 X1805256
***USE PW05M***
Item is no longer available
PX1805256 Replaced By PW05M
N/A View Replacement
257 X1805257
***USE PCAP17M***
Item is no longer available
PX1805257 Replaced By PCAP17M
N/A View Replacement
258 X1805258
***USE PCAP33M***
Item is no longer available
PX1805258 Replaced By PCAP33M
N/A View Replacement
259 X1805259
***USE PW02M***
Item is no longer available
PX1805259 Replaced By PW02M
N/A View Replacement
260 X1805260
GUARD WITH BRUSH
N/A
260-1 X1805260-1
TOP GUARD BRUSH
N/A
260-2 X1805260-2
SIDE GUARD BRUSH
N/A
261 X1805261
WINDOW
N/A
262 X1805262
***USE PS17M***
Item is no longer available
PX1805262 Replaced By PS17M
N/A View Replacement
263 X1805263
CONTROL PANEL LABEL
N/A
264 X1805264
WING SCREW M5-.8 X 15
Item is no longer available
PX1805264 Replaced By PX1804260
N/A View Replacement

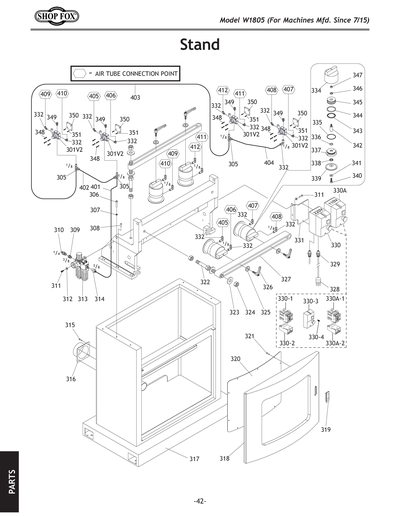

301V2 X1805301V2
CONTROL VALVE V2.07.15
N/A
302 X1805302
MALE CONNECTOR PT-1/8" X 6MM
N/A
303 X1805303
HANDLE
N/A
304 X1805304
***USE PSS07M***
Item is no longer available
PX1805304 Replaced By PSS07M
N/A View Replacement
305 X1805305
T-CONNECTOR PT-1/8" X 6MM X 6MM
N/A
306 X1805306
***USE PCAP40M***
Item is no longer available
PX1805306 Replaced By PCAP40M
N/A View Replacement
307 X1805307
***USE PLW04M***
Item is no longer available
PX1805307 Replaced By PLW04M
N/A View Replacement
308 X1805308
***USE PSS16M***
Item is no longer available
PX1805308 Replaced By PSS16M
N/A View Replacement
309 X1805309
ADAPTER 3/8" X 1/4"
N/A
310 X1805310
MALE COUPLING PT-1/4"
N/A
311 X1805311
***USE PCAP01M***
Item is no longer available
PX1805311 Replaced By PCAP01M
N/A View Replacement
312 X1805312
***USE PW03M***
Item is no longer available
PX1805312 Replaced By PW03M
N/A View Replacement
313 X1805313
AIR SUPPLY UNIT MACP 300-10A
N/A
314 X1805314
MALE CONNECTOR PT-3/8" X 6MM
N/A
315 X1805315
***USE PCAP50M***
Item is no longer available
PX1805315 Replaced By PCAP50M
N/A View Replacement
316 X1805316
DUST PORT 4"
N/A
317 X1805317
CABINET
N/A
318 X1805318
DOOR
N/A
319 X1805319
DOOR LATCH
N/A
320 X1805320
DOOR INSET
N/A
321 X1805321
***USE PS19M***
Item is no longer available
PX1805321 Replaced By PS19M
N/A View Replacement
322 X1805322
STUD-UDE M20-2.5 X 230 150/30
N/A
323 X1805323
***USE PW13M***
Item is no longer available
PX1805323 Replaced By PW13M
N/A View Replacement
324 X1805324
***USE PN28M***
Item is no longer available
PX1805324 Replaced By PN28M
N/A View Replacement
325 X1805325
LOCKING HANDLE WASHER
N/A
326 X1805326
LOCKING HANDLE M10-1.5 X 35
N/A
327 X1805327
HOLDER BRACKET
N/A
328 X1805328
***USE PWRCRD110L***
Item is no longer available
PX1805328 Replaced By PWRCRD110L
N/A View Replacement
329 X1805329
STRAIN RELIEF MGB20G-12B
N/A
330 X1805330
MAGNETIC SWITCH ASSY 220V
N/A
330-1 X1805330-1
CONTACTOR 220V
N/A
330-2 X1805330-2
OVERLOAD RELAY FOR 220V
N/A
330-3 X1805330-3
MAG SWITCH COVER
N/A
330-4 X1805330-4
PLASTIC SCREW
N/A
330A X1805330A
MAGNETIC SWITCH ASSY 110V
N/A
330A-1 X1805330A-1
CONTACTOR 110V
N/A
330A-2 X1805330A-2
OVERLOAD RELAY FOR 110V
N/A
331 X1805331
SWITCH BRACKET
N/A
332 X1805332
MALE ELBOW PT1/8" X 6MM
N/A
333 X1805333
***USE PCAP109M***
Item is no longer available
PX1805333 Replaced By PCAP109M
N/A View Replacement
334 X1805334
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805334 Replaced By PX1805334A
N/A View Replacement
334A X1805334A
CYLINDER BODY ASSEMBLY
N/A
335 X1805335
O-RING G80
N/A
336 X1805336
O-RING P25
N/A
337 X1805337
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805337 Replaced By PX1805334A
N/A View Replacement
338 X1805338
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805338 Replaced By PX1805334A
N/A View Replacement
339 X1805339
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805339 Replaced By PX1805334A
N/A View Replacement
340 X1805340
***USE PB03M***
Item is no longer available
PX1805340 Replaced By PB03M
N/A View Replacement
341 X1805341
***USE PW01M***
Item is no longer available
PX1805341 Replaced By PW01M
N/A View Replacement
342 X1805342
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805342 Replaced By PX1805334A
N/A View Replacement
343 X1805343
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805343 Replaced By PX1805334A
N/A View Replacement
344 X1805344
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805344 Replaced By PX1805334A
N/A View Replacement
345 X1805345
CYLINDER BODY ASSEMBLY
Item is no longer available
PX1805345 Replaced By PX1805334A
N/A View Replacement
346 X1805346
***USE PLW05M***
Item is no longer available
PX1805346 Replaced By PLW05M
N/A View Replacement
347 X1805347
***USE PN09M***
Item is no longer available
PX1805347 Replaced By PN09M
N/A View Replacement
348 X1805348
***USE PCAP95M***
Item is no longer available
PX1805348 Replaced By PCAP95M
N/A View Replacement
349 X1805349
AIR DIFFUSER 1/8" NPT
N/A
350 X1805350
MOUNTING PLATE
N/A
401 X1805401
PU TUBE 4 X 6 X 240MM
N/A
402 X1805402
PU TUBE 4 X 6 X 140MM
N/A
403 X1805403
PU TUBE 4 X 6 X 1360MM
N/A
404 X1805404
PU TUBE 4 X 6 X 140MM
N/A
405 X1805405
PU TUBE 4 X 6 X 790MM
N/A
406 X1805406
PU TUBE 4 X 6 X 730MM
N/A
407 X1805407
PU TUBE 4 X 6 X 790MM
N/A
408 X1805408
PU TUBE 4 X 6 X 730MM
N/A
409 X1805409
PU TUBE 4 X 6 X 790MM
N/A
410 X1805410
PU TUBE 4 X 6 X 730MM
N/A
411 X1805411
PU TUBE 4 X 6 X 790MM
N/A
412 X1805412
PU TUBE 4 X 6 X 730MM
N/A

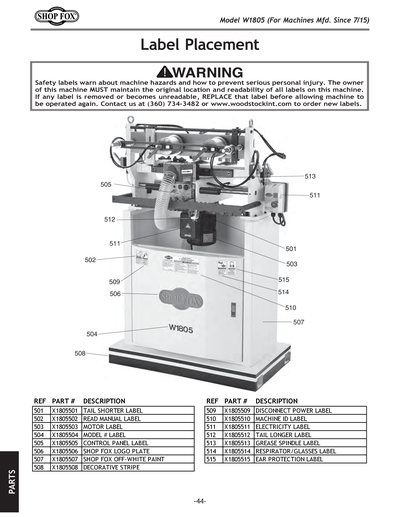

501 X1805501
TAIL SHORTER LABEL
N/A
502 X1805502
***USE PLABEL-12A***
Item is no longer available
PX1805502 Replaced By PLABEL-12A
N/A View Replacement
503 X1805503
MOTOR LABEL
N/A
504 X1805504
MODEL NUMBER LABEL
N/A
505 X1805505
CONTROL PANEL LABEL
N/A
506 X1805506
***USE D3377***
Item is no longer available
PX1805506 Replaced By D3377
N/A View Replacement
507 X1805507
***USE XPPAINT-2***
Item is no longer available
PX1805507 Replaced By XPPAINT-12
N/A View Replacement
508 X1805508
DECORATIVE STRIPE
N/A
509 X1805509
ACCIDENTAL INJURY HAZARD
N/A
510 X1805510
MACHINE ID LABEL
N/A
511 X1805511
***USE PLABEL-14A***
Item is no longer available
PX1805511 Replaced By PLABEL-14A
N/A View Replacement
512 X1805512
TAIL LONGER LABEL
N/A
513 X1805513
GREASE SPINDLE LABEL
N/A
514 X1805514
***USE PLABEL-58***
Item is no longer available
PX1805514 Replaced By PLABEL-58
N/A View Replacement
515 X1805515
HEARING LOSS HAZARD LABEL
N/A
