Parts for W1823 - 1-1/2 HP Portable Cyclone

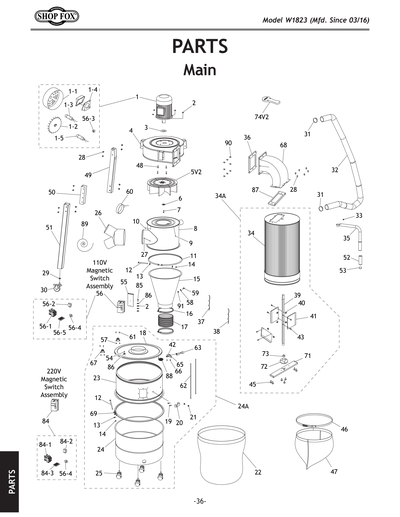

Part Diagram for W1823
Part Diagram for W1823
Part Diagram for W1823
Part Diagram for W1823
Part Diagram for W1823
Part Diagram for W1823

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

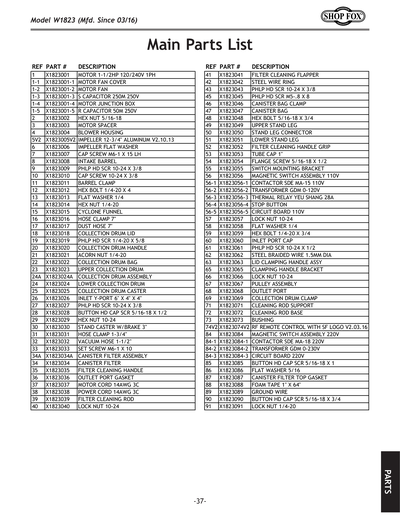

Ref #
Part #
Description
1
MOTOR 1-1/2HP 110/220V 1PH
Price
$478.70
1-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
1-2
MOTOR FAN
Item is no longer available
Price
N/A
1-3
S CAPACITOR 250M 250V
Price
$25.00
1-4
MOTOR JUNCTION BOX
Price
$7.55
1-5
R CAPACITOR 50M 250V
Price
$21.75
2
X1823002
Now: PN02
HEX NUT 5/16-18
Price
N/A
3
MOTOR SPACER
Price
$2.10
4
BLOWER HOUSING
Price
$186.15
5
IMPELLER 12-3/4"
Price
$121.10
6
IMPELLER FLAT WASHER
Price
$2.85
7
CAP SCREW M6-1 X 15 LH
Price
N/A
8
INTAKE BARREL
Price
$167.50
9
X1823009
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
10
CAP SCREW 10-24 X 3/8
Price
N/A
11
BARREL CLAMP
Item is no longer available
Price
N/A
12
X1823012
Now: PB96
HEX BOLT 1/4-20 X 4
Price
N/A
13
X1823013
Now: PW06
FLAT WASHER 1/4
Price
N/A
14
X1823014
Now: PN05
HEX NUT 1/4-20
Price
N/A
15
CYCLONE FUNNEL
Price
$170.60
16
HOSE CLAMP 7"
Price
$7.40
17
DUST HOSE 7"
Price
$38.75
18
COLLECTION DRUM LID
Price
$66.45
19
X1823019
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
2
COMPLETE BOX 2 OF 2 FOR W1823
Price
N/A
20
COLLECTION DRUM HANDLE
Item is no longer available
Price
N/A
21
X1823021
Now: PN47
ACORN NUT 3/8-16
Price
N/A
22
COLLECTION DRUM BAG
Price
$9.10
23
UPPER COLLECTION DRUM
Price
$134.40
24
LOWER COLLECTION DRUM
Price
$162.30
24A
COLLECTION DRUM ASSEMBLY
Price
$347.05
25
COLLECTION DRUM CASTER
Item is no longer available
Price
N/A
26
INLET Y-PORT 6" X 4" X 4"
Price
$21.85
27
X1823027
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
28
BUTTON HD CAP SCR 5/16-18 X 1/2
Price
N/A
29
X1823029
Now: PN07
HEX NUT 10-24
Price
N/A
30
STAND CASTER W/BRAKE 3"
Item is no longer available
Price
N/A
31
HOSE CLAMP 1-3/4"
Price
$3.10
32
VACUUM HOSE 1-1/2"
Price
$20.15
33
SET SCREW M6-1 X 10
Price
N/A
34
CANISTER FILTER
Price
$411.90
34A
CANISTER FILTER ASSEMBLY
Price
$364.55
35
FILTER CLEANING HANDLE
Price
$28.60
36
OUTLET PORT GASKET
Price
$4.95
37
MOTOR CORD 14AWG 3C
Item is no longer available
Price
N/A
38
POWER CORD 14AWG 3C
Item is no longer available
Price
N/A
39
FILTER CLEANING ROD
Item is no longer available
Price
N/A
40
LOCK NUT 10-24
Price
N/A
41
FILTER CLEANING FLAPPER
Price
$6.45
42
STEEL WIRE RING
Price
$2.05
43
X1823043
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
45
PHLP HD SCR M5-.8 X 8
Price
N/A
46
CANISTER BAG CLAMP
Price
$19.05
47
CANISTER BAG
Price
$5.10
48
X1823048
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
49
UPPER STAND LEG
Price
$87.60
50
STAND LEG CONNECTOR
Price
$28.00
51
LOWER STAND LEG
Price
$59.45
52
FILTER CLEANING HANDLE GRIP
Price
$3.45
53
TUBE CAP 1"
Price
$2.75
54
FLANGE SCREW 5/16-18 X 1/2
Price
N/A
55
SWITCH MOUNTING BRACKET
Item is no longer available
Price
N/A
56
MAGNETIC SWITCH ASSEMBLY 110V
Price
$366.55
56-1
CONTACTOR SDE MA-15 110V
Item is no longer available
Price
N/A
56-2
TRANSFORMER CY 110V
Item is no longer available
Price
N/A
56-3
OL RELAY YEU SHANG 25A
Item is no longer available
Price
N/A
56-4
STOP BUTTON
Item is no longer available
Price
N/A
56-5
CIRCUIT BOARD IJ 9V
Item is no longer available
Price
N/A
57
LOCK NUT 10-24
Price
N/A
58
X1823058
Now: PW06
FLAT WASHER 1/4
Price
N/A
59
X1823059
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
60
INLET PORT CAP
Price
$4.70
61
X1823061
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
62
STEEL BRAIDED WIRE 1.5MM DIA
Price
$12.80
63
LID CLAMPING HANDLE ASSY
Price
$4.85
65
CLAMPING HANDLE BRACKET
Price
$21.15
66
LOCK NUT 10-24
Price
N/A
67
PULLEY ASSEMBLY
Price
$35.35
68
OUTLET PORT
Price
$149.35
69
COLLECTION DRUM CLAMP
Price
$44.55
70
EXT TOOTH WASHER #10
Price
N/A
71
CLEANING ROD SUPPORT
Price
$21.70
72
CLEANING ROD BASE
Price
$4.15
73
BUSHING
Price
$5.75
74
RF REMOTE CONTROL V1
Price
$89.60
74V2
RF REMOTE CONTROL WITH SF LOGO V2.03.16
Price
$66.15
75

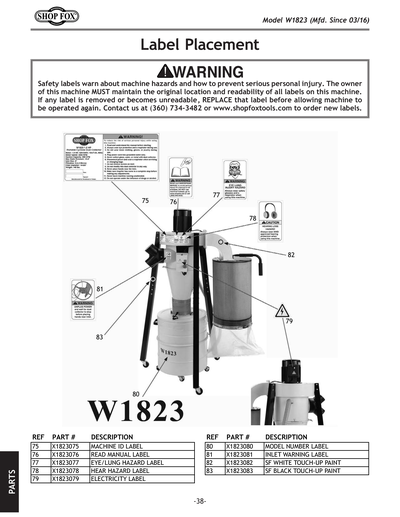

MACHINE ID LABEL
Price
$16.40
76
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
77
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
78
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
79
ELECTRICITY 1.4W X 1.2H
Price
N/A
80
MODEL NUMBER LABEL
Price
$5.55
81
INLET WARNING LABEL
Item is no longer available
Price
N/A
82
SHOP FOX WHITE M1006
Price
N/A
83
GLOSSY BLACK
Price
N/A
84
MAGNETIC SWITCH ASSEMBLY 220V
Price
$366.35
84-1
CONTACTOR SDE MA-18 220V
Item is no longer available
Price
N/A
84-2
TRANSFORMER CY 220V
Item is no longer available
Price
N/A
84-3
CIRCUIT BOARD IJ 9V
Price
N/A
85
BUTTON HD CAP SCR 5/16-18 X 1
Price
N/A
86
X1823086
Now: PW07
FLAT WASHER 5/16
Price
N/A
87
CANISTER FILTER TOP GASKET
Price
$5.55
88
FOAM TAPE 1" X 64"
Price
$10.40
89
GROUND WIRE
Item is no longer available
Price
N/A
90
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
91
LOCK NUT 1/4-20
Price
N/A
92
CIRCUIT BREAKER 12A 220V
Price
$20.25
93
CONVERSION KIT 220V
Item is no longer available
Price
N/A
94
COMPLETE BOX 2 OF 2 FOR W1823
Price
$281.65
MAN
MANUAL W1823 MFD-09.10-09.13 V1.10.10
Price
$16.60
MANV2
MANUAL W1823 MFD-10.13+ V2.12.13
Price
$14.65
MANV3
MANUAL FOR W1823 MFD-03.16 V3.03.16
Item is no longer available
Price
N/A
PKG1
CARTON FOR W1823-BOX 1 OF 2
Item is no longer available
Price
N/A
PKG2
CARTON FOR BXW182302 STAND-BOX 2 OF 2
Item is no longer available
Price
N/A
PKG3
STYROFOAM FOR BOX 1 OF W1823
Item is no longer available
Price
N/A
PKG4
STYROFOAM FOR BOX 2 OF W1823
Item is no longer available
Price
N/A
