Parts for W1826 - 1 HP Wall Dust Collector

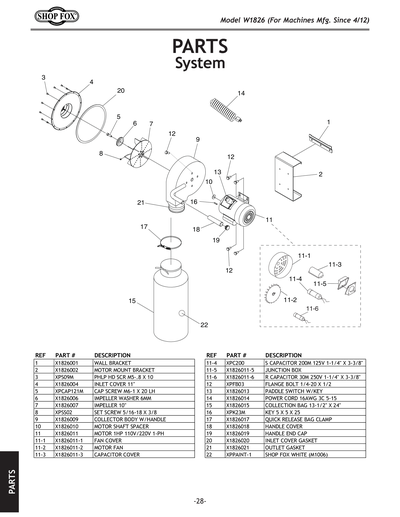

Part Diagram for W1826
Part Diagram for W1826
Part Diagram for W1826
Part Diagram for W1826

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
WALL MOUNTING BRACKET
Price
N/A
2
Price
$59.35
3
PHLP HD SCR M5-.8 X 10
Price
N/A
4
Price
$14.15
5
CAP SCREW M6-1 X 20 LH
Price
N/A
6
Price
$4.65
7
CAST ALUMINUM IMPELLER 10" V2.09.12
Price
N/A
8
SET SCREW 5/16-18 X 3/8
Price
N/A
9
COLLECTOR BODY W/ HANDLE
Price
N/A
10
MOTOR GASKET
Price
N/A
11
MOTOR 1HP 110V/220V 1PH
Price
$224.15
11-1
Price
$12.75
11-2
Price
$16.00
11-3
Price
$5.90
11-4
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
Price
N/A
11-5
MOTOR JUNCTION BOX
Price
N/A
11-6
R CAPACITOR 30M 250V 1-1/4" X 3-3/8"
Price
$28.90
12
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
13
Price
$21.60
14
POWER CORD 16AWG 3C 5-15
Price
$24.70
15
COLLECTION BAG 13-1/2" X 24"
Price
$66.90
16
KEY 5 X 5 X 25
Price
N/A
17
QUICK RELEASE BAG CLAMP
Price
$12.85
18
HANDLE COVER
Price
N/A
19
TUBE CAP 1"
Price
N/A
20
Price
$1.80
21
Price
$3.05
22
SHOP FOX WHITE M1006
Price
N/A
23
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
24
EAR PROTECTION/RESPIRATOR 3.8W X 2H
Price
N/A
25
HAND INLET WARNING LABEL
Price
$1.60
26
Price
$1.60
27
Price
$16.40
28
Price
$1.15
29
ELECTRICITY 1.4W X 1.2H
Price
N/A
30
Price
$1.60
MAN
Price
$16.95
PKG1
Price
$14.60
