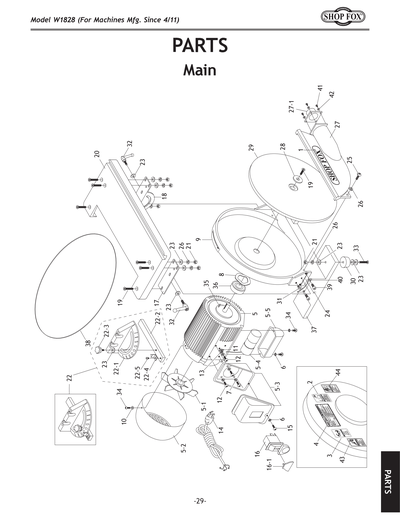

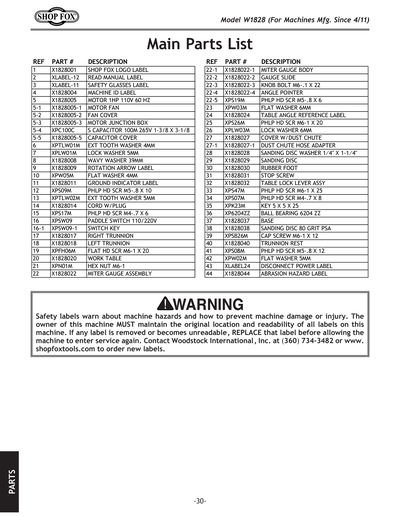

Parts for W1828 12" Disc Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SHOP FOX LOGO LABEL
2
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
3
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
4
MACHINE ID LABEL
5
MOTOR 1HP 110V 60 HZ
5-1
MOTOR FAN
5-2
FAN COVER
5-3
MOTOR JUNCTION BOX
5-4
S CAPACITOR 45M 300V 1-3/8 X 3-1/8
5-5
CAPACITOR COVER
Price
N/A
6
EXT TOOTH WASHER 4MM
Price
N/A
7
LOCK WASHER 5MM
Price
N/A
8
WAVY WASHER 39MM
9
ROTATION ARROW LABEL
10
Now: PW05M
FLAT WASHER 4MM
Price
N/A
11
GROUND INDICATOR LABEL
12
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
13
EXT TOOTH WASHER 5MM
Price
N/A
14
CORD W/PLUG
15
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
16
Now: D2751
Paddle Switch 125V/250V
Price
N/A
16-1
PADDLE SWITCH KEY
Price
N/A
17
RIGHT TRUNNION
18
LEFT TRUNNION
19
FLAT HD SCR M6-1 X 20
Price
N/A
20
WORK TABLE
21
Now: PN01M
HEX NUT M6-1
Price
N/A
22
MITER GAUGE ASSEMBLY
22-1
MITER GAUGE BODY
22-2
GAUGE SLIDE
22-3
KNOB BOLT M6-1 X 22
22-4
ANGLE POINTER
22-5
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
23
Now: PW03M
FLAT WASHER 6MM
Price
N/A
24
TABLE ANGLE REFERENCE LABEL
25
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
26
LOCK WASHER 6MM
Price
N/A
27
COVER W/DUST CHUTE
27-1
COVER W/DUST CHUTE
Price
N/A
28
SANDING DISC WASHER 1/4" X 1-1/4"
29
SANDING DISC
30
RUBBER FOOT
31
STOP SCREW
32
TABLE LOCK LEVER ASSY
33
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
34
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
35
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
36
BALL BEARING 6204ZZ
Price
N/A
37
BASE
38
SANDING DISC 80 GRIT PSA
39
CAP SCREW M6-1 X 12
Price
N/A
40
TRUNNION REST
41
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
42
Now: PW02M
FLAT WASHER 5MM
Price
N/A
43
DISCONNECT 110V 2W X 3.3H
Price
N/A
44
ABRASION HAZARD LABEL
MAN
MANUAL FOR W1828 05/11
PKG1
BOX FOR W1828
