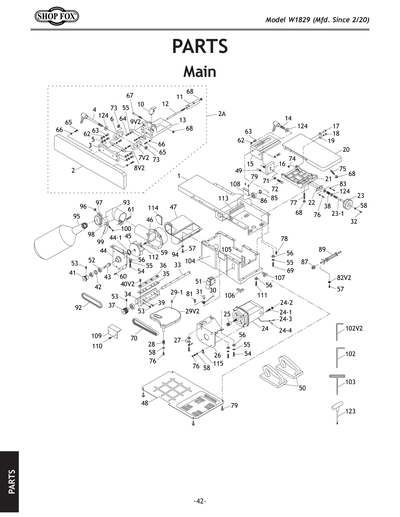

Parts for W1829 6" x 29" Benchtop Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

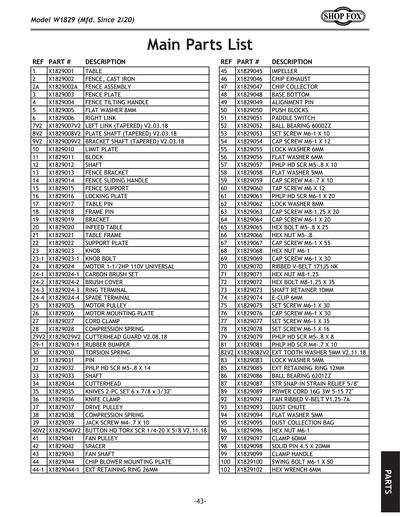

1
TABLE
Item is no longer available
Price
N/A
2
*DISCD*FENCE, CAST IRON V1
Item is no longer available
Price
N/A
2A
*DISCD*FENCE ASSEMBLY V1
Item is no longer available
Price
N/A
2AV2
FENCE ASSEMBLY V2.08.18
Item is no longer available
Price
N/A
2V2
FENCE, ALUMINUM V2.08.18
3
FENCE PLATE
3V2
FENCE PLATE V2.08.18
4
FENCE TILTING HANDLE
5
Now: PW01M
FLAT WASHER 8MM
Price
N/A
6
RIGHT LINK
7
LEFT LINK V1
7V2
LEFT LINK (TAPERED) V2.03.18
8
PLATE SHAFT V1
Item is no longer available
Price
N/A
8V2
PLATE SHAFT (TAPERED) V2.03.18
Item is no longer available
Price
N/A
9
BRACKET SHAFT V1
Item is no longer available
Price
N/A
9V2
BRACKET SHAFT (TAPERED) V2.03.18
Item is no longer available
Price
N/A
10
LIMIT PLATE
Item is no longer available
Price
N/A
11
BLOCK
12
SHAFT
13
FENCE BRACKET
14
FENCE SLIDING HANDLE
15
FENCE SUPPORT
16
LOCKING PLATE
17
TABLE PIN
18
FRAME PIN
19
BRACKET
20
INFEED TABLE
21
TABLE FRAME
22
SUPPORT PLATE
23
KNOB
23-1
KNOB BOLT
24
MOTOR 1-1/2HP 110V UNIVERSAL
24-1
CARBON BRUSH SET
24-2
BRUSH COVER
Item is no longer available
Price
N/A
24-3
RING TERMINAL
Item is no longer available
Price
N/A
24-4
SPADE TERMINAL
Item is no longer available
Price
N/A
25
MOTOR PULLEY
Item is no longer available
Price
N/A
26
MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
27
CORD CLAMP
Item is no longer available
Price
N/A
28
COMPRESSION SPRING
29
BLADE GUARD
29-1
RUBBER BUMPER
29V2
CUTTERHEAD GUARD V2.08.18
30
TORSION SPRING
31
PIN
33
SHAFT
Item is no longer available
Price
N/A
34
CUTTERHEAD
35
KNIVES 2-PC SET 6 x 7/8 x 3/32"
36
KNIFE CLAMP
37
DRIVE PULLEY
38
COMPRESSION SPRING
Item is no longer available
Price
N/A
39
JACK SCREW M4-.7 X 10
40
FLAT HD TORX SCR 1/4-20 X 5/8 V2.11.18
Price
N/A
40V2
FLAT HD TORX SCR 1/4-20 X 5/8 V2.11.18
41
FAN PULLEY
42
SPACER
43
FAN SHAFT
Item is no longer available
Price
N/A
44
CHIP BLOWER MOUNTING PLATE
44-1
Now: PR17M
EXT RETAINING RING 26MM
Price
N/A
45
IMPELLER
46
CHIP EXHAUST
47
CHIP COLLECTOR
48
BASE BOTTOM
49
ALIGNMENT PIN
50
PUSH BLOCKS
51
PADDLE SWITCH
Item is no longer available
Price
N/A
52
BALL BEARING 6000ZZ
Price
N/A
53
SET SCREW M6-1 X 10
Price
N/A
54
CAP SCREW M6-1 X 12
Price
N/A
55
LOCK WASHER 6MM
Price
N/A
56
Now: PW03M
FLAT WASHER 6MM
Price
N/A
57
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
58
Now: PW02M
FLAT WASHER 5MM
Price
N/A
59
CAP SCREW M4-.7 X 10
Price
N/A
60
TAP SCREW M6 X 12
61
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
62
LOCK WASHER 8MM
Price
N/A
62V2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
63
CAP SCREW M8-1.25 X 20
Price
N/A
63V2
CAP SCREW M8-1.25 X 25
Price
N/A
64
CAP SCREW M6-1 X 20
Price
N/A
65
Now: PB94M
HEX BOLT M5-.8 X 25
Price
N/A
66
Now: PN06M
HEX NUT M5-.8
Price
N/A
67
CAP SCREW M6-1 X 55
Price
N/A
68
Now: PN01M
HEX NUT M6-1
Price
N/A
69
CAP SCREW M6-1 X 30
Price
N/A
70
RIBBED V-BELT 171J5 NK
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
72
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
73
SHAFT RETAINER M10
74
E-CLIP 6MM
Price
N/A
75
SET SCREW M6-1 X 30
Price
N/A
76
CAP SCREW M6-1 X 30
Price
N/A
77
SET SCREW M6-1 X 35
Price
N/A
78
SET SCREW M6-1 X 16
Price
N/A
79
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
81
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
82
EXT TOOTH WASHER 4MM
Price
N/A
83
LOCK WASHER 5MM
Price
N/A
84
WIRE NUT
Item is no longer available
Price
N/A
85
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
86
BALL BEARING 6201ZZ
Price
N/A
87
STR SNAP-IN STRAIN RELIEF 5/8"
89
POWER CORD 16G 3W 5-15 72"
90
SPADE TERMINAL
Item is no longer available
Price
N/A
91
RING TERMINAL
Item is no longer available
Price
N/A
92
FAN RIBBED V-BELT V1.25-7A
93
DUST PORT
94
Now: PW02M
FLAT WASHER 5MM
Price
N/A
95
DUST COLLECTION BAG
96
Now: PN01M
HEX NUT M6-1
Price
N/A
97
CLAMP 60MM
98
SOLID PIN 4.5 X 20MM
99
CLAMP HANDLE
100
SWING BOLT M6-1 X 50
Item is no longer available
Price
N/A
102
HEX WRENCH 6MM
Price
N/A
102V2
HEX WRENCH 5MM
Price
N/A
103
HEX WRENCH 4MM
Price
N/A
104
BASE
105
SWITCH MOUNTING PLATE
Item is no longer available
Price
N/A
106
RIGHT RUBBER FOOT
107
RUBBER FOOT (LEFT)
Price
N/A
108
GUARD PLATE
Item is no longer available
Price
N/A
109
CUTTERHEAD COVER
110
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
111
CAP SCREW M6-1 X 8
Price
N/A
112
FENDER WASHER 5MM
113
INFEED TABLE SUPPORT ARM
Item is no longer available
Price
N/A
114
CHIP COLLECTOR COVER PLATE
115
WIRE RESTRAINT
Item is no longer available
Price
N/A
116

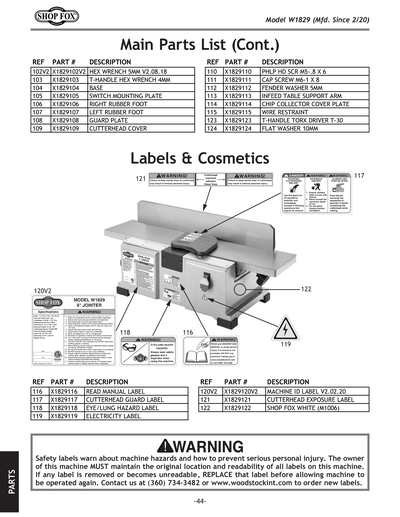

READ MANUAL 2.8W X 1.5H
Price
N/A
117
CUTTERHEAD GUARD LABEL
Item is no longer available
Price
N/A
118
EAR PROTECTION/RESPIRATOR 2.8W X 1.5H
Price
N/A
119
ELECTRICITY 1.4W X 1.2H
Price
N/A
120
MACHINE ID LABEL
Item is no longer available
Price
N/A
120V2
MACHINE ID LABEL V2.02.20
Item is no longer available
Price
N/A
121
CUTTERHEAD EXPOSURE LABEL
122
SHOP FOX OFF WHITE REF G9970 G9971
Price
N/A
123
T-HANDLE TORX DRIVER T-30
Item is no longer available
Price
N/A
MAN
MANUAL W1829 MFG 09/11 09/11
MANV2
MANUAL W1829 MFD-03.18-01.20 V2.02.18
Item is no longer available
Price
N/A
MANV3
MANUAL W1829 MFD-02.20+ V3.03.20
Item is no longer available
Price
N/A
PKG2
STYROFOAM FOR W1829
Item is no longer available
Price
N/A
