Parts for W1831 - 1/2 HP Benchtop Oscillating Spindle Sander

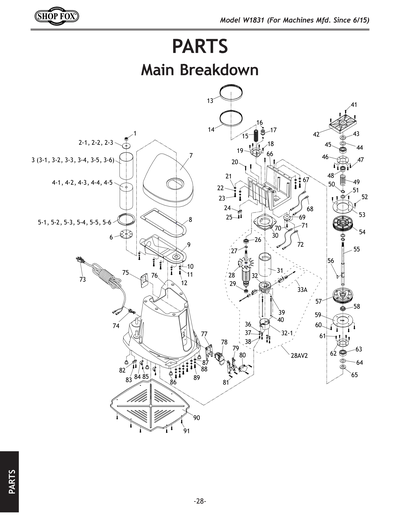

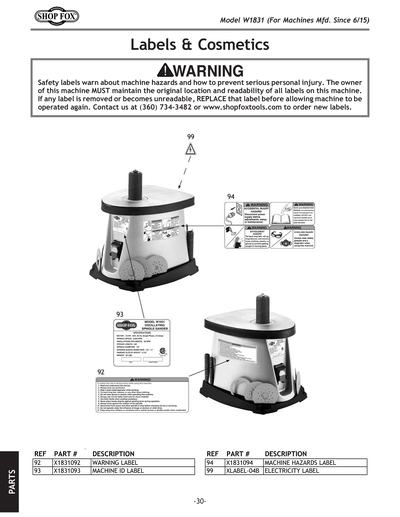

Part Diagram for W1831
Part Diagram for W1831
Part Diagram for W1831
Part Diagram for W1831
Part Diagram for W1831
Part Diagram for W1831

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

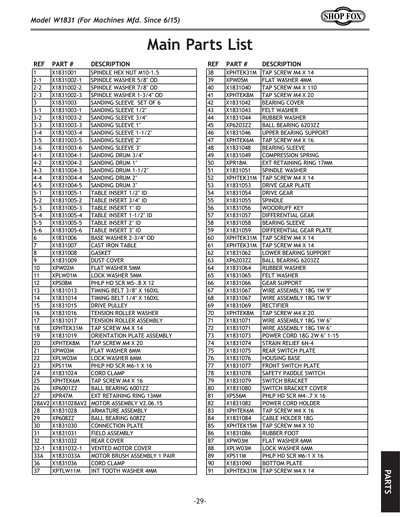

Ref #
Part #
Description
1
SPINDLE HEX NUT M10-1.5
Price
$1.90
2
SPINDLE WASHER SET OF 3
Price
N/A
2-1
SPINDLE WASHER SET OF 3
Price
N/A
2-2
SPINDLE WASHER SET OF 3
Price
N/A
2-3
SPINDLE WASHER SET OF 3
Price
N/A
3
SANDING SLEEVE SET OF 6
Price
$14.75
3-1
Price
$1.90
3-2
Price
$1.90
3-3
Price
$1.90
3-4
SANDING SLEEVE 1-1/2", 80-GRIT
Price
N/A
3-5
Price
$2.35
3-6
Price
$2.65
4-1
Price
$4.35
4-2
Price
$6.90
4-3
Price
$3.25
4-4
Price
$5.90
4-5
Price
$10.00
5
Price
$16.70
5-1
Price
$1.49
5-2
Price
$2.05
5-3
TABLE INSERT SET OF 6
Price
N/A
5-4
TABLE INSERT SET OF 6
Price
N/A
5-5
Price
$2.50
5-6
Price
$2.50
6
BASE WASHER 2-3/4" OD
Price
N/A
7
Price
$50.70
8
Price
$1.90
9
DUST COVER
Price
N/A
10
FLAT WASHER 5MM
Price
N/A
11
LOCK WASHER 5MM
Price
N/A
12
PHLP HD SCR M5-.8 X 12
Price
N/A
13
TIMING BELT 3/8" X 160XL
Price
$2.60
14
TIMING BELT 1/4" X 160XL
Price
$1.90
15
DRIVE PULLEY
Price
N/A
16
Price
$1.90
17
TENSION ROLLER ASSEMBLY
Price
N/A
18
TAP SCREW M4 X 14
Price
N/A
19
ORIENTATION PLATE ASSEMBLY
Price
N/A
20
TAP SCREW M4 X 20
Price
N/A
21
FLAT WASHER 6MM
Price
N/A
22
LOCK WASHER 6MM
Price
N/A
23
PHLP HD SCR M6-1 X 16
Price
N/A
24
CORD CLAMP
Price
N/A
25
TAP SCREW M4 X 16
Price
N/A
26
BALL BEARING 6001ZZ
Price
N/A
27
EXT RETAINING RING 13MM
Price
N/A
28
ARMATURE ASSEMBLY
Price
N/A
28A
MOTOR ASSEMBLY V2.06.15
Price
N/A
28AV2
MOTOR ASSEMBLY V2.06.15
Price
$88.45
29
Bearing - 22mm x 8mm
Price
N/A
30
Price
$2.25
31
Price
$5.45
32
Price
$2.60
32-1
VENTED MOTOR COVER
Price
N/A
33A
MOTOR BRUSH ASSEMBLY 2 SETS
Price
N/A
34
SPINDLE ARBOR WRENCH 16MM
Price
$3.15
36
CORD CLAMP
Price
N/A
37
INT TOOTH WASHER 4MM
Price
N/A
38
TAP SCREW M4 X 14
Price
N/A
39
FLAT WASHER 4MM
Price
N/A
40
TAP SCREW M4 X 110
Price
N/A
41
TAP SCREW M4 X 20
Price
N/A
42
BEARING COVER
Price
N/A
43
FELT WASHER
Price
N/A
44
RUBBER WASHER
Price
N/A
45
BALL BEARING 6203ZZ
Price
N/A
46
UPPER BEARING SUPPORT
Price
N/A
47
TAP SCREW M4 X 16
Price
N/A
48
BEARING SLEEVE
Price
N/A
49
Price
$1.90
50
EXT RETAINING RING 17MM
Price
N/A
51
Price
$1.90
52
TAP SCREW M4 X 14
Price
N/A
53
DRIVE GEAR PLATE
Price
N/A
54
Price
$4.00
55
Price
$11.40
56
WOODRUFF KEY
Price
N/A
57
Price
$3.75
58
BEARING SLEEVE
Price
N/A
59
DIFFERENTIAL GEAR PLATE
Price
N/A
60
TAP SCREW M4 X 14
Price
N/A
61
TAP SCREW M4 X 14
Price
N/A
62
LOWER BEARING SUPPORT
Price
N/A
63
BALL BEARING 6203ZZ
Price
N/A
64
RUBBER WASHER
Price
N/A
65
FELT WASHER
Price
N/A
66
Price
$23.25
67
WIRE ASSEMBLY 18 G 1W 2-PC
Price
N/A
68
***USE P0739067A***
Price
N/A
69
Price
$4.35
70
TAP SCREW M4 X 20
Price
N/A
71
WIRE ASSEMBLY 18G 1W 6"
Price
$1.90
72
WIRE ASSEMBLY 18G 1W 6"
Price
N/A
73
POWER CORD 18G 2W 6" 1-15
Price
N/A
74
STRAIN RELIEF 6N-4
Price
N/A
75
REAR SWITCH PLATE
Price
N/A
76
HOUSING BASE
Price
N/A
77
Price
$1.90
78
Price
$2.60
79
Price
$1.90
80
Price
$1.90
81
PHLP HD SCR M4-.7 X 16
Price
N/A
82
POWER CORD HOLDER
Price
N/A
83
TAP SCREW M4 X 16
Price
N/A
84
CABLE HOLDER 18G
Price
N/A
85
TAP SCREW M4 X 10
Price
N/A
86
Price
$1.90
87
FLAT WASHER 6MM
Price
N/A
88
LOCK WASHER 6MM
Price
N/A
89
PHLP HD SCR M6-1 X 16
Price
N/A
90
Price
$12.25
91
TAP SCREW M4 X 14
Price
N/A
92
Price
$1.15
93
Price
$16.40
94
Price
$1.15
99
ELECTRICITY 0.5W X 0.4H
Price
N/A
PKG1
Price
$12.40
